Intel® Coffee Lake-H Core™ Processor based on Type VI COM Express module with dual DDR4 SO-DIMM, DDI, LVDS, Gigabit Ethernet, SATA III, and USB 3.1 Gen2


  • Intel® Xeon®E/Core™ i7/i5/i3 Processors 14nm process(Coffee Lake-H)
  • Support 2x DDR4-2666 Non-ECC/ECC SO-DIMMs, up to 2x 16GB
  • Support USB2.0/3.1 Gen2, 4x SATAIII, 1x PCIe 3.0 x16, and 8x PCIe 3.0 x1
  • Support LVDS, and 3x Display port/HDMI®

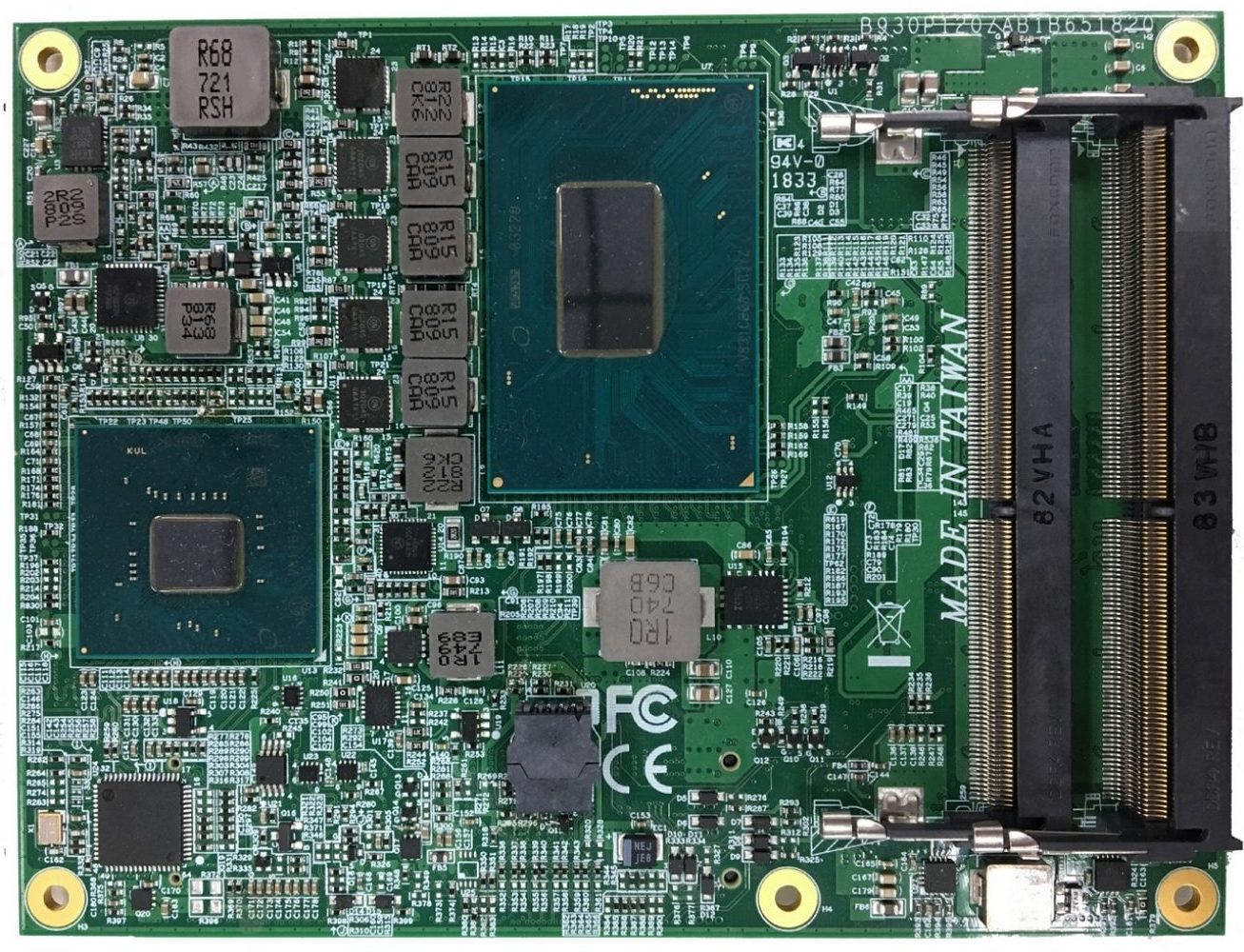

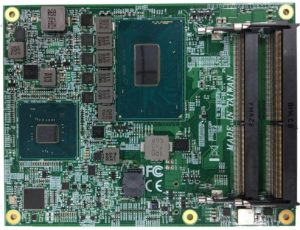

PCOM-B651VGL is Intel® Coffee Lake-H platform COM Express module. It is compatible with COMe 3.0 Type 6 carrier board. The 8th Generation Intel® Core™ processor family is able to fulfill the applications demand on high proformance. This module supports both ECC and Non-ECC DDR4 memory by different PCH SKUs(QM370/CM246). Customers have various models to meet different requirements in cost, performance, and memory type. PCOM-B651VGL provides one PCIex16, eight PCIex1 (Option to one PCIex4), four USB 3.1 Gen2, and four SATA III.


Model Name PCOM-B651VGL
Form Factor (mm) COM Express®Basic (125 x 95mm)
COM Type Type 6
CPU/ Clock/ Cache Intel® 8thGeneration Core™ E-2176M*
Intel® i7-8850H
Intel® i5-8400H
Intel® i3-8100H
Up to 6 CPU cores*
6MB to 12MB cache*
Chipset QM370/CM246
Memory DDR4 2666MT/s*
Dual Channel*
USB 4x USB 3.1 Gen2
8x USB 2.0
PCI Express 1x PCIe 3.0 x16
8x PCIe 3.0 x1
Ethernet Intel® I210IT
Sound Intel® High Definition Audio
Graphic Controller Intel® UHD Graphics P630*
Intel® UHD Graphics 630*
Carrier Board PCOM-C60B (Type 6)

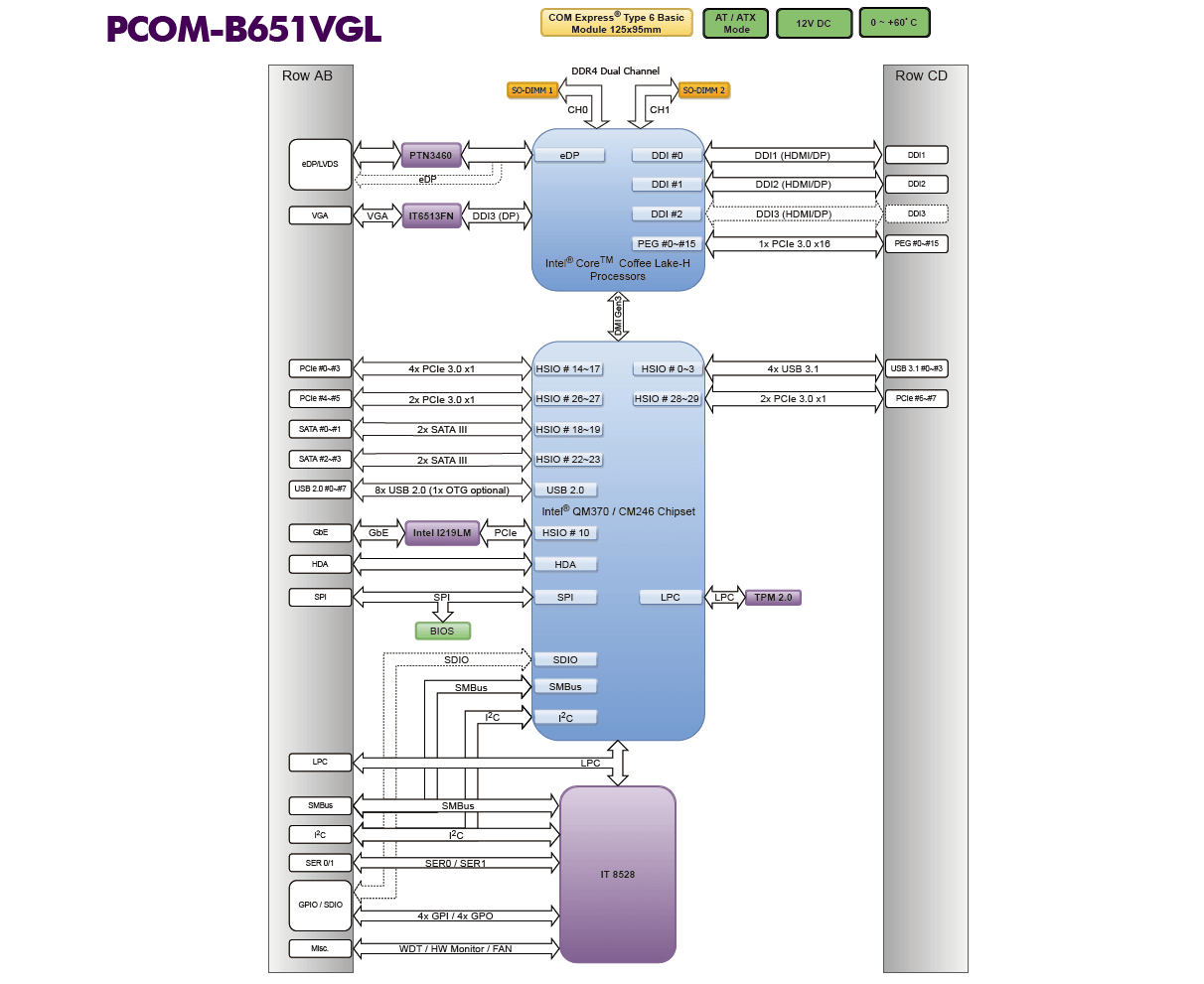

Block Diagram

Ordering Guide

Ordering Guide
Product Ordering P/N Status
PCOM-B651VGL-2176M AB1-3J55Z Contact us
PCOM-B651VGL-8850H AB1-3J08Z Contact us
PCOM-B651VGL-8400H AB1-3J09Z Contact us
PCOM-B651VGL-8100H AB1-3J54Z Contact us


Accessory Ordering P/N Status
PCOM-C605(Mini-ITX Carrier Board) AB1-3998 Available
PCOM-C60B(ATX Carrier Board) AB1-3G22Z Contact us
Cooler B9971840 Available


(Documents & Downloads)

  Catalog   PCOM-B651VGL | Catalog    March 30, 2021
868.28 KB 2005 Downloads
