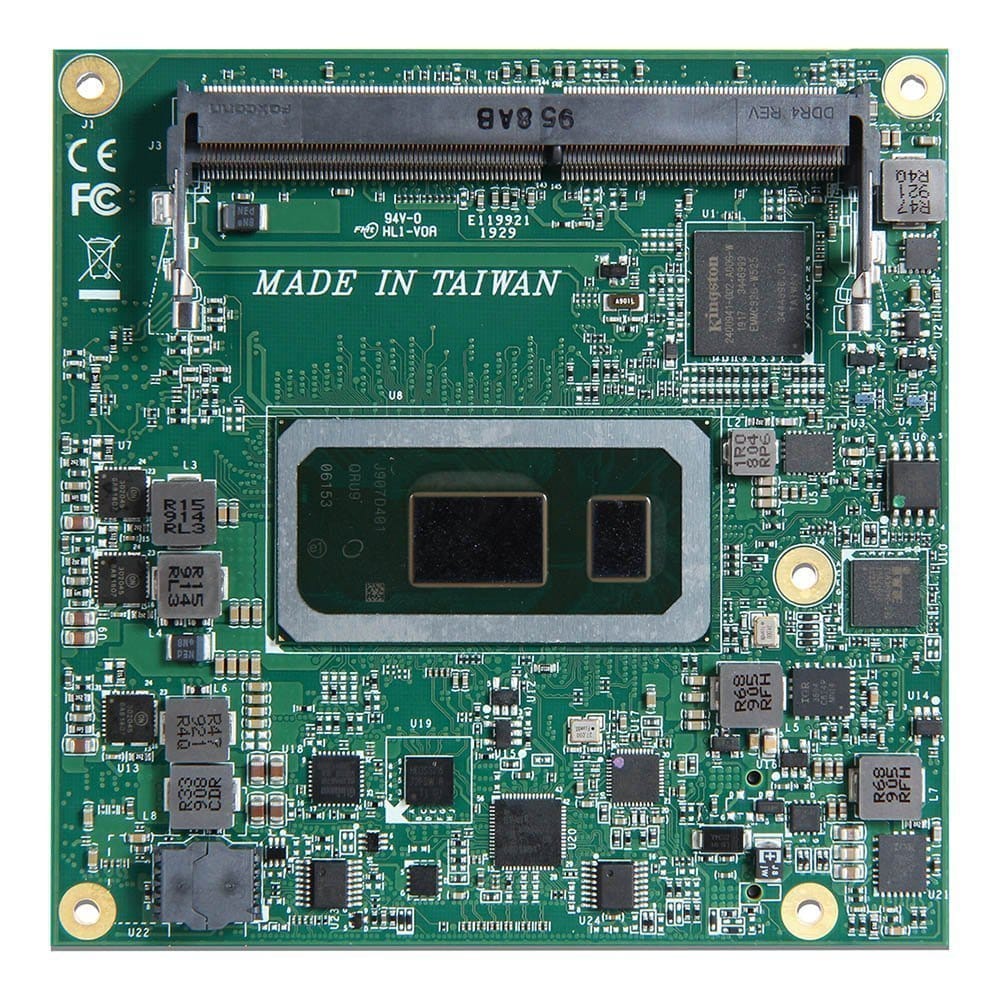

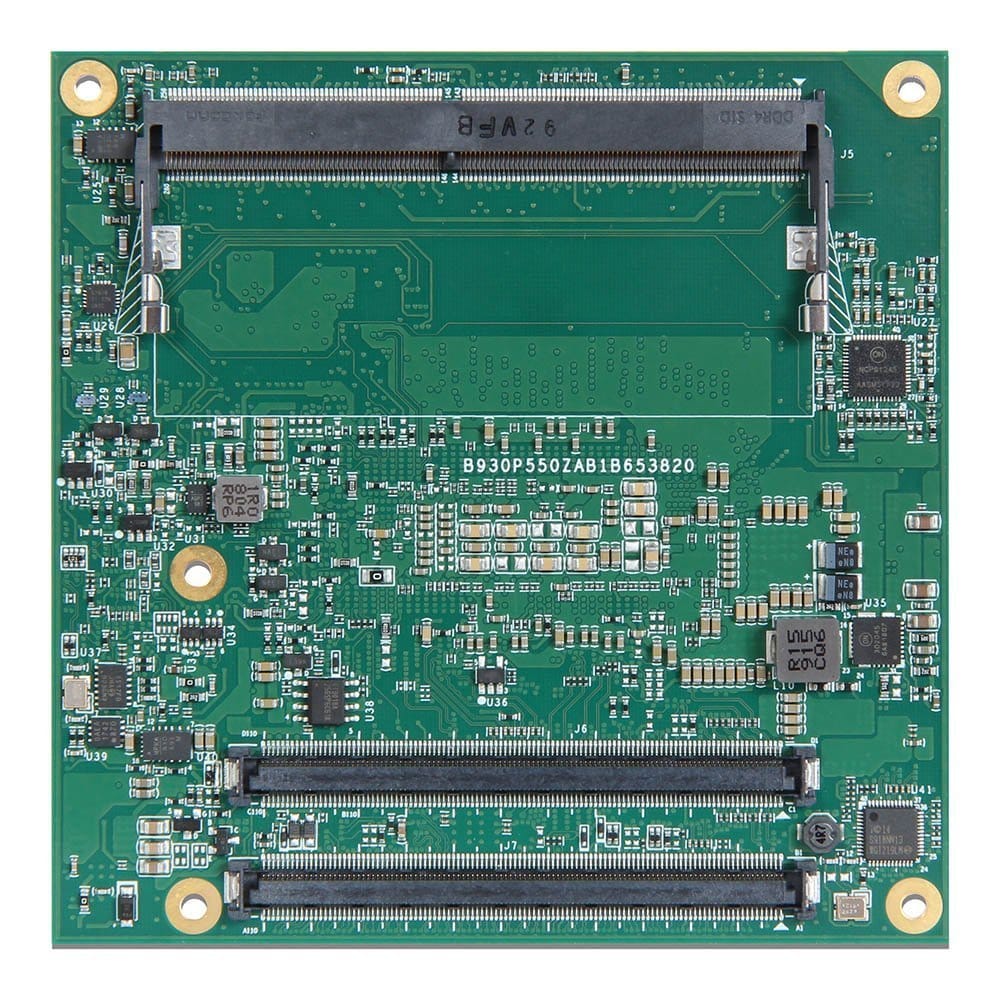

PCOM-B653VGL

Intel® Core™ Whiskey Lake-U i7/i5/i3 series processor based on Type 6 Compact COM-Express® module with 2x DDR4 SD-DIMM Socket

Features

  • Intel® CoreTM i3/i5/i7/Celeron Processors 14nm process(Whiskey Lake U)
  • Support 2xDDR4-2400 Non-ECC SO-DIMMs, up to 32G
  • Support USB2.0/3.1, 2x SATAIII, 10x PCIe 3.0 LANEs
  • Support VGA, LVDS/eDP, and Display port

Description

PCOM-B653VGL, a type 6 compact COM Express® (95 x 95 mm) module which based on Intel® Whiskey Lake-U® i7/i5/i3 and Celeron® processors. In this architecture, PCOM-B653VGL could support VGA, LVDS, HDMI®, eDP and DP displays, and turbo mode up to 4.4GHz. And its expandability I/O interfaces will include 5x PCIe 3.0 x 1, 4x USB 3.2 Gen2, 8x USB 2.0, and 2x SATA III devices. With this ultra low power consumption design (15W), PCOM-B638VG could provide a very energy saving solution to the different vertical market, seems like automation, healthcare, transportation and retails.

Specification

Specifications
Model Name PCOM-B653VGL
Form Factor (mm) Compact (95 x 95mm)
COM Type Type 6
CPU/ Clock/ Cache Intel® Core™ i7-8665U Intel® Core™ i5-8365U Intel® Core™ i3-8145U Intel® Celeron® Processor 4305U 3.90 GHz to 4.40 GHz (Turbo) 2MB to 8MB cache
Chipset SoC
Graphic Controller Intel® HD Graphics 610 Intel® HD Graphics 620
Memory DDR4 SO-DIMM up to 32GB 2400 MT/s Non-ECC Dual Channel
Storage 2x SATA III
USB 4x USB 3.2 Gen2 8x USB 2.0(Option 1x OTG)
PEG 4x PCIe 3.0 x 1
PCI Express 5x PCIe 3.0 x 1 1x PCIe 3.0 x 1(Option)
Ethernet 1x Gigabit Ethernet Intel® I219LM
Audio Intel® High Definition Audio
Operating Temperature 0C° to 60°C
Carrier Board PCOM-C605 (Mini-ITX) PCOM-C60B (ATX)

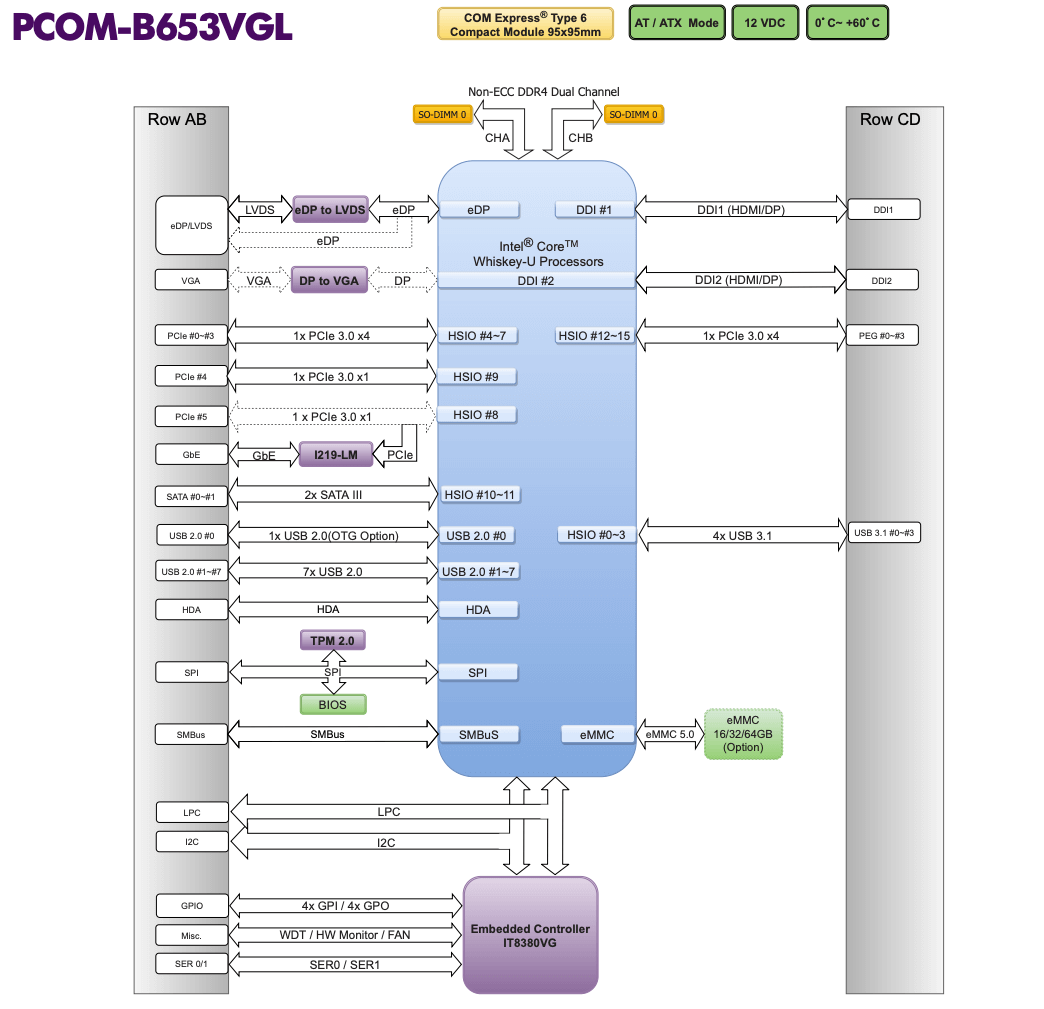

Block Diagram

Ordering Guide

Ordering Guide
Product Ordering P/N Status
PCOM-B653VGL-8665UE AB1-3E39 Availabl
PCOM-B653VGL-8365UE AB1-3E38 Availabl
PCOM-B653VGL-8145UE AB1-3E32 Availabl
PCOM-B653VGL-4305UE AB1-3E77 Availabl

Accessory

Accessory
Accessory Ordering P/N Status
Cooler B9971821 Availabl
Heat Sink TBD Contact us
Heat Spreader B830A560 Available
PCOM-C605(Min-ITX Carrier board) AB1-3998 Available
PCOM-C60B(ATX Carrier board) AB1-3G22Z Contact us

Support

(Documents & Downloads)

  Catalog   PCOM-B653VGL | Catalog 20220221   March 30, 2021

Intel® CoreTM Whiskey Lake-U i7/i5/i3 series processor based on Type 6 Compact COM-Express® module with 2x DDR4 SD-DIMM Socket

746.63 KB 4007 Downloads
      BIOS   BIOS_PCOM-B653VGL-8665UE_0_0_13.zip | BIOS 0.0.13   January 5, 2022

    Components EOL, version revision(Support 8665UE, 8365UE, 8145UE, 4305UE )

    8.4 MB 1872 Downloads
        EC   EC_PCOM-B653VGL-8665UE_00116T00.zip | EC 00116T00   January 5, 2022

      Components EOL, version revision(Support 8665UE, 8365UE, 8145UE, 4305UE)

      27.4 KB 1775 Downloads
          Driver   Driver_PCOM-B653VGL_ME_1909.12.0.1236|Driver 1909.12.0.1236   February 26, 2020

        For Win10 64bit ME driver

        300.66 MB 716 Downloads
          Driver   Driver_PCOM-B653VGL_Ethernet_12.18.8.9|Driver 12.18.8.9   February 26, 2020

        For Win10 64bit Ethernet driver

        581.35 MB 692 Downloads
          Driver   Driver_PCOM-B653VGL_Graphic_100.7158|Driver 100.7158   February 26, 2020

        For Win10 64bit Graphic driver

        343.24 MB 667 Downloads
          Driver   Driver_PCOM-B653VGL_Chipset_10.1.18019.8144|Driver 10.1.18019.8144   February 26, 2020

        For Win10 64bit chipset driver

        3.19 MB 785 Downloads
            User’s Manual   Manual_PCOM-B653VGL_R2.0.pdf | User’s Manual | Manual 2.0   June 4, 2020

          User’s manual

          3.88 MB 787 Downloads
