PCOM-B656VGL

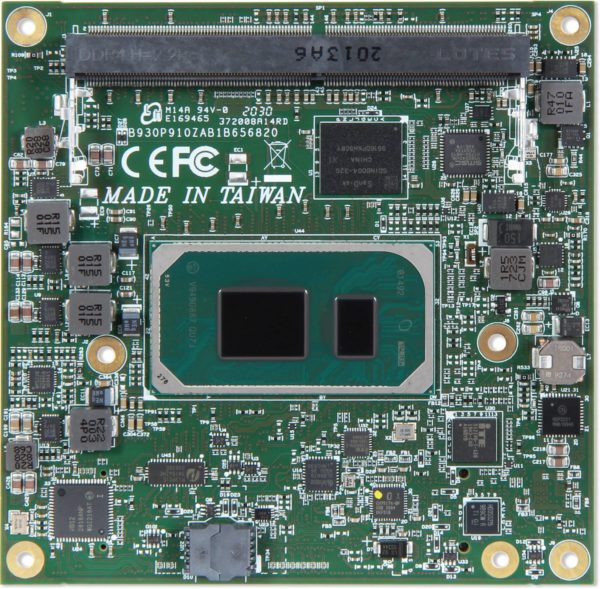

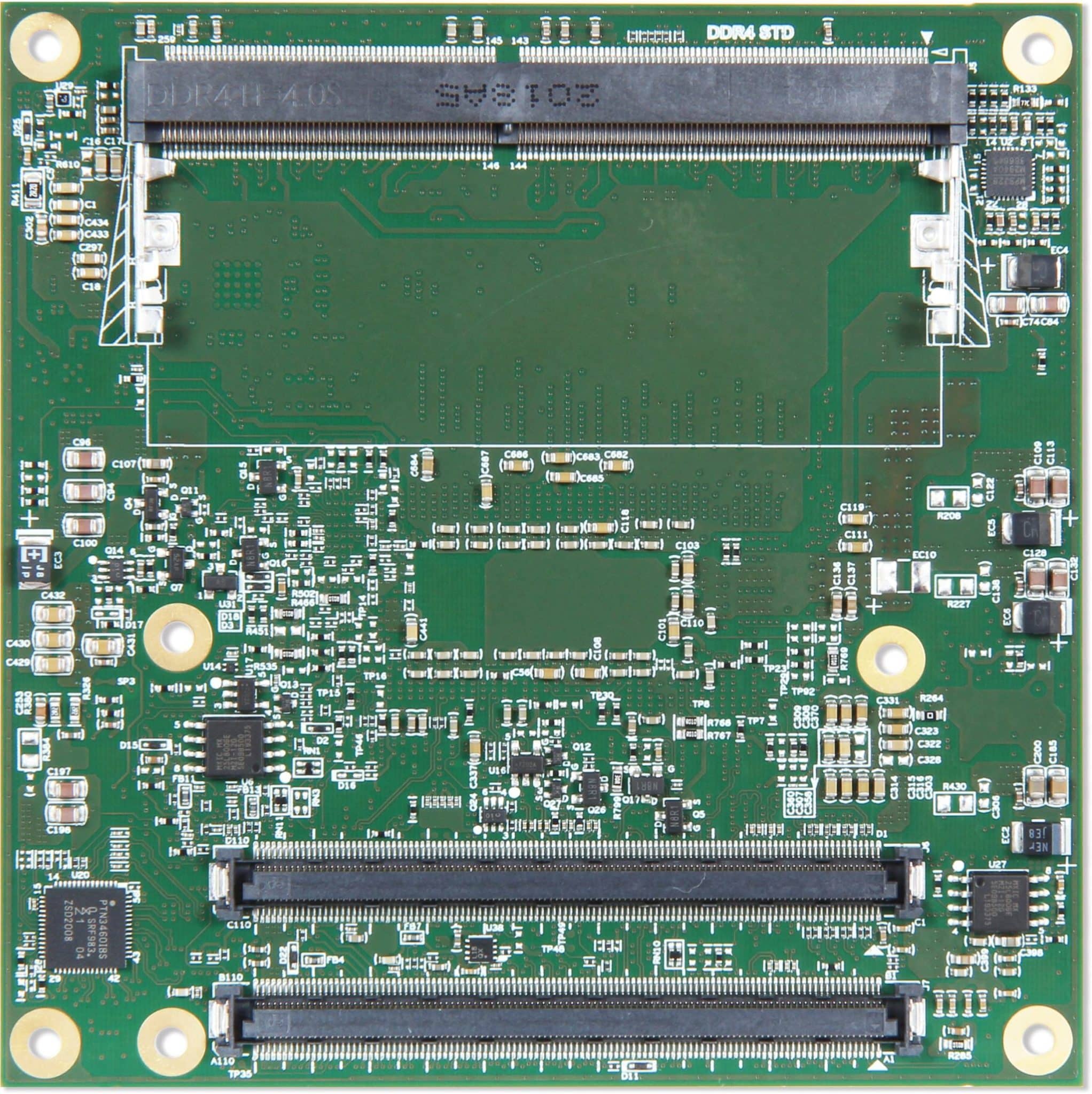

Intel^® Tiger Lake-UP3 Core™ Processor based on Type VI COM Express module with dual DDR4 SO-DIMM, DDI, eDP, Gigabit Ethernet, SATA 3.0, and USB 3.2

Features

Intel^® Core™ i3/i5/i7/Celeron Processors 10nm process(Tiger Lake UP3)
Support 2xDDR4-3200 Non-ECC SO-DIMMs, up to 32G per DIMM
Support USB2.0/3.2, 2x SATAIII, 1x PCIe4.0 x4 and 5x PCIe 3.0 LANEs
Support Display Port, HDMI^®, VGA, and LVDS/eDP

Download

Description

Portwell PCOM-B656VGL is designed with Intel^® Tiger Lake-UP3 processor with Type 6 pin definition. It brings three important factors including DDR4 memory, PCIe Gen4, and USB 3.2 Gen2 x1 support. Extend PCIe Gen3 ports in PCOM-B656VGL can support high speed I/O card for more applications. In the meantime, it’s compatible with COMe 3.0 Type 6 carrier board.

Specification

Specifications
Model Name	PCOM-B656VGL
Form Factor (mm)	COM Express^® Compact (95 x 95mm)
COM Type	Type 6
CPU/Clock/Cache	Intel^® 11^th Generation Core^TM* Intel^® i7-1185GRE/i7-1185G7E Intel^® i5-1145GRE/i5-1145G7E Intel^®i3-1115GRE/i3-1115G4E Celeron^® 6305E* Up to 4 CPU cores* 4MB to 12MB cache*
Chipset	SoC
Memory	DDR4 SO-DIMM
USB	4x USB 3.2 Gen2x1 8x USB 2.0
PCI Express	1x PCIe Gen3 x4/2x PCIe Gen3 x2/4x PCIe Gen3 x1/1x PCIe Gen3 x2 + 2x PCIe Gen3 x1 1x PCIe Gen3 x1 for Intel I225 Lan 1x PCIe Gen3 x2/2 x PCIe Gen3 x1 w/o USB 3.2
Ethernet	Intel^® I225LM/IT
Sound	Intel^® High Definition Audio
Graphic Controller	Intel Iris
Carrier Board	PCOM-C60B

Block Diagram
