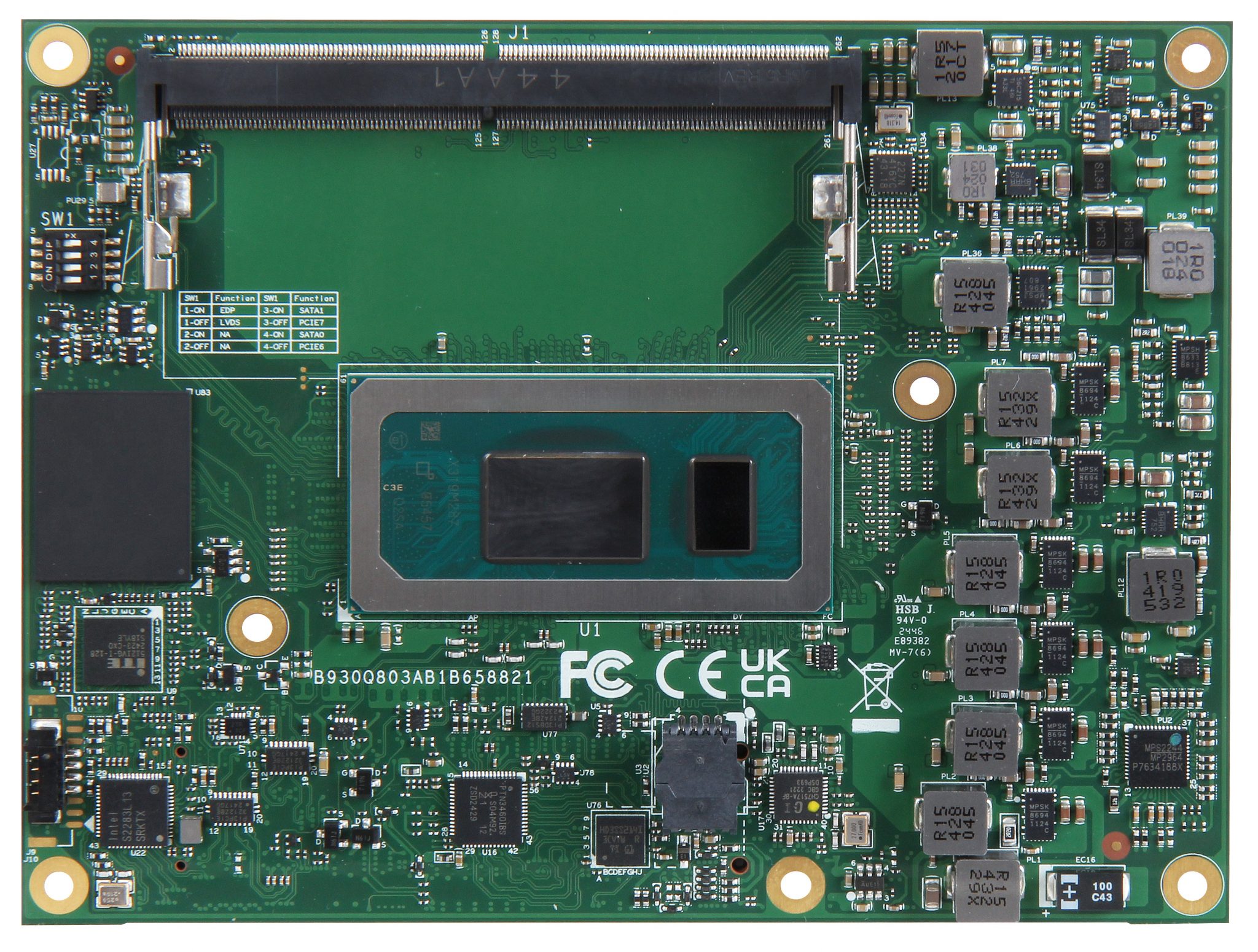

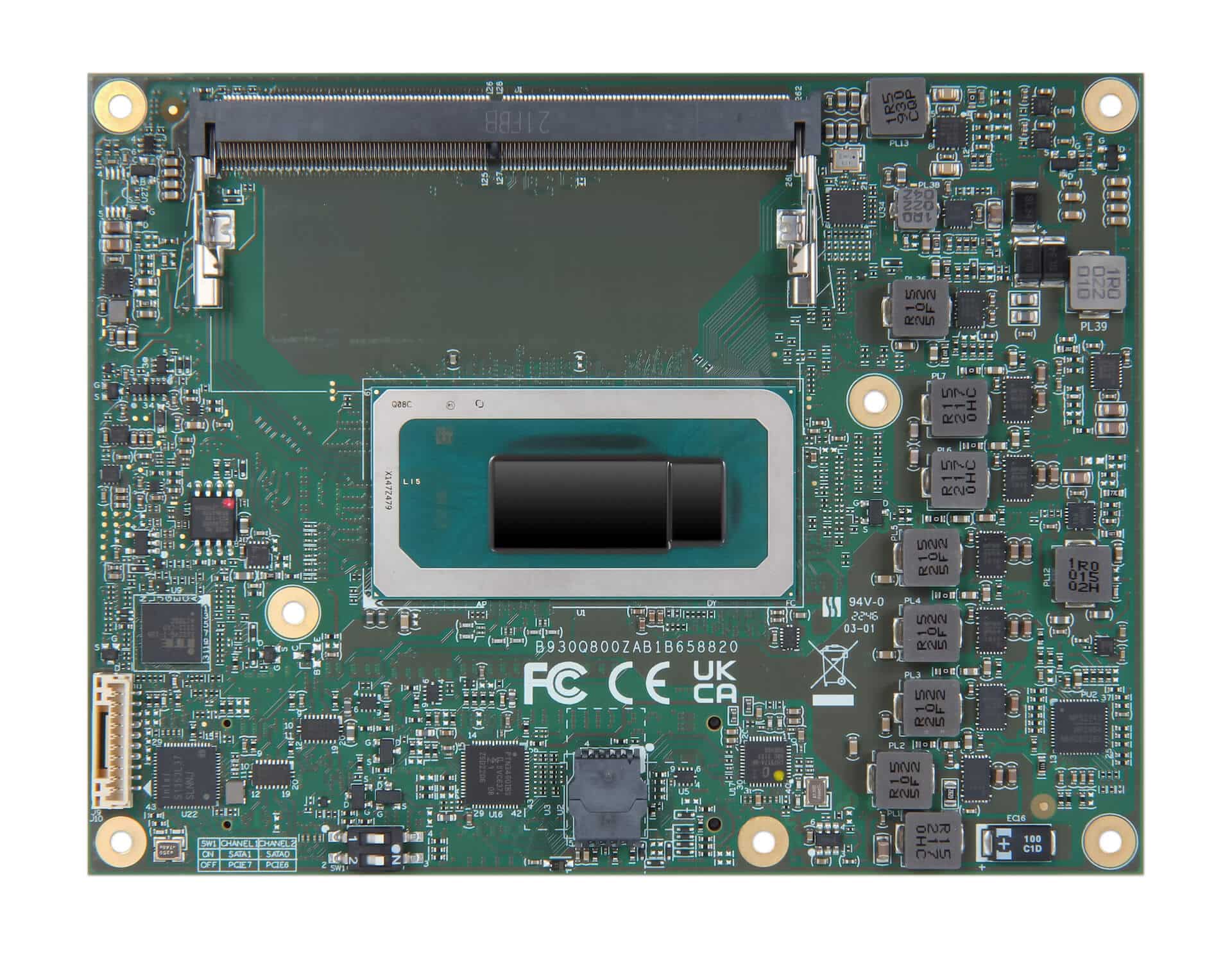

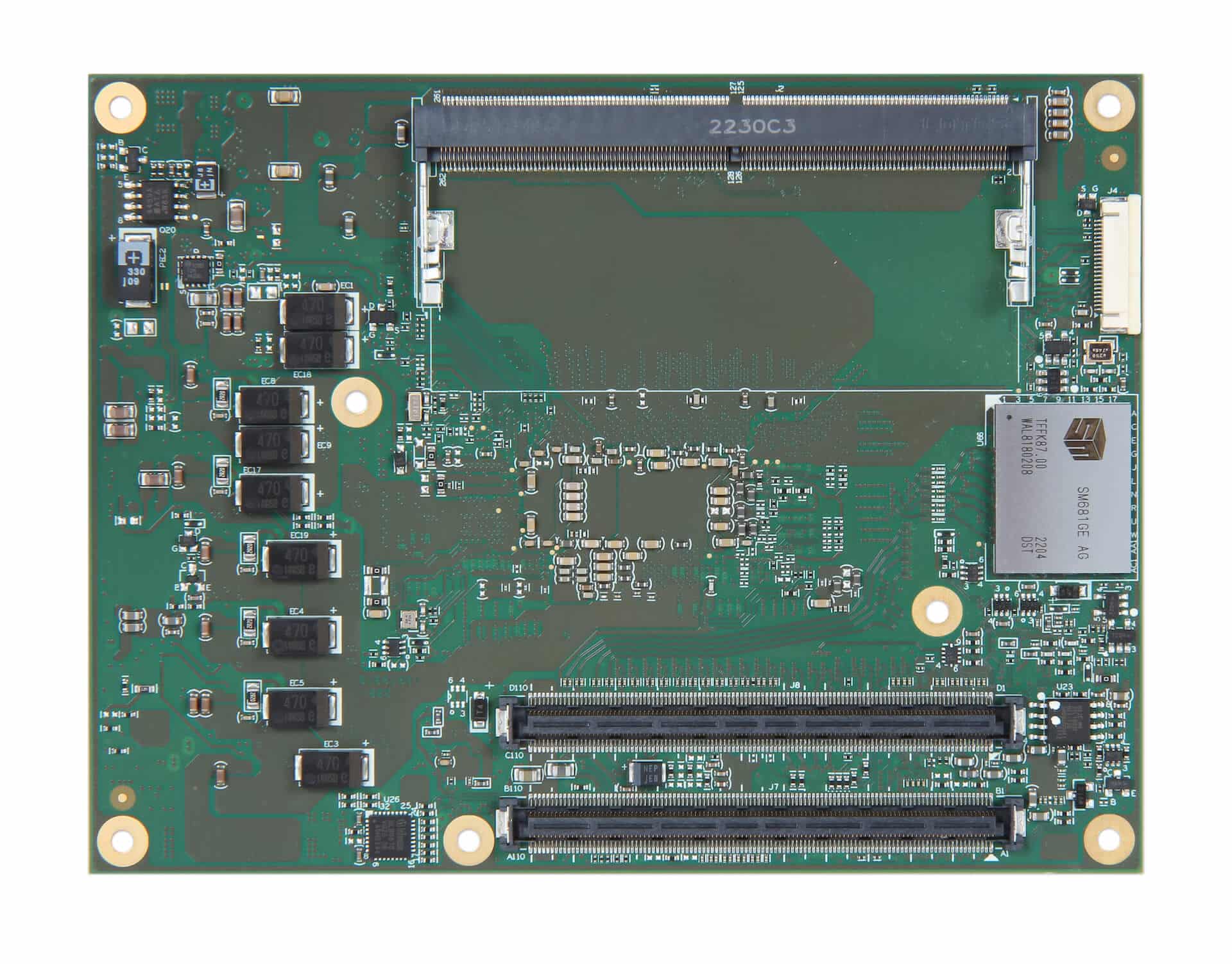

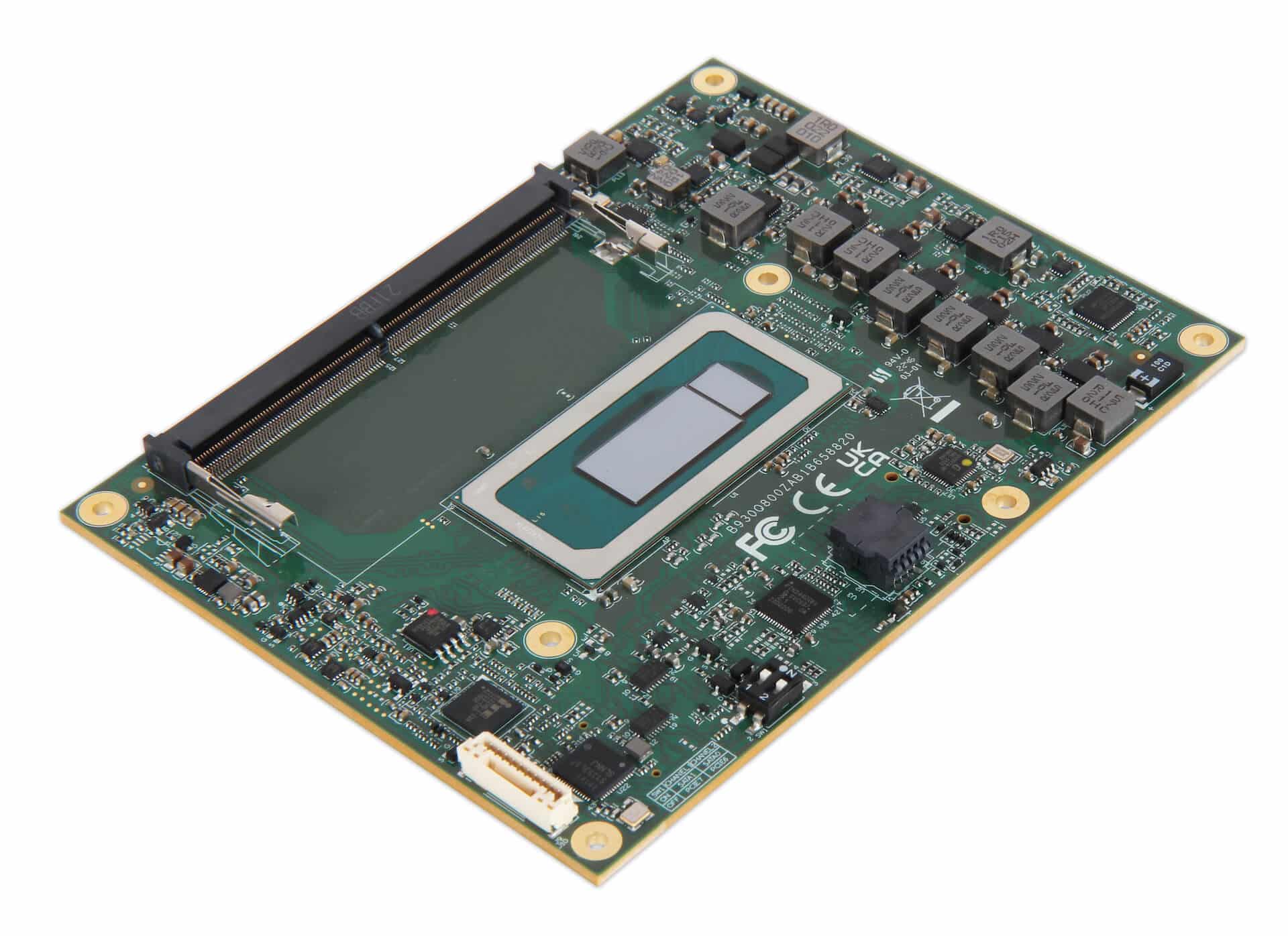

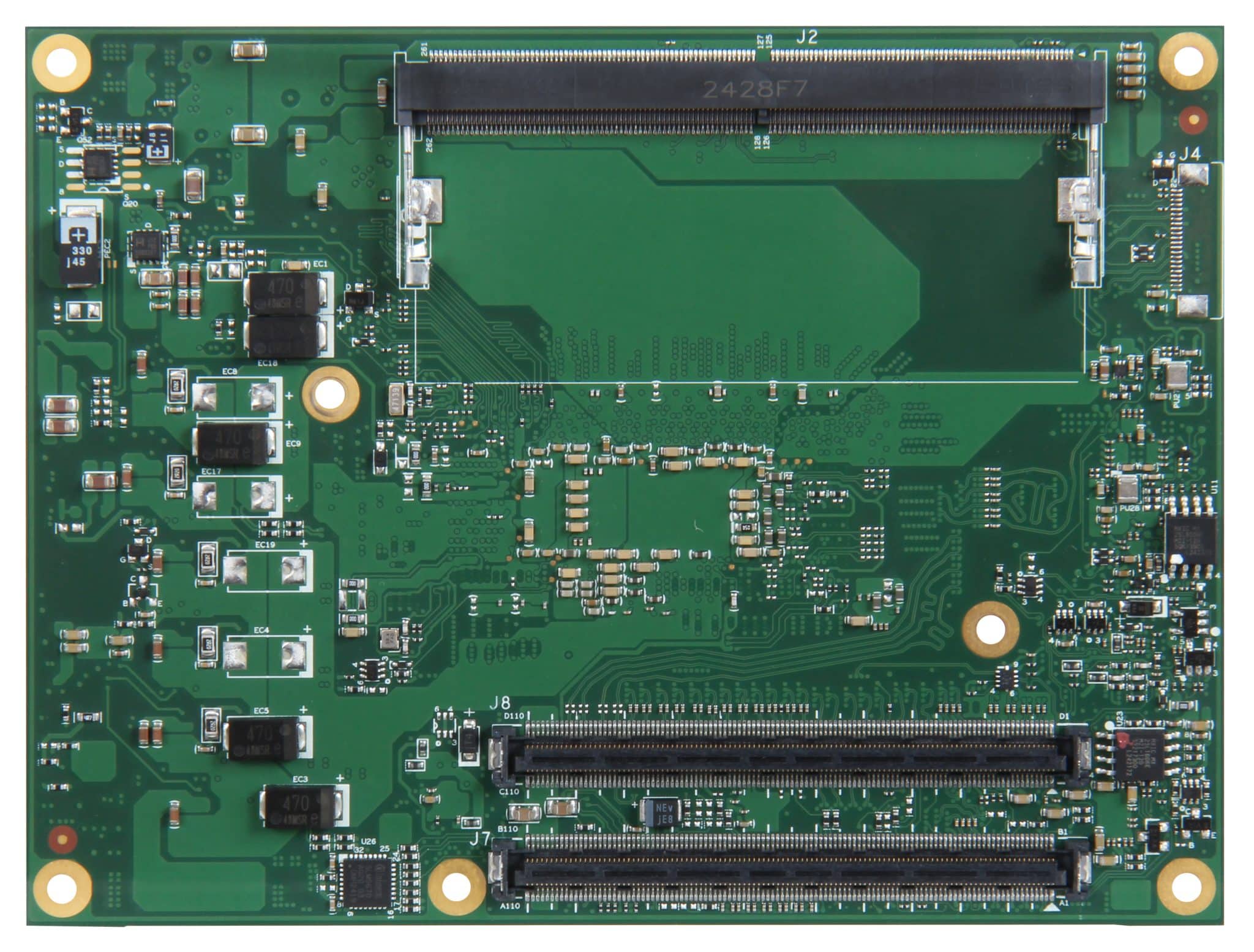

PCOM-B658VGL

COM Express Type6 Basic size module with Intel® 13th Gen H/P/U Processor DDR5 SO-DIMM, DDI, PCIe Gen 4, USB 3.2 Gen2, 2.5Gb Ethernet, discrete TPM 2.0, eDP, SATA

Features

  • 13th Gen Intel® Core™ , Celeron® Series processors in Intel 7 lithography
  • Up to 6x performance core +8x efficient core, and up to 96x graphic execution units
  • 2x DDR5-5200 non-ECC SO-DIMMs up to 96GB, 1x PCIe Gen4 x8(H series), 2x Gen4 x4
  • Options for Industrial Temperature Range -40°C up to +85°C Options for onboard PCIe NVMe SSD

Video

Play Video

Description

PCOM-B658VGL is COM Express module based on Intel® 13th Gen H/P/U platform. It is compatible with COM Express Rev3.1 standard. The platform adopts Intel 7 lithography and VNNI instruction set, offers advance computing power with 15~45W thermal and embedded use condition for wide range application. PCOM-B658VGL supports PCIe Gen4 lanes, and 2x Non-ECC DDR5 SO-DIMM, which is suit for mission critical use conditions and AI edge computing. This module also provides (up to) 7x PCIe Gen3 x1 lanes, 2x optional USB4(alternative with DDI), 4x USB 3.2 Gen 2, and 2x SATA III. The complete and flexible I/O capacity also mapped to wide range of embedded/industrial applications.

Specification

Specifications
General
Product PCOM-B658VGL
Form Factor COM Express Type6 Basic Size (125 X 95mm)
CPU Series H series P series U series
Cores P+E/Threads Up to 6P + 8E/20T Up to 6P + 8E/16T Up to 2P + 8E/12T
Frequency 2.1 ~ 2.7 GHz 1.7 ~ 1.9 GHz 1.1 ~ 1.7 GHz
Turbo Frequency Up to 5.0 GHz Up to 4.8 GHz Up to 4.9 GHz
Intel® Smart Cache Up to 24 MB Up to 24 MB Up to 12 MB
Intel® Gfx EU Up to 96 EU Up to 96 EU Up to 96 EU
Graphics Max Freq. Up to 1.40 GHz Up to 1.40 GHz Up to 1.30 GHz
Processor TDP
(Up / Nominal / Down)
65W / 45 W / 35 W 35W / 28 W / 20W 28W / 15 W / 12W
PCH SoC
Memory Type/Speed DDR5 SO-DIMM up to 96GB 5200MT/s
ECC Memory Support Non-ECC SO-DIMM
(Support IBECC on industrial SKU)



I/O INTERFACE
I/O INTERFACE
SATA 2x SATA (share with PCIe lanes)
USB 2x USB4 (option)
4x USB 3.2 Gen2
8x USB 2.0
Ethernet Intel® I226 series (Support TSN/TCC on industrial SKU)
Serial I/O GPIO 8 bit GPIO (default 4 input/4 output)
I2C Baud Rate: 400KHz
SMBus Baud Rate: 100KHz
UART TX/RX signal only
PCI Express Gen4 1x Gen4 x8 (only H series), 2x Gen4 x4 (All series)
PCI Express Gen3 7x Gen 3.0 x1 (2 lanes share with SATA)
Storage Up to 1TB onboard NVMe SSD (share with PCIe Gen4 x4 lanes)
Display Module display interface Carrier output options Resolution
eDP / LVDS (default eDP) eDP up to HBR3 3840×2160@120Hz
LVDS (24bit, dual channel) 1920 x 1200@60Hz
DDI 1/2/3 DP up to HBR3 3840×2160@120Hz
HDMI 2.1 3840×2160@120Hz
VGA VGA 1920 x 1200@60Hz
Security TPM 2.0



CPU SKU List (H series)
CPU SKU List (H series)
CPU Series H series Embedded H series Industrial
i7-13800HE i5-13600HE i3-13300HE i7-13800HRE i5-13600HRE i3-13300HRE
Cores P+E/Threads 6P + 8E/20T 4P + 8E/16T 4P + 4E/12T 6P + 8E/20T 4P + 8E/16T 4P + 4E/12T
Frequency 2.5 GHz 2.7 GHz 2.1 GHz 2.5 GHz 2.7 GHz 2.1 GHz
Turbo Frequency 5.0 GHz 4.8 GHz 4.6 GHz 5.0 GHz 4.8 GHz 4.6 GHz
Intel® Smart Cache 24 MB 18 MB 12 MB 24 MB 18 MB 12 MB
Intel® Gfx EU 96 EU 80 EU 48 EU 96 EU 80 EU 48 EU
Graphics Max Freq. 1.40 GHz 1.40 GHz 1.30 GHz 1.40 GHz 1.40 GHz 1.30 GHz
Video Decode Boxes 2 2 1 2 2 1
Processor TDP (Up / Nominal / Down) 65W / 45 W / 35 W 65W / 45 W / 35 W
IBECC No Yes
TSN/TCC No Yes
Support Temperature 0°C to 60°C -40°C to 85°C



CPU SKU List (P series)
CPU SKU List (P series)
CPU Series P series Embedded P series Industrial
i7-1370PE i5-1350PE i5-1340PE i3-1320PE i7-1370PRE i5-1350PRE i3-1320PRE
Cores P+E/Threads 6P + 8E/16T 4P + 8E/16T 4P + 8E/16T 4P + 4E/12T 6P + 8E/16T 4P + 8E/16T 4P + 4E/12T
Frequency 1.9 GHz 1.8 GHz 1.8 GHz 1.7 GHz 1.9 GHz 1.8 GHz 1.7 GHz
Turbo Frequency 4.8 GHz 4.6 GHz 4.5 GHz 4.5 GHz 4.8 GHz 4.6 GHz 4.5 GHz
Intel® Smart Cache 24 MB 12 MB 12 MB 12 MB 24 MB 12 MB 12 MB
Intel® Gfx EU 96 EU 80 EU 80 EU 48 EU 96 EU 80 EU 48 EU
Graphics Max Freq. 1.40 GHz 1.40 GHz 1.35 GHz 1.35 GHz 1.40 GHz 1.40 GHz 1.35 GHz
Video Decode Boxes 2 2 2 1 2 2 1
Processor TDP (Up / Nominal / Down) 35W / 28 W / 20W 35W / 28 W / 20W
IBECC No Yes
TSN/TCC No Yes
Support Temperature 0°C to 60°C -40°C to 85°C



CPU SKU List (U series)
CPU SKU List (U series)
CPU Series U series Embedded U series Industrial
i7-1365UE i5-1345UE i5-1335UE i3-1315UE U300E i7-1365URE i5-1345URE i3-1315URE
Cores P+E/Threads 2P + 8E/12T 2P + 8E/12T 2P + 8E/12T 2P + 4E/8T 1P + 4E/5T 2P + 8E/12T 2P + 8E/12T 2P + 4E/8T
Frequency 1.7 GHz 1.4 GHz 1.3 GHz 1.2 GHz 1.1 GHz 1.7 GHz 1.4 GHz 1.2 GHz
Turbo Frequency 4.9 GHz 4.6 GHz 4.5 GHz 4.5 GHz 4.3 GHz 4.9 GHz 4.6 GHz 4.5 GHz
Intel® Smart Cache 12 MB 12 MB 12 MB 10 MB 8 MB 12 MB 12 MB 10 MB
Intel® Gfx EU 96 EU 80 EU 80 EU 64 EU 48 EU 96 EU 80 EU 64 EU
Graphics Max Freq. 1.30 GHz 1.25 GHz 1.25 GHz 1.20 GHz 1.10 GHz 1.30 GHz 1.25 GHz 1.20 GHz
Video Decode Boxes 2 2 2 1 1 2 2 1
Processor TDP (Up / Nominal / Down) 28W / 15 W / 12 W 65W / 45 W / 35 W
IBECC No Yes
TSN/TCC No Yes
Support Temperature 0°C to 60°C -40°C to 85°C



MECHANICAL & ENVIRONMENT
MECHANICAL & ENVIRONMENT
Dimension 125 x 95mm
Power DC IN Normal: +12V DC AT/ATX mode
Storage Temperature -40°C to 85°C
Operation Temperature 0°C to 60°C
-40°C to 85°C(Industrial SKU)
Certification Contact us
MTBF TBD
Vibration TBD
OS Windows 10/11 Ubuntu

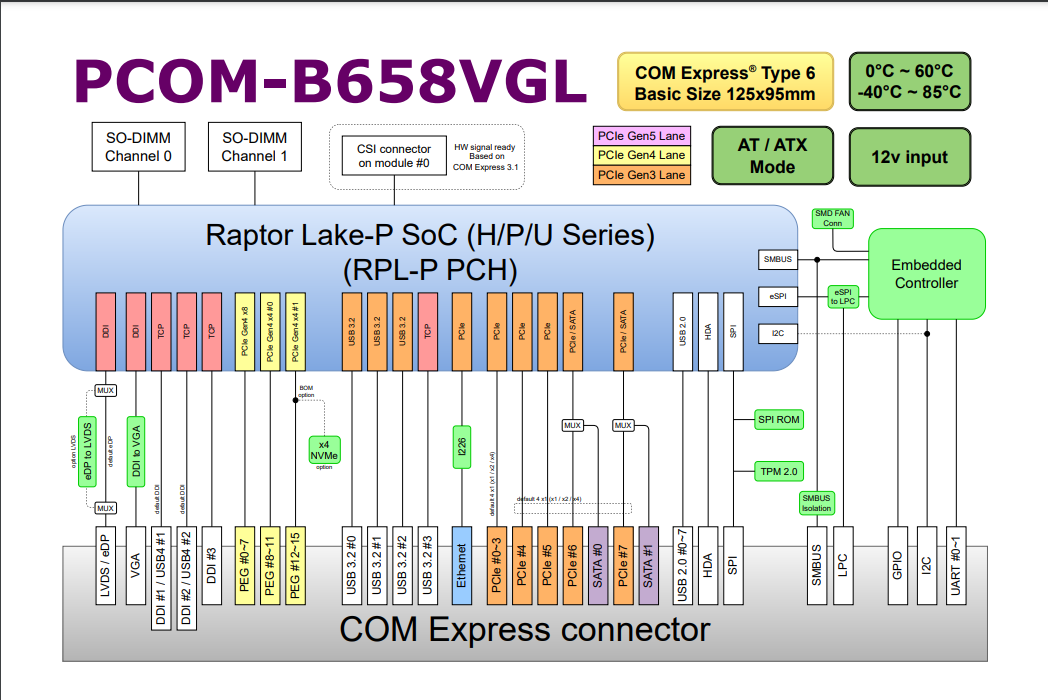

Block Diagram

Ordering Guide

Ordering Guide
Product Ordering P/N Status
PCOM-B658VGL-13800HE AB1-3R24 Available
PCOM-B658VGL-13600HE AB1-3R52 Available
PCOM-B658VGL-13300HE AB1-3R51 Available
PCOM-B658VGL-1370PE AB1-3R50 Available
PCOM-B658VGL-1350PE AB1-3R49 Available
PCOM-B658VGL-1340PE AB1-3R63 Available
PCOM-B658VGL-1320PE AB1-3R48 Available
PCOM-B658VGL-1365UE AB1-3R47 Available
PCOM-B658VGL-1345UE AB1-3R46 Available
PCOM-B658VGL-1335UE AB1-3R64 Available
PCOM-B658VGL-1315UE AB1-3R45 Available
PCOM-B658VGL-U300E AB1-3R44 Available
PCOM-B658VGL-13800HRE AB1-3R74 In Development
PCOM-B658VGL-13600HRE AB1-3S19 In Development
PCOM-B658VGL-13300HRE AB1-3S20 In Development
PCOM-B658VGL-1370PRE AB1-3S18 In Development
PCOM-B658VGL-1350PRE AB1-3S17 In Development
PCOM-B658VGL-1320PRE AB1-3S16 In Development
PCOM-B658VGL-1365URE AB1-3S15 In Development
PCOM-B658VGL-1345URE AB1-3S14 In Development
PCOM-B658VGL-1315URE AB1-3S13 In Development

Accessory

Accessory
Accessory Ordering P/N Status
Cooler (Heatpipe) B9972160 Available
Heatsink (Heatpipe) B830B940 Available
Heatspreader (Heatpipe) B830B950 Available
PCOM-C605R
Mini-ITX Carrier
AB1-3P78 Available
PCOM-C60B
ATX Evaluation Carrier
AB1-3G22 Available
