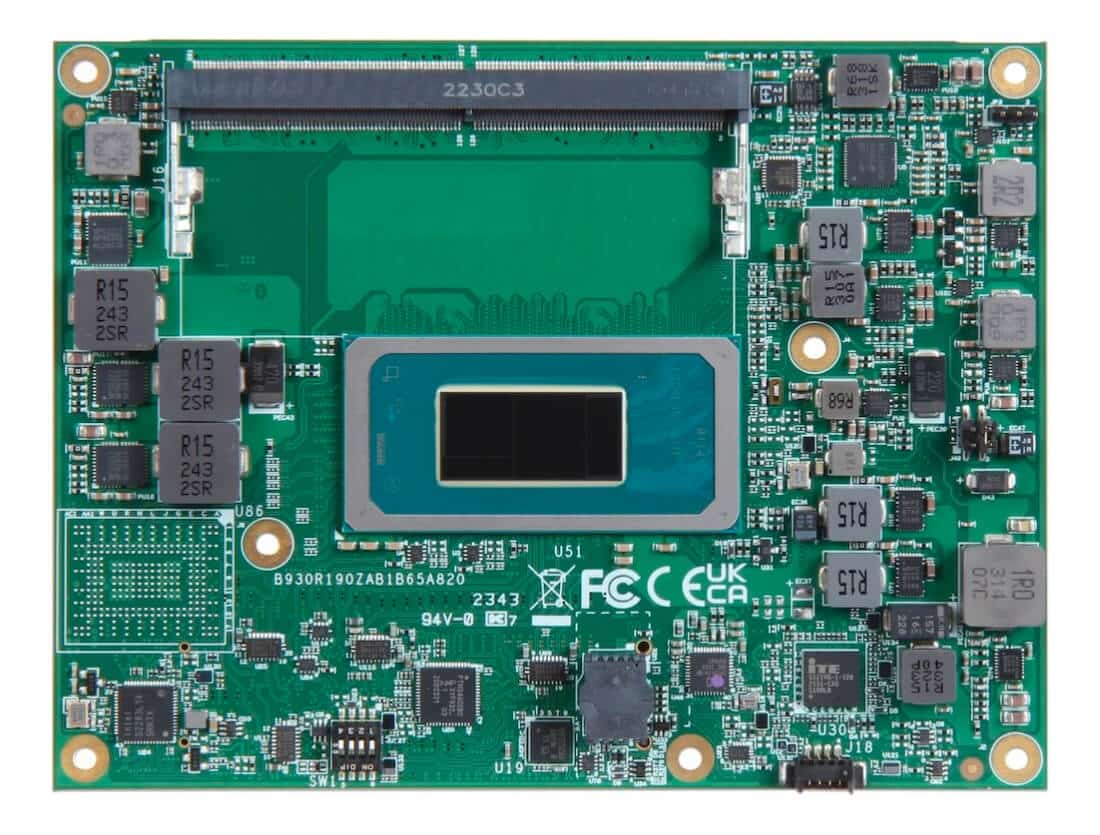

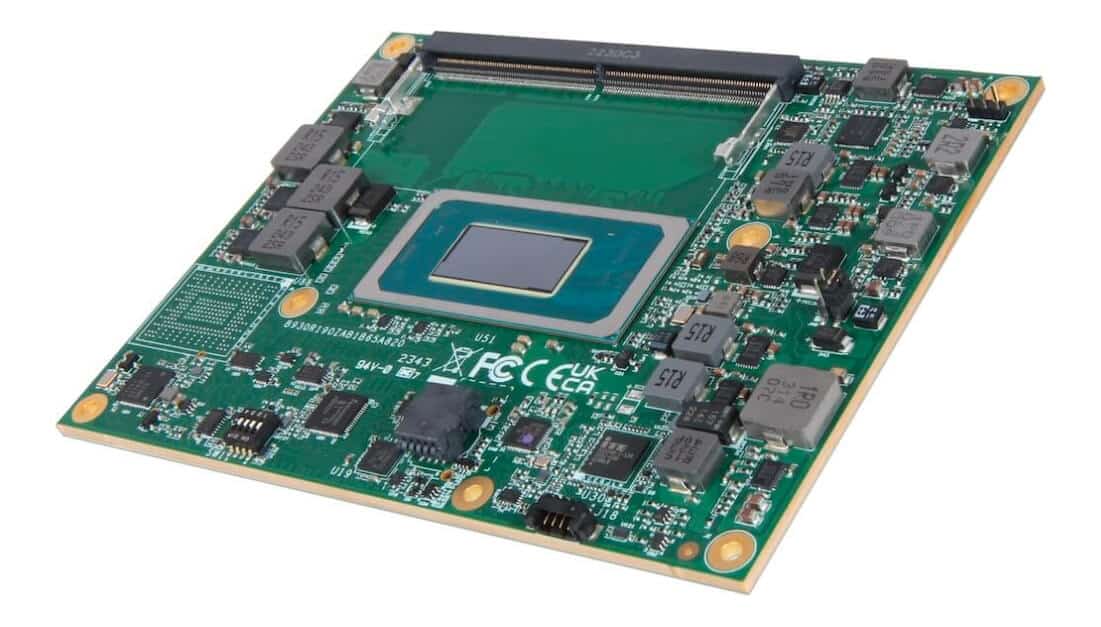

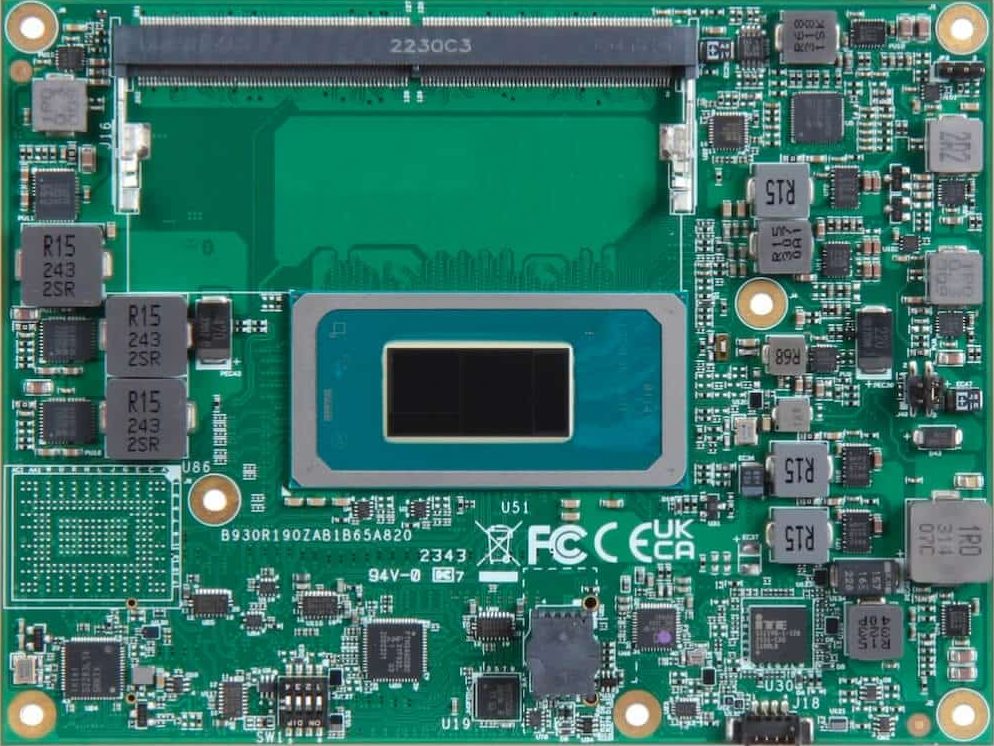

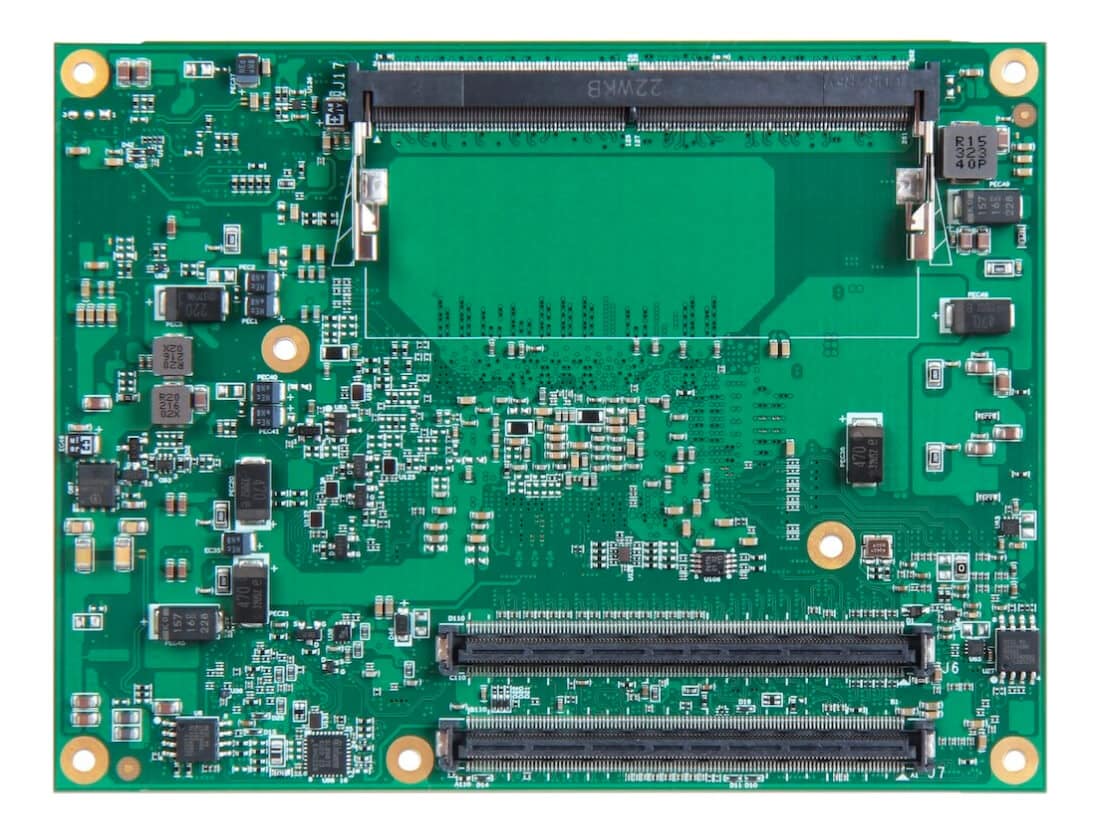

PCOM-B65A

COM Express Type 6 Basic size module with Intel New Gen Core Ultra Series Processor DDR5 SO-DIMM, DDI, PCIe Gen 4,USB 3.2 Gen2, 2.5 Gigabit TSN Ethernet, discrete TPM 2.0, eDP, SATA

Features

  • Intel New Gen Core Ultra Series Processor (15w-28w)
  • Up to 6x performance core + 8x efficient core + 2x low power efficient core, and up to 128x graphic execution units
  • 2x DDR5-5600 non-ECC SO-DIMMs up to 96GB, 1x Gen4 x8(H series), 2x Gen4 x4, and 8x PCIe Gen4 x1
  • 4x USB3.2 Gen2, 2x SATA, 3x DDI, VGA, eDP/LVDS
  • Options for onboard PCIe NVMe SSD

Description

PCOM-B65A is COM Express module based on new Intel® Core Ultra platform(code name: Meteor Lake). It is compatible with COM Express Rev3.1 standard. The platform adopt the new gen Intel 4 lithography and VNNI instruction set, offers advance computing power with 15~28W thermal and embedded use condition for wide range application. It also support new integrated NPU for dedicated AI acceleration with up to 20x performance/watt improvement. This platform features the integration of Arc Graphics for up to 50% AI performance compared to previous generations. This module provides (up to) 24x PCIe Gen4 lanes, 4x USB 3.2 Gen 2, and 2x SATA. The complete and flexible I/O capacity also mapped to wide range of embedded/industrial applications, which is suit for mission critical use conditions and AI edge computing.

Specification

Specifications
CPU and General
Model Name PCOM-B65A
Form Factor COM Express Type6 Basic Size (125 X 95mm)
CPU Series Ultra 7 165H Ultra 7 155H Ultra 5 135H Ultra 5 125H Ultra 7 165U Ultra 7 155U Ultra 5 135U Ultra 5 125U
Cores / Threads 6P+8E
+2LPE/22T
6P+8E
+2LPE/22T
4P+8E
+2LPE/18T
4P+8E
+2LPE/18T
2P+8E
+2LPE/14T
2P+8E
+2LPE/14T
2P+8E
+2LPE/14T
2P+8E
+2LPE/14T
Frequency 1.4 GHz 1.4 GHz 1.7 GHz 1.2 GHz 1.7 GHz 1.7 GHz 1.6 GHz 1.3 GHz
Turbo Frequency 5.0 GHz 4.8 GHz 4.6 GHz 4.5 GHz 4.9 GHz 4.8 GHz 4.4 GHz 4.3 GHz
Intel® Smart Cache 24 MB 24 MB 18 MB 18 MB 12 MB 12 MB 12 MB 12 MB
Intel® Gfx EU 128 EU 128 EU 128 EU 112 EU 64 EU 64 EU 64 EU 64 EU
Graphics Max Freq. 2.3 GHz 2.25 GHz 2.2 GHz 2.2 GHz 2.0 GHz 1.95 GHz 1.9 GHz 1.85 GHz
Processor TDP
(Up / Nominal / Down)
65W / 28W / 20W 28W / 15W / 12W
PCH SoC
Memory Type/Speed DDR5 SO-DIMM up to 96GB 5600MT/s
ECC Memory Support Non-ECC SO-DIMM
I/O Interface
I/O Interface
SATA 2x SATA (share with PCIe lane)
USB
  • 2x USB4 (option)
  • 4x USB 3.2 Gen2
  • 8x USB 2.0
Ethernet Intel I226 series
Serial I/O GPIO 8 bit GPIO (default 4 input/4 output)
I2C Baud Rate : 400KHz
SMBus Baud Rate : 100KHz
UART TX/RX signal only
PCIe Express
  • 1x Gen4 x8 (only H series), 2x Gen4 x4 (all series)
  • Up to 8x Gen4 x1 (2 lanes share with SATA)
Display Module display interface Output options Resolution
eDP / LVDS (default eDP) eDP eDP up to HBR3 3840 x 2160@120Hz
LVDS (24bit, dual channel) 1920 x 1200@60Hz
DDI 1/2/3 DP up to HBR3 3840 x 2160@120Hz
HDMI 2.1 3840 x 2160@120Hz
VGA VGA 1920 x 1200@60Hz
Security TPM 2.0
MECHANICAL & ENVIRONMENT
MECHANICAL & ENVIRONMENT
Dimension 125 x 95mm
Power DC IN
  • Normal: +12V DC
  • AT/ATX mode
Storage Temperature -40°C to 85°C
Operating Temperature 0°C to 60°C
Certification Contact us
MTBF TBD
Vibration TBD
OS
  • Windows 10/11
  • Ubuntu

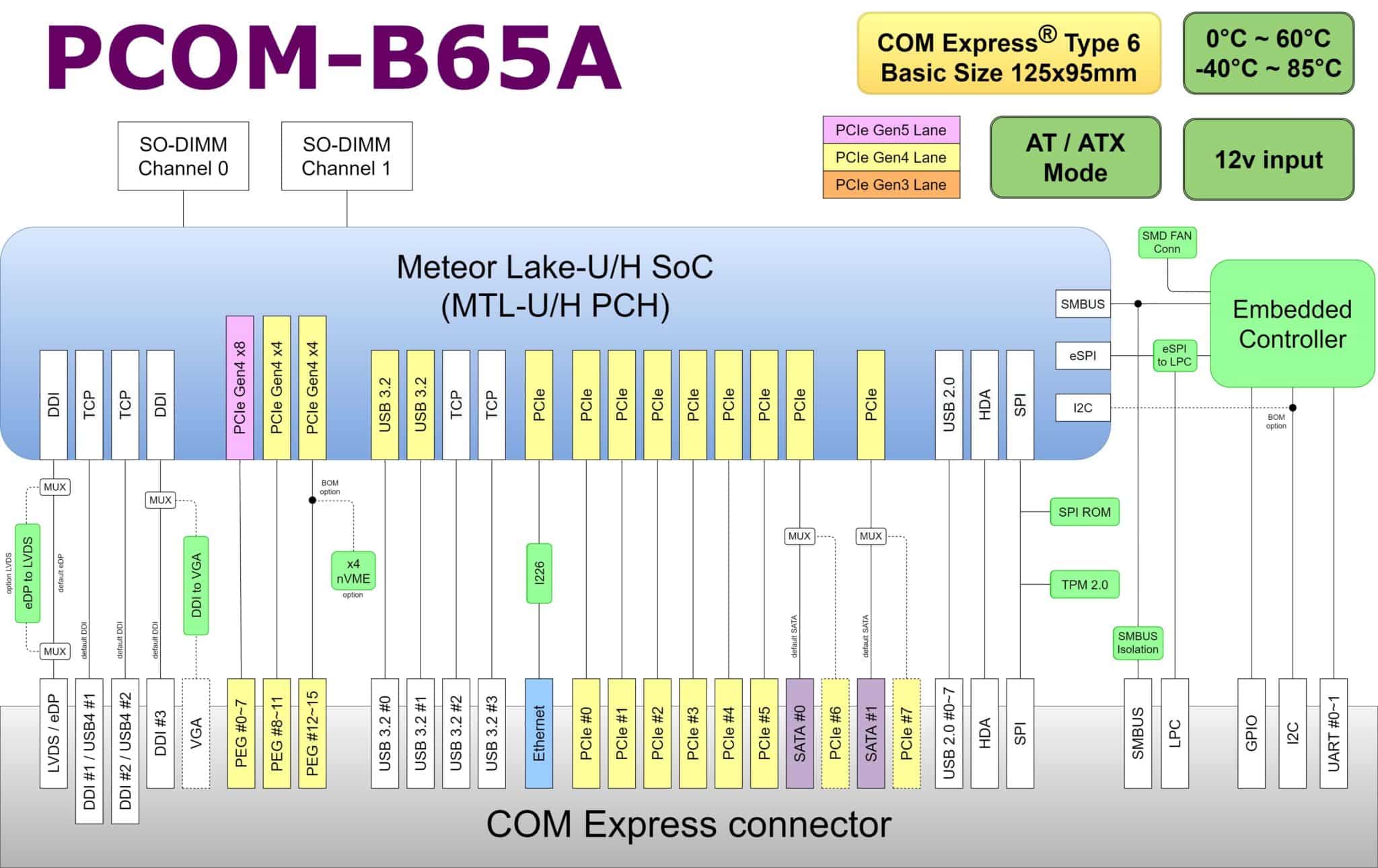

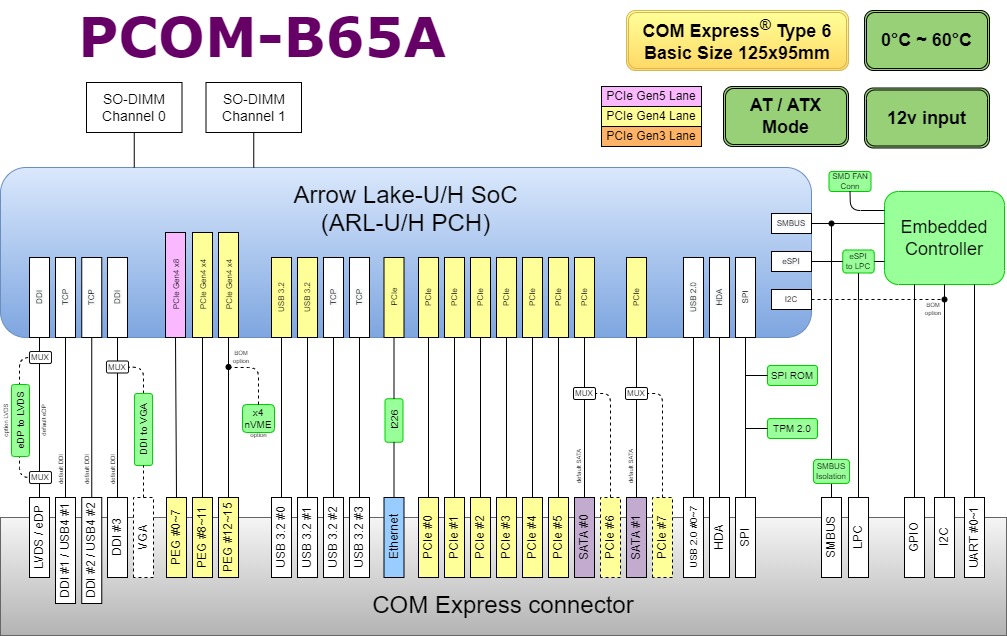

Block Diagram

Ordering Guide

Ordering Guide
Product Ordering P/N Status
PCOM-B65A-165H TBD In Development
PCOM-B65A-155H TBD In Development
PCOM-B65A-135H TBD In Development
PCOM-B65A-125H TBD In Development
PCOM-B65A-165U TBD In Development
PCOM-B65A-155U TBD In Development
PCOM-B65A-135U TBD In Development
PCOM-B65A-125U TBD In Development

Accessory

Accessory
Accessory Ordering P/N Status
Cooler (Heatpipe) TBD In Development
Heatsink (Heatpipe) TBD In Development
Heatspreader (Heatpipe) TBD In Development
PCOM-C605R
Mini-ITX Carrier
AB1-3P78 Available
PCOM-C60B
ATX Evaluation Carrier
AB1-3G22 Available
