PCOM-B700G

EOL

Intel® Pentium® and Xeon® processor D-1500 Series with DDR4 ECC up to 96GB 2400 MT/s on Three SO-DIMM Sockets with 31 PCIe Lanes, 2x KR to support 10G, NC-SI Interface, SATA III, USB 2.0 and 3.0

Features

  • Intel® Pentium® and Xeon® Processors D-1500 Series (Broadwell-DE)
  • DDR4 1866/2133/2400 MT/s ECC up to 96GB
  • 31 PCIe Lanes
  • High-speed Ethernet, 2x 10GbE and 1x GbE interfaces
  • Wide-Temp (-40°C to 85°C by selected sku) Support

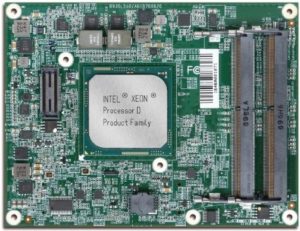

PCOM-B700G, a Type 7 COM Express module, is designed with Intel® Pentium® and Xeon® processor. Based on the COM Express 3.0 Type 7 pinout definition, when compared to the Type 6 pinout, trades all the graphic interfaces for 10 GbE ports and more PCIe lanes, makes PCOM-B700G ideal for applications in networking , micro server and the like, requiring low power consumption while supporting high computing performance and communication throughput. PCOM-B700G features two 10GbE LAN interfaces, 31 PCIe Lanes and three DDR4 ECC SO-DIMM up to 96GB in total. It is compatible with Type 7 carrier board.

Block Diagram

Specification

Specifications
Model Name PCOM-B700G
Form Factor (mm) COM Express® Basic (125 x 95mm)
COM Type Type 7
CPU/Clock/Cache Intel® Pentium® and Xeon® Processors* Intel®D1508 Intel®D1517 Intel®D1539 Intel®D1548 Intel®D1559 Intel®D1577 Up to 16 CPU cores* 3MB to 24MB cache*
Chipset SoC
Memory DDR4 1866/2133/2400 MT/s* Non-ECC/ECC* Dual Channel*
USB 4x USB 3.0 4x USB 2.0
PCI Express 1x PCIe Gen3 x16 (PEG) 1x PCIe Gen3 x4 (PE2) 8x PCIe Gen2 x1
Ethernet Intel® I210AT 2x KR (10GbE)
Sound N/A
Graphic Controller N/A
Carrier Board PCOM-C701(Type 7) PCOM-C702 (Type 7)

Ordering Guide

Ordering Guide
Product Ordering P/N Status
PCOM-B700G-D1577 AB1-3G83 Available
PCOM-B700G-D1559 AB1-3G82 Available
PCOM-B700G-D1548 AB1-3F53 Available
PCOM-B700G-D1539 AB1-3F52 Available
PCOM-B700G-D1517 AB1-3G77 Available
PCOM-B700G-D1508 AB1-3G78 Available

Accessory

Accessory
Accessory Ordering P/N Status
Heat Spreader B830A070 Available
Heat Sink B830A060 Available Cooler B9971570
Available PCOM-C701 (ATX Carrier Board)
AB1-3J61Z Available PCOM-C702
(ATX Carrier Board) AB1-3J60Z Available
