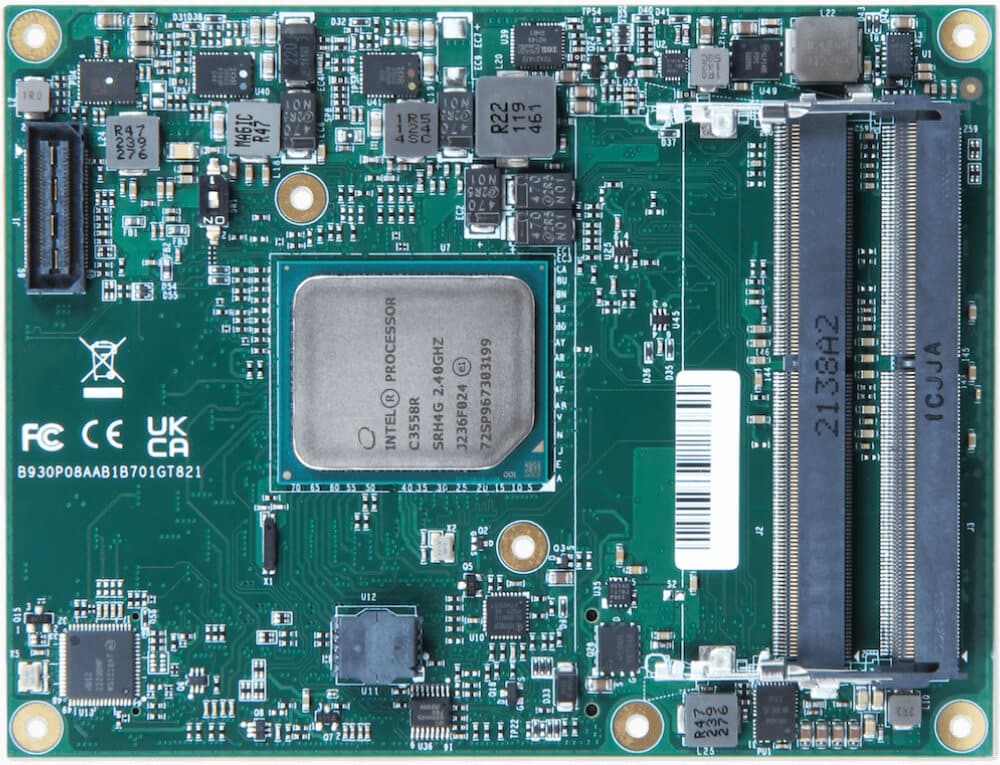

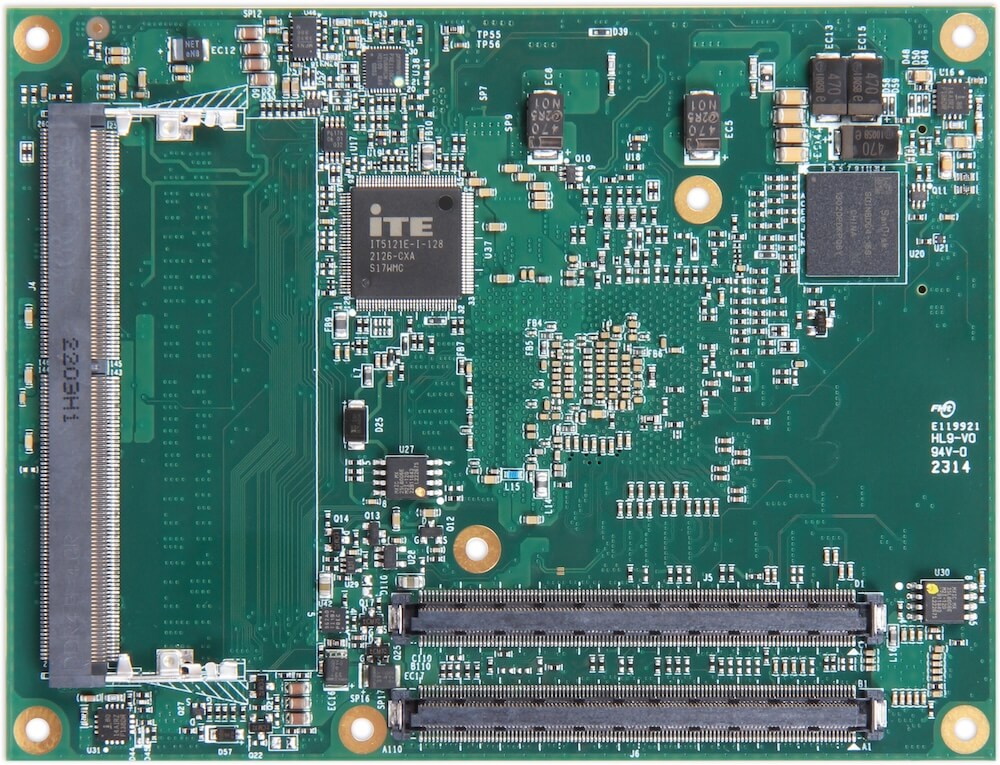

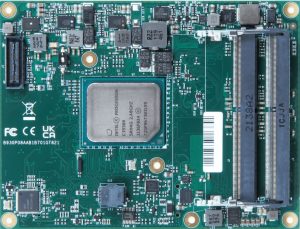

PCOM-B701GT

Intel® Atom® C3000/C3000-Refresh series SoC based on Type 7 Basic COM-Express® module with 3x DDR4 ECC SO-DIMM Socket

Features

  • Intel® Atom® C3000 Refresh series processors
  • DDR4 ECC SDRAM up to maxium capacity 96GB and maxium data rate 2400 MT
  • 4x 10GBASE-KR port (Selected SKUs) and NC-SI Support
  • Capable of Industrial temperture -40°C to 85°C(only for eTemp SKUs)
  • Support Intel® QAT Technology

Description

PCOM-B701GT, a COM Express® COM.0 R3.0 basic size type 7 module, is developed by Portwell Taiwan aiming at Networking and IOTG appliacation. The module implements Atom® C3000 Refresh series processors. It offers connectivity interface such as 4x 10GbE KR, 1xPCIe Gen 3.0 x8, 2x USB 3.0, 4x USB 2.0, and 2x SATA III I/O expansion, it also supports Intel® QuickAssist Technology (Intel® QAT), NC-SI, and extended temperature (-40°C to 85°C) by selected SKUs.

Specification



Specifications
General
Product PCOM-B701GT
Form Factor (mm) Type 7, Basic Form Factor COM-Express® (125 x 95 mm)
Processor Network and Enterprise ( 0°C to 60°C) Extended Temperature (-40°C to 85°C)
C3758R C3558R C3808 C3708 C3508 C3308
CPU 8 4 12 8 4 2
Freq. 2.4 GHz 2.4 GHz 2.0 GHz 1.7 GHz 1.6 GHz 1.6 GHz
Turbo N/A 2.1 GHz
Cache 16MB 8MB 16MB 12MB 8MB 4MB
Intel® QuickAssist Technology
(Intel® QAT)
Yes
Intel® QAT Speed High Medium High Medium Low Low
Intel® QAT Cryptographic Functions Yes
Intel® QAT Compression/
Decompression
Yes
Ethernet 10G KR 4 2 4 4 N/A N/A
Processor TDP 26W 17W 25W 17W 11.5W 9.5W
BIOS AMI BIOS
ECC Memory Supported Yes
Storage eMMC 5.0 onboard, default capacity 16GB (up to 64GB)
Memory 3x SO-DIMM DDR4 up to 96GB 2400 MT/s 3x SO-DIMM DDR4 up to 96GB 2133MT/s 3x SO-DIMM DDR4 up to 64GB 1866MT/s



I/O INTERFACE
I/O INTERFACE
SATA 2x SATA III 1x SATA III 1x SATA III
USB 2x USB 3.0 1x USB 3.0 N/A
Ethernet Intel® I210AT Intel® I210IT
Serial I/O GPIO: 8 GPIO
I2C: Baud Rate: 400KHz
SMBus: Baud Rate: 100KHz
UART: 2 Serial Port (Tx/Rx)
PCI Express 1x PCIe Gen 3.0 x4 or 2 PCIe Gen 3.0 x2 and 1x PCIe Gen 3.0 x2
1x PCIe Gen3.0 x8 or 2x PCIe Gen3 x4 or 4x PCIe Gen3 x2
Security TPM 2.0



MECHANICAL & ENVIRONMENT
MECHANICAL & ENVIRONMENT
Dimension 125 x 95mm
Power DC IN Normal : +12V
AT Mode
Storage Temperature -40°C to 85°C
Operating Temperature -40°C to 85°C (C3808 & C3708 & C3508 & C3308)
0°C to 60°C (C3758R & C3558R)
Certification Contact us
MTBF Contact us
Vibration Contact us
OS Windows Server
Ubuntu, Fedora, Yocto, CentOS, FreeBSD
Red Hat Enterprise, SUSE SuSE, Wind River

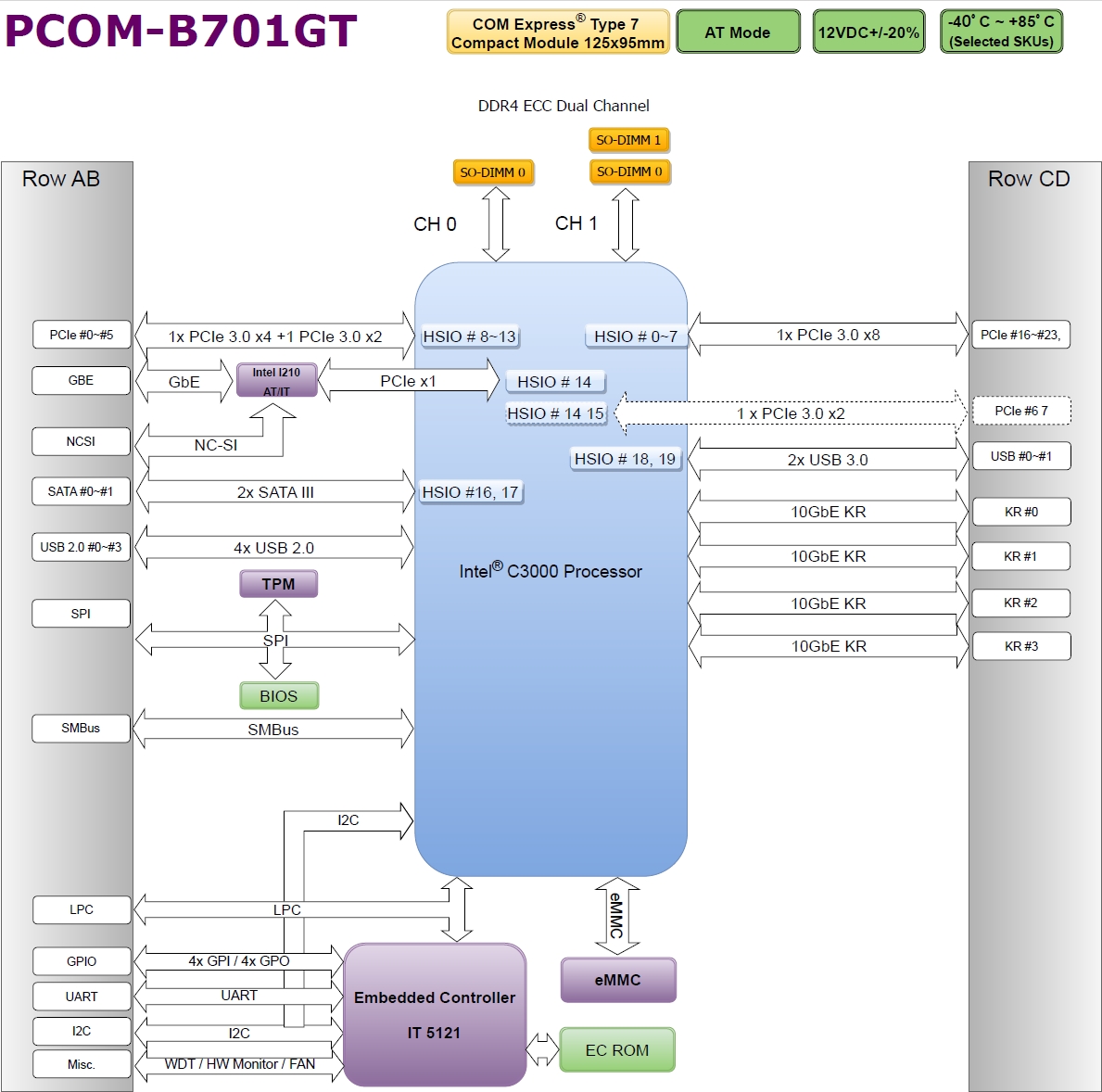

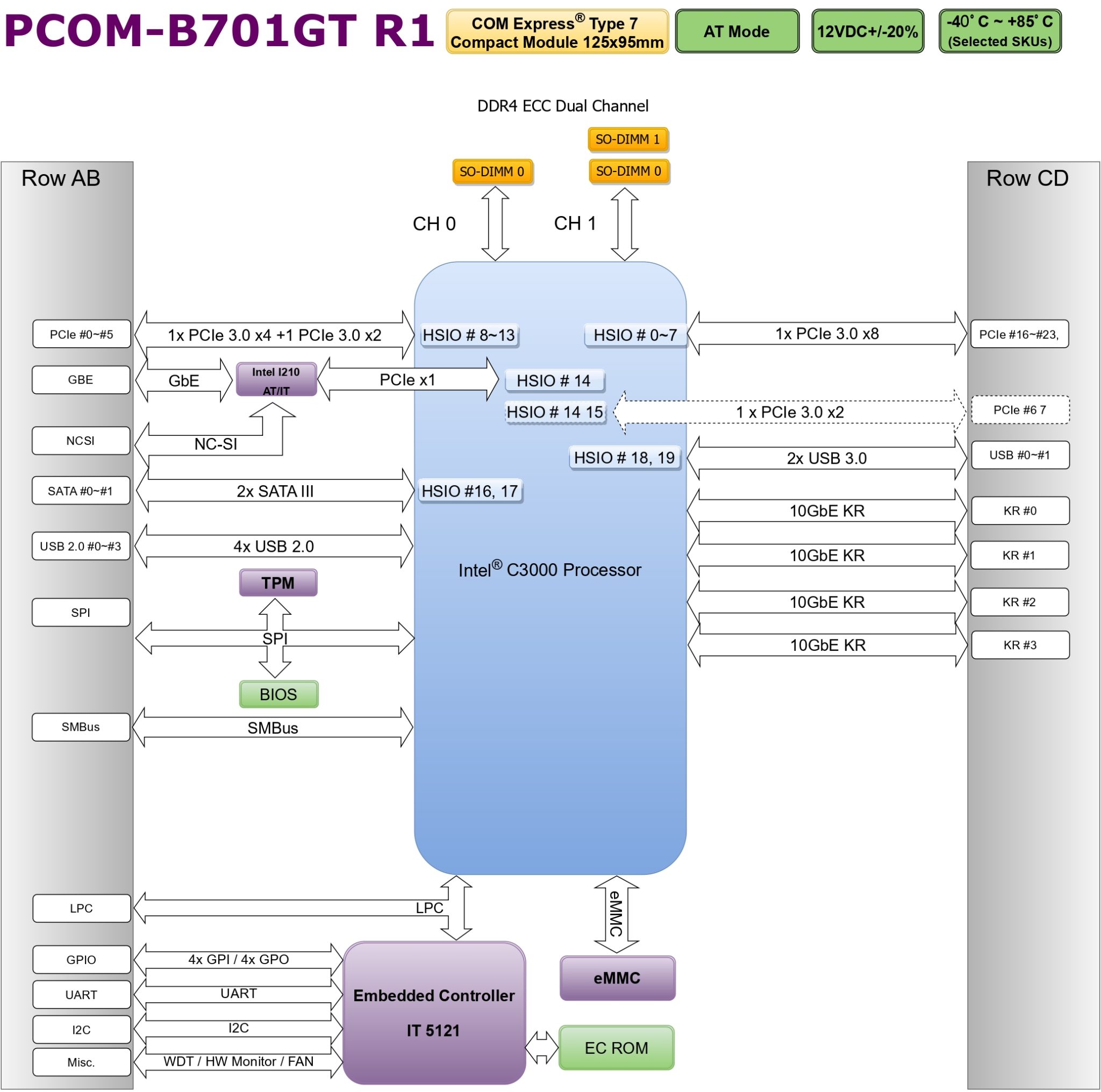

Block Diagram

Ordering Guide

Ordering Guide
Product Ordering P/N Status
PCOM-B701GT-C3808 AB1-3H90 Contact us
PCOM-B701GT-C3708 AB1-3H89 Contact us
PCOM-B701GT-C3508 AB1-3H86 Contact us
PCOM-B701GT-C3308 AB1-3J01 Contact us
PCOM-B701GT-C3758R AB1-3P54 Contact us
PCOM-B701GT-C3558R AB1-3P55 Contact us

Accessory

Accessory
Accessory Ordering P/N Status
Cooler B9972070 Available
Heat Sink B830B710 Available
Heat Spreader B830B720 Available
PCOM-C701
(ATX Carrier board)
AB1-3J61Z Available
PCOM-C701-BMC
(ATX Carrier board)
AB1-3K14Z Available

Support

(Documents & Downloads)

  Catalog   PCOM-B701GT | Datasheet 20230517   March 30, 2021
690 KB 3869 Downloads
      BIOS   BIOS_PCOM-B701GT-C3708_0_0_7.zip | BIOS 0.0.7   December 15, 2023

    Portwell, Inc. PCOM-B701GT-C3708 BIOS

    10.90 MB 12 Downloads
      BIOS   BIOS_PCOM-B701GT-C3558R_0_0_7.zip | BIOS 0.0.7   December 15, 2023

    Portwell, Inc. PCOM-B701GT-C3558R BIOS

    10.90 MB 9 Downloads
      BIOS   BIOS_PCOM-B701GT-C3508-C3308_0_0_7.zip | BIOS 0.0.7   December 15, 2023

    Portwell, Inc. PCOM-B701GT-C3308 BIOS

    10.90 MB 9 Downloads
      BIOS   BIOS_PCOM-B701GT_0_0_6_Update.zip | BIOS 0.0.6   June 21, 2023

    Portwell, Inc. PCOM-B701GT BIOS

    16.02 MB 142 Downloads
        PCOM-B701GT     User’s Manual   PCOM-B701GT | User’s Manual R0.7 R0.7   January 17, 2024
      1.83 MB 31 Downloads
        Carrier design guide   PCOM-B701GT | Carrier Design Guide R2.0 R2.0   July 4, 2023
      2.92 MB 143 Downloads
