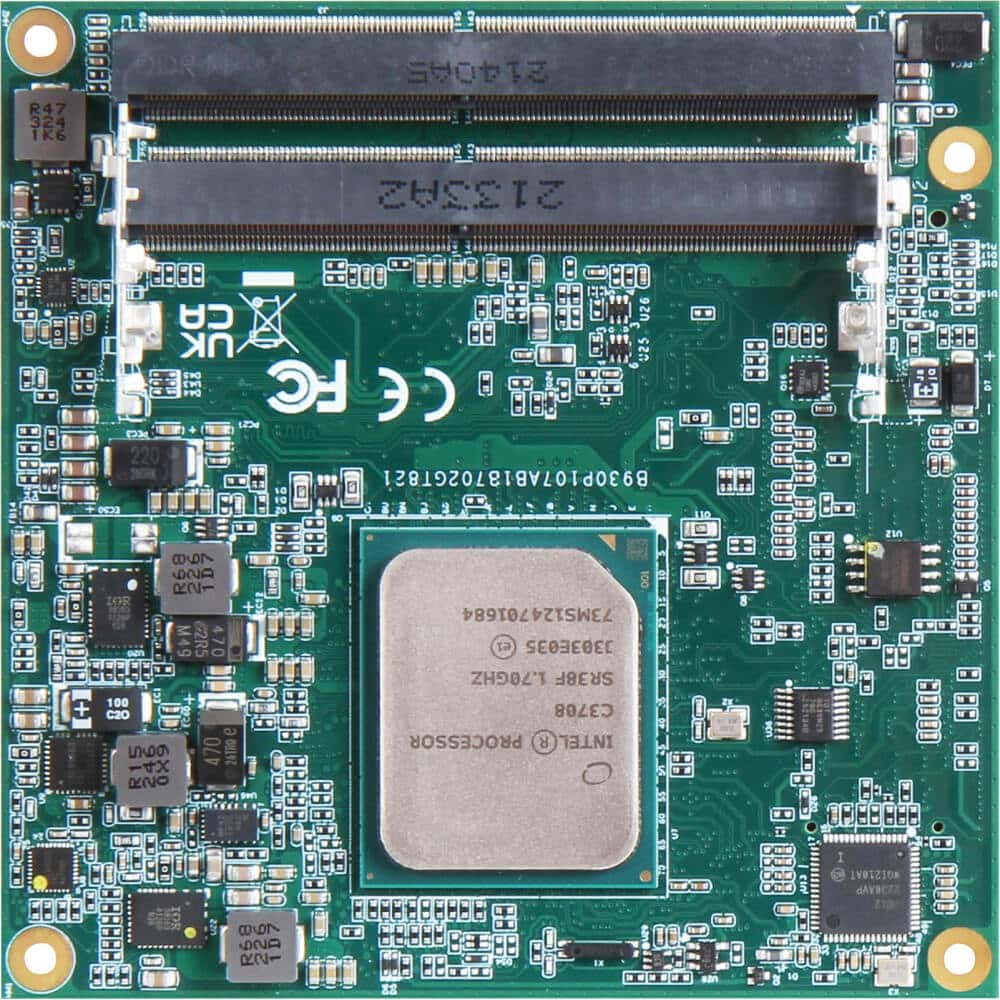

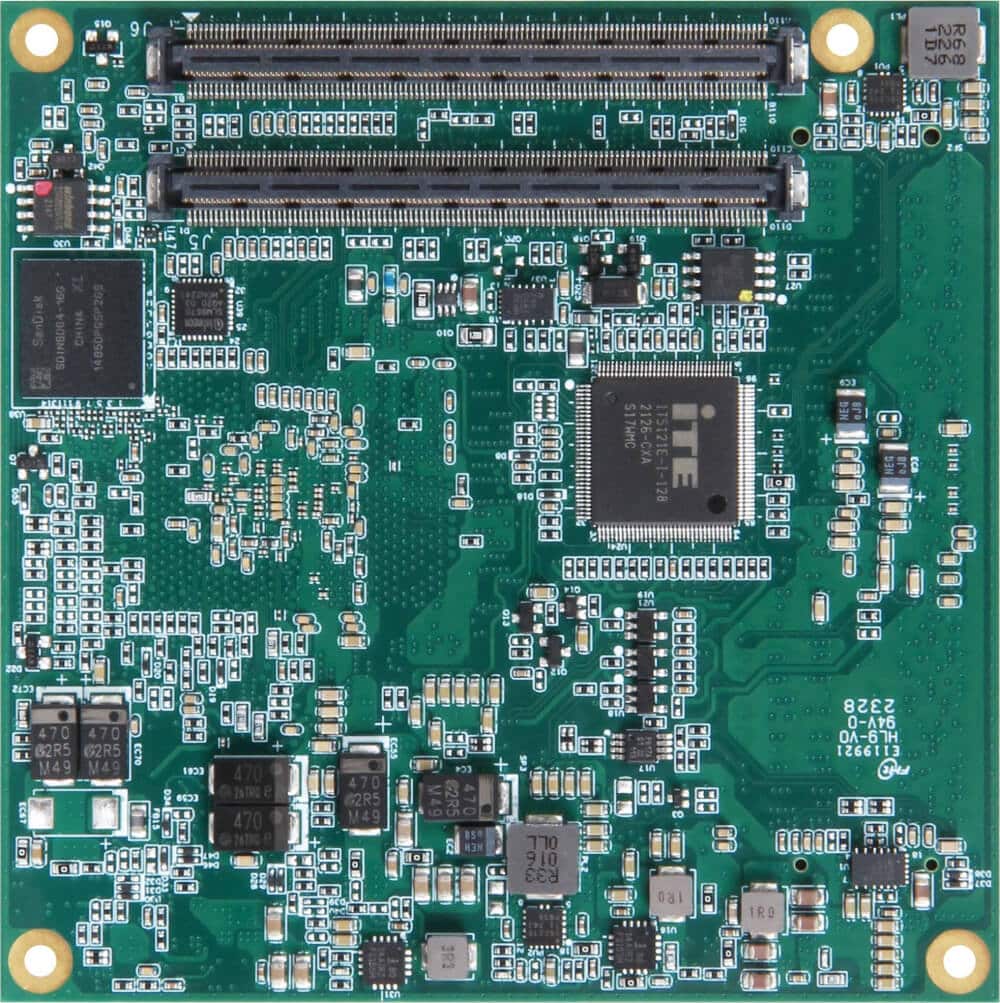

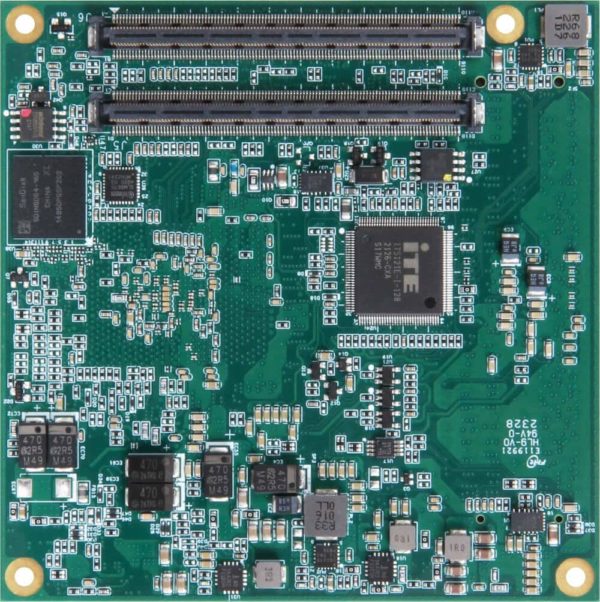

PCOM-B702GT

Intel® Atom® C3000/C3000-Refresh series SoC based on Type 7 Compact COM-Express® module with up to Dual Channels and 2x DDR4 ECC SO-DIMM Socket

Features

  • Intel® Atom® C3000 Refresh series processors
  • DDR4 ECC SDRAM up to maximum capacity 64GB and maximum data rate 2400 MT/s (Selected SKUs)
  • 4x 10GBASE-KR port (Selected SKUs) and NC-SI Support
  • Capable of Industrial temperature -40°C to 80°C (only for eTemp SKUs)
  • Support Intel® QAT Technology

Description

PCOM-B702GT, a COM Express® COM.0 R3.0 Compact size type 7 module, is developed by Portwell Taiwan aiming at Networking and IOT application. The module implements Atom® C3000 Refresh series processors. It offers connectivity interface such as 4x 10GbE KR, 1xPCIe Gen 3.0 x8, 2x USB 3.0, 4x USB 2.0, and 2x SATA III I/O expansion, it also supports Intel® QuickAssist Technology (Intel® QAT), NC-SI, and extended temperature (-40°C to 80°C) by selected SKUs.

Specification

Specifications
General
Product PCOM-B702GT
Form Factor (mm) Type 7, Compact Form Factor COM-Express® ( 95 x 95 mm)
Processor Network and Enterprise ( 0°C to 60°C) Extended Temperature (-40°C to 80°C)
C3558R C3708 C3508 C3308
Core 4 8 4 2
Freq. 2.4 GHz 1.7 GHz 1.6 GHz 1.6 GHz
Turbo N/A 2.1 GHz
Cache 8MB 16MB 8MB 4MB
Intel® QuickAssist Technology (Intel® QAT) Yes
Intel® QAT Speed Medium Medium Low Low
Intel® QAT Cryptographic Functions Yes
Intel® QAT Compression/
Decompression
Yes
Ethernet 10G KR 2 4 N/A N/A
Processor TDP 17W 17W 11.5W 9.5W
BIOS AMI BIOS
ECC Memory Supported Yes
Storage eMMC 5.0 onboard, default capacity 16GB (up to 64GB)
Memory 2x SO-DIMM DDR4
up to 64GB 2400 MT/s
2x SO-DIMM DDR4
up to 64GB 2133MT/s
2x SO-DIMM DDR4
up to 64GB 1866MT/s
1x SO-DIMM DDR4
up to 32GB 1866MT/s
I/O INTERFACE
I/O INTERFACE
SATA 2x SATA III 1x SATA III
USB 2x USB 3.0
4x USB 2.0
1x USB 3.0 N/A
Ethernet Intel® I210AT Intel® I210IT
Serial I/O GPIO: 8 GPIO
I2C: Baud Rate: 400KHz
SMBus: Baud Rate: 100KHz
UART: 2 Serial Port (Tx/Rx)
PCI Express 1x PCIE Gen 3.0 x4 or 1 PCIe Gen 3.0 x2
1x PCIe Gen3.0 x8 or 2x PCIe Gen3 x4 or 4x PCIe Gen3 x2
Security TPM 2.0
MECHANICAL & ENVIRONMENT
MECHANICAL & ENVIRONMENT
Dimension 95 x 95mm
Power DC IN Normal : +12V
AT Mode
Storage Temperature -40°C to 85°C
Operating Temperature -40°C to 80°C (C3708 & C3508 & C3308)
0°C to 60°C (C3558R)
Certification Contact us
MTBF Contact us
Vibration Contact us
OS Windows Server
Ubuntu, Fedora, Yocto, CentOS, FreeBSD
Red Hat Enterprise, SUSE SuSE, Wind River

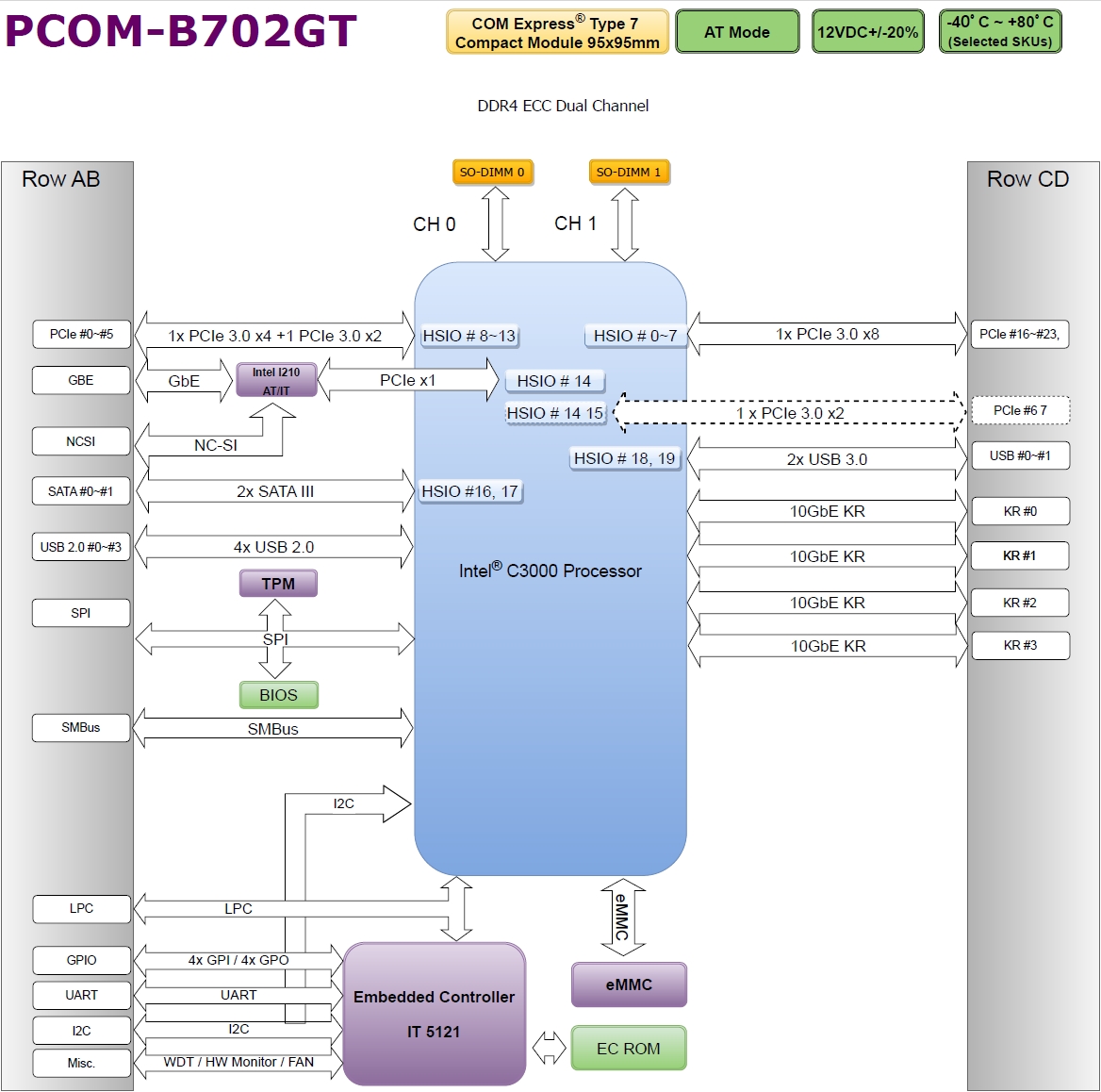

Block Diagram

Ordering Guide

Ordering Guide
Product Ordering P/N Status
PCOM-B702GT-C3708 AB1-3R79 Available
PCOM-B702GT-C3508 AB1-3J40 Available
PCOM-B702GT-C3308 AB1-3H45 Available
PCOM-B702GT-C3558R AB1-3R78 Available

Accessory

Accessory
Accessory Ordering P/N Status
Heat Sink B830A920 Available
Heat Spreader B830C140 Available
Cooler ( for sku C3708) B9972230 Available
