Portwell Global

PCOM-B704-GT

COM Express Type 7 Basic module with Intel®Xeon® D-1700 series Processor (Ice-Lake-D LCC)

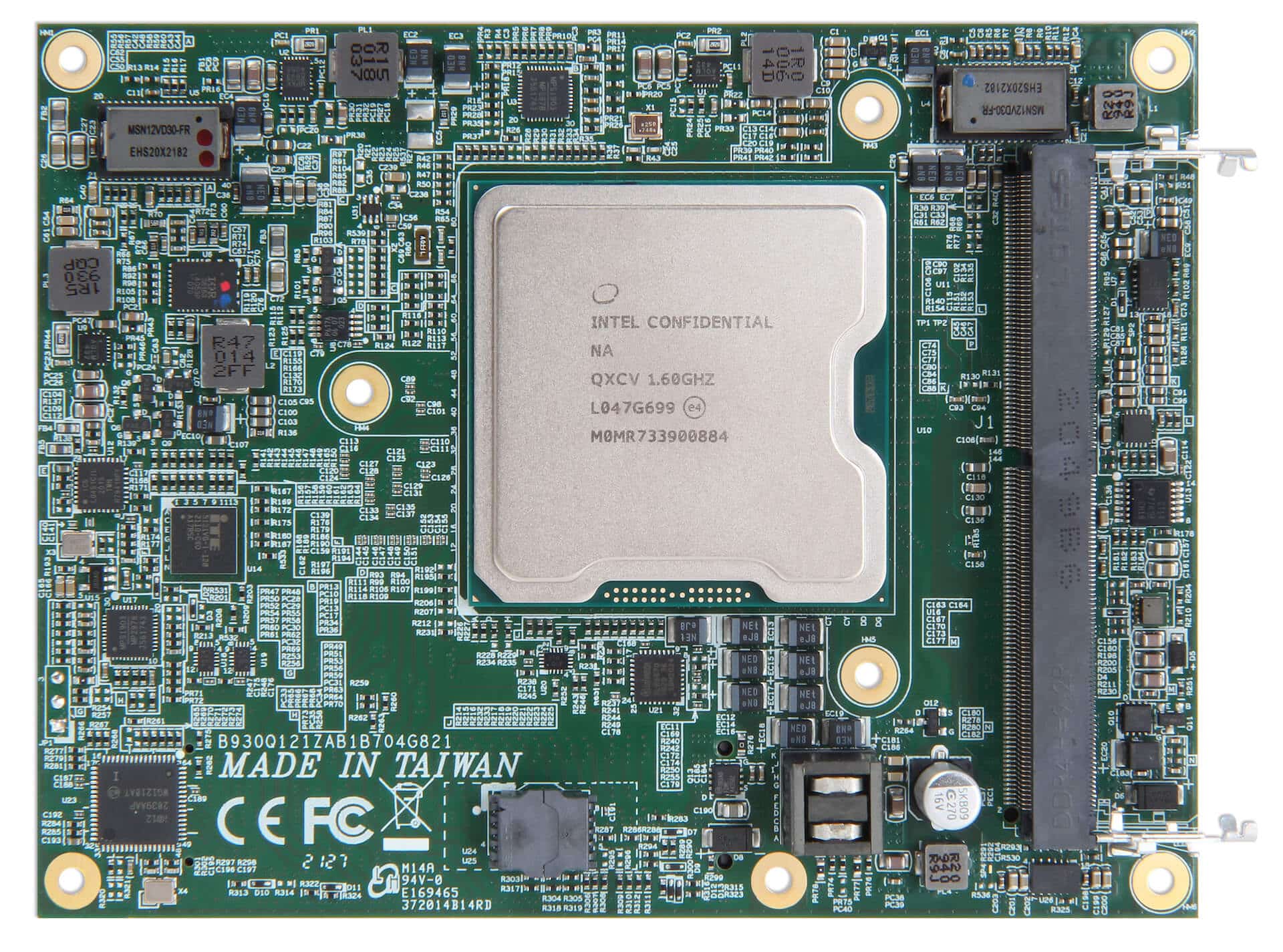

PCOM-B704

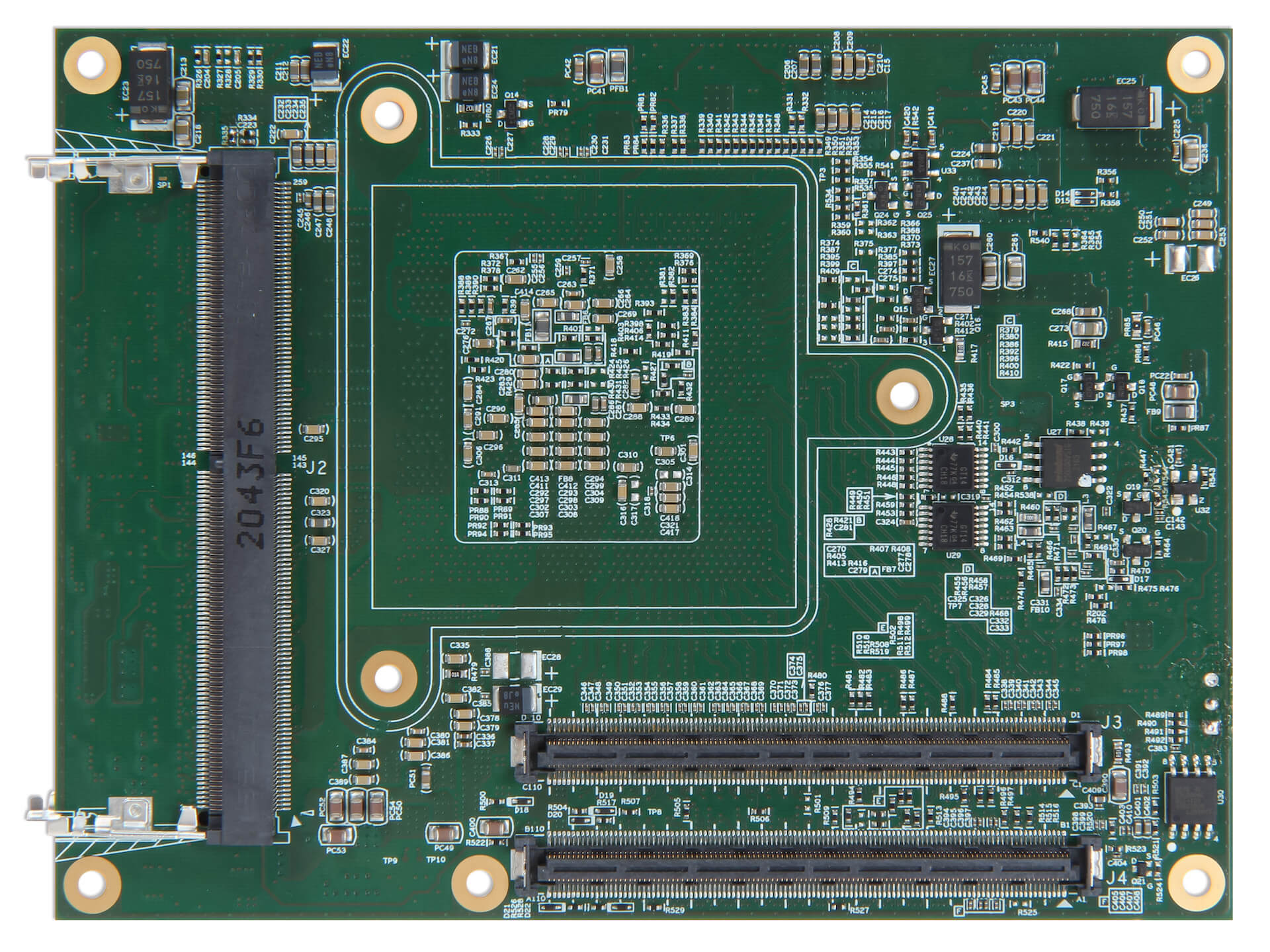

PCOM-B704-Back

Features

  • Intel®Xeon® D-1700 Series Processor (Ice-Lake-D LCC)
  • AI/Deep Learning Accelerate Data Analytics with Intel®AVX-512 and VNNI
  • 4x USB2.0/3.2 Gen 2×1, 2x SATAIII, 4x 10G KR, 2x UART
  • TDP 40w to 67w consumption
  • Selected SKU support -40 to 85 °C wide temperature

PCOM-B704GT, a Type 7 COM Express® basic size(125 x 95 mm) module which based on Intel®Xeon® Ice-Lake-D LCC D-1700 series processors. It is compatible with COMe 3.0 standard. In this architecture, it could provide up to 10 cores processors within the TDP from 40w to 67w. A selected SKU support wide-temperature range.PCOM-B704GT features four 10GbE KR LAN interfaces,16 PCIe 4.0 lanes and 16 PCIe 3.0 lanes,TPM 2.0 and two DDR4 SO-DIMM up to 64GB in total. Portwell wants to promote PCOM-B704GT as a vertical solution to aim in the different versatile applications, such as edge computing, automation, military, transportation and so on.

Specifications

Specifications
Product PCOM-B704GT
Form Factor Factor Type 7, Basic Form Factor COM-Express® ( 125 x 95 mm)
Processor Intel®Xeon® D-1700 series
Processor N/A
Graphics Base Frequency N/A
Ethernet Intel®I210IT
BIOS AMI BIOS
ECC Memory Supported Yes
Memory 2x DDR4 SO-DIMM up to 64GB 2933MT/s

Ordering Guide

Ordering Guide
Product Ordering P/N Status
PCOM-B704GT-XXXX TBD In Development
Accessory
Accessory Ordering P/N Status
Cooler TBD In Development
Heat Spreader TBD In Development
Heat Sink TBD In Development
