PCOM-B706GT

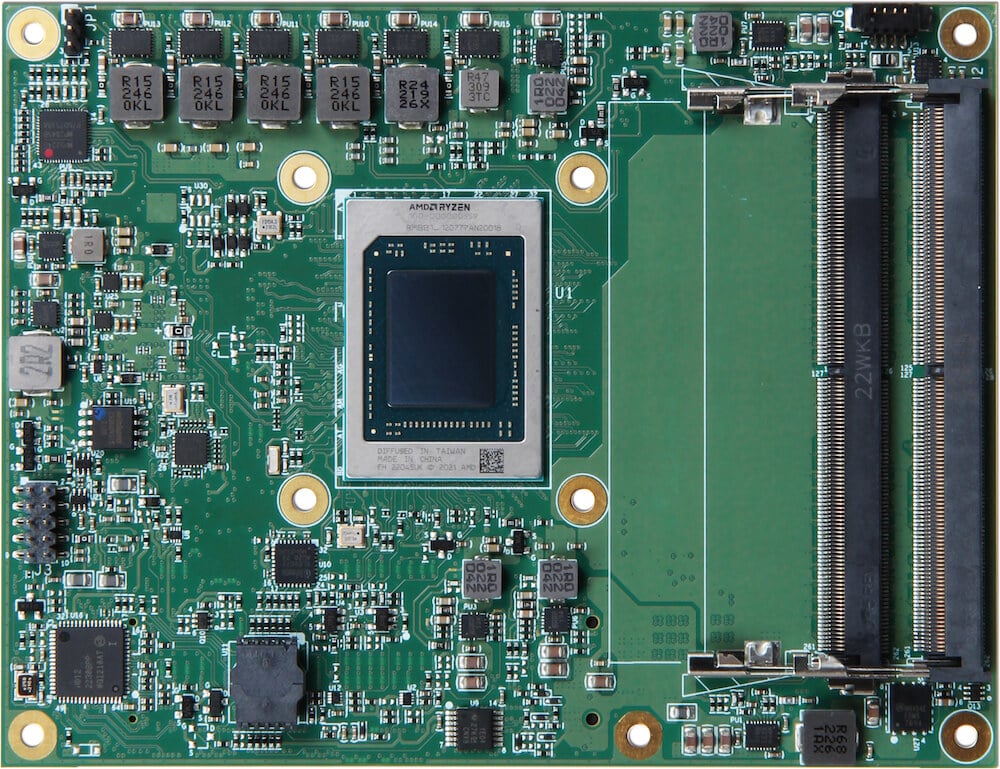

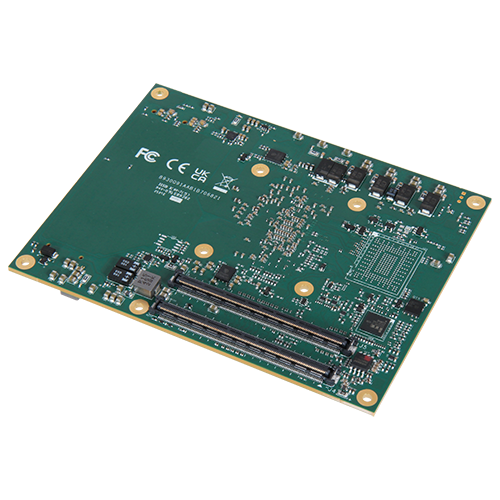

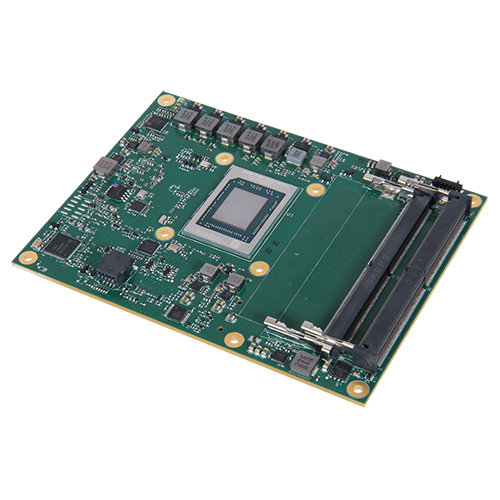

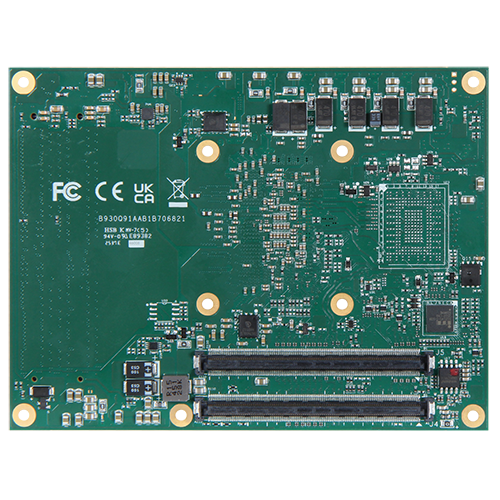

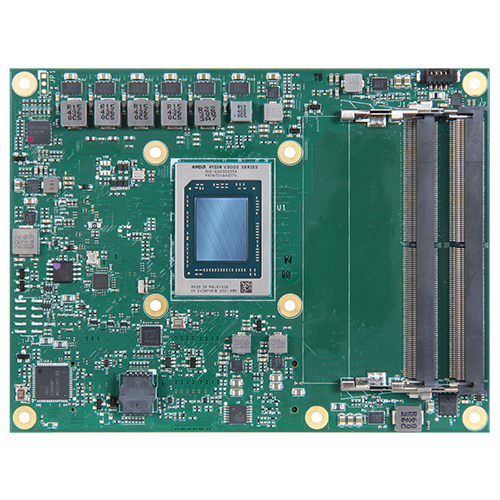

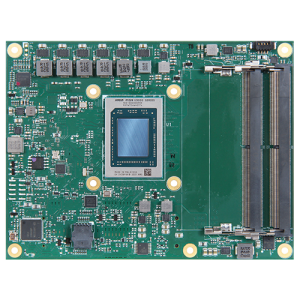

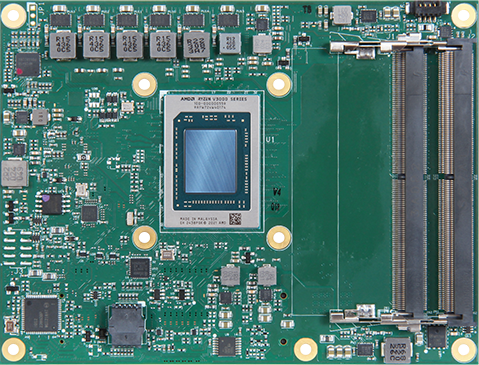

COM-Express® Type 7 Basic module with AMD® Embedded Ryzen™ V3000 CPU Family equipped on-module NVME SSD

Features

  • AMD® Embedded Ryzen™ V3000 CPU featuring “Zen 3” core
  • 2x DDR5 4800 MT/s SO-DIMM, 2x 10G KR Port
  • 10W ~ 54W cTDP with -40 ~ 85 °C support on selected SKU
  • Up to 16x PCIe Gen 4 lanes for high speed interconnection
  • Optional on-module PCIe x2 NVME storage

Description

PCOM-B706GT, a Type 7 COM Express® basic size (125mm x 95 mm) module which based on AMD® Embedded Ryzen™ V3000 cpu family. It provide up to 8 cores and 16 threads processors with cTDP from 10W to 54W, and 2x 10G KR ports. It provide PCIe Gen4 lanes with 16.0 GT/s transfer rate to satisify the demand of throughput on different applications. PCOM-B706GT provide 16x PCIe lanes, 4x USB 3.2 Gen2, and 2x SATA III ports to meet COM Express type 7 requirement. It also provide on-module high speed SSD storage chip for small footprint embedded equipment with security concern. A selected SKU (V3C18I) support wide-temperature range with powerful 8 core / 16 thread still provide strong computing power for critical edge application. PCOM-B706GT offer a new upgrade path for compute demanding applications such as software defined networking, edge computing, automation, military, transportation and so on.

Specification

Specifications
General
Product PCOM-B706GT
Form Factor Type 7, Basic Form Factor COM-Express® ( 125 x 95 mm)
Processor AMD® Embedded Ryzen V3000 CPU
V3C14 V3C16 V3C18 V3C18I V3C44 V3C48
Core / Thread Count 4C / 8T 6C / 12T 8C / 16T 8C / 16T 4C / 8T 8C / 16T
Base Frequency 2.3 GHz 2.0 GHz 1.9 GHz 1.9 GHz 3.5 GHz 3.3 GHz
1T Boost Frequency 3.8 GHz 3.8 GHz 3.8 GHz 3.8 GHz 3.8 GHz 3.8 GHz
L2 Cache 2 MB 3 MB 4 MB 4 MB 2 MB 4 MB
L3 Cache 8 MB 16 MB 16 MB 16 MB 8 MB 16 MB
Ethernet
  • 2x 10G KR
  • 1x GbE LAN
Nominal TDP (W) 15 W 15 W 15 W 15 W 45 W 45 W
cTDP (W) 10 ~ 25 W 10 ~ 25 W 10 ~ 25 W 10 ~ 25 W 35 ~ 54 W 35 ~ 54 W
BIOS AMI BIOS
Memory 2x DDR5 SO-DIMM Up to 4800 MT/s
Temperature Range 0 ~ 60 °C 0 ~ 60 °C 0 ~ 60 °C -40 ~ 85 °C 0 ~ 60 °C 0 ~ 60 °C



I/O INTERFACE
I/O INTERFACE
SATA / Storage 2x SATA III or 1x on-module PCIe x2 NVME (Optional)
USB
  • 4x USB 2.0
  • 4x USB 3.2 Gen2
Ethernet
  • 2x 10G KR
  • 1x GbE LAN
Serial I/O GPIO 8 GPIO
I2C Baud Rate: 400KHz
SMBus Baud Rate: 100KHz
UART 2 Serial Port (Tx/Rx)
PCI Express
  • 1x PCIe x8 or 2x PCIe x4, Max PCIe Gen 4 [PCIe #16 ~ #23]
  • 1x PCIe x4 + 3x PCIe x1 or 2x PCIe x2 + 3x PCIe x1, w/ on-module GbE LAN [PCIe #0 ~ #7]
  • 1x PCIe x8 or 1x PCIe x4 + 4x PCIe x1 or 2x PCIe x2 + 4x PCIe x1, w/o on-module GbE LAN [PCIe #0 ~ #7]
Security TPM 2.0



MECHANICAL & ENVIRONMENT
MECHANICAL & ENVIRONMENT
Dimension 125mm x 95 mm
Power DC IN 12v ±5%
Storage -40°C to 80°C
Operating Temperature 0°C to 60°C
(Selected SKU -40°C to 85 °C)
Certification Temperature Contact us
MTBF TBD
Vibration TBD
OS Linux Ubuntu 20.04.3 LTS / Yocto

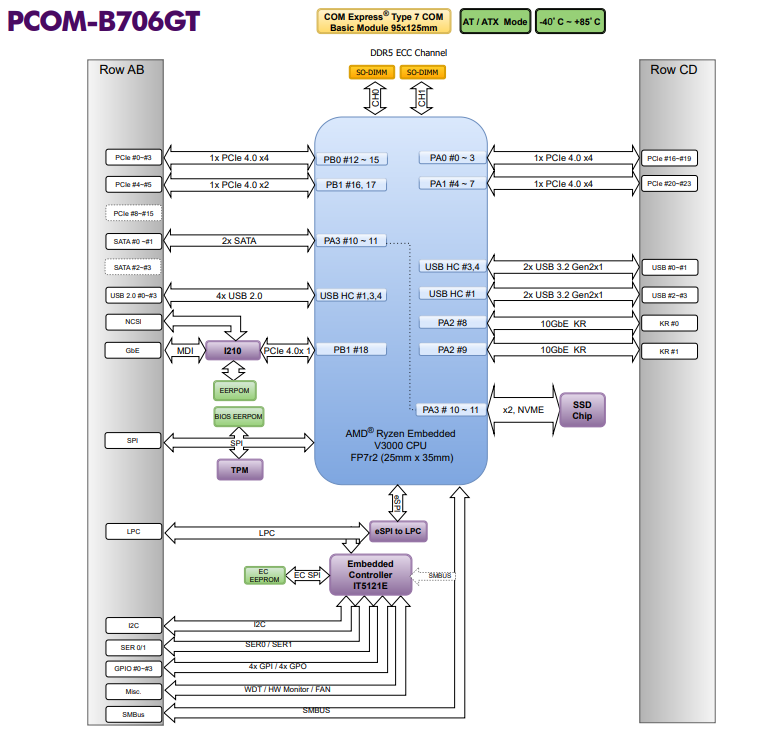

Block Diagram

Ordering Guide

Ordering Guide
Product Ordering P/N Status
PCOM-B706GT-V3C48 AB1-3R17Z In design
PCOM-B706GT-V3C44 AB1-3R15Z In design
PCOM-B706GT-V3C18I AB1-3R19Z In design
PCOM-B706GT-V3C18 AB1-3R18Z In design
PCOM-B706GT-V3C16 AB1-3R16Z In design
PCOM-B706GT-V3C14 AB1-3R14Z In design

Accessory

Accessory
Accessory Ordering P/N Status
Cooler TBD In design
Heat Sink TBD In design
Heat Spreader TBD In design
