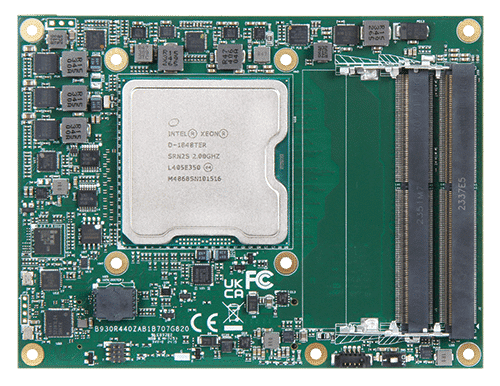

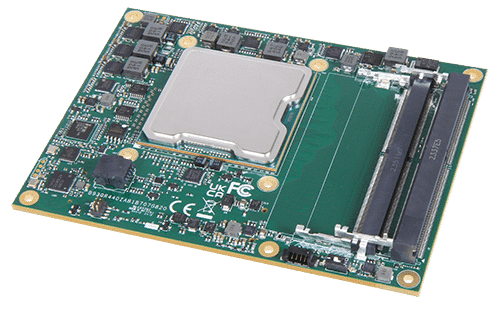

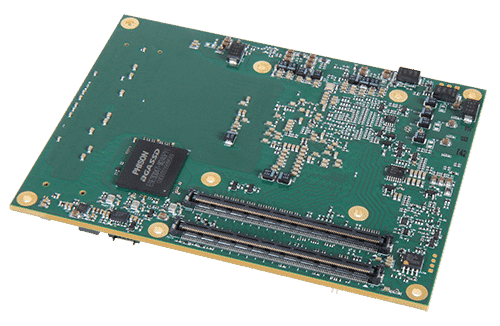

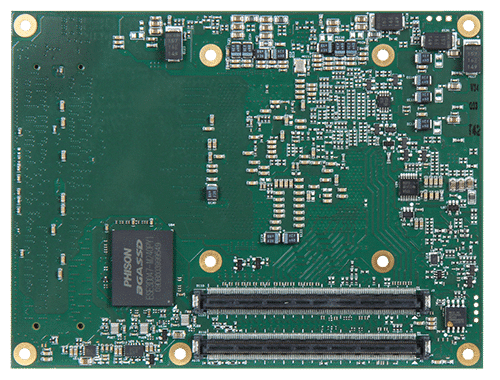

PCOM-B707GT

COM Express Type 7 Basic Module based on Intel® Xeon® D-1800 Processors with Two Channels and Two SO-DIMM slots.

Features

  • Intel® Ice Lake D® D-1800 Refresh Series Processors
  • DDR4 ECC / Non-ECC SDRAM up to maxium capacity 64GB and maxium data rate 2933 MT/s
  • 4x 10GBASE-KR port (Selected SKUs) and Real Time Support
  • Capable of Industrial temperture -40°C to 80°C (only for eTemp SKUs)
  • Support Intel® QAT Technology
  • Support Intel® TSN/TCC

Description

PCOM-B707GT, a COM Express® Type 7, basic size module based on Intel® Xeon® D-1800 Family. It is high-performance SoC with integrated Ethernet and high-capacity I/Os for IoT to deliver server-class computing. PCOM-B707GT provide server-grade performance in small form factor with option from 4 cores up to 10 cores, two channels DDR4, and full COMe Type 7 I/O support. PCOM-B707GT is the best platform for edge AI computing and software defined networking (SDN) applications.

Specification

Specifications
General
Product PCOM-B707GT
Form Factor Type 7, Basic Form Factor COM-Express® ( 125 x 95 mm)
Processor Network and Enterprise ( 0°C to 60°C) Extended Temperature (-40°C to 85°C)
D-1844NT D-1823NT D-1813NT D-1735TR D-1848TER D-1715TER
Core 10 6 4 8 10 4
Freq. 2.0 GHz 2.8 GHz 2.2 GHz 2.4 GHz 2.0 GHz 2.4 GHz
Turbo 3.1 GHz 3.5 GHz 2.4 GHz 3.5 GHz 3.1 GHz 3.5 GHz
Cache 15 MB 10 MB 10 MB 15 MB 15 MB 10 MB
Processor TDP 55W 55W 42W 59W 57W 50W
Intel® QuickAssist
Technology (Intel® QAT)
Yes Yes Yes No No No
Intel® Time Coordinated Computing
(Intel® TCC)
No No No Yes Yes Yes
Intel® Deep Learning Boost (Intel®
DL Boost) on CPU
Yes Yes Yes Yes Yes Yes
Ethernet 10G KR 4 4 4 4 4
BIOS AMI BIOS
ECC Yes
Storage NVMe up to 1TB (optional)
Memory 2x SO-DIMM DDR4 up to 64GB 2933 MT/s



I/O Interface
I/O Interface
SATA / Storage 2x SATA III
USB 4 x USB 3.2 Gen1 & 4 x USB 2.0
Ethernet Intel® I226LM Intel® I226IT
Serial I/O GPIO: 8 GPIO
I2C: Baud Rate: 400KHz
SMBus: Baud Rate: 100KHz
UART: 2 Serial Port (Tx/Rx)
PCI Express 16x PCIe 3.0 Lanes 16x PCIe 4.0 Lanes
Security TPM 2.0



MECHANICAL & ENVIRONMENT ORDERING GUIDE
MECHANICAL & ENVIRONMENT ORDERING GUIDE
Dimension 125 x 95 mm
Power DC IN Normal : +12V DC
AT/ATX Mode
Storage Temperature -40°C to 80°C
Operating Temperature -40°C to 80°C (Selected SKU)
0°C to 60°C
Certification Contact us
MTBF Contact us
Vibration Contact us
OS Windows 10 IoT Enterprise
Windows Server
Linux

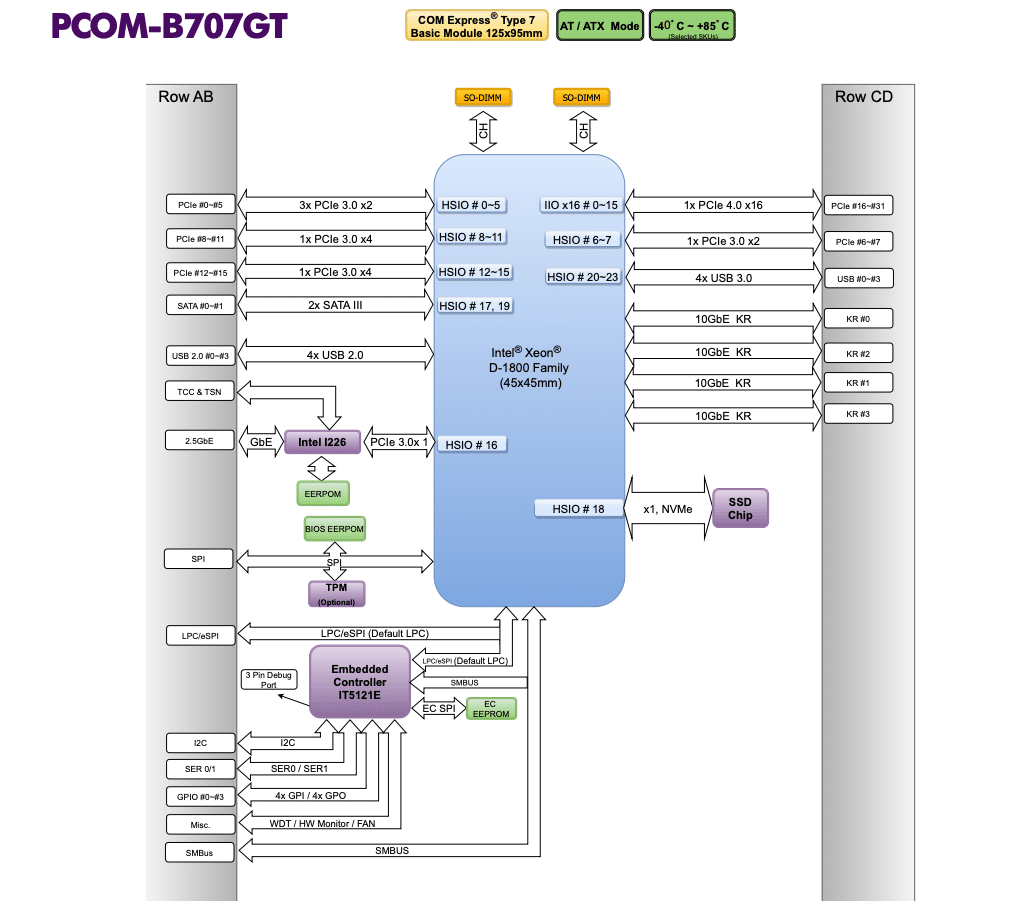

Block Diagram

Ordering Guide

Ordering Guide
Product Ordering P/N Status
PCOM-B707GT-D1848TER TBD In Development
PCOM-B707GT-D1844NT TBD In Development
PCOM-B707GT-D1823NT TBD In Development
PCOM-B707GT-D1813NT TBD In Development
PCOM-B707GT-D1735TR TBD In Development
PCOM-B707GT-D1715TER TBD In Development

Accessory

Accessory
Accessory Ordering P/N Status
Cooler TBD In Development
Heat Sink TBD In Development
Heat Spreader TBD In Development
PCOM-C701-BMC
(ATX Carrier board)
Available

Support

(Documents & Downloads)

  Datasheet   DataSheet_PCOM-B707GT.pdf | DataSheet 20240227   February 22, 2024
