PCOM-B885

COM-HPC® Client module Size C module with Intel® 13th/14th Gen socket type processor (Code Name: Raptor Lake-S Refresh) DDR5 SO-DIMM, DDI, PCIe Gen 5, USB 3.2 Gen2, 2.5G Ethernet, discrete TPM 2.0, eDP, SATA

Features

  • 13th/14th Gen Intel® Core™, Pentium®, Celeron® series socket type processors in Intel® 7 lithography
  • Up to 8x performance core + 16x efficient core, and up to 32x graphic execution units
  • 4x DDR5 ECC/non-ECC SO-DIMM up to 192GB capacities
  • 1x PCIe Gen5 x16, 2x Gen4 x4, 3x PCIe Gen3 x4, 6x PCIe Gen3 x1, 4x USB3.2 Gen2 x2, 2x SATA, 3x DDI, eDP

Description

PCOM-B885 is COM-HPC module based on Intel® 13th/14th Core™ platform. It is compatible with COM-HPC 1.15 standard. The platform adopts Intel 7 lithography and VNNI instruction set, offers advance computing power with 35~65W thermal and embedded use condition for wide range application. PCOM-B885 supports PCIe Gen5 up to 16x lanes, and 4x ECC/Non-ECC DDR5 SO-DIMM(memory capacity up to 192GB), which is suit for mission critical use conditions and AI edge computing. This module also provides 2x PCIe Gen4 x4 and 18x PCIe Gen3 lanes, 4x USB 3.2 Gen2 x2, and 2x SATA. The complete and flexible I/O capacity also mapped to wide range of industrial applications.

Specification

Specifications
CPU and General
Product PCOM-B885
Form Factor COM HPC Client, Size C (160 x 120mm)
CPU SKU TDP Core (P+E) Threads Cache Base Freq Max Turbo Freq Max Memory MT/s ECC vPro PEG Bifurcation
i9-14900 65 W 8 + 16 32 36 MB 2.0 Ghz 5.8 Ghz 3600 (2DPC) R680E Q670E
R680E
Q670E
R680E
i9-14900T 35 W 8 + 16 32 36 MB 1.1 Ghz 5.5 Ghz
i7-14700 65 W 8 + 12 28 33 MB 2.1 Ghz 5.4 Ghz
i7-14700T 35 W 8 + 12 28 33 MB 1.3 Ghz 5.2 Ghz
i5-14500 65 W 6 + 8 20 24 MB 2.6 Ghz 5.0 Ghz
i5-14500T 35 W 6 + 8 20 24 MB 1.7 Ghz 4.8 Ghz
i5-14400 65 W 6 + 4 16 20 MB 2.5 Ghz 4.7 Ghz N/A N/A
i5-14400T 35 W 6 + 4 16 20 MB 1.5 Ghz 4.5 Ghz
i3-14100 60 W 4 + 0 8 12 MB 3.5 Ghz 4.7 Ghz
i3-14100T 35 W 4 + 0 8 12 MB 2.7 Ghz 4.4 Ghz
Processor 300 46 W 2 + 0 4 6 MB 3.9 Ghz 3.9 Ghz R680E
Processor 300T 35 W 2 + 0 4 6 MB 3.4 Ghz 3.4 Ghz



I/O Interface
I/O Interface
SATA SATA III
USB
  • 4x USB 3.2 Gen2 x2
  • 8x USB 2.0
Ethernet 2x Intel® I226 series
Serial I/O GPIO 12 bit GPIO (default 6 input/6 output)
I2C Baud Rate : 400KHz
SMBus Baud Rate : 100KHz
UART TX/RX signal only
PCIe lane
  • 1x PCIe Gen5 x16 (bifurcation 2 x8)
  • 2x PCIe Gen4 x4
  • 3x PCIe Gen3 x4 + 6x PCIe Gen3 x1
Display Module display interface Carrier output options Resolution
eDP eDP eDP up to HBR3 3840 x 2160@120Hz
DDI 0/1/2 DP up to HBR3 3840 x 2160@120Hz
DP up to HBR3 3840 x 2160@120Hz
DP up to HBR3 3840 x 2160@120Hz
Security TPM 2.0



MECHANICAL & ENVIRONMENT
MECHANICAL & ENVIRONMENT
Dimension 160 x 120mm
Power DC IN
  • Normal: +12V DC
  • AT/ATX mode
Storage Temperature -40°C to 85°C
Operating Temperature 0°C to 60°C
Certification Contact us
MTBF TBD
Vibration TBD
OS
  • Windows 10/11
  • Ubuntu

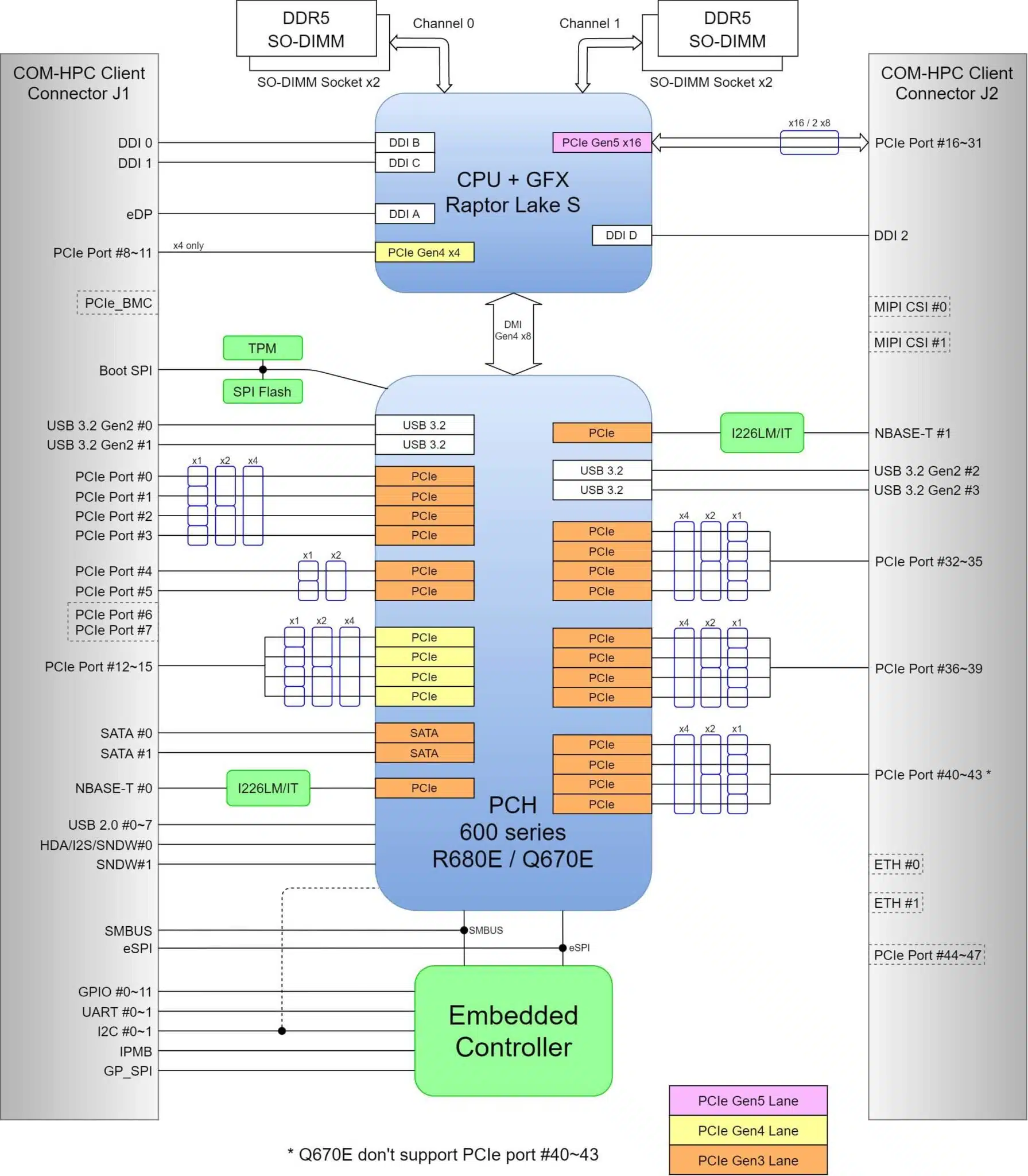

Block Diagram

Ordering Guide

Ordering Guide
Product Ordering P/N Status
PCOM-B885-R680E TBD In Development
PCOM-B885-Q670E TBD In Development

Packing List

Accessory

Accessory
Accessory Ordering P/N Status
Cooler TBD In Development
Heatsink TBD In Development
Heatspreader TBD In Development
PCOM-C880
(ATX carrier board)
AB1-3L34Z In Development
