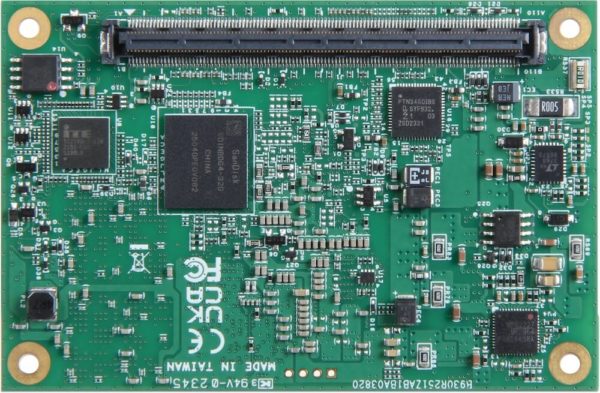

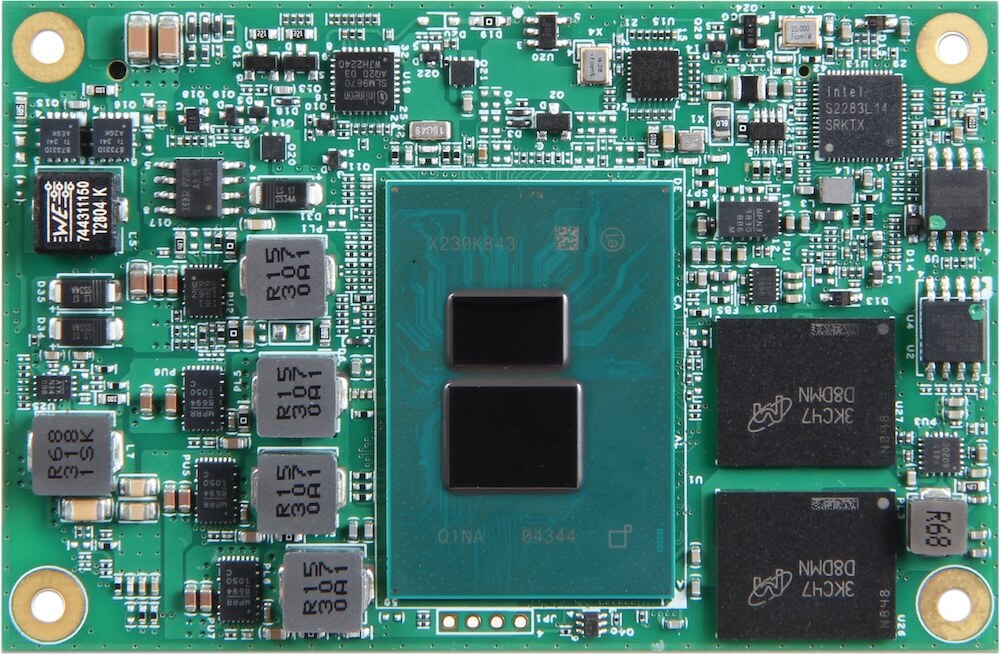

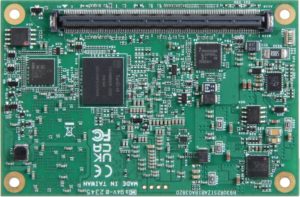

PCOM-BA03GL

Intel® Atom® x7000 series SoC based on Type 10 mini COM-Express® module with LPDDR5 SDRAM

Features

  • Intel® Atom® Processor x7000 Series
  • On board LPDDR5 SDRAM up to 16GB
  • On board eMMC up to 32GB
  • Low Power Consumption (6W to 12W), 4K Display resolution
  • Support wide temperature -40°C ~ 85°C (Selected SKU)
  • Support Intel® TCC/TSN with 2.5GbE (Selected SKU)

Description

PCOM-BA03GL, a Type 10 Mini COM Express® (84 x 55 mm) module which is based on Intel® Atom® x7000 Series Processors. This architecture, could
provide LVDS and high quantity HDMI, eDP, DP with 4K resolution. And it also provides turbo mode up to 3.6GHz, with extending 4x PCIe 3.0 x1, 2x
USB 3.2 Gen2, 8x USB 2.0, and 2x SATA III devices. With ultra-low power consumption(6W to 12W) and wide-temp support, it could provide very energy-saving and highly effective performance. Portwell wants to promote PCOM-BA03GL as the vertical solution to aim the different versatile applications, such
as automation, military, hospitality, transportation, and so on.

Specification



Specifications
CPU and General
Product PCOM-BA03GL
Form Factor (mm) Type 10, Mini Form Factor COM-Express® ( 84 x 55 mm)
Processor Intel® Atom
x7425E x7211RE x7213RE x7433RE x7835RE
Core 4 2 2 4 8
Freq. 1.5 GHz 1.0 GHz 2.0 GHz 1.5 GHz 1.3 GHz
Turbo 3.4 GHz 3.2 GHz 3.4 GHz 3.4 GHz 3.6 GHz
Cache 6MB 6MB 6MB TBC TBC
Processor Graphics Intel® UHD Graphics for 12th Gen Intel® Processors
Graphics Base Frequency 800 MHz 400 MHz 600 MHz 600 MHz 800 MHz
Graphics Max Dynamic Frequency 1.0 GHz 800 MHz 800 MHz 800 MHz 1.0 GHz
HW Encoding TBC
HW Decoding TBC
HW Acceleration Gen 11 LP, DirectX 12, OpenGL4.6, Vulkan
Processor TDP 12W 6W 9W 9W 12W
BIOS AMI BIOS
In-Band ECC Yes Yes Yes Yes Yes
Memory (on board LPDDR5) 16GB 4800 MT/s 16GB 4800 MT/s 16GB 4800 MT/s 16GB 4800 MT/s 16GB 4800 MT/s
Storage (on board eMMC) TBC TBC TBC TBC TBC
Temperature Range 0 ~ 60 °C -40 ~ 85 °C -40 ~ 85 °C -40 ~ 85 °C -40 ~ 85 °C



I/O INTERFACE
I/O INTERFACE
SATA 2 x SATA III
USB
  • 2 x USB 3.2 Gen2
  • 8 x USB 2.0
Ethernet 2.5 GbE
Serial I/O GPIO 8 GPIO
I2C Baud Rate: 3.2MHz
SMBus Baud Rate: 1MHz
UART 2 Serial Port (Tx/Rx)
PEG N/A
PCI Express 4x PCIe 3.0 x1
Display Default Options Resolution
DDI DP up to 4096x 2160 @ 60Hz
LVDS / eDP HDMI up to 4096x 2160 @ 60Hz
LVDS(24bit, dual channel) up to 2560x 1600 @ 60Hz
eDP up to 4096x 2160 @ 60Hz
Security TPM 2.0, Intel®AES



MECHANICAL & ENVIRONMENT
MECHANICAL & ENVIRONMENT
Dimension 84 x 55 mm
Power DC IN 4.75V to 20V, AT/ATX Mode
Storage Temperature -40°C to 85°C
Operating Temperature -40°C to 85°C
Certification TBD
MTBF TBD
Vibration TBD
OS Win 11, Ubuntu, Yocto

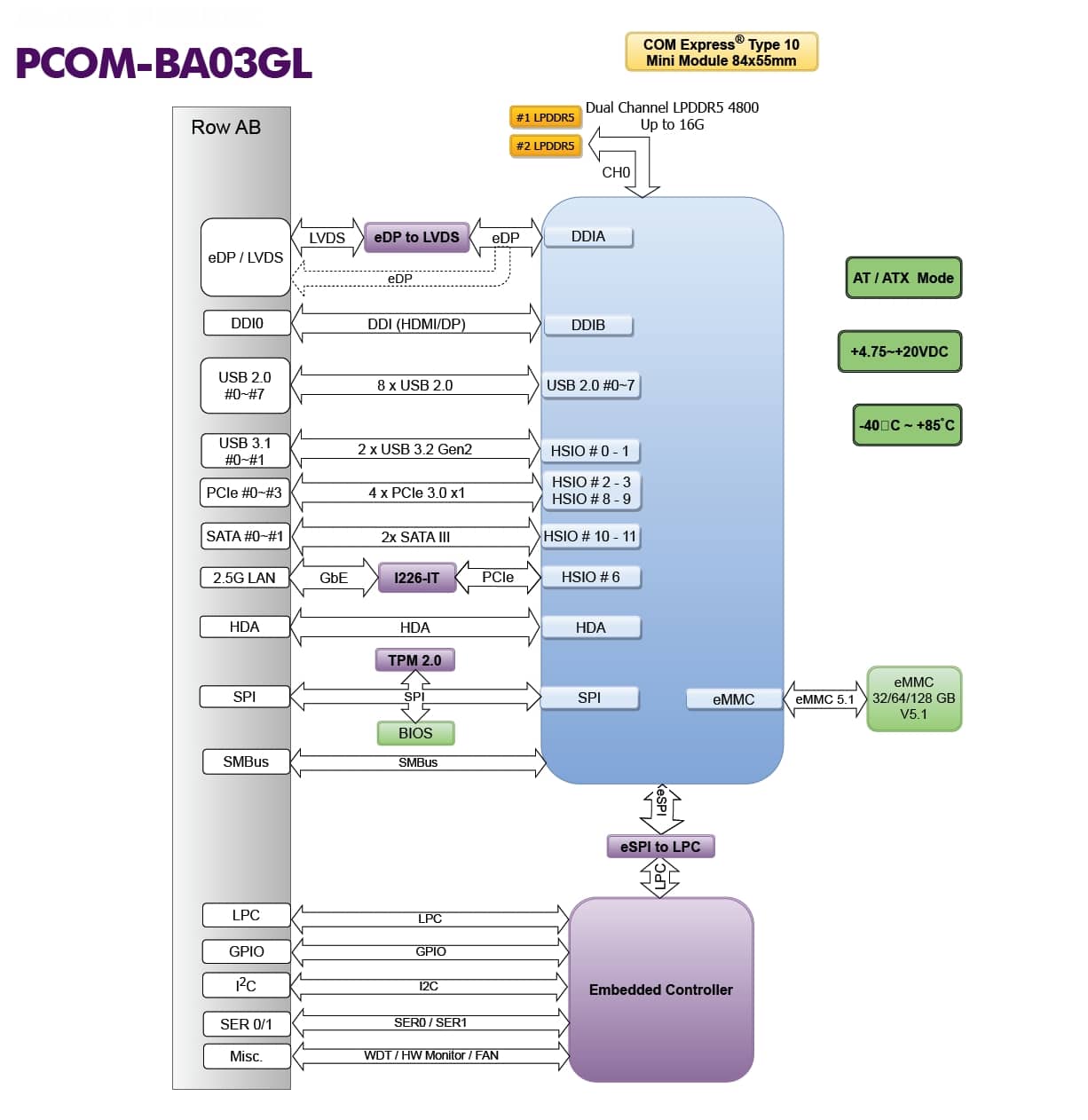

Block Diagram

Ordering Guide



Ordering Guide
Product Ordering P/N Status
PCOM-BA03GL-x7425E-16G-32G AB1-3S29Z Available
PCOM-BA03GL-x7211RE-16G-32G AB1-3S41Z Available
PCOM-BA03GL-x7213RE-16G-32G AB1-3S43Z Available
PCOM-BA03GL-x7433RE-16G-32G AB1-3S44Z Available
PCOM-BA03GL-x7835RE-16G-32G AB1-3S42Z Available

Accessory



Accessory
Accessory Ordering P/N Status
Heatsink (Atom) TBC TBC
Heatsink (i3) TBC TBC
Heatspreader (Atom) TBC TBC
Heatspreader (i3) TBC TBC
PCOM-CA00
(Micro-ATX Carrier board)
AB1-3917 Available
