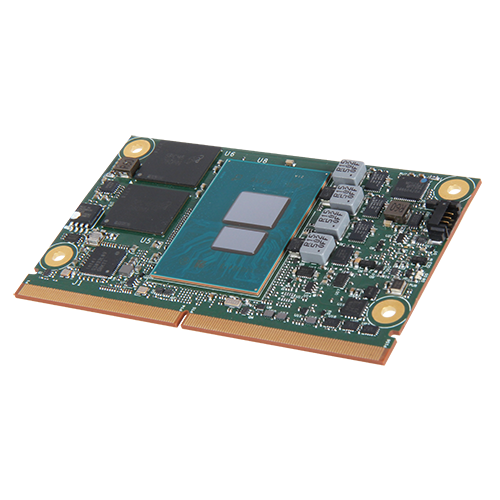

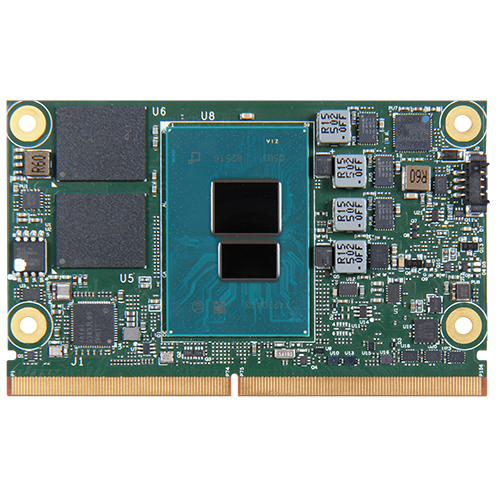

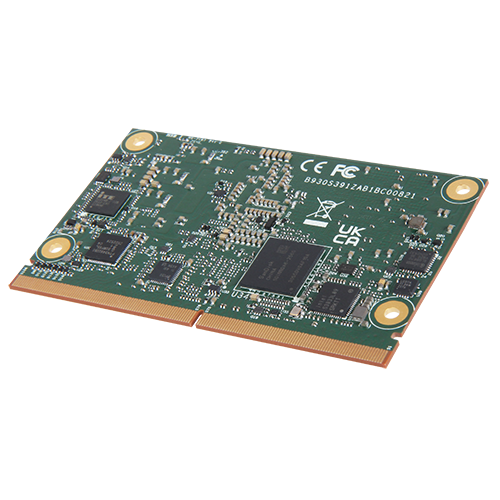

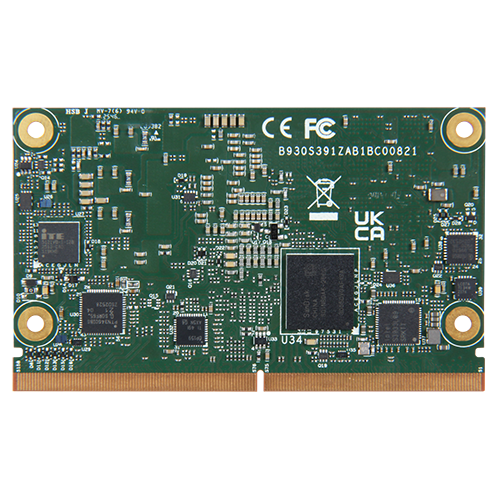

PCOM-BC00

SMARC 2.2 Compliant module (82 x 50 mm) powered by Intel^® Alder Lake-N, Amston Lake (Atom^® x7000RE), and Twin Lake (Core Processor N) Series SoCs, featuring onboard LPDDR5 SDRAM

PCOM-BC00

Default-featured-image

PCOM-BC00 - Image 3

PCOM-BC00 - Image 4

PCOM-BC00 - Image 5

PCOM-BC00 - Image 6

Features

Intel^® Alder Lake N & Amston Lake & Twin Lake series
Onboard LPDDR5 SDRAM up to 16GB &　eMMC up to 256GB
Support wide temperature -40°C ~ 85°C (Selected SKU)
Support Intel^® TCC/TSN with 2.5GbE (Selected SKU)
Low Power Consumption (6W to 15W), 4K Display resolution

Model	PCOM-BC00
Form Factor	SMARC

General
CPU	Core3-N355	x7211E	x7213E	x7211RE	x7213RE	x7433RE	x7835RE
Core/Thread	8C/8T	2C	2C	2C	2C	4C	8C
Based Frequency	N/A	1	1.7	1	2	1.5	1.3
Turbo Frequency	3.9	3.2	3.2	3.2	3.4	3.4	3.6
Cache	6	6	6	6	6	6	6
TDP	15	6	10	6	9	9	12
Graphics EU	32	16	16	16	16	32	32
Graphics Max Freq.	1.35	1	1	1	1	1	1.2
Memory Type/Speed	1x DDR5 SO-DIMM up to 48GB 4800MT/s	1x DDR5 SO-DIMM up to 48GB 4800MT/s	1x DDR5 SO-DIMM up to 48GB 4800MT/s	1x DDR5 SO-DIMM up to 48GB 4800MT/s	1x DDR5 SO-DIMM up to 48GB 4800MT/s	1x DDR5 SO-DIMM up to 48GB 4800MT/s	1x DDR5 SO-DIMM up to 48GB 4800MT/s
ECC Memory Support	No Support	No Support	No Support	No Support	No Support	No Support	No Support
Temperature Range	0 ~ 60 °C (32.0 ~ 140.0 °F)	0 ~ 60 °C (32.0 ~ 140.0 °F)	0 ~ 60 °C (32.0 ~ 140.0 °F)	-40°C to 85°C(-40~185°F)	-40°C to 85°C(-40~185°F)	-40°C to 85°C(-40~185°F)	-40°C to 85°C(-40~185°F)
BIOS	AMI uEFI BIOS
Storage	eMMC up to 256GB
Memory	2 x On Board LPDDR5 up to 16GB

I/O Interface
SATA	1 x SATA III
USB	2 x USB 3.2 Gen2
USB	6 x USB 2.0
Ethernet	2 x 2.5 Gbe LAN
PCIe	4 x PCIe Gen3 x1
Legacy I/O	1 x GPIO
	1 x I2C
	1 x SMBus
	2 x UART
Display	DDI

ME/Environment
Operating Temperature	-40 ~ 85 °C (-40.0 ~ 185.0 °F)
Storage Temperature	-40 ~ 85 °C (-40.0 ~ 185.0 °F)
OS	Windows 11, Ubuntu 24.04

Ordering Guide

Category	Product	P/N	Description
SMARC	PCOM-BC00-N355-16G-256G	TBD	Twin Lake N355 (8C,3.9Ghz , 16G+256G, 15W)
SMARC	PCOM-BC00-x7211RE-4G-32G	TBD	Amston Lake x7211RE (2C, 1.0GHz, 4G+32G, 6W, Wide-temp)
SMARC	PCOM-BC00-x7213RE-8G-32G	TBD	Amston Lake x7213RE (2C, 2.0GHz, 8G+32G, 9W, Wide-temp)
	PCOM-BC00-x7433RE-16G-64G	TBD	Amston Lake x7433RE (4C, 1.5GHz, 16G+64G, 9W, Wide-temp)
SMARC	PCOM-BC00-x7835RE-16G-256G	TBD	Amston Lake x7835RE (8C, 1.3GHz, 16G+256G, 12W, Wide-temp)
SMARC	PCOM-BC00-x7211E-4G-32G	TBD	Alder Lake-N x7211E (2C, 1.0GHz, 4G+32G, 6W)
SMARC	PCOM-BC00-x7213E-8G-32G	TBD	Alder Lake-N x7213E (2C, 1.7GHz, 8G+32G, 10W)
