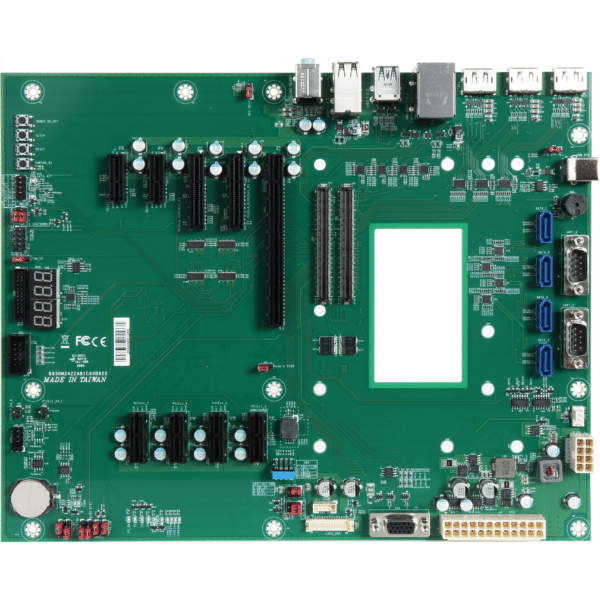

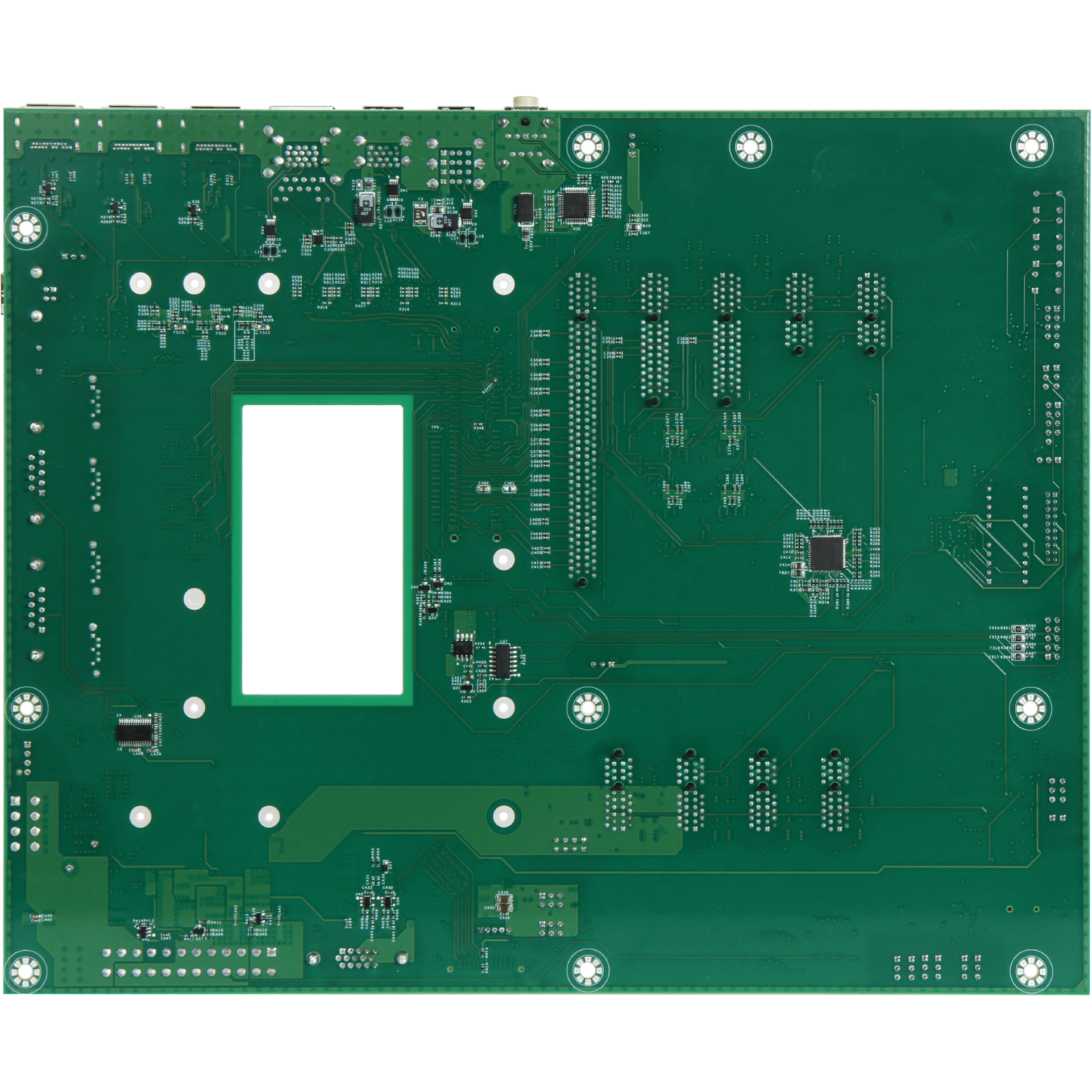

PCOM-C60B

ATX Form Factor Evaluation Carrier Board for Type 6 Com-Express® Rev 3.0 Module

Features

  • COM Express® carrier board is compatible with the Portwell Type 6 COM Express® modules
  • Support 4x USB 3.2, 8x USB 2.0, 4x SATA III Ports
  • Support multiple displays(eDP, DP, VGA, LVDS)
  • Support 1x PEG(Gen4), 2x PCIex 4, 6x PCIe x1, 2.5G Ethernet

Portwell PCOM-C60B is designed to as a validation board for most of the Portwell COM-Express 3.0 type 6 modules, this carrier will support VGA, eDP/LVDS, DP displays, and included multiple I/O expansions, for example PEG, PCIe, USB3.2, SATAIII and 2.5G ethernet.

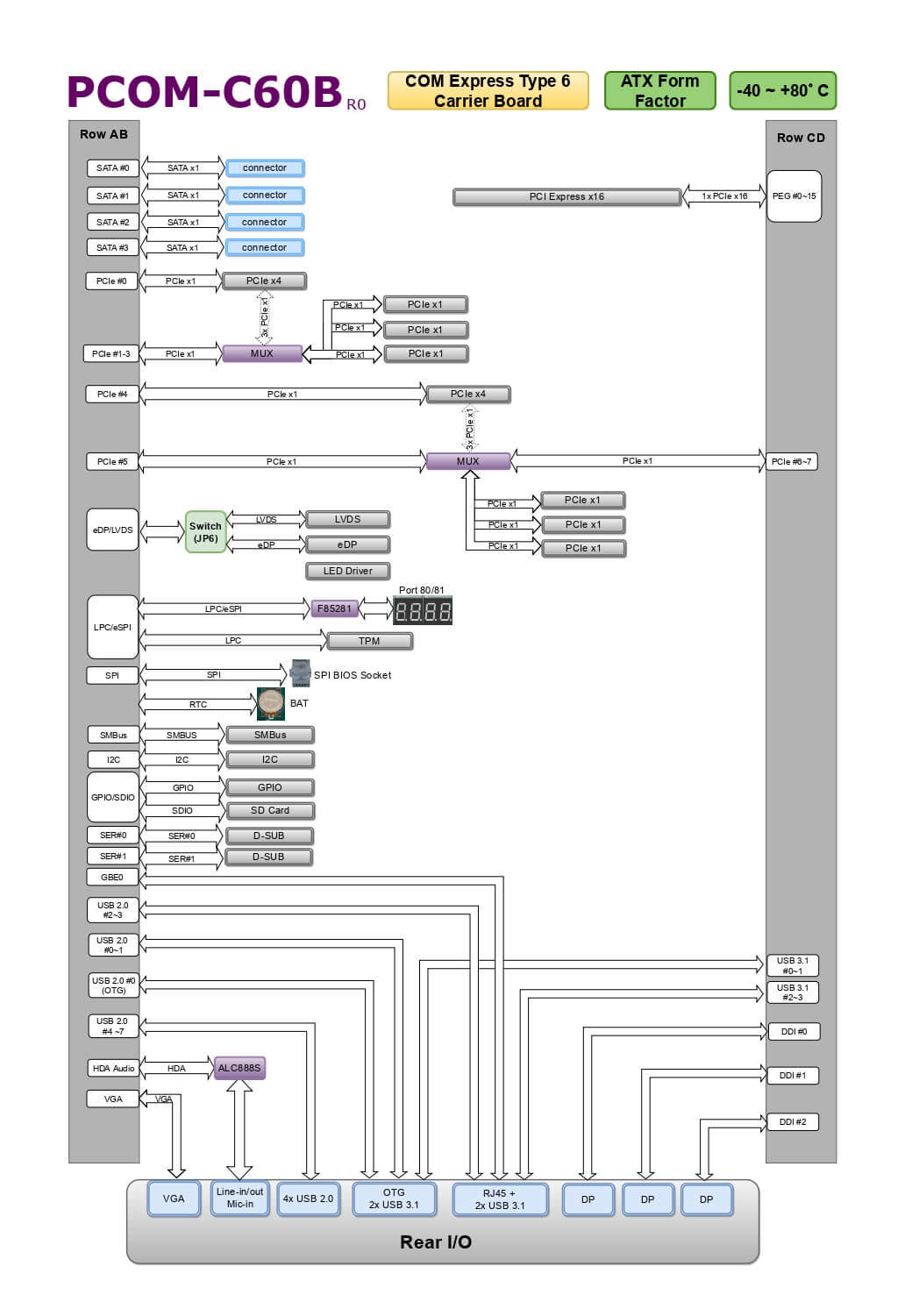

Block Diagram

Specification

Specifications
Model Name PCOM-C60B
Form Factor (mm) ATX (305 X 244mm)
COM Type Type 6
CPU/ Clock/ Cache Depends on Module
Chipset N/A
Graphic Controller N/A
Memory N/A
Storage 4x SATA III
USB 4x USB 3.2 Gen2
8x USB 2.0
PEG 1x PCIe 4.0 x 16
PCI Express 2x PCIe 3.0 x 4
6x PCIe 3.0 x 6
Ethernet 1x GbE
UART 2x Serial Port(Tx/Rx)
Displays VGA
LVDS/eDP
Display port x 3
Audio N/A
Operating Temperature -40C° to 80°C
Module COM-Express 2.1
COM-Express 3.0

Ordering Guide

Ordering Guide
Product Ordering P/N Status
PCOM-C60B AB1-3G22Z In Development

Accessory

Ordering Guide
Accessory Ordering P/N Status
LVDS Cable TBD In Development
eDP Cable TBD In Development
