PCOM-C60F

COMING SOOM

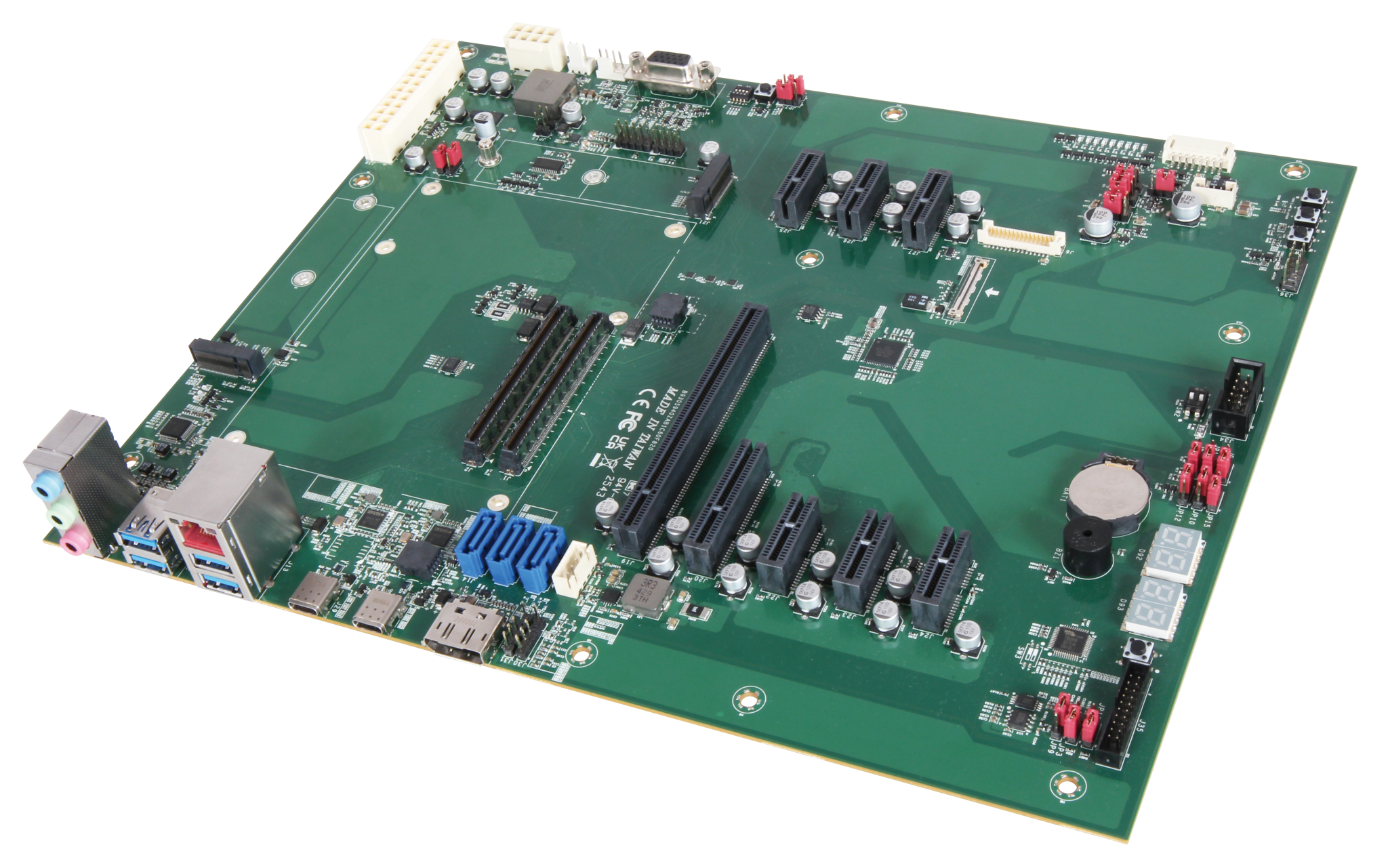

ATX COM Express Type 6 carrier board featuring USB4, PCIe Gen4, and -40°C to 85°C wide-temp support.

Features

  • COM Express Type6 carrier board support Basic/Compact size modules
  • ATX size form factor provides extra expansions slot, and follows the standard space mounting

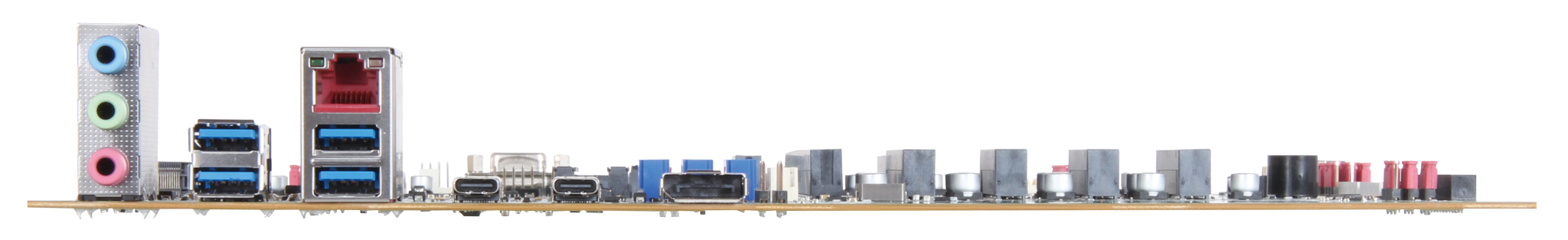

  • Supports 2x USB Type-C port(USB4 & DDI) , 4x USB 3.2(Type-A), 3x SATA, PCIe Gen4, M.2 B Key, PEG x16, PCIe x4, M.2 M-Key, 2.5G RJ45
  • Support wide temperature -40°C to 85°C

Specifications

General
Product PCOM-C60F
Form Factor ATX size(305x244mm)
Supported Module COM Express Type6 , Basic/Compact size
General Function
  • RTC battery
  • BIOS SPI Socket
  • Power BTN / Reset BTN/Rapid shutdown BTN/Sleep BTN/LID BTN
  • One VGA port
  • Audio Jack
I/O Interface
SATA 3 x SATAIII
USB
  • 2x USB Type C port
  • 4x USB Type A port
Ethernet 1x 2.5Gb RJ45
Serial I/O GPIO
I²C
SMBus
UART
PCI Express
  • 1x PCIe 4.0 x16 connector
  • 1x PCIe 4.0 x4 connector
  • 6x PCIe 4.0 x1 connector
  • 1x M.2 M Key
Others
  • System Fan connector x1, 4 PIN PWM Smart FAN Type
  • (Temperature and voltages monitoring)
MECHANICAL & ENVIRONMENT
Dimension 305mm x 244mm
Storage Temperature -40℃ to 85℃
Operating Temperature -40℃ to 85℃
Storage Humidity 0% to 95%
Operation Humidity 0% to 95%
Ordering Guide
Product Ordering P/N Status
PCOM-C60F AB1-3U26Z In Development
