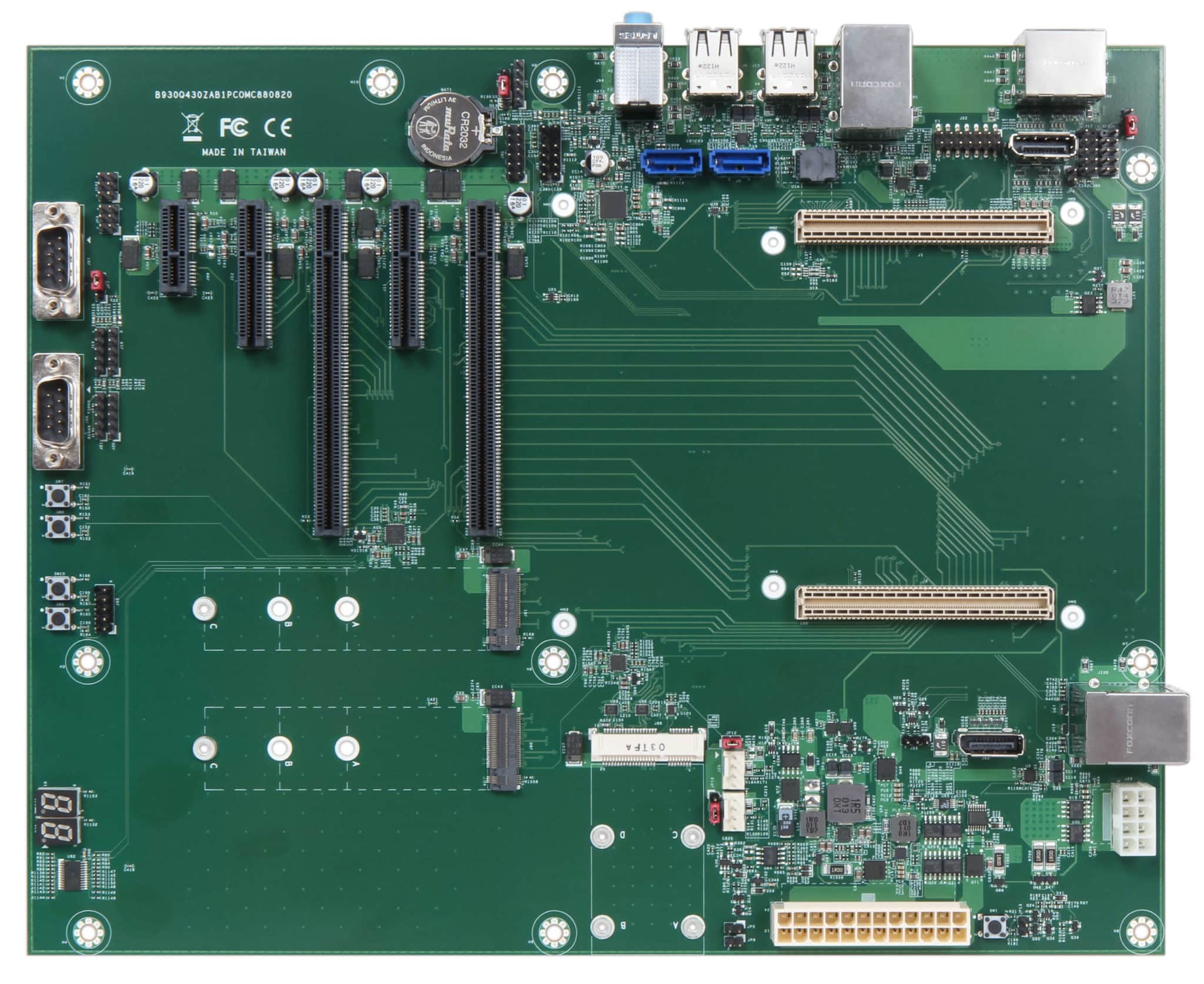

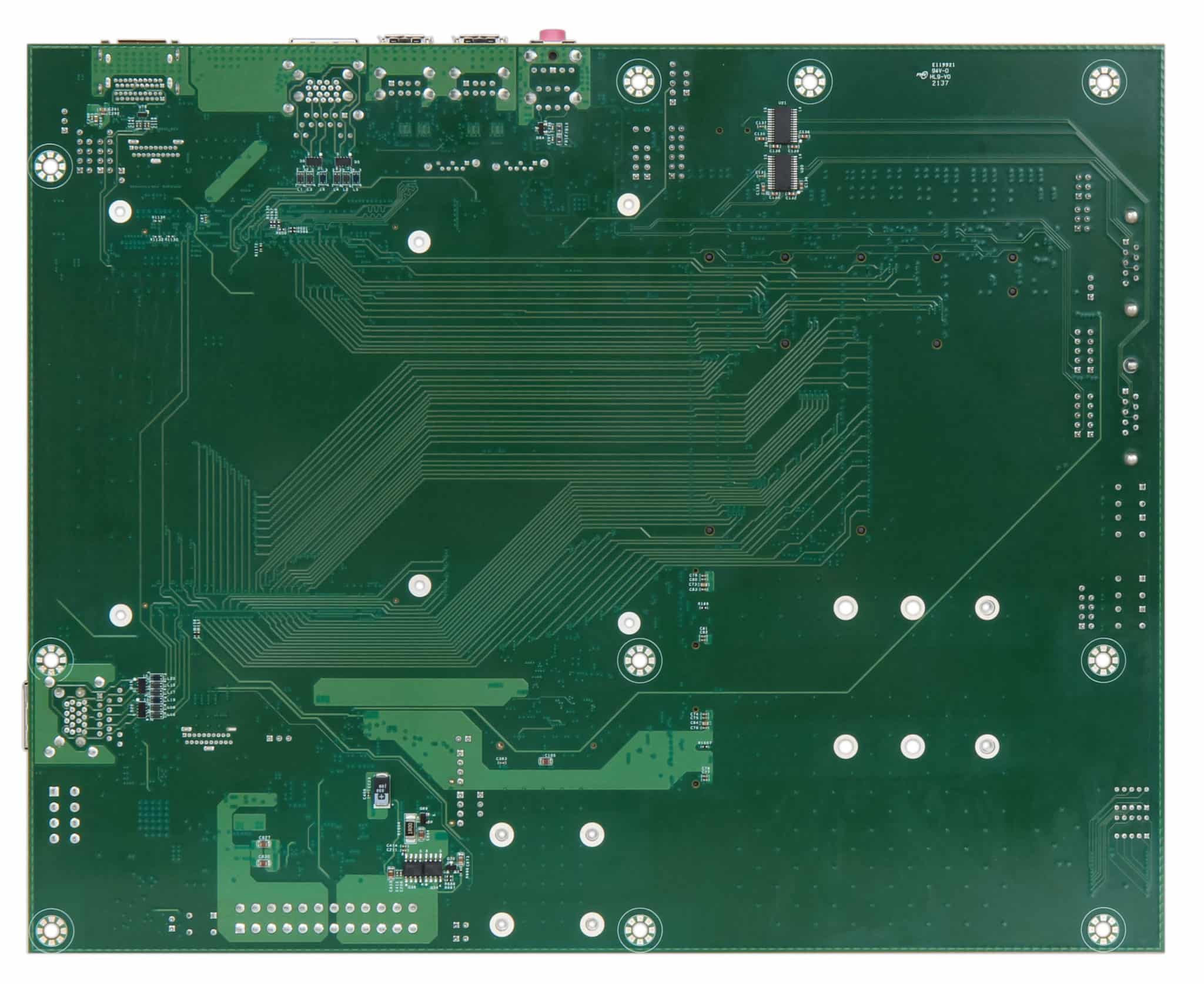

PCOM-C880

ATX size form factor evaluation carrier board for COM-HPC client module

Features

  • COM-HPC carrier board support COM-HPC client size A/B/C modules
  • ATX size form factor provides extra expansions slot, and follows the standard space mounting
  • Supports USB 3.2 Gen2, SATA, PCIe Gen4, 2.5G RJ45, Displayport
  • Support wide temperature -40°C to 85°C
  • Standard ATX PSU input

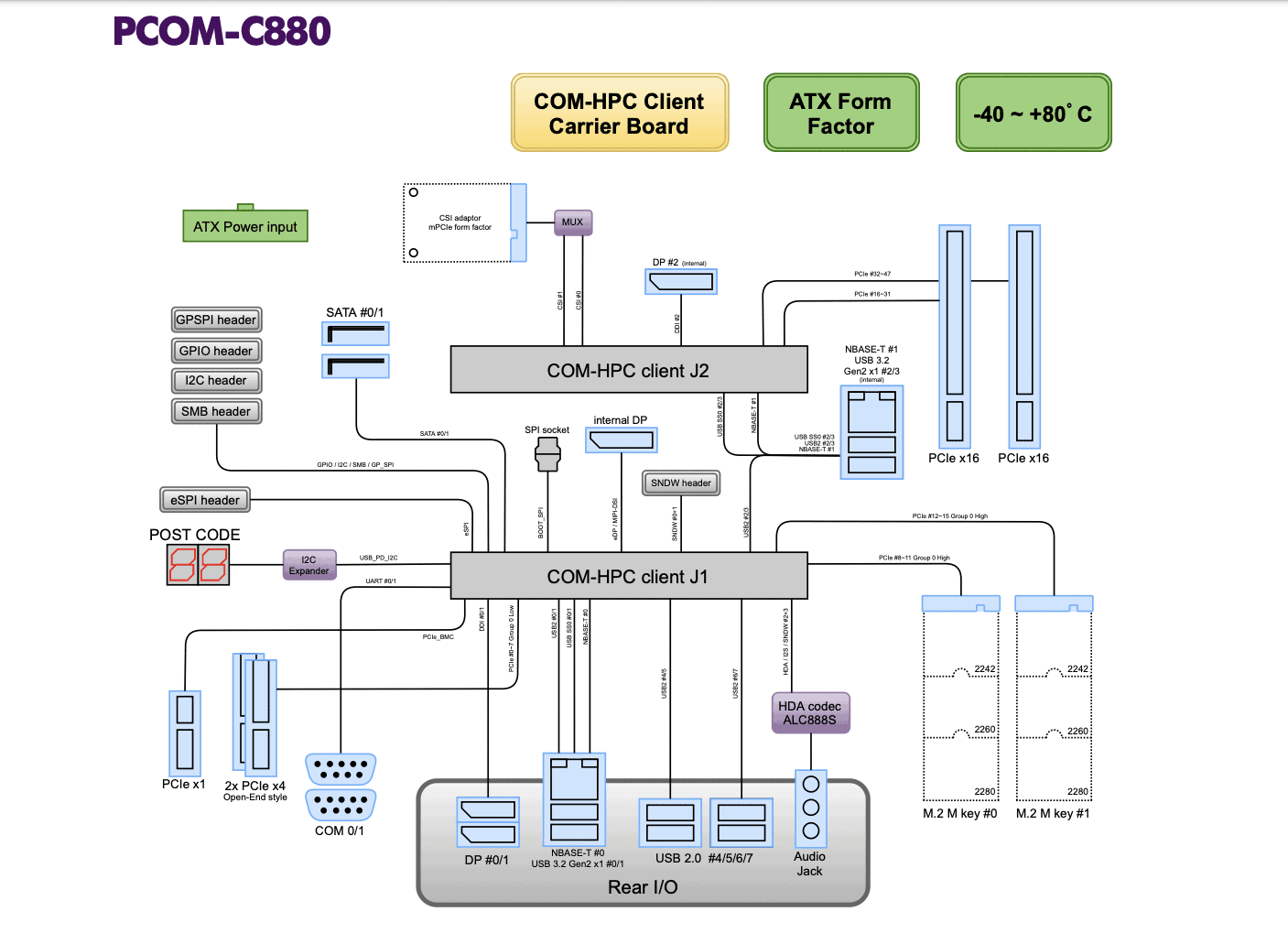

Description

Portwell PCOM-C880 support the COM-HPC client type module with ATX size form factor. This carrier board passed the most of Portwell evaluation testing. It supports DP display, and multiple I/O interfaces, including PCIe, RJ45, USB 3.2, SATA, UART. For more product features, please contact your distributor or refer to the datasheet/user manual.

Specification

General
Product Product PCOM-C880
Form Factor ATX size (305mm x 244mm)
Supported Module COM-HPC client , size A / B / C
General Function RTC battery
Postcode display
BIOS SPI Socket Power BTN / Reset BTN
Lid BTN / Sleep BTN
RapidShutdown BTN
Audio codec Realtek ALC888s
I/O Interface
SATA 2 x SATA III
USB 4x USB 3.2 Gen2 port + 4x USB 2.0 port
Ethernet 2x 2.5Gbe RJ45
PCI Express 2x PCIe 4.0 x16
2x PCIe 4.0 x4
2x M.2 M key
1x PCIe x1 (Route to BMC lane)
Certification
Display Default Options
DDI 3x DP
eDP 1x DP
(Route to standard DP for evaluation purpose)
Legacy I/O GPIO 12x GPIO
I2C 2x I2C header
SMBus 1x SMBUS header
UART 2x DB9 UART (Tx/Rx)
GP SPI 1x GP SPI header
Others Audio jack
2x FAN (1x support PWM control)
MIPI-CSI (for signal measurement purpose)
MECHANICAL & ENVIRONMENT
Dimension ATX 305mm x 244mm
Power DC IN ATX 24 pin
ATX 8 pin
Storage Temperature -40°C to 85°C
Operation Temperature -40°C to 85°C
Certification TBD
MTBF TBD
Vibration TBD

Ordering Guide



Ordering Guide
Product Ordering P/N Status
PCOM-C880 AB1-3L34Z in development
