PEAI-9820-RLR builds on Intel®Q670E chipset and takes advantages of 14th/13th/12th Generation Intel®Core™ i3/i5/i7/i9 processors technologies that can support 4 x DDR5 memory. With the advantage of 850w 80 plus gold ATX PSU, it can support 355mm long GPU as a powerful edge AI device.
| Specifications | |
|---|---|
| System | |
| CPU | Supporting Intel®14th /13th /12th -Gen Core™ CPU (LGA1700 socket, 65W TDP) |
| BIOS | AMI UEFI BIOS |
| Memory | 4x DDR5 U-DIMM ( Max 128GB ) |
| Storage | 1 x 3.5″ HDD & 2 x 2.5″ HDD |
| Watchdog Timer | Yes |
| TPM | SPI TPM header |
| Expansion | 2 x PCIe 5.0 x16 Slots ( 1 x16/2 x8 mode ) 2 x PCIe 4.0 x4 Slots 1 x M.2 E Key, Type 2230 ( PCIe x1 / USB 2.0/ CNVI ) 1 x M.2 M Key, Type 2242/2260/2280 ( PCIe x4/ SATA ) |
| Internal I/O | 9 x COM header support 9 COM ports ( 9 x RS232 ) 1 x USB 3.2 Gen1 header supports additional 2 x USB 3.2 Gen 1 ports 1 x USB 3.2 Gen1 vertical connector 2 x USB 2.0 header support 2x USB 2.0 ports 1 x 8 bit GPIO header |

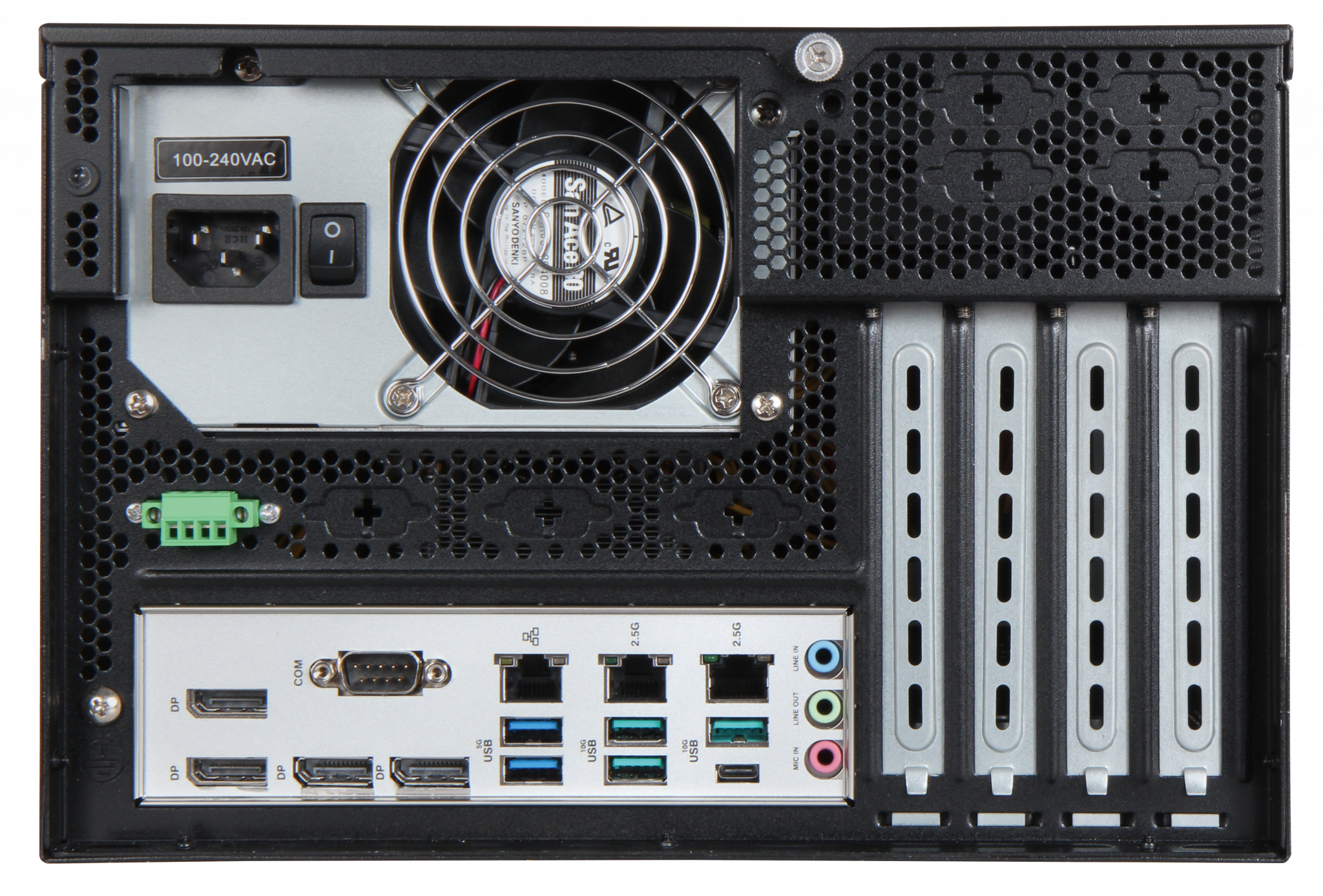

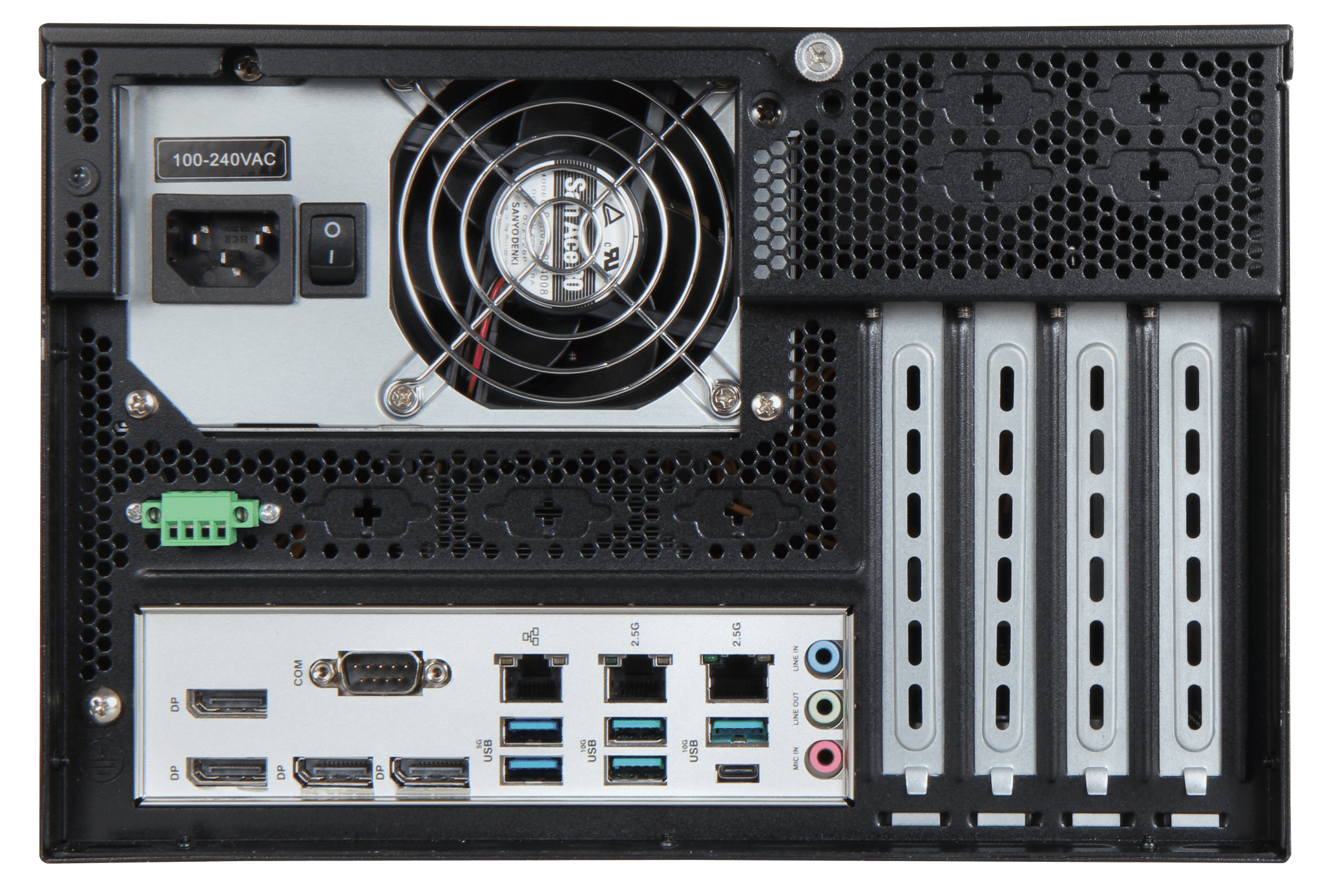

| External I/O | |
| Serial Port | 1 x COM ports (1 x RS-232/422/485) |
| Display | 4 x DP, Support 3840 x 2160 @ 60Hz |
| USB | 4 x USB 3.2 Gen 2 (3 x Type A+ 1 x Type C) 2 x USB 3.2 Gen 1 (Type A) 2 x USB 2.0 (Type A) |
| Audio | 3 (Line in, Line out, Mic in) |
| Ethernet | 3 x RJ-45 ( GbE x1 and 2.5GbE x2 ) |
| Power Supply Unit | |
| Power Input | ATX 850W 80 plus gold |
| Environmental | |
| Operation Temperature | 0°C ~ 50°C |
| Storage Temperature | -20°C ~ 60°C |
| Relative Humidity | 40°C, 85%RH non-condensing |
| Operation Vibration | 1 Grms/5~500Hz, IEC 60068-2-6 (With SSD) |
| Operation Shock | 10G, 11 msec, IEC 60068-2-27 (With SSD) |
| Mechanical | |
| Dimension | 270 (W) x 410 (D) x 180 (H) mm |
| Weight | 8 Kg |
| Mounting | Wallmount |
