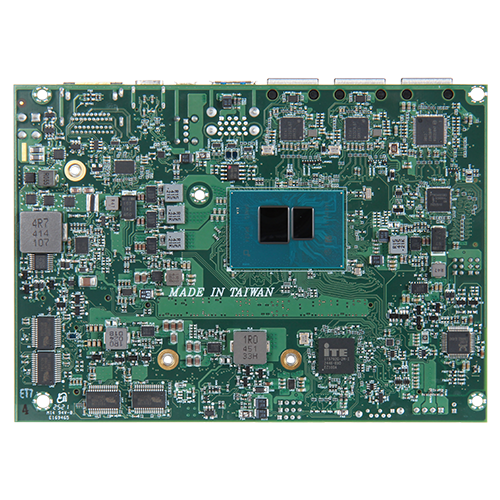

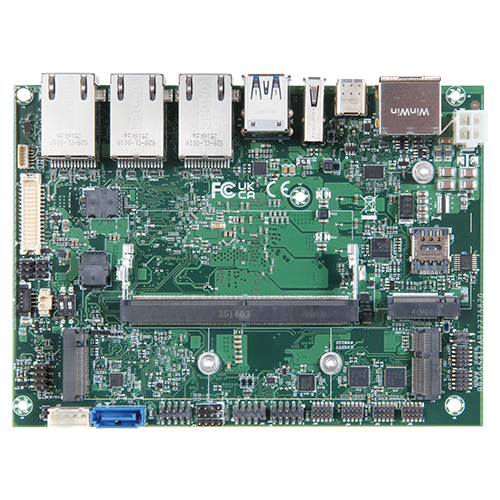

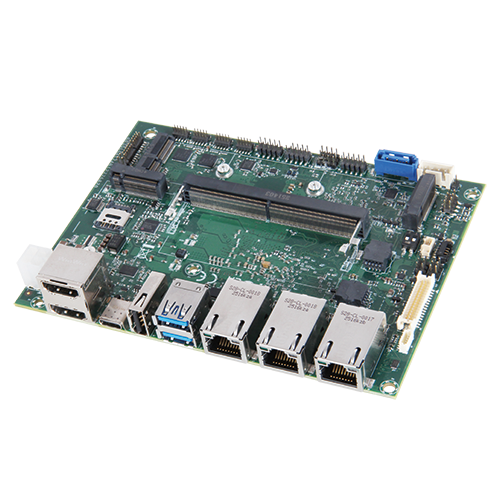

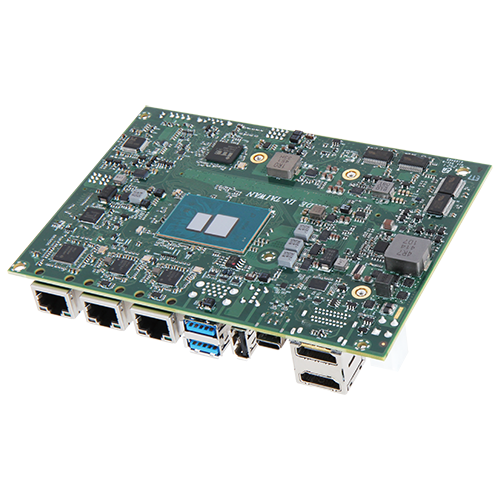

PEB-2775

ntel® TWIN/Amston Lake Atom ® Processor based 3.5’’ embedded Board with DDR5 SO-DIMM, Gigabit Ethernet, 3x M.2 sockets, 6x COM ports and 9~36V DC input

Features

  • Intel® Processor N355/N150 (Twin Lake), x7433RE (Amston Lake)
  • Support Daul HDMI® & one Type-C & one LVDS display output
  • 1x DDR5 SO-DIMM socket, 4800MT/s, up to 16GB
  • Support three LAN ports(2x 2.5G & 1x GbE, OOB-remote power on/off/reset, BIOS recovery, Serial over LAN)
    Support M.2 (M Key, B Key & E Key)
  • Support TPM function and 9~36V DC –in
General
Processor Intel® Core™ 3 Processor N355
Intel® Processor N150
Intel® Atom™® x7433RE Processor
BIOS AMI uEFI BIOS
Memory Support up to 16GB DDR5 4800 MT/s on SO-DIMM
Storage 1 x SATA Ports M.2
Watchdog Timer Programmable, time out period from 1 s to 255 s

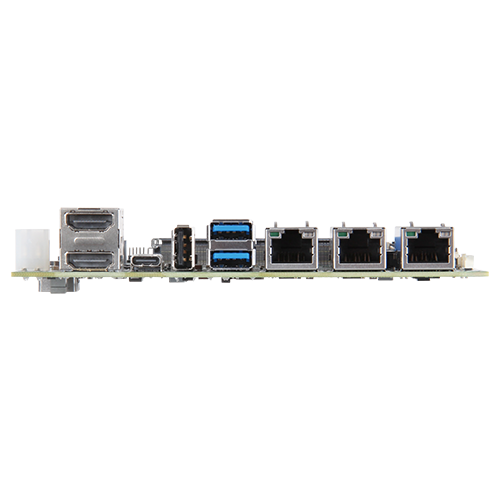

Rear I/O
Ethernet 1 x w/ Intel® WGI210AT with 1 GbE Lan
2 x w/ Intel® WGI226LM with 2.5 Gbe LAN
USB 2 x Type A on Rear
1 x Type A on Rear
1 x Type C with DP Alt mode on Rear
Display 2 x HDMI® 2.0
Expansion I/O
Audio 1 x Pin Header support Line-in , Line-out , Mic-in w/ Realtek ALC897
Serial Port 4 x Pin Header support RS-232
2 x Pin Header support RS-232/422/485
USB 2 x USB 2.0 Pin Header
M.2 1 x M.2 E Key 2230 support USB, PCIe x1,
1 x M.2 B Key 3042 3052 support USB, PCIe x1, 4G/5G
1 x M.2 M Key 2280 support SATA, PCIe x1,
SIM 1 x Nano SIM slot
Security TPM 2.0 (BOM Option)
Display 1 x LVDS (On Board Header)
GPIO 1 x 8-bit Digital I/Os
ME/Environment
Dimension 146 x 102 mm (5.75″ x 4.02″)
Power Supply DC Jack 9~36V
Operating Temperature 0 ~ 60 °C (32.0 ~ 140.0 °F) ( N355 )
0 ~ 60 °C (32.0 ~ 140.0 °F) ( N150 )
-40 ~ 85 °C (-40.0 ~ 185.0 °F) ( x7433RE )
Storage Temperature -40 ~ 85 °C (-40.0 ~ 185.0 °F)
Relative Humidity 5% to 95%, non-condensing
Certification CE/FCC
OS Ubuntu 24.04, Windows 10 IoT Enterprise 2022 LTSC
Portwell Special Feature OOB API, PET

Ordering Guide

Category Product P/N Description
3.5" PEB-2775-N150 AB1-3T85 (R).PEB-2775-N150. 3.5”. Intel Twin Lake SoC.w/ DDR5 SO-DIMM/ dual HDMI®/ dual 2.5 GbE LAN and single 1Gbe LAN/ M.2/ SIM card/ 9-36V
3.5" PEB-2775-N355 AB1-3T77 (R).PEB-2775-N355. 3.5". Intel Twin Lake SoC.w/ DDR5 SO-DIMM/ dual HDMI®/ dual 2.5 GbE LAN and single 1Gbe LAN/ M.2/ SIM card/ 9-36V
3.5" PEB-2775-x7433RE AB1-3T86 (R).PEB-2775-x7433RE. 3.5”. Intel Twin Lake SoC.w/ DDR5 SO-DIMM/ dual HDMI®/ dual 2.5 GbE LAN and single 1Gbe LAN/ M.2/ SIM card/ 9-36V
