PECA-6232T

EOL

Fanless DIN-Rail Gateway of Intel Atom® x6000 Processor and Up to 6 Ethernet Ports with 2-Segment Bypass

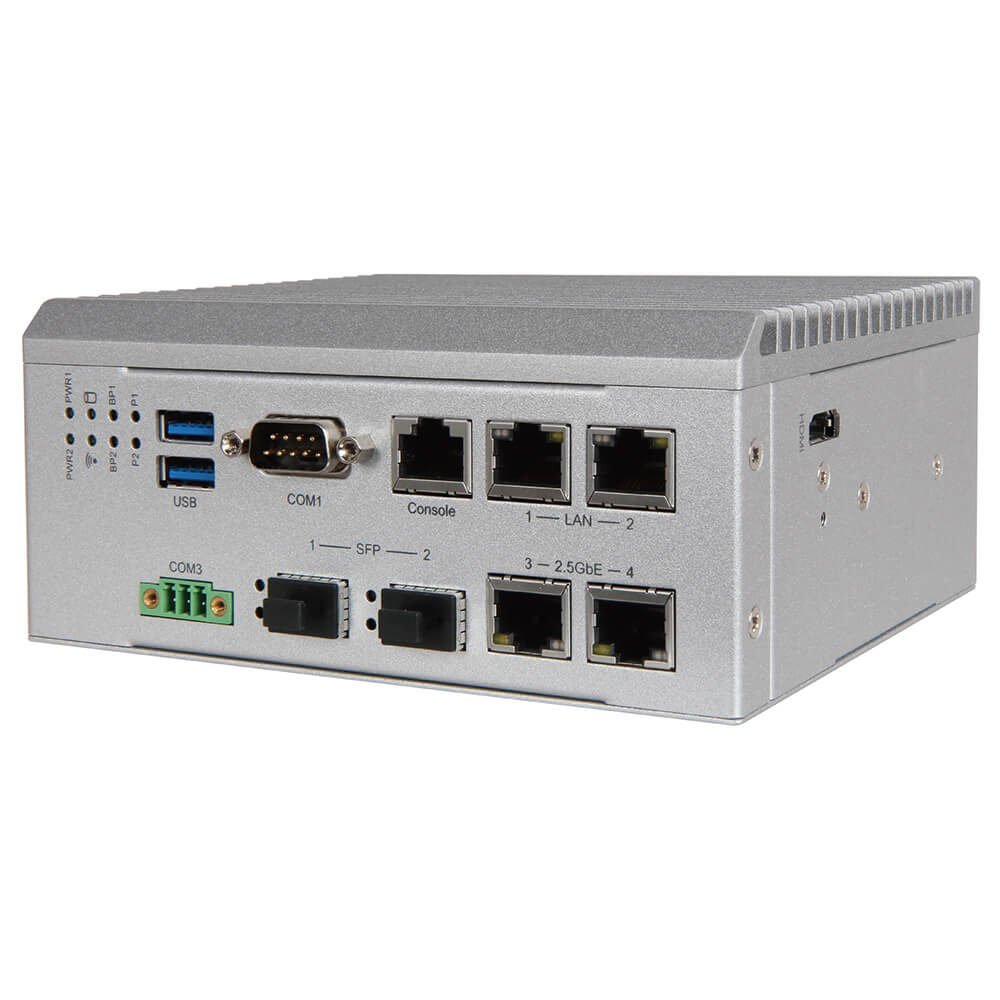

PECA-6232T

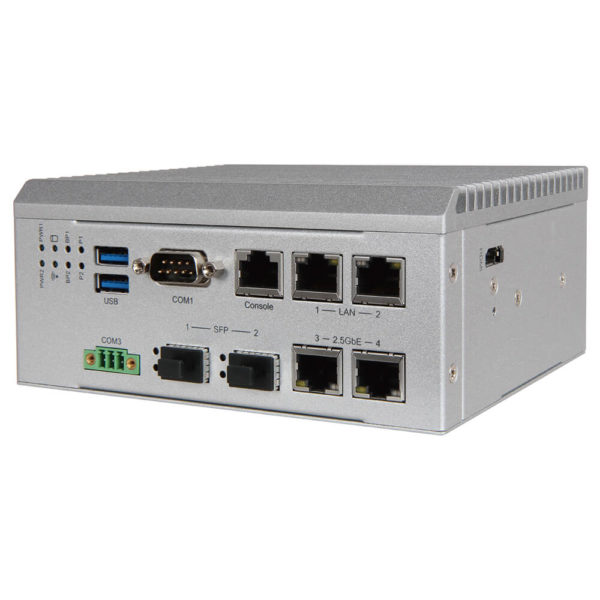

PECA-6232T - Image 2

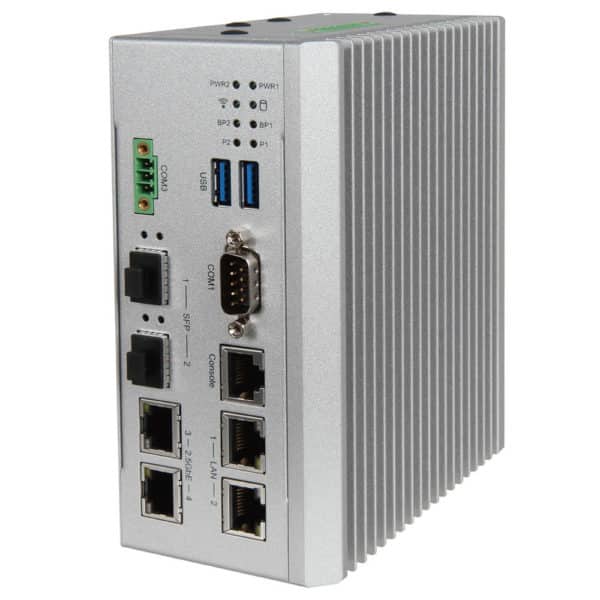

PECA-6232T - Image 3
PECA-6232T - Image 4
PECA-6232T - Image 5

Features

  • Fanless DIN-Rail Gateway with Wide Operating Temperature from -40°C to +70°C
  • Intel Atom® x6212RE/x6414RE Processor (Formerly Elkhart Lake) ・Up to 6x Ethernet Ports with 2x GbE SFP, 2x
    GbE LAN (Bypass) and 2x 2.5GbE LAN (Bypass)
  • Dual Wide Power Input of 9 to 36VDC
  • Supports 5G with M.2 Key B 3042/3052 and TPM 2.0
Datasheet
Documents & Downloads

The PECA-6232T is the perfect fanless DIN-rail gateway for companies that need reliable and robust network connectivity. This powerful gateway comes with an Intel Atom® x6000 processor, up to six Ethernet ports with a 2-segment bypass, dual broad power input, and support for 5G connectivity in demanding industrial environments. Enjoy cost-savings and easy deployment and management with the PECA-6232T.

Specifications

Specifications
General
CPU Intel Atom® x6212RE/x6414RE (2C/4C) processor (Formerly Elkhart Lake)
System Memory 1x DDR4-3200 SODIMM up to 32GB
Ethernet Port
  • 2x GbE ports (Marvell 88E1512) with LAN Bypass
  • 2x 2.5GbE ports (Intel®I225-IT) with LAN Bypass and TSN function
  • 2x GbE SFP (Intel®I210-IS)
Bypass 2x Bypass segments in 2x GbE ports and 2x 2.5GbE ports
Expansion
  • 1x M.2 Key-B 3042/3052 slot (PCIe + USB interface) for 5G option
  • 1x Full-size mini PCI-E slot (USB + SATA interface)
Storage Device
  • 1x 2.5″ SATA 3.0 SSD
  • 1x eMMC onboard (optional)
I/O Port
  • 1x RJ45 system console port
  • 1x DB9 COM port (RS-232/422/485)
  • 1x 3-pin terminal block COM port (RS-485) – 1x HDMI®
  • 2x USB 3.0 ports
  • 1x Tact switch for reset
  • 4x Antenna holes
  • 1x Power input connector
TPM TPM 2.0

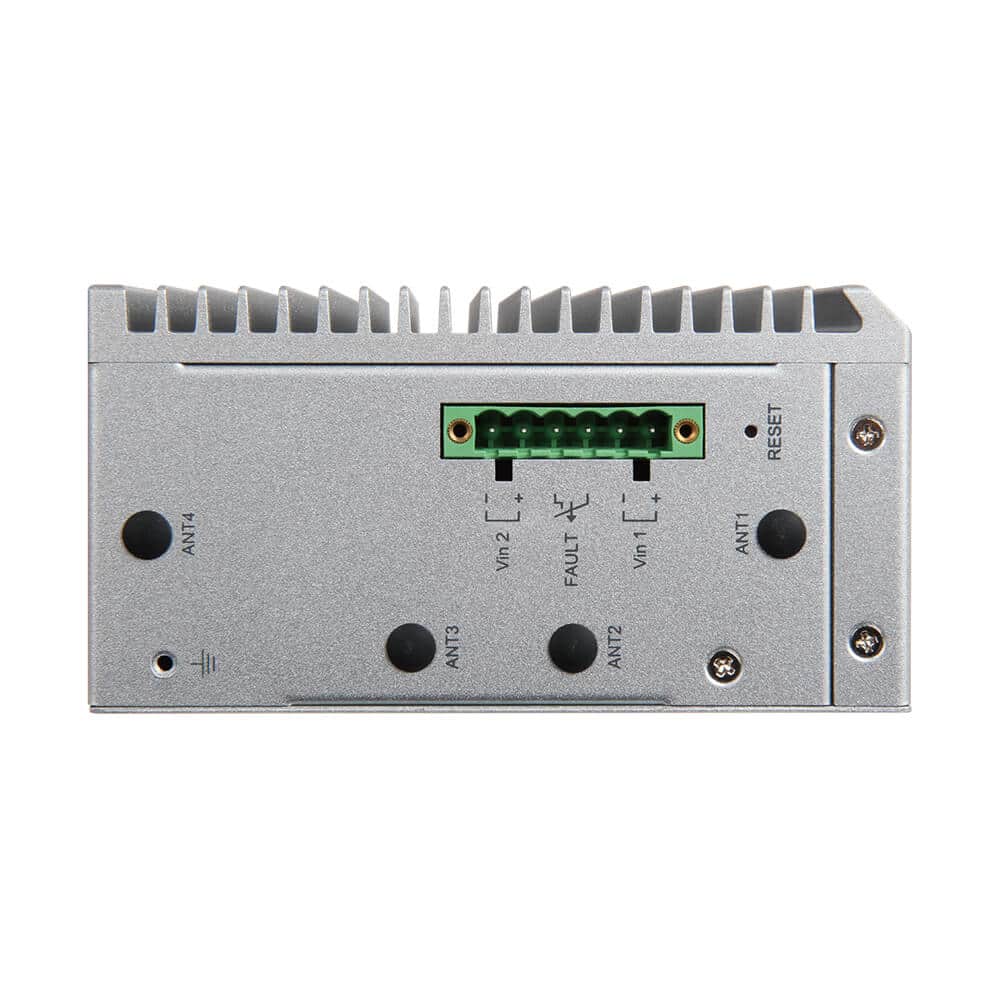

Power Supply 9 to 36VDC (typical 12/24V) with terminal block for dual power input
Dimension 66(W)x127(D)x150(H)mm 2.6″ (W) x 5″(D) x 5.9″ (H)
Operation
Operating Environment
  • Temperature: -40°C to +70°C(-40°F to +158°F)
  • Humidity: 20 – 95% non-condensing
Storage Environment
  • Temperature: -40°C to +85°C (-40°F to +185°F)
  • Humidity: 10 – 95% non-condensing
OS Support Windows / Linux Kernel
Certification CE / FCC (Class A)

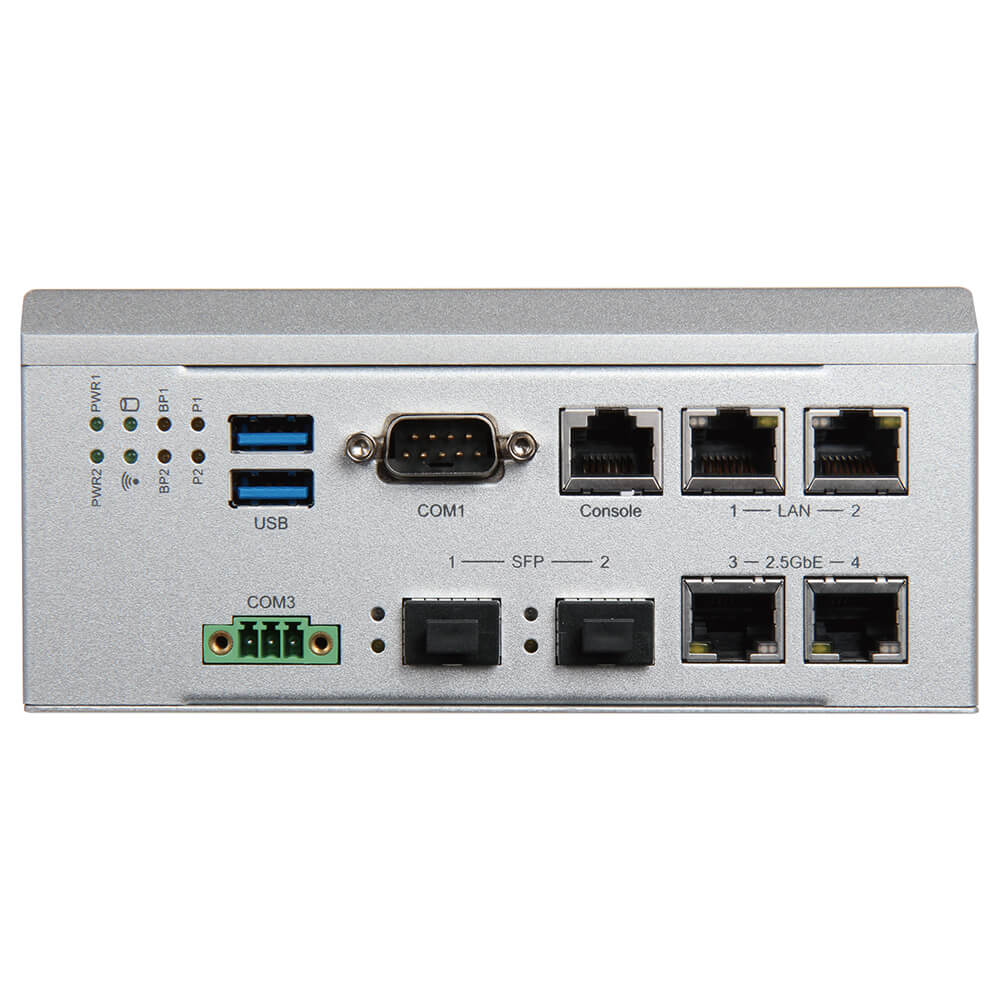

Front Panel
Management Port 1x RJ45 System Console port
COM Port 1x DB9 (RS-232/422/485)
1x 3-pin terminal block (RS-485)
Ethernet Port 2x GbE RJ45 ports
2x 2.5GbE RJ45 ports
2x GbE SFP
LED Power / Storage / LAN bypass / Wireless / Programmable LED
USB Dual USB 3.0 ports

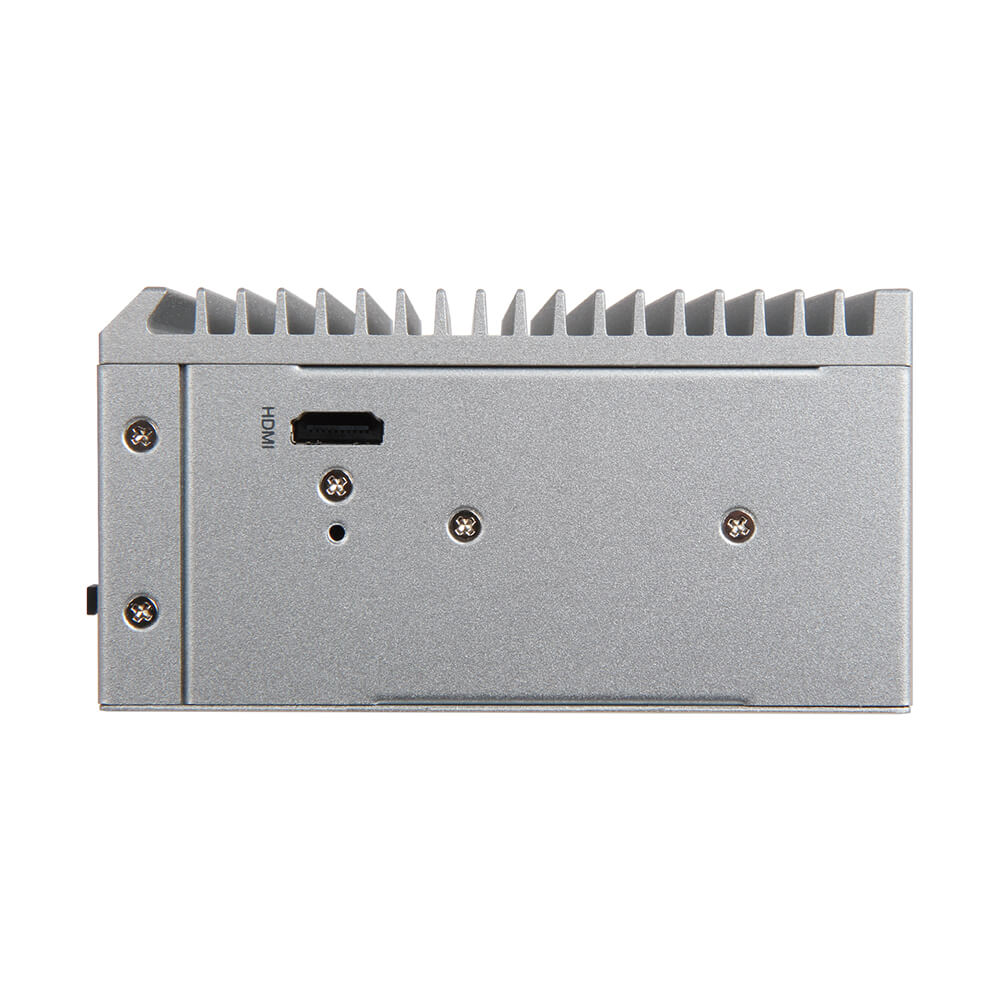

Display (side) 1x HDMI®
Optional CPUs
Models Cores/Threads Frequency(Max) Cache TDP
Intel®Intel Atom® x6212RE 2C/4T 1.20GHz 1.5MB 6W
Intel®Intel Atom® x6414RE 4C/8T 1.5GHz 1.5MB 9W
