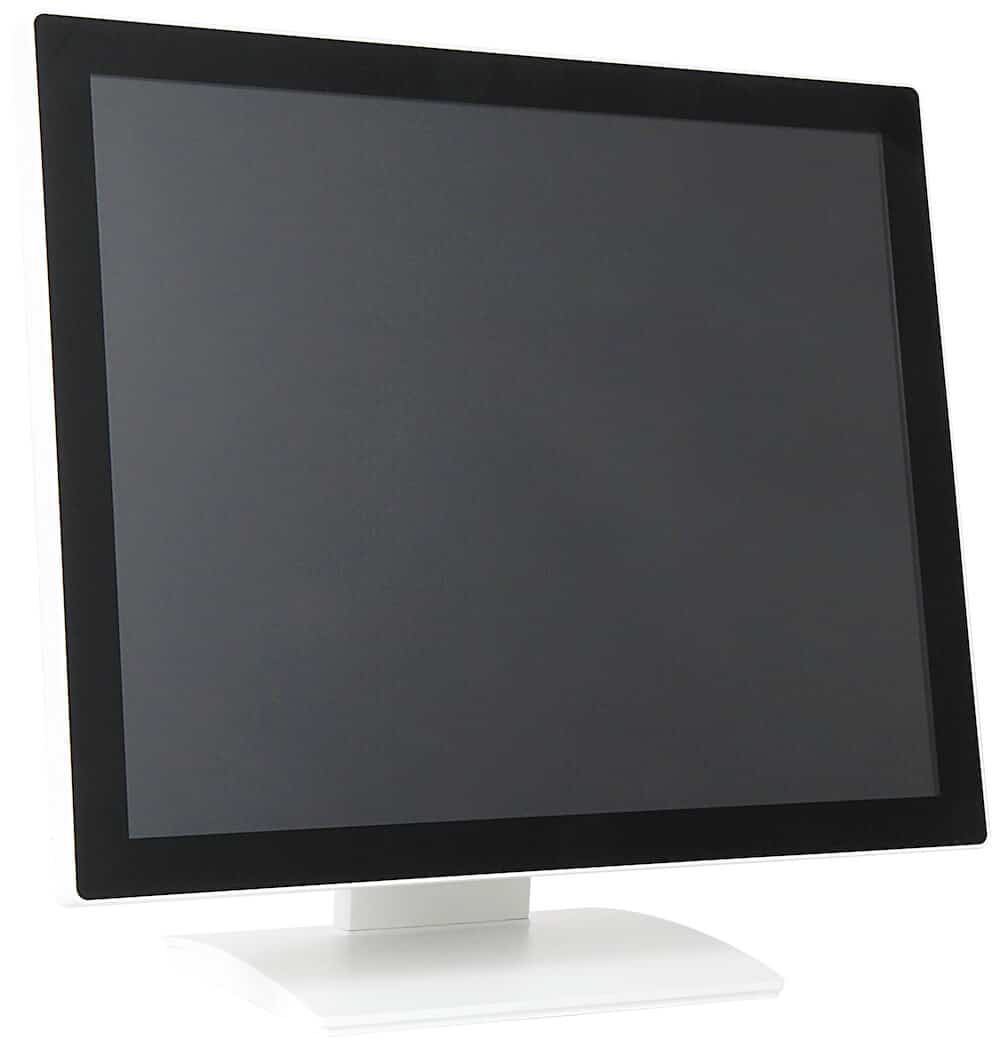

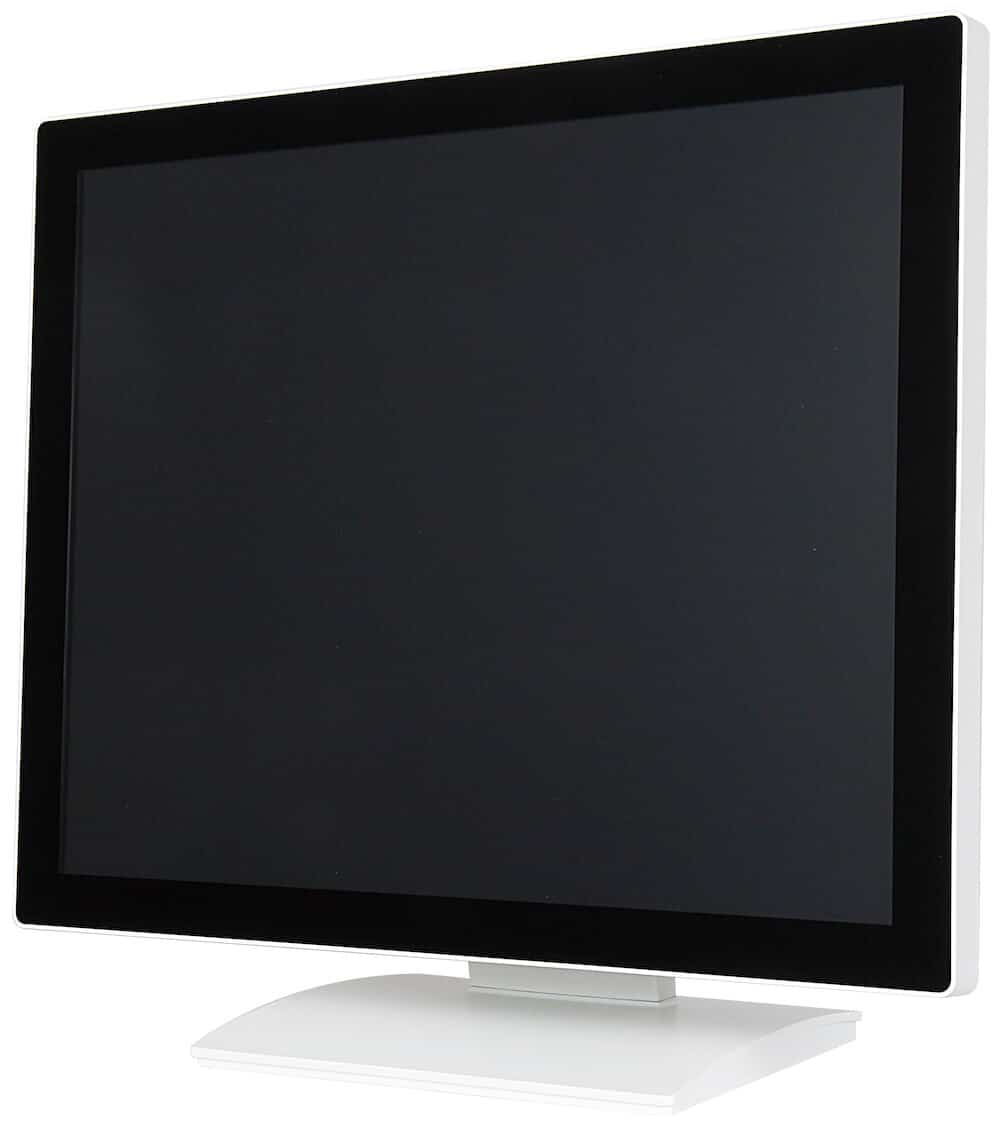

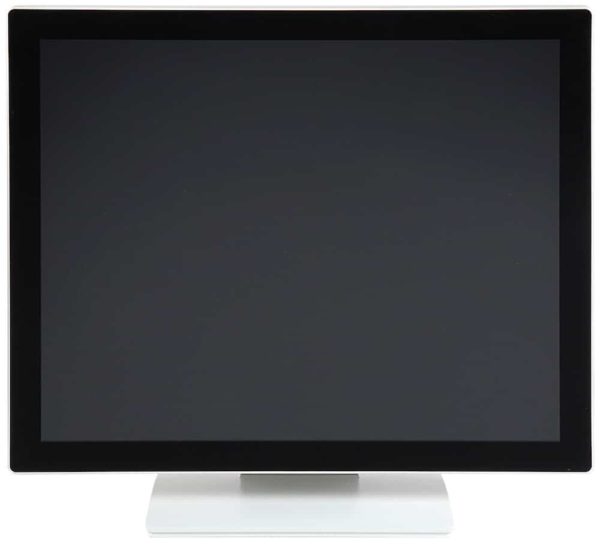

PHCD-19411

19″ Medical Display

Features

  • True flat series plastic design with P-CAP touch „
  • Color : White „
  • 19″ 1280 x 1024 5:4 ratio display „
  • DICOM Compliant „
  • 2.5W built-in speaker

Description

Portwell 19-inch medical monitors are ideal for general usage in hospital environments such as nursing stations, bed side terminal, and hospital laboratories. Featuring a wide viewing angle, high contrast and brightness, the monitor provides consistent, reliable and high-quality images for caregivers. Designed to meet DICOM standards and UL 60601-1 3rd Edition certified to meet customer requirements in a variety of applications.

Specification

General
General
ID Type True flat series plastic design monitor
Chassis True flat series plastic chassis ( with 75 x 75 VESA mount )



Panel Spec
Panel Spec
Native Resolution 1280 x 1024
Active Screen Size(inch) 19″
Viewing Angel(degree) 178 °(H) / 178 °(V)
Brightness(nits) 300 nits
Contrast Ratio 1000:1
Display Colors(bits) 16.7M colors (RGB 8 bits)



I/O Interface
I/O Interface

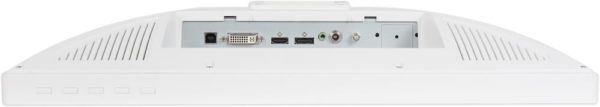

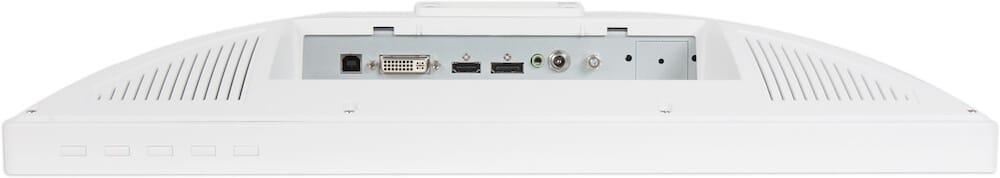

I/O Terminal DVI-D / HDMI / DP / USB Type B(Touch) / Audio in(3.5 mm)



Features
Features
Touch P-CAP touch
Speaker 2.5W (8Ω) speaker x 2
DICOM Yes



Power Requirements
Power Requirements
Power Supply AC IN: 100 ~ 240V ; DC OUT: 12V / 5A
Power Consumption(W) 23.5W



Physical Characteristics
Physical Characteristics
Dimensions(WxHxD)(mm) 426.8(W) 393.9(H) 179.97(D) mm
Weight(Kg) 5.8Kg
VESA Mounting(mm) 75 x 75



Environmental
Environmental
Temperature(°C) Operating : 5 ~ 40°C / Storage : -10 ~ 60°C
Humidity(%) Operating : 20 ~ 80% / Storage : 10 ~ 90%



Others
Others
Certifications and
Compliances
UL / CE / FCC / RoHS / WEEE / REACH

Ordering Guide

Ordering Guide
TBD (R).PHCD-19411. 19”
1280×1024 Panel Display
w/Touch. White Chassis.
Built-in Stand

Support

(Documents & Downloads)

  Catalog   Catalog_PHCD-19411.pdf 20230508   July 14, 2023
518.95 KB 598 Downloads
