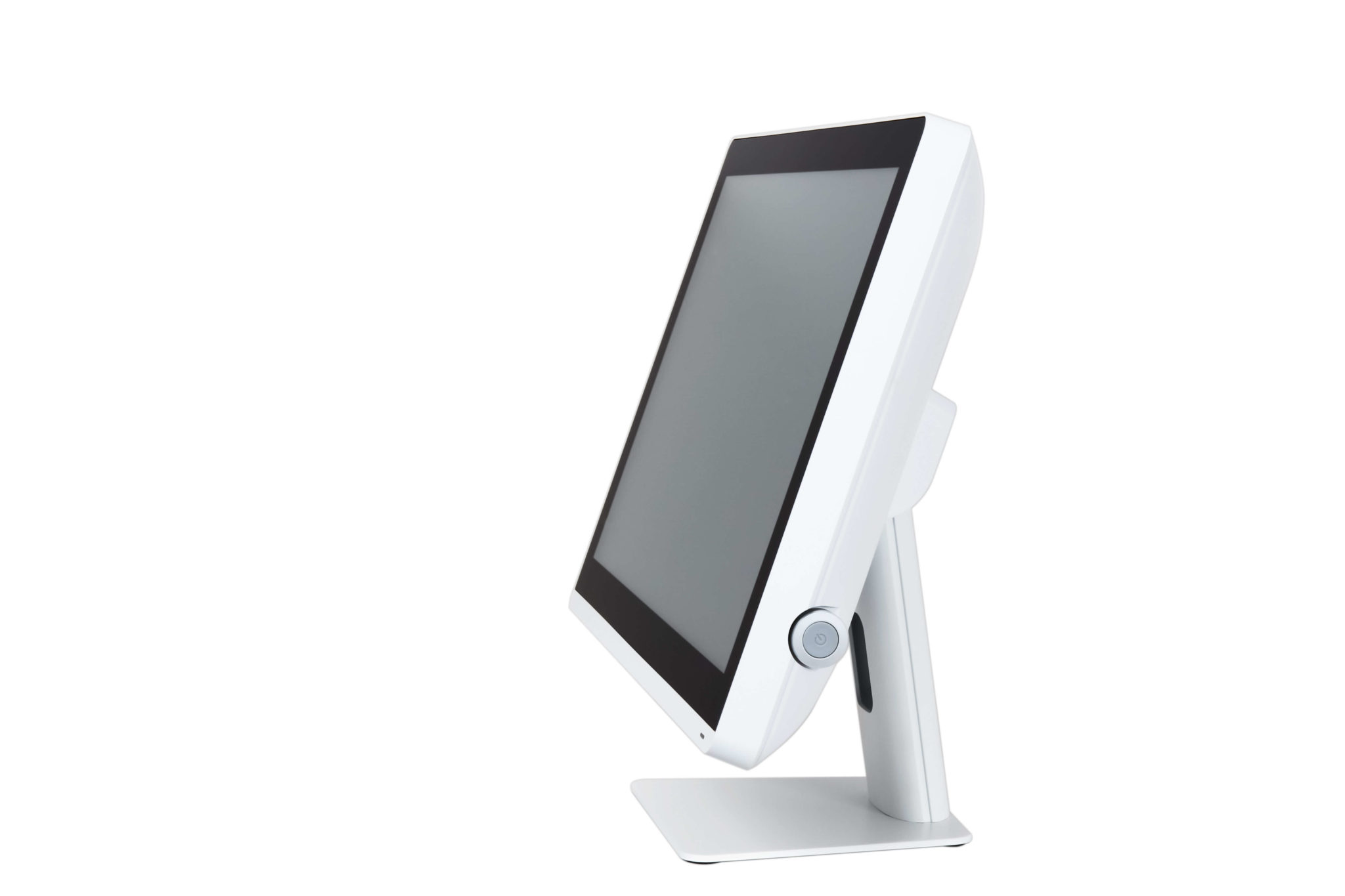

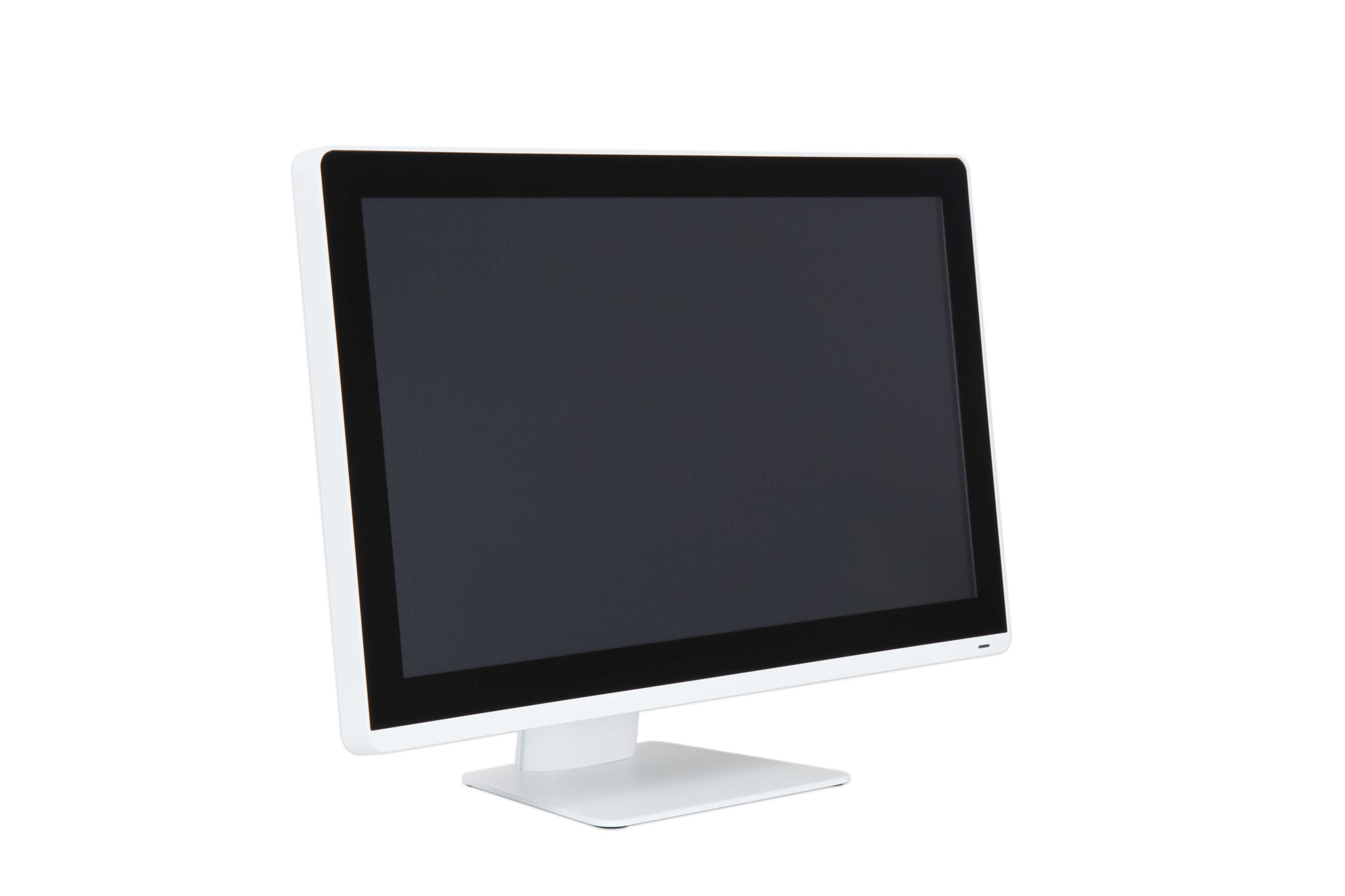

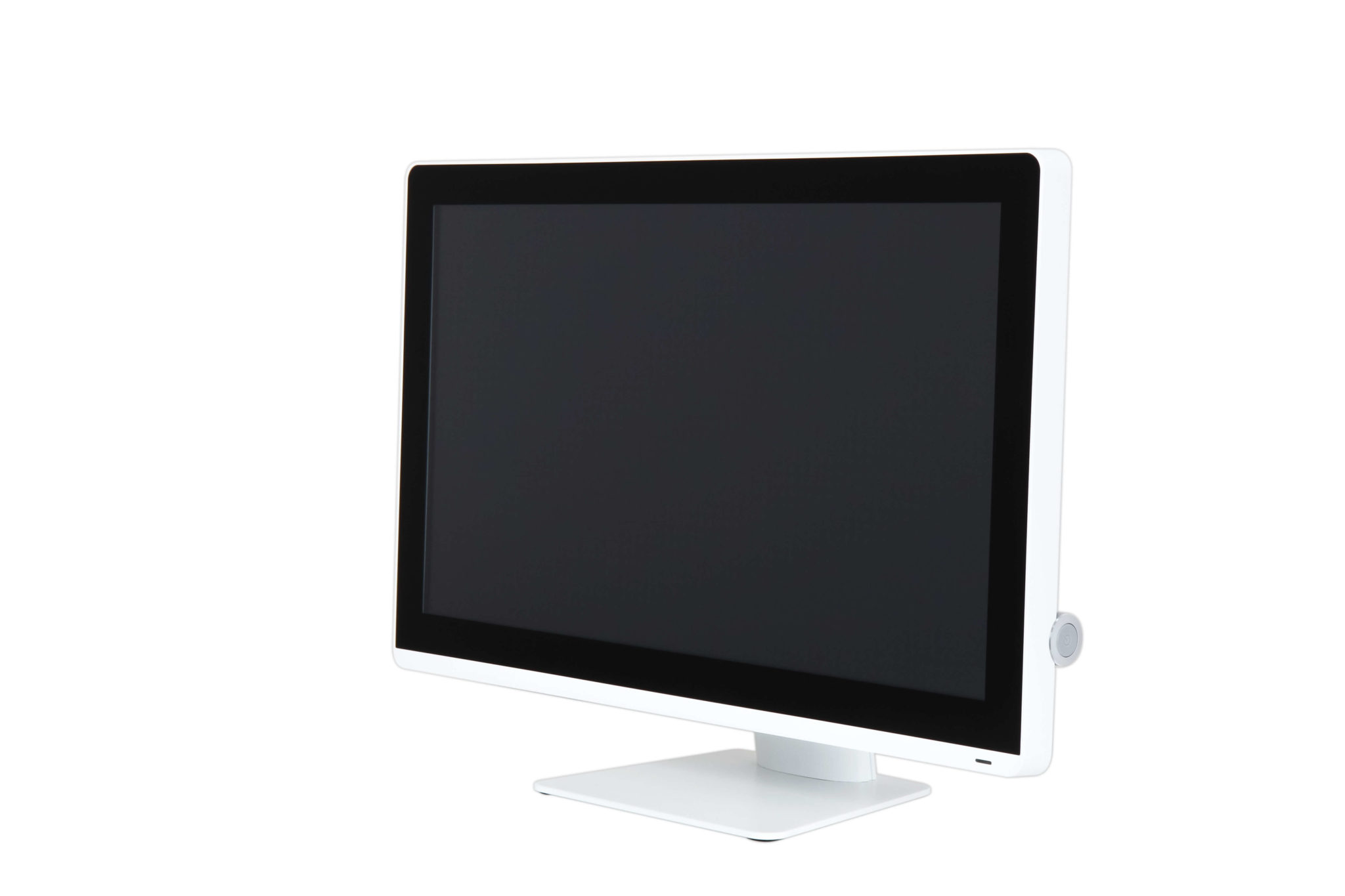

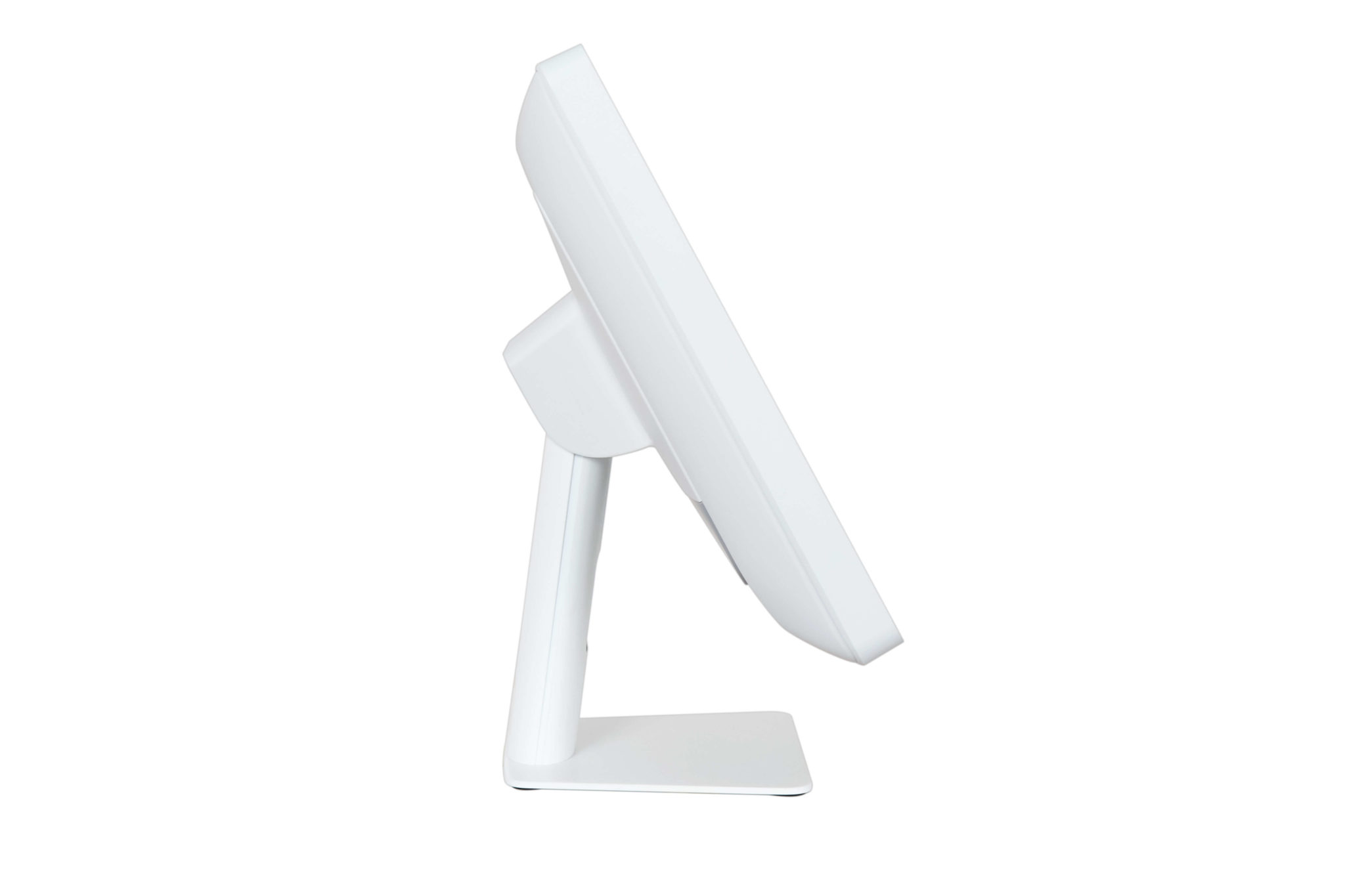

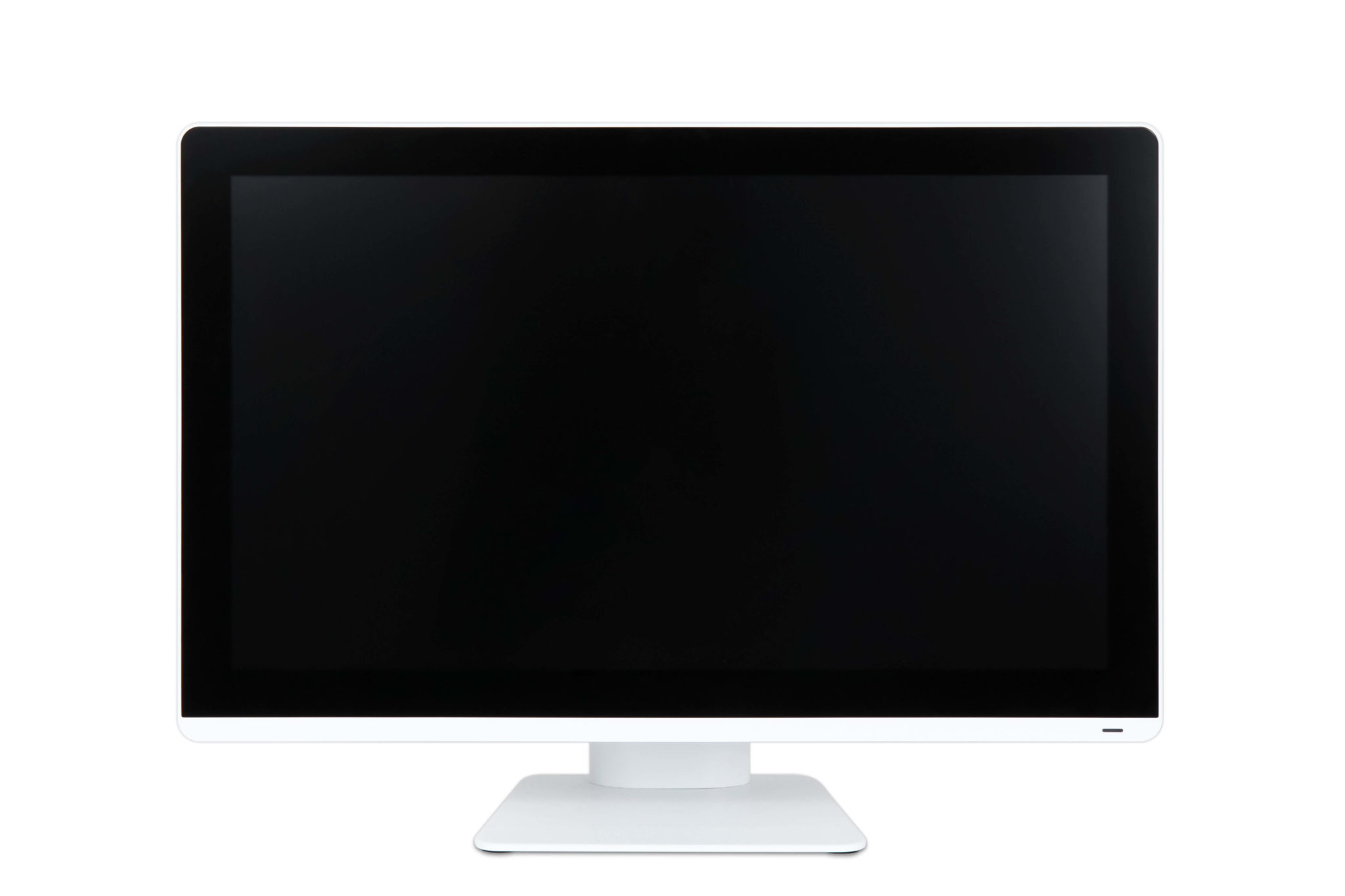

PHCD-21511

21.5″ Medical Display

Features

  • True flat series plastic design with P-CAP touch „
  • Color : White „
  • 21.5″ 1920 x 1080 16:9 ratio display „
  • DICOM Compliant „
  • 2.0W built-in speaker

Description

Portwell 21.5-inch medical monitors are ideal for general usage in hospital environments such as nursing stations, bed side terminal, and hospital laboratories. Featuring a wide viewing angle, high contrast and brightness, the monitor provides consistent, reliable and high-quality images for caregivers. Designed to meet DICOM standards and UL 60601-1 3rd Edition certified to meet customer requirements in a variety of applications.

Specification

General
General
ID Type True flat series plastic design monitor

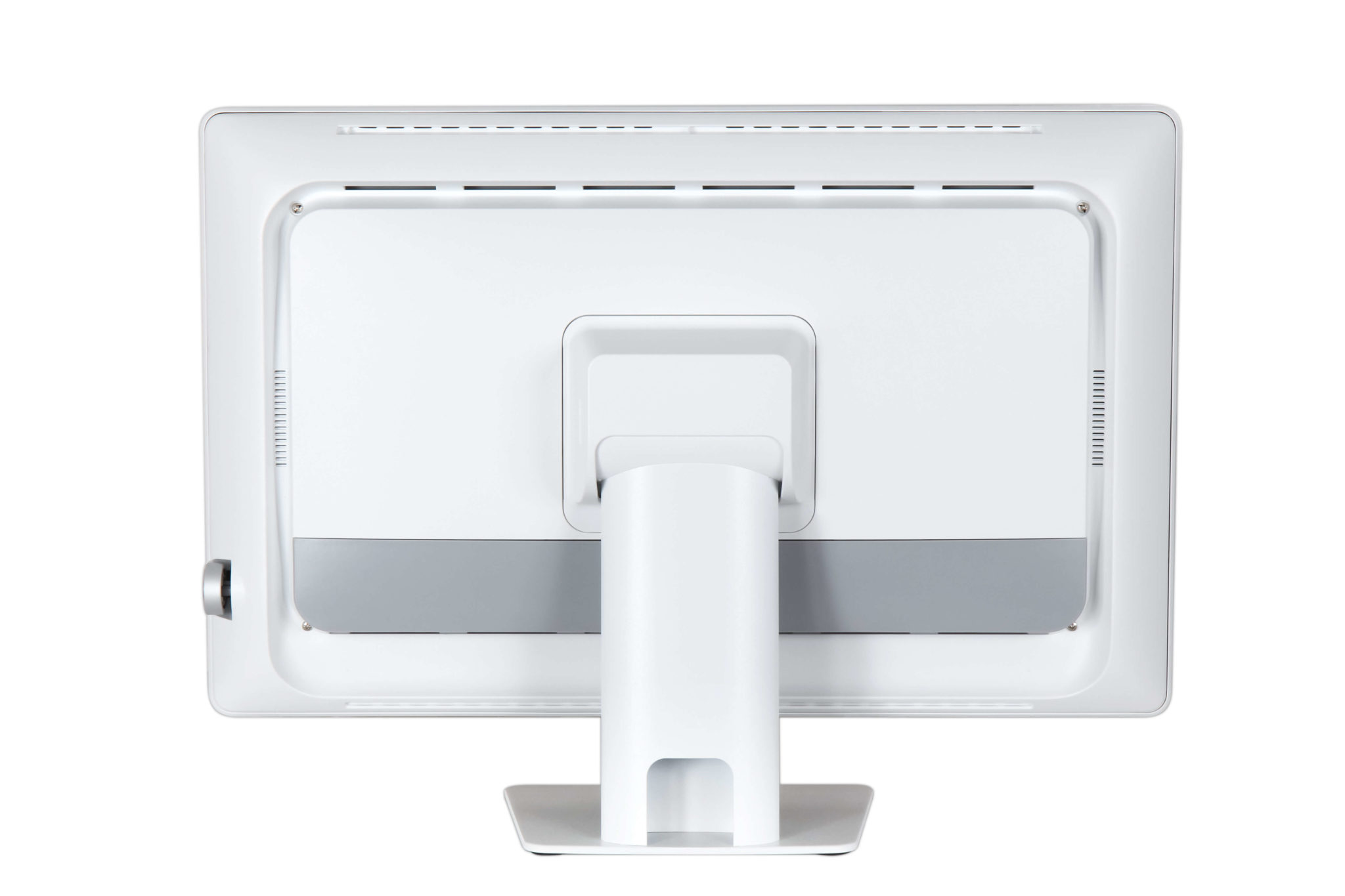

Chassis True flat series plastic chassis ( with 100 x 100 VESA mount )



Panel Spec
Panel Spec
Native Resolution 1920 x 1080
Active Screen Size(inch) 21.5″
Viewing Angel(degree) 178 °(H) / 178 °(V)
Brightness(nits) 350 nits
Contrast Ratio 1000:1
Display Colors(bits) 16.7M colors (RGB 8 bits)



I/O Interface
I/O Interface

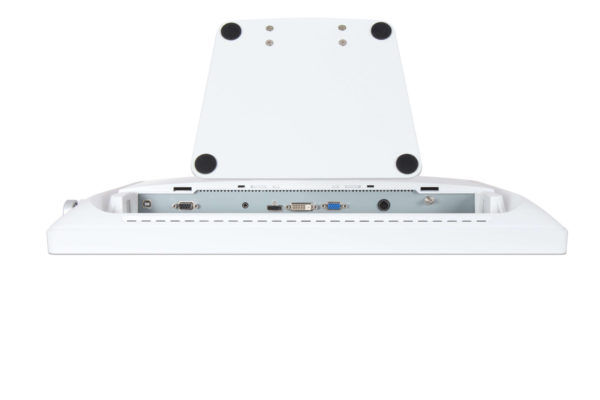

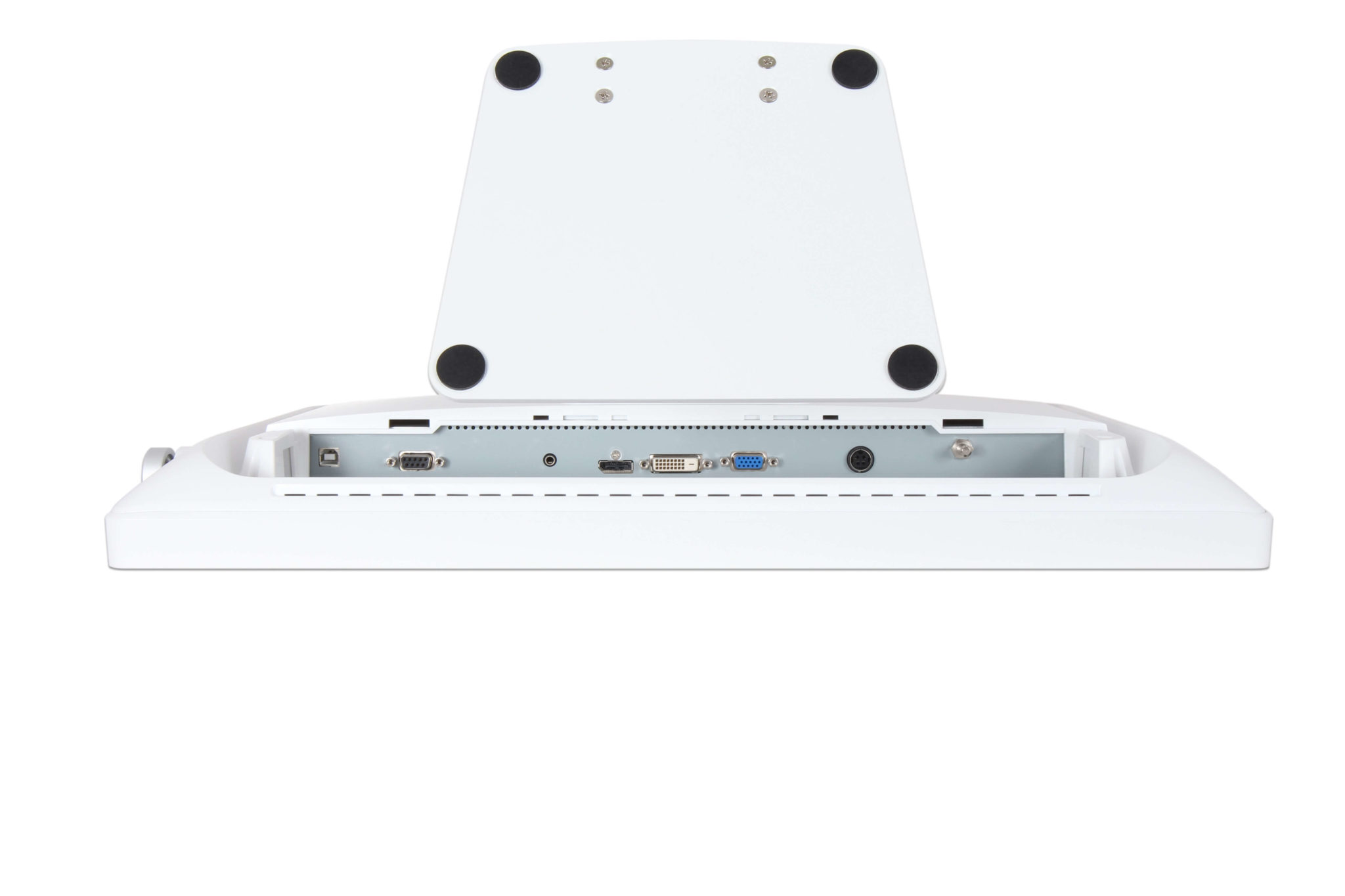

I/O Terminal HDMI / DP / VGA / USB Type B(Touch) / Audio in(3.5 mm)



Features
Features
Touch P-CAP touch
Speaker 2.0W speaker
DICOM Yes



Power Requirements
Power Requirements
Power Supply AC IN: 100 ~ 240V ; DC OUT: 24V / 2A
Power Consumption(W) 40W



Physical Characteristics
Physical Characteristics
Dimensions(WxHxD)(mm) 537(W) 387(H) 175(D) mm
Weight(Kg) 8.2Kg
VESA Mounting(mm) 100 x 100



Environmental
Environmental
Temperature(°C) Operating : 10 ~ 40°C / Storage : -20 ~ 60°C
Humidity(%) Operating : 30 ~ 75% / Storage : 10 ~ 90%



Others
Others
Certifications and
Compliances
cTUVus(ANSI/AAMI ES60601-1;CAN/CSA-C22.2 60601-1)
CB (IEC 60601-1),CE(EN 60601-1-2; EN 60601-1)
FCC Part 15,ROHS,WEEE

Ordering Guide

Ordering Guide
AL8-3093 (R).PHCD-21511. 21.5”
1920×1080 Medical Panel
Display w/ Touch. White
Housing
