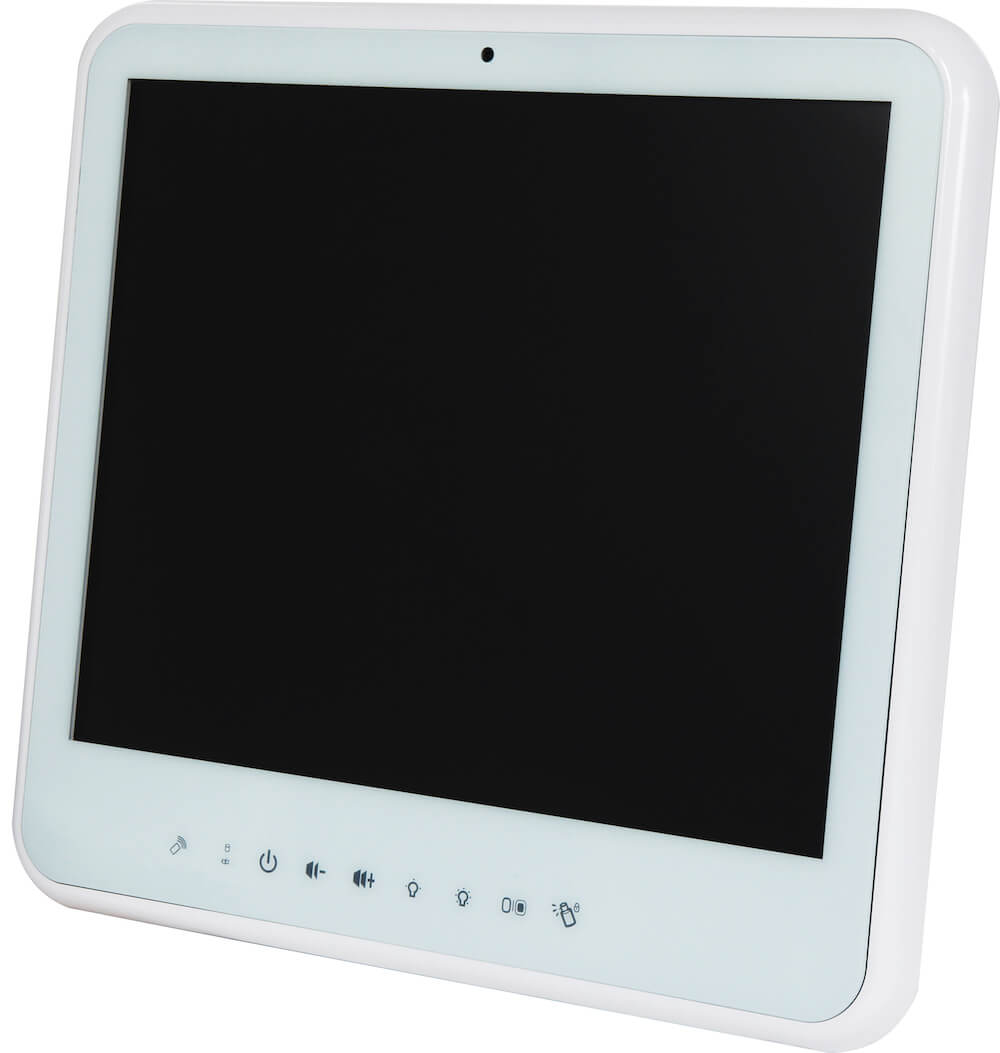

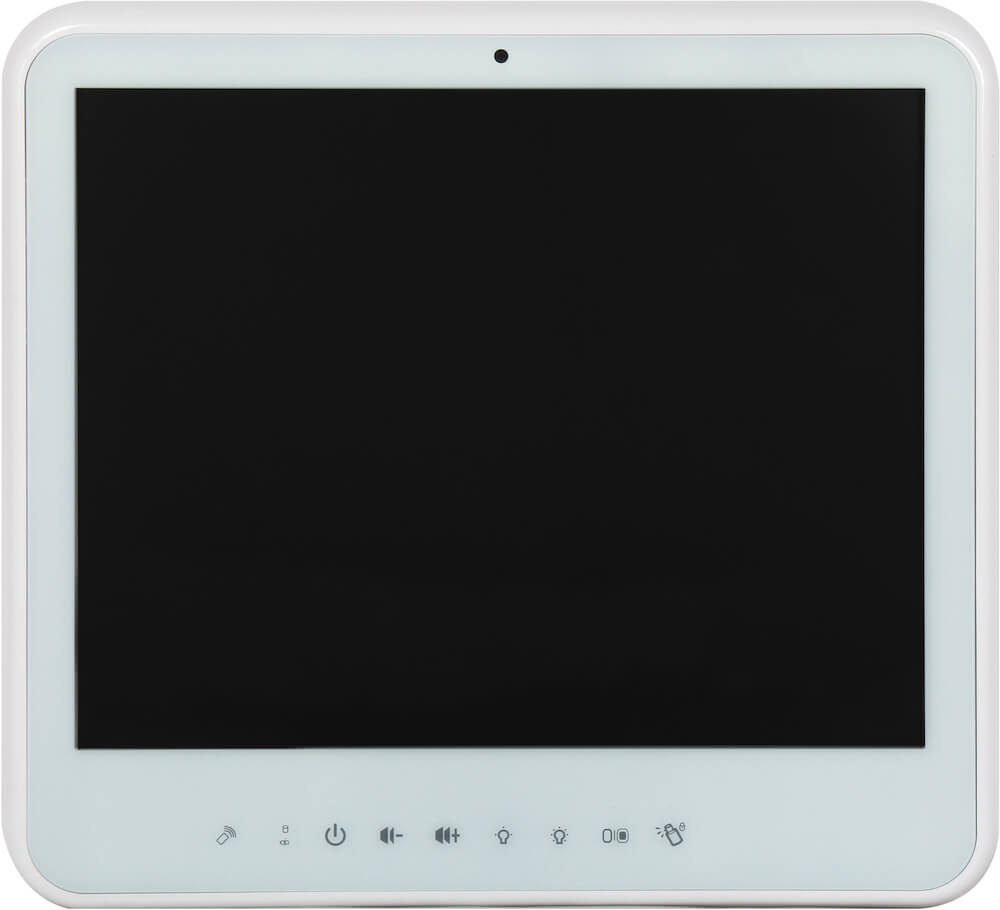

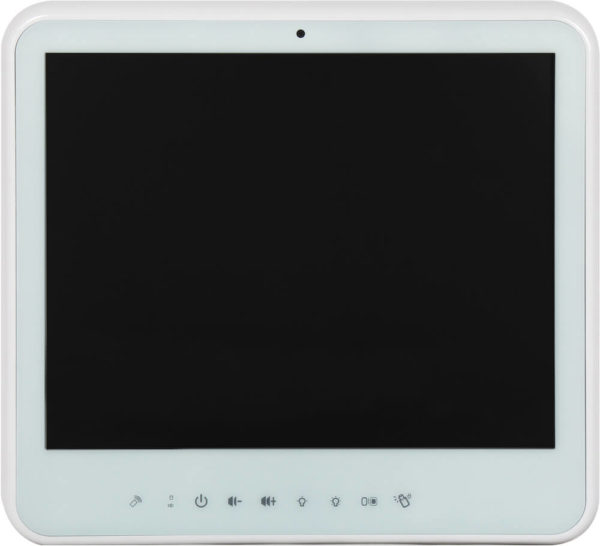

PHCP-19311-CFL

19″ Medical AI Panel PC

Features

  • Full Flat P-cap Touch Panel
  • 19″ 1280x 1024 (5:4)
  • PCIe x4 slot for expansion
  • Anti-Bacteria (MRSA) Plastic Housing & Touch
  • Optional 4KV isolated COM/LAN/USB
  • Optional MXM graphic card

Description

PHCP-19311-CFL is driven by Intel® 9th gen Core™ i5/i7/i9 series processors and up to 64GB of DDR4 RAM, provides advanced computing power for medical devices. The PCIe x4 slot also offers variable of expensions. With indenpendent MXM graphic card, it is an ideal solution for AI image processing.

Specification

General
General
Processor Intel® Core™ i9-9500TE (2.20GHz)
Chipset Intel® Q370
Memory 2x DDR4 2666MT/s, non-ECC, up to 64GB
Storage Devices
  • M.2 M Key 2280 up to 1TB
  • 2.5” SATA III SSD/HDD (optional)
Expansion Interface
  • 1 x PCIex4 slot
  • 1 x M.2 E Key 2230
OS Support Win 10 IoT Enterprise LTSC



Display & Touch Screen
Display & Touch Screen
LCD 19” LCD (5:4)
Brightness 350 cd/m²
Resolution 1280x 1024 (SXGA)
Max Colors 16.7M colors
Contrast Ratio 1000:11
Touch Screen Type Full Flat P-cap Multi-Touch
Transparency ≥87%

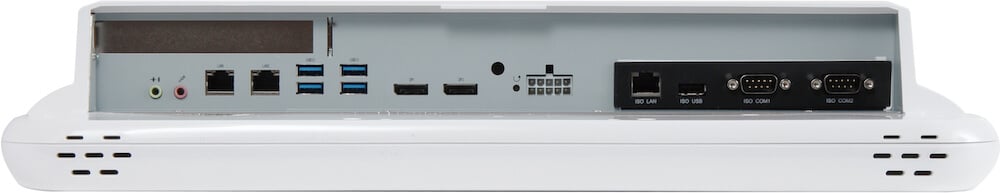

I/O
I/O
USB
  • Standard: 4x USB3.1 Gen2
  • Isolation: 4x USB3.1 Gen2, 1x ISO USB2.0
Serial Port
  • Standard: 1x RS232, 1x RS232/422/485
  • Isolation: 1x RS232, 1x ISO RS232/422/485
Ethernet
  • Standard: 2x RJ45(GbE)
  • Isolation: 2x RJ45(GbE), 1x ISO RJ45(GbE)
Audio 2x 3.5mm audio jack(Line-out, Mic-in)
Video Output 2x DP
Speaker&Microphone 2x 2-watt Speakers



Mechanical & Environmental
Mechanical & Environmental
Power Input DC 14~19V input
Power Adapter
  • AC input 100~240V / 47 ~ 63 Hz / DC output 19V, 250W
  • Battery: DR-202W2 (optional)
Dimensions(mm) 450mm (H) x 420mm (V) x 84.1mm (T)
Weight(Kg) 7.5 kg (w/o power adapter/battery pack)

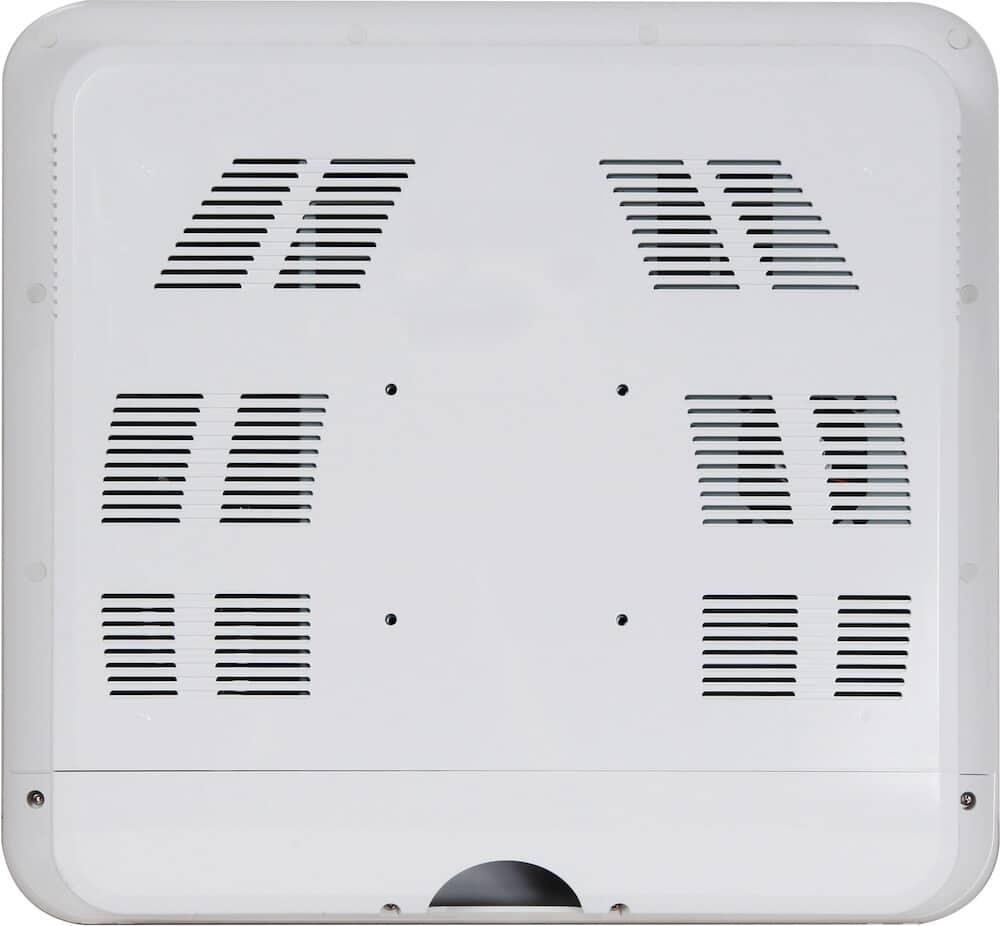

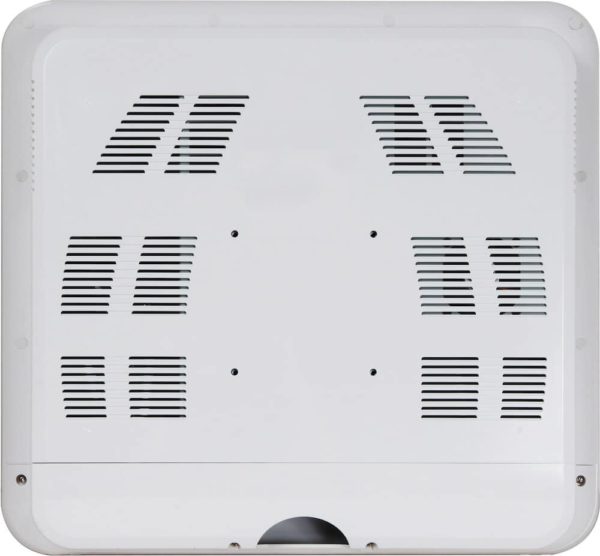

VESA Mounting(mm) VESA 100
Temperature(°C)
  • Operating: 0~40°C
  • Storage: -20~60 C
Humidity(%)
  • Operating: 10 ~ 90%, non-condensing
  • Storage: 10 ~ 90%, non-condensing
IP Rating IP65 (Front Side), IP x1 whole system
Certifications and Compliances
  • CE: EN 60601-1-2:2015(V4.0)
  • MDR: MDR 2017/745
  • VCCI: 2016-11, Class B (PSU with PSE)
  • FCC: Part 18 Class B
  • UL: ANSI/AAMI ES60601-1:2012 (V3.1)
  • cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1)
  • BIS:IS13252 (Part I): IEC60950-1 / ISO 14971 / IEC62133



Ordering Guide

Ordering Guide
TBD PHCP-19311-CFL
