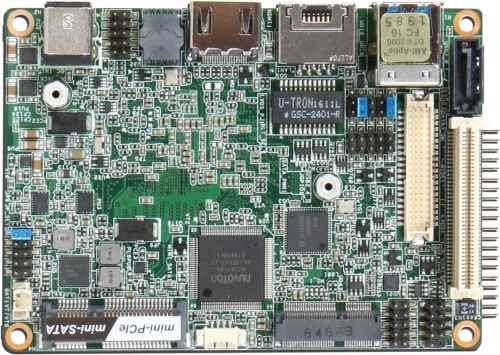

PICO-6260

Intel^® Apollo Lake Atom^® Processor based PICO-ITX embedded Board with DDR3L SDRAM, Gigabit Ethernet, HDMI^®, LVDS, mini-PCIe socket and 12V

Features

Supports Intel^® Apollo Lake series processor
Supports DDR3L-1866/1600 non-ECC memory on one SO-DIMM slots, up to 8GB
Supports HDMI^®, and Dual channel 24bit LVDS
Supports Mini-PCIe / mSATA ( Mini-PCIe slot), and M.2 (E Key) socket
Supports 2*COM ports(COM1 supports RS-232/422/485,COM2 supports RS-232)

Download

Description

The PICO-6260 is a palm-sized fanless pico-ITX motherboard built with the latest 14 nm Intel^® Pentium^® or Celeron^® processor (codename: Apollo Lake SoC).

Support for two USB3.0 ports ensures fast data transmission with low-power consumption and support two com port to allow quick and flexible system expansions. Intel^® I210IT Gigabit Ethernet controllers provide dual Gigabit Ethernet LAN access via the one RJ45 ports. PICO-6260 can design their own unique systems for Panel PC, Kiosk and Digital Signage applications.

Specification

Specifications
MODEL	PEB-6260
Form Factor	PICO-ITX
CPU	Intel^® Atom^® N3350 Family
Chipset	N/A
BIOS	AMI UEFI
Memory	Support up to 8GB DDR3L 1333/1600/1866 MH/z SDRAM on one 204 pin SO-DIMM socket
Expansion	1x mini-PCIe socket (support mSATA) 1x M.2 Type E slot
Display	LVDS/HDMI^®
Audio	Realtek ALC892 HDA codec
LAN	1x GbE
Serial Port	1x RS-232/422/485 1x RS232
USB	2x USB3.0 2x USB2.0
Storage Devices	1x SATA III
GPIO	8 bit
Others	N/A
Dimension	100 x 72mm

Ordering Guide

Ordering Guide
AB1-3F84	(R).PICO-6260. Intel Apolloe Lake SoC on Board.EBC. w/DDR3L/HDMI^®/GbE/COM/Audio/USB

Packing List

Packing List
One PEB-2773 Main board
One Installation CD
One SATA cable

Support

(Documents & Downloads)

Datasheet

Catalog PICO-6260 | Catalog 20200310 March 30, 2021

Download

1.30 MB 2029 Downloads

BIOS

BIOS BIOS_PICO-6260_R1_00_E8.zip | BIOS R1.00.E8 February 5, 2024

Download

PICO-6260_R1.00.E8

4.06 MB 11 Downloads

BIOS BIOS_PICO-6260_R1.00.E7.zip | BIOS R1.00.E7 September 14, 2023

Download

4.06 MB 77 Downloads

BIOS BIOS_PICO-6260_R1.00.E6.zip | BIOS R1.00.E6 November 30, 2022

Download

BIOS_PICO-6260_R100E6.zip

4.1 MB 857 Downloads

Software

Software Portwell Engineering Toolkit [PET] | Software 4.7.16 March 26, 2024

Download

A Universal API for Hardware Access in Both Linux and Windows

PET-supported OS: Windows 7, Windows 10, Ubuntu 18.04, and later, and CentOS 7 and later.
PET API sample code test application path:
- Windows PET_API sample code: PET_API, Windows, sample, TESTAP.cpp
- Linux PET_Utility: PET_API, Linux, x64, release, TESTAP.c

PET 4.7.16 Released
…………………………………………………………………………………………………………………
1. Update the product support list to include support for ANS-9A44S.
2. Update the GUI logo.
…………………………………………………………………………………………………………………

Supported products list: Portwell Engineering Toolkit Info

11.96 MB 194 Downloads
