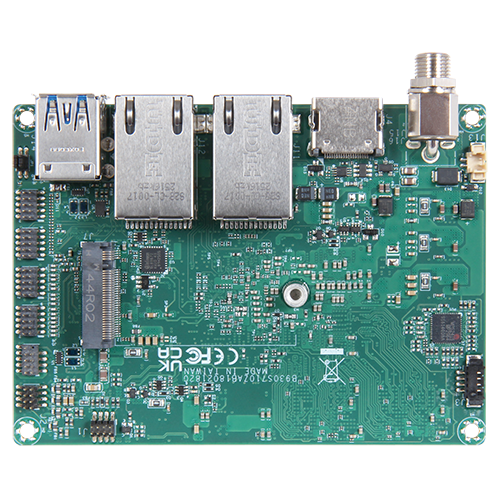

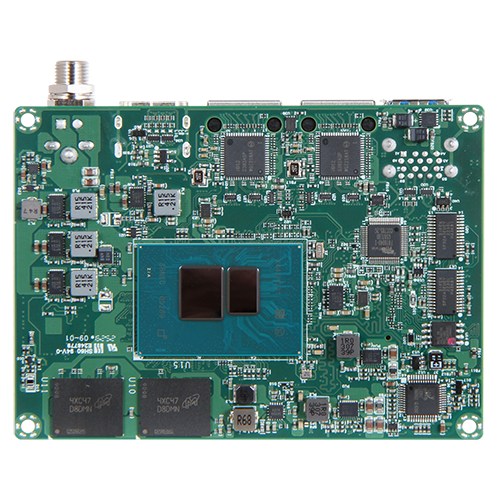

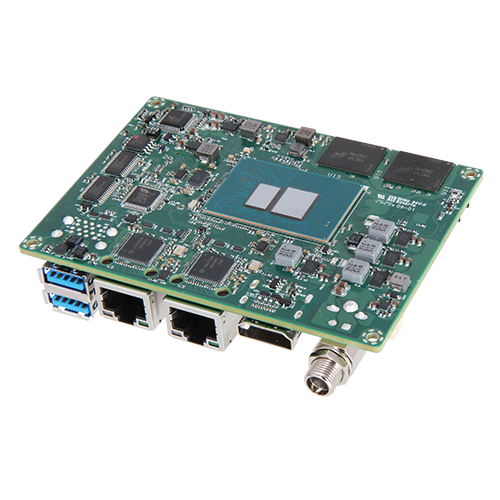

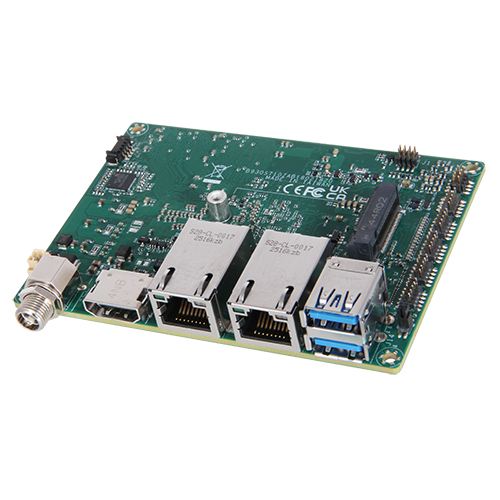

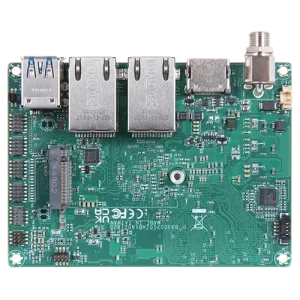

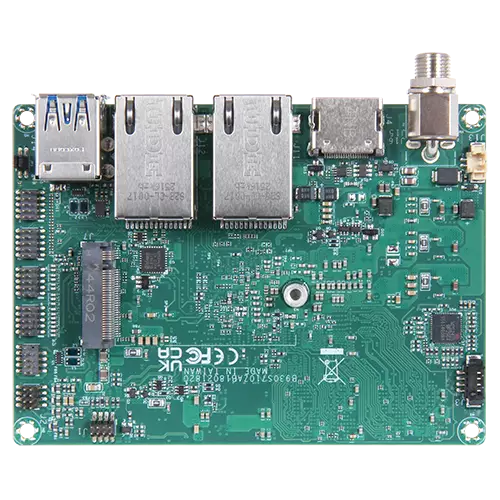

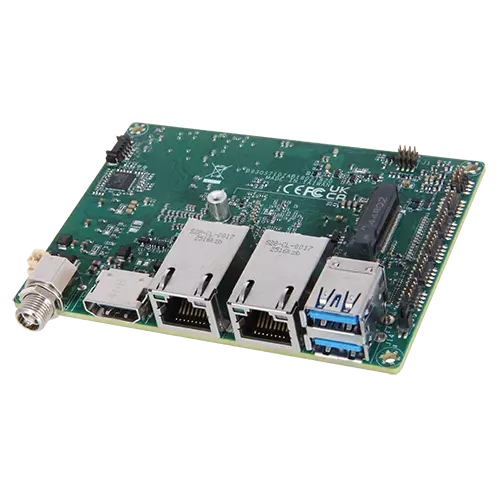

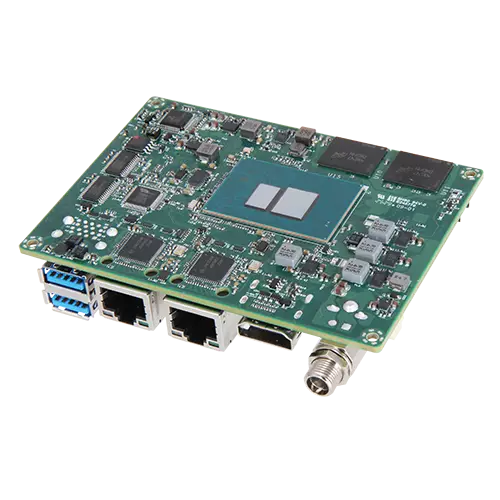

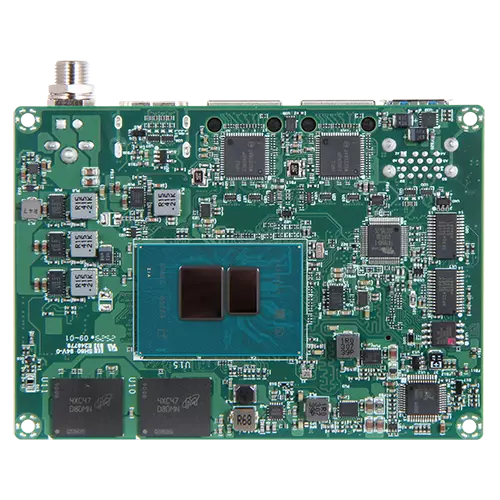

| Model | PICO-8021 |
|---|---|
| Form Factor | Pico-ITX |
| General | ||||||||
|---|---|---|---|---|---|---|---|---|
| Processor | Intel® Processor N150 | |||||||
| Intel Atom® x7433RE Processor | ||||||||
| Intel Atom® x7211RE Processor | ||||||||
| BIOS | AMI uEFI BIOS | |||||||
| Memory | Support up to 8GB LPDDR5 4800 MT/s on board | |||||||
| Watchdog Timer | Programmable, time out period from 1 s to 255 s | |||||||
| Graphic Controller | Intel® Graphics | |||||||

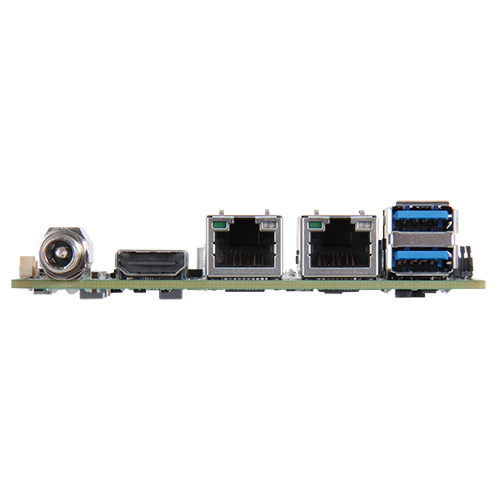

| Rear I/O | ||||||||
|---|---|---|---|---|---|---|---|---|
| Ethernet | 2 x Intel I210AT with GbE LAN 10/100/1000 Mbps | |||||||
| USB | 2 x USB 3.2 Gen2 Type A | |||||||
| Display | 1 x HDMI® 1.4 3840 x 2160@30Hz | |||||||
| Expansion I/O | ||||||||
|---|---|---|---|---|---|---|---|---|
| Audio | 1 x Pin Header support Line-in , Line-out , Mic-in w/ Realtek ALC897 | |||||||
| Serial Port | 2 x Pin Header support RS-232 | |||||||
| USB | 2 x USB 2.0 Pin Header | |||||||
| M.2 | 1 x M.2 M Key 2242 support SATA, PCIe x1 | |||||||
| Security | TPM 2.0 ( On Board IC ) | |||||||
| GPIO | 1 x 8-bit Digital I/Os | |||||||
| ME/Environment | |
|---|---|
| Dimension | 100 x 72 mm (3.9″ x 2.8″) |
| Power Supply | DC Jack 12V |
| Operating Temperature | 0 ~ 60 °C (32.0 ~ 140.0 °F) ( N150 ) |
| -40 ~ 85 °C (-40.0 ~ 185.0 °F) ( x7433RE ) | |
| -40 ~ 85 °C (-40.0 ~ 185.0 °F) ( x7211RE ) | |
| Storage Temperature | -40 ~ 85 °C (-40.0 ~ 185.0 °F) |
| Relative Humidity | 5% to 95%, non-condensing |
| Certification | CE/FCC UKCA |
| OS | Windows 11 IoT Enterprise 2024 LTSC, Ubuntu 24.04 |
| Portwell Special Feature | PET |
| Category | Product | P/N | Status | Description |
|---|---|---|---|---|
| Pico-ITX | PICO-8021-N150 | AB1-3U51 | available | (R).PICO-8021-N150. Intel Twin Lake SoC. w/LPDDR5/HDMI®/GbE/TPM/COM/USB/Audio |
| Pico-ITX | PICO-8021-X7433RE | AB1-3T99 | available | (R).PICO-8021-X7433RE. Intel Asmton Lake SoC. w/LPDDR5/HDMI®/GbE/TPM/COM/USB/Audio |
| Pico-ITX | PICO-8021-X7211RE | AB1-3U67 | available | (R).PICO-8021-X7211RE. Intel Asmton Lake SoC. w/LPDDR5/HDMI®/GbE/TPM/COM/USB/Audio |
