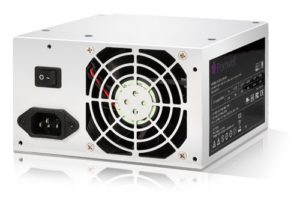

350W PS/2 ATX PSU with active PFC Japan made capacitor 80 PLUS and SCP, OCP,OPP


  • Meets ATX 12V V2.3 standard
  • Dual forward converter design
  • Active PFC (power factor correction) > 0.99
  • Double independent +12V output
  • Power Efficiency (25°C and 50°C can meet the minimum efficiency (80%) for all loading conditions (20%,50,100%))
  • Leakage current: Less 3.5 mA-rms at 264Vac, 60 Hz
  • Made in Japan capacitor (RUBYCON)
  • Fan Control (Internal 80mm fan)
  • Remote ON/OFF Control
  • Hold-up Time in 16ms
  • Power Good signal: TTL compatible on delay 100ms to 500ms
  • Short Circuit Protection
  • Over Voltage Protection
  • Over Power Protection


For most PS/2 ATX in IPC applications are for server station and communication system; In those environments, heat is the major cause of output de-rating. PLUTO-D3501PJ also remains 80% de-rating output at 50°C which allows the whole system to work in high temperature environment. In addition, for various demands, PLUTO-D3501PJ provides dual +12V output for different devices.

In order to ensure the output of PLUTO-D3501PJ is stable and reliable, it has dual forward converter design and RUBYCON high quality Japanese capacitor, thus it has shown high performance at 50°C, 12 hours at 100 % loading Burn-in test.

PLUTO-D3501PJ has 80PLUS certification which helps to reduce energy consumption, and hence to save cost of electricity


MTBF 100,000 Hours at 100% loading
Storage: -40°C ~ 70°C, 10% ~ 25°%
Operation: 5°C ~ 50°C, 20% ~ 85°%
(W x D x H)
150 x 140 x 85mm; 5.9” x 7.2” x 3.4”
Risetime 10 ms.
