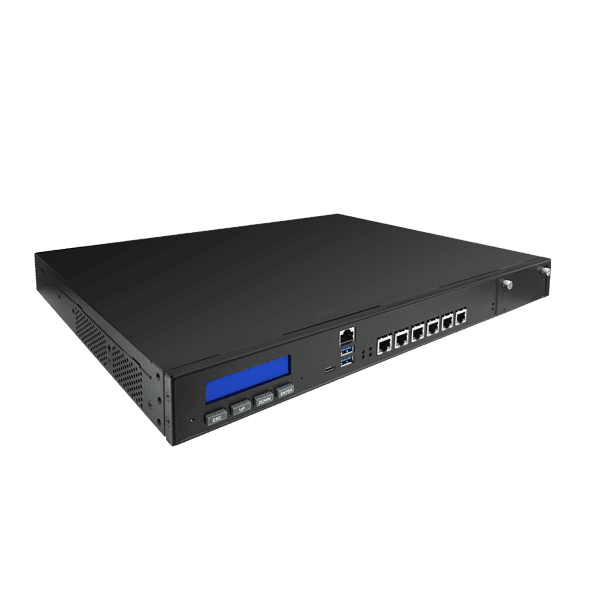

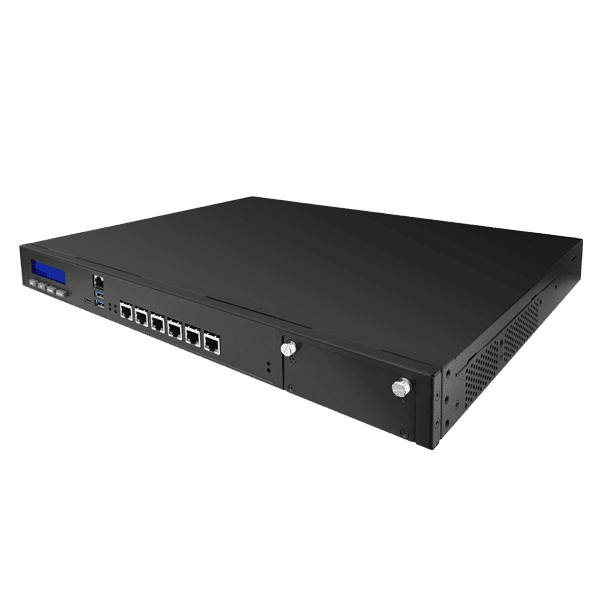

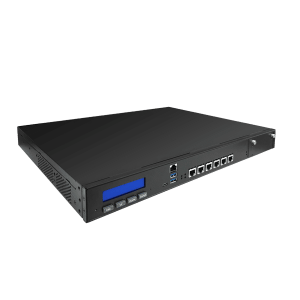

PNAC-41310

1U Intel® Comet Lake Network Appliance with Up to 20 GbE Ports

Features

  • Intel® Xeon® W, Core™, Pentium®/Celeron® Processors (Formerly Comet Lake)
  • 2x DDR4-2933 Memory Slots Up to 64GB
  • Up to 20x RJ45/SFP GbE Ports with Proprietary Network Module (by SKU)
  • Up to 4x Segments of Bypass Function, 2x on board and 2x from Proprietary Network Module
  • 3x SATA & 1x M.2 2242 Storage (by SKU)

Specification

Specifications
General
CPU 1x Intel® Xeon® W-1200, Core™ i9/i7/i5/ i3, Pentium®/Celeron® Processor (Formerly Comet Lake)
PCH/Chipset Intel® W480E PCH
System Memory 2x DDR4 ECC 2933MHz UDIMM up to 64GB
Ethernet Port Up to 20x Ethernet ports with 8x RJ45 GbE, 4x SFP GbE and 8x RJ45/SFP GbE from Network Module
Bypass 2x segments on board and up to 2x segements from Network Module
Expansion – 1x PCIe Gen3 x8 proprietary Network Module
– 1x PCIe Gen3 x4 for Standard PCIe card
Storage Device – 3x SATA 3.0 HDDs
– 1x M.2 B+M key 2242
(SATA 3.0 or PCIe 3.0 x4)
Power Supply 250W Single PSU
Dimension 438(W)x345(D)x44(H)mm 7.52″ (W) x 13.8″ (D) x 1.76″ (H)
Operation
Operating Environment – Temperature: 0 – 40°C (32 – 104°F)
– Humidity: 20 – 90% RH
Storage Environment – Temperature: -10 – 70°C (14 – 158°F)
– Humidity: 5 – 95% RH
Certification CE/FCC
OS Support Linux Kernel

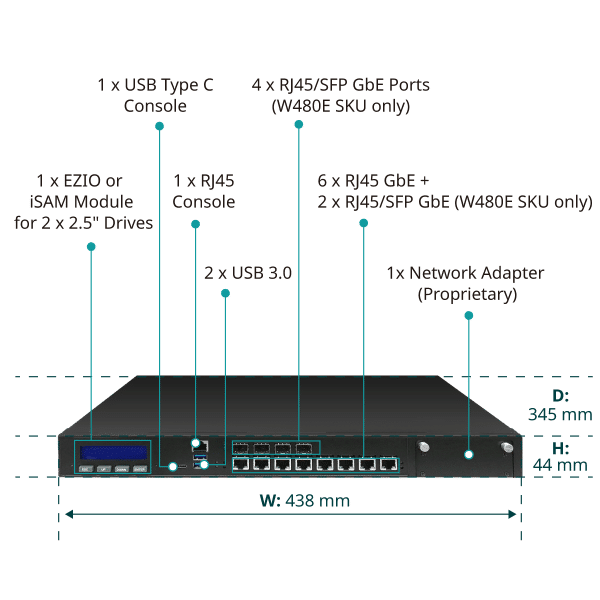

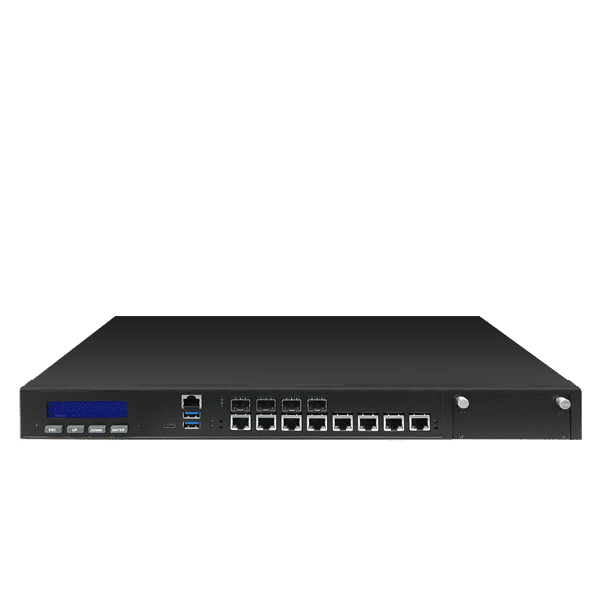

Front Panel
Management Port – 1x RJ45 System Console port
– 1x USB Type C Console port
Ethernet Port 8x RJ45 GbE ports
4x SFP GbE ports
Ethernet 1x PCIe Gen3 x8 proprietary Network Module
LCD Panel 128 x 32/64 Graphic, 2 x 16 Characters
LED Power / Storage / Bypass
USB 2x USB 3.0 Type A ports
Optional CPUs
Models Cores/Threads Frequency(Max) Cache TDP
Intel® Celeron® G5900E 2C/4T 3.20GHz (3.20GHz) 2MB 58W
Intel® Pentinum® Gold G6400E 2C/4T 3.80GHz (3.80GHz) 4MB 58W
Intel® Core™ i3-10100E 4C/8T 3.20GHz (3.80GHz) 6MB 65W
Intel® Core™ i5-10500E 6C/12T 3.10GHz (4.20GHz) 12MB 65W
Intel® Core™ i7-10700E 8C/16T 2.90GHz (4.50GHz) 16MB 65W
Intel® Core™ i9-10900E 0C/20T 1 2.80GHz (4.70GHz) 20MB 65W
Intel® Xeon® W-1250E 6C/12T 4.10GHz (4.80GHz) 12MB 80W
Intel® Xeon® W-1270E 8C/16T 3.40GHz (5.00GHz) 16MB 80W
