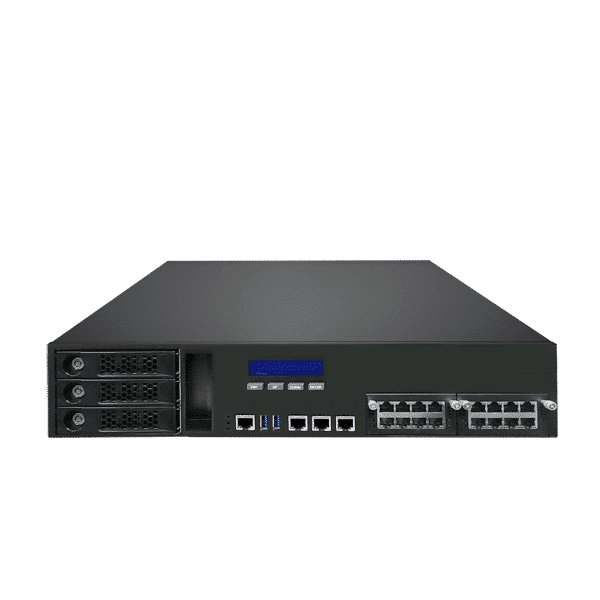

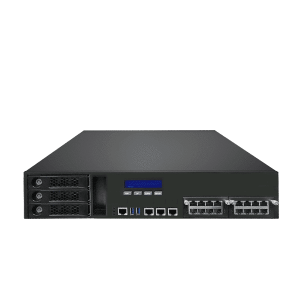

PNAC-62410

2U High Performance Platform with Single Intel® 3rd Gen Xeon® Scalable CPU and Dual Network Modules

Features

  • Single Intel® 3rd Gen Xeon® Scalable Processor (Formerly Ice Lake-SP)
  • 8x DDR4-3200 RDIMM ECC Memory (Up to 256GB)
  • 2x PCIe Gen3 x8 Proprietary Network Modules for Various Ethernet Configurations
  • 3x PCIe Gen3 x8 Expansion Slots for GPU/DPU/FPGA/RAID/NIC Options
  • 3x 3.5″ HDD / 3x 2.5″ SSD (SATA 3.0)

Specification

Specifications
General
CPU 1x Intel® 3rd Gen Xeon® Scalable processor (Formerly Ice Lake-SP)
PCH/Chipset Intel® C621A PCH (Formerly Lewisburg-R)
System Memory 8x DDR4 ECC 3200MHz RDIMMs (Up to 256GB)
Ethernet Port Up to 18x Ethernet ports including 2x Network Modules with 100GbE bandwidth in max
Bypass Depends on the Proprietary Network Modules chosen
Expansion 2x PCIe Gen3 x8 Network Modules (Proprietary)
– 2x PCIe Gen3 x8 for internal Standard PCIe cards
– 1x PCIe Gen3 x8 for external Standard PCIe card (front access)
Storage Device 3x SATA 3.0 HDD or SSD
Power Supply 420W CPRS Redundant Power Supply Unit
Dimension 443(W)x600(D)x88(H)mm 17.72″ (W) x 24″ (D) x 3.52″ (H)



Operation
Operation
Operating Environment – Temperature: 0 – 40°C (32 – 104°F)
– Humidity: 10 – 90% RH
Storage Environment – Temperature: -10 – 70°C (14 – 158°F)
– Humidity: 5 – 95% RH
Certification CE/FCC
OS Support Linux Kernel



Front Panel
Front Panel
Management Port – 1x RJ45 System Console port
– 1x RJ45 GbE port (BMC)
Ethernet Port 2x RJ45 GbE ports
LCD Panel 128 x 32/64 Graphic, 2 x 16 Characters
LED Power / PSU / Storage / Ethernet
USB 2x USB 3.0 ports
Display 1x VGA port optional from LOM or
VGA module
LOM IPMI 2.0 with GbE Speed



Optional CPUs
Optional CPUs
Models Cores/Threads Frequency(Max) Cache TDP
Intel® Xeon® Platinum 8351N 36C/72T 2.40GHz (3.50GHz) 54MB 225W
Intel® Xeon® Gold 6330 28C/56T 2.00GHz (3.10GHz) 42MB 205W
Intel® Xeon® Gold 6326 16C/32T 2.90GHz (3.50GHz) 24MB 185W
Intel® Xeon® Gold 5318N 24C/48T 2.10GHz (3.40GHz) 36MB 150W
Intel® Xeon® Gold 5317 12C/24T 3.00GHz (3.60GHz) 18MB 150W
Intel® Xeon® Gold 5315Y 8C/16T 3.20GHz (3.60GHz) 12MB 140W
Intel® Xeon® Silver 4316 20C/40T 2.30GHz (3.40GHz) 30MB 150W
Intel® Xeon® Silver 4314 16C/32T 2.40GHz (3.40GHz) 24MB 135W
