PQ7-C100ARM

Besides original Q7 feature, Q7 Plus function with extra 80-pin enables customers to enhance expansion possibility

Features

  • Qseven carrier board accept Portwell Qseven modules PQ7-M640F
  • Mini-ITX form factor
  • On Board DC to DC circuit for DC in application
  • Mini-PCI support
  • Dual GbE

Description

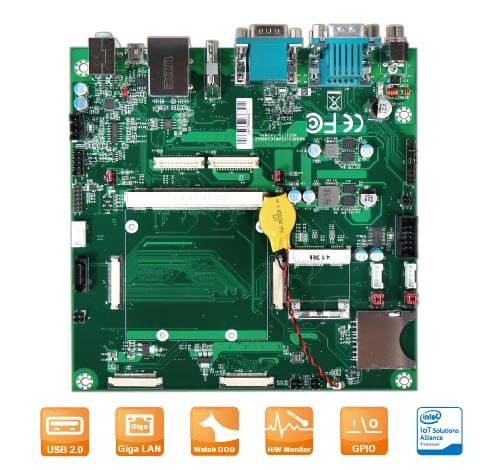

Mini-ITX Qseven Carrier Board for Qseven Module PQ7-M640F with Dual GbE, HDMI®/LVDS

Specification

Network 1x RJ45
Expansion 1x SD Socket
Bus Interface 2x I2C, 1x Keypad, 1x CAN bus, 1x MIPI-CSI for camera, 1x SPDIF, 1x RJ45, 3x UART
Serial Interface 1x miniPCIe
USB 2x USB2.0, 1x MINI USB OTG
Audio Mic in, Line out
Power Requirement 12V DC
Dimensions 170×170 mm

Ordering Guide

Ordering Guide
AB9-3243Z PQ7-C100ARM, Mini-ITX, Qseven I/O Carrier Board
