Portwell / Industrial Computer Products / Computer-on-Module / Qseven / PQ7-C100XL

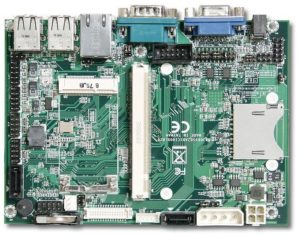

PQ7-C100XL

Qseven Carrier Board for Intel Menlow-XL CPU ATOM Z520PT

Features

Qseven carrier board accept Portwell Qseven modules
Intel^® Atom™ Z5XXPT and SCH US15WPT
3.5″ ESB form factor to embedded applications
On Board DC to DC circuit for DC in application
Mini-PCIe support
Support boot from SD(SDIO 1.1)

Download

Description

3.5″ ESB Form Factor Carrier Board For Qseven Module

Specification

Format	3.5″ ESB
Display Interface	VGA
Storage	SD Card slot, one mini-PCIe, two SATA ports
Network	GbE port
USB	Four rear USB ports, Three USB header
Audio	one MIC-IN, one LINE-OUT
Power Requirement	DC 12V
Operating Temperature	-40°C ~ 85°C
Extended Temperature	-40°C ~ 85°C
Dimensions	146mm x 102mm

Ordering Guide

Ordering Guide
AB1-3326	PQ7-C100XL 3.5″ QSEVEN Carrier Board
AB1-3667	PQ7-C100XL-CAN 3.5″ QSEVEN Carrier Board with CAN Bus

Documents & Downloads

Catalog PQ7-C100XL | Catalog 212A-1 September 4, 2012

Download

178.81 KB 6102 Downloads

No downloads found!

User's Manual Manual_PQ7-C100XL_R30.zip | Manual 3.0 February 9, 2012

Download

PQ7-C100XL user's manual

845.82 KB 3023 Downloads

User's Manual Manual_PQ7-C100XL_R20.zip | Manual 2.0 August 25, 2011

Download

PQ7-C100XL user's manual

1.22 MB 3010 Downloads

User's Manual Manual_PQ7-C100XL_R11.zip | Manual 1.1 August 18, 2011

Download

PQ7-C100XL user's manual

17.11 MB 3306 Downloads

User's Manual Manual_PQ7-C100XL_R10.zip | Manual 1.0 October 20, 2009

Download

PQ7-C100XL User Manual Rev 1.0

876.30 KB 3054 Downloads
