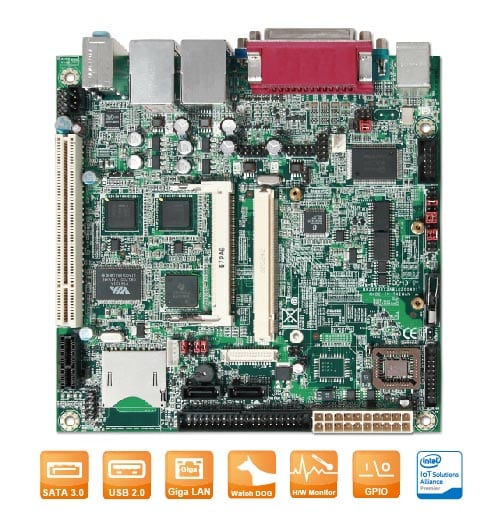

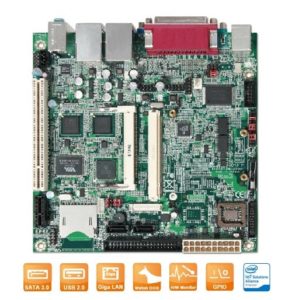

PQ7-C200

Qseven Mini-ITX Carrier Board

Features

  • Qseven carrier board accepts Portwell Qsevenmodules
  • Intel®Atom™ Z5XX and SCH US15W
  • Mini-ITX form factor for embedded applications
  • Dual PCI interface Gigabit Ethernet ports
  • One IDE channel and Two SATA150 Ports
  • One PCI and PCI-E x1 expansion slot via risercard

Description

Mini-ITX Form Factor Carrier Board For Qseven Module with Dual Displays and Two GbE

Portwell’s PQ7-C200 is designed with a Qseven 230pin card edge MXM connecter and supports Portwell’s Qseven modules for initial evaluation testing on PCI-E, Mini PCI-E, VGA/LVDS, SATA, LAN, AUDIO, SDIO, LPC function, etc.

PQ7-C200 offers PCI signal for PCI expansion demand, and also simultaneously supports IDE and SATA ports. Furthermore, Portwell can provide carrier board design guides for your carrier board development reference to shorten the development stage.

Automation could be described as an increase in productivity, and/or quality beyond human labor levels. With the PQ7-C200, the greater PCI interface enables greater motor control, and its UART PQ7- C200 presence allows for a comport for Legacy components.

Ordering Guide

Ordering Guide
AB1-3213 PQ7-C200.Mini-ITX QSeven Carrier Board

Support

(Documents & Downloads)

  Catalog   PQ7-C200 | Catalog 214M   May 5, 2014
1.2 MB 5723 Downloads
    No downloads found!
        Driver   Driver_Portwell-EVB-PQ7-C200.zip | Driver    May 3, 2021
      1.71 MB 625 Downloads
          User’s Manual   Manual_PQ7-C200_R12.zip | Manual 1.2   August 18, 2011

        PQ7-C200 User’s manual

        814.23 KB 3112 Downloads
          User’s Manual   Manual_PQ7-C200_R10.zip | Manual 1.0   October 20, 2009

        PQ7-C200 User Manual Rev 1.0

        416.19 KB 3107 Downloads
