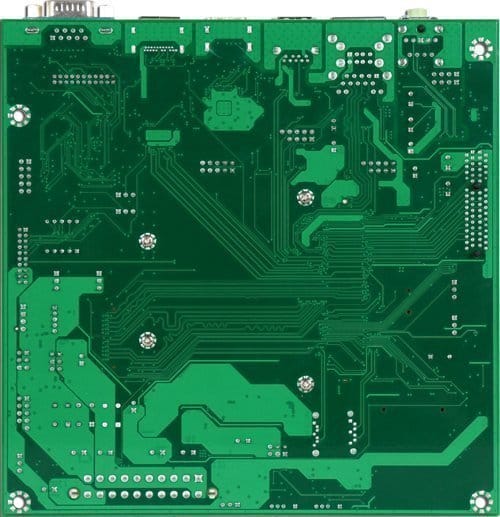

PQ7-C201

Mini-ITX Form Factor Carrier Board For Qseven Module

Features

  • Qseven® 2.0 carrier board is compatible with Portwell Qseven® modules
  • Mini-ITX form factor for embedded applications
  • 1x Gigabit Ethernet port
  • 2x SATA ports and 1x SD socket
  • 1x PCIe x4 expansion slot
  • DP, HDMI®, VGA and LVDS support
Mini-ITX Form Factor Carrier Board For Qseven Module with Multiple Displays and One GbE

Specification

Qseven module Portwell Qseven® module PQ7-M10X Series
Format Mini-ITX
Type Carrier
Display Interface – 1x Display port
– 1x HDMI® port
– 1x VGA port
– LVDS header to support eDP/LVDS
Storage 2x SATA
Network 1x Gigabit RJ45
Expansion Interface – 2x COM ports (1x RS-232/422/485 header, with 1x RS-232 port)
– 1x PCIE x4 slot
– SMBus header
– I2C header
– LPC header
– SPI header
– TPM header
Serial Port 1x serial RX/TX supported from onboard EC (Embedded Controller)
USB – 1x USB 3.0,
– 2x USB 2.0 (rear I/O)
– 3x USB 2.0 (header)
Audio Line in, Line out
Power Requirement – 12VDC input
– Supports AT/ATX mode, 20 pin ATX power connector
Operating Temperature 0°C to 60°C
Dimensions 170(L) x 170(W) mm; 6.69″(L) x 6.69″ (W)

Ordering Guide

Ordering Guide
AB1-3B45Z PQ7-C201.Mini-ITX QSeven Carrier Board
