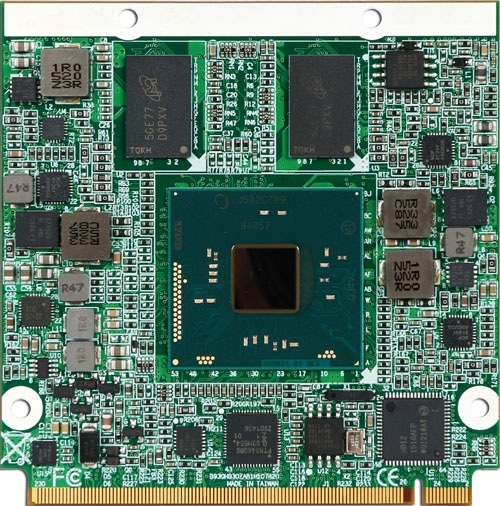

Portwell’s PQ7-M107 is designed with Intel® Celeron® and Pentium® processor N3000 product families (4W~10W), formerly codenamed Braswell, delivering greater CPU and graphics performance over the previous generation entry-level CPUs from Intel while operating with lower power consumption and lower TDP. With greater performance and memory bandwidth support, the PQ7-M107 is an ideal building block for solutions for manufacturing, transportation and automation applications. In addition, the PQ7-M107 features HD camera with MIPI CSI-2, 4k x 2k resolution and three independent displays.
| CPU | Intel® Pentium® Processor N3700 (4 x 1.60 GHz, 2 MB L2, 6 W) Intel® Celeron® Processor N3150 (4 x 1.60 GHz, 2 MB L2, 6 W) Intel® Celeron® Processor N3050 (2 x 1.60 GHz, 2 MB L2, 6 W) Intel® Celeron® Processor N3000 (2 x 1.04 GHz, 2 MB L2, 4 W) |
| Format | Qseven |
| Chipset | SoC (System-On-Chip) |
| DRAM | Up to 4 GB DDR3L-1600 soldered on board |
| Graphic Controller | Intel® HD Graphics Gen8 |
| Display Interface | 2x (support DP or HDMI®), mapped via DDI, VGA, dual channel 24bit LVDS (eDP to LVDS) |
| Storage | 1x SDIO, 2x SATA II (3.0 Gbit/s) |
| Network | 1x Gigabit Ethernet Intel® I210IT |
| Bus Interface | 3x PCIe x 1 (Option to 4) |
| Serial Interface | 1x Tx/Rx/CTS#/RTS# signals (Qseven R2.0) |
| USB | 4x USB 2.0, Up to 1x USB 3.0 |
| Audio | 1x Intel® High Definition Audio, 51 Audio codec |
| Miscellaneous | Watchdog Timer,HW monitoring CPU, system temperature, fan |
| Firmware | Phoenix UEFI BIOS |
| Power Requirement | +5V DC ±5% |
| Power from W | depends on used CPU |
| Operating Temperature | -40°C to +85°C |
| Extended Temperature | -40°C to +85°C |
| Dimensions | 70×70 mm |
| AB7-3050Z | (R).PQ7-M107-N3710-4G-8G. (4C. 2M. 1.6GHz. 6watts)QSeven Module Board. Atom Braswell CPU. DDR3L |
| Contact us | (R).PQ7-M107-N3xxx-xG-xG. With chosen memory and eMMC capacity |
