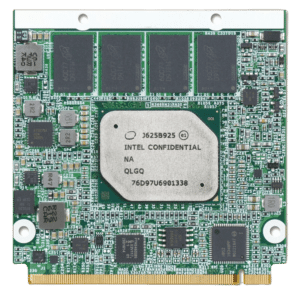

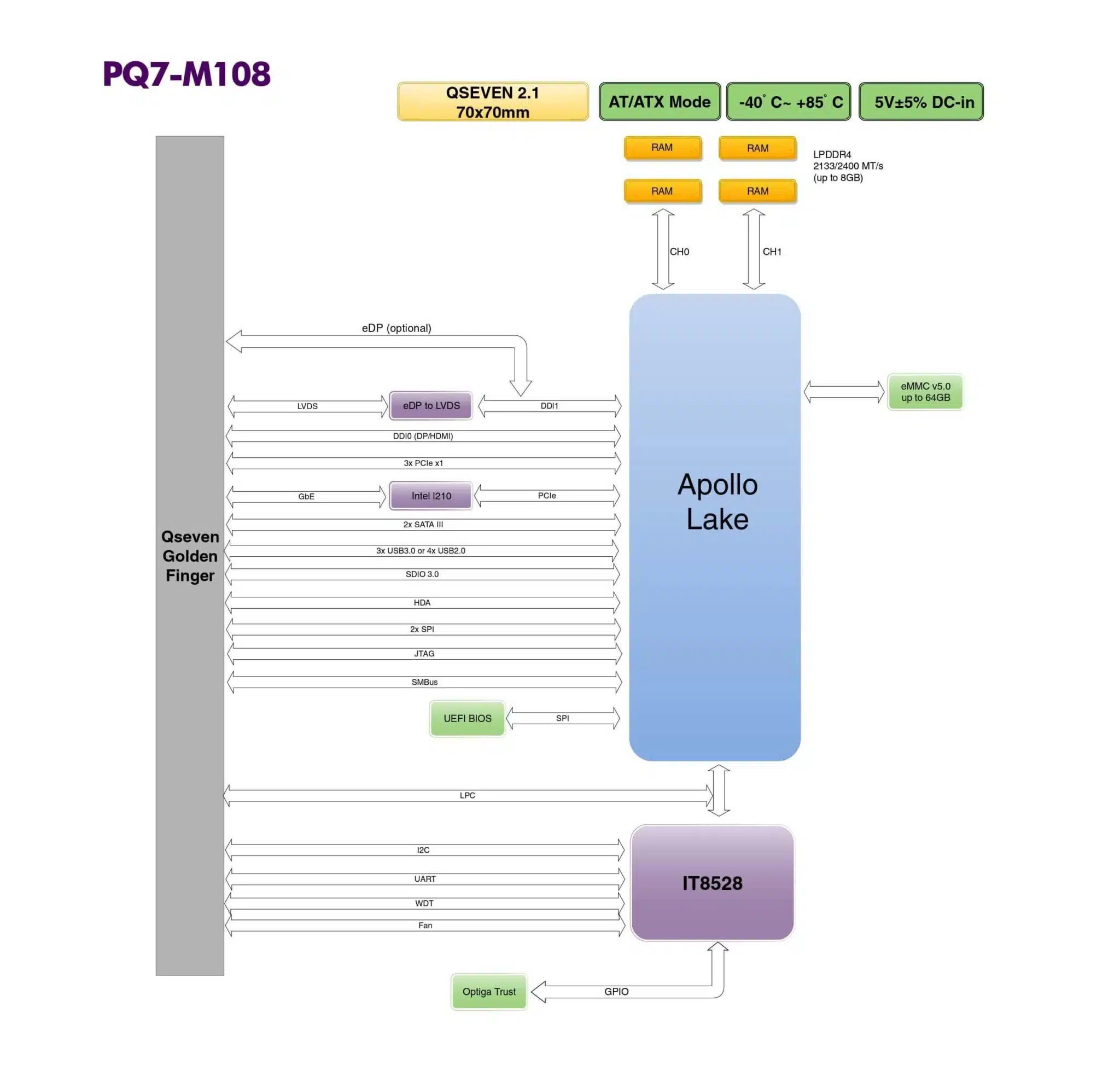

PQ7-M108 is designed with Intel® Atom®/ Pentium®/ Celeron® processors (Apollo Lake) which featured with higher graphic performance and wider memory bandwidth than the previous platform.
Benefit from Intel Apollo Lake industrial grade processor design, the operating temperature supports -40°C to 85°C. With qualified industrial-grade components selecting, PQ7-M108 is aimed to be widely applied on automation, security, transportations and so to different kinds of harsh environment applications.
| CPU | Intel Atom® x5-E3930 Processor (2 x 1.30 GHz, 2 MB L2, 6.5 W) Intel Atom® x5-E3940 Processor (4 x 1.60 GHz, 2 MB L2, 9.5 W) Intel Atom® x7-E3950 Processor (4 x 1.60 GHz, 2 MB L2, 12 W) Intel® Celeron® Processor N3350 (2 x 1.10 GHz, 2 MB L2, 6 W) Intel® Pentium® Processor N4200 (4 x 1.10 GHz, 2 MB L2, 6 W) |
| Format | Qseven® 2.1, 70 x 70 mm |
| Chipset | SoC (System-On-Chip) |
| DRAM | Up to 8GB LPDDR4 – 2133/2400, Dual Memory Channel |
| Display Interface | LVDS/eDP, DP/HDMI® |
| Storage | Up to 64 GB onboard eMMC 5.0 flash |
| Network | 1x 10/100/1000 GbE (Intel® i210) |
| Bus Interface | 1x SDIO, 2x SPI, 1x I²C, 1x HDA, 1x SMBus, 1x LPC, 1x UART, 1x WDT, 1x JTAG |
| Serial Interface | 2x SATA 3.0 (6 Gb/s); 4x PCIe x1 Gen2 |
| USB | 3x USB 3.0 4x USB 2.0 |
| Dimensions | 70×70 mm |
| Product | Ordering P/N | Status |
|---|---|---|
| PQ7-M108-N3350-4G-8G | AB7-3019Z | Available |
| PQ7-M108-N4200-4G-8G | AB7-3054Z | Available |
| PQ7-M108-E39xx-xG-xG | Contact us | Available |
| Accessory | Ordering P/N | Status |
|---|---|---|
| Heat Spreader | B8308940 (for N3350/N4200 ) B8309030 (for E3930/E3940/E3950) |
Available |
| Heat Sink Set | B8308970 (for N3350/N4200) B8308980 (for E3930/E3940/E3950) |
Available |
| PQ7-C201 | AB1-3B45 | Available |
