RICH-33B0-8171

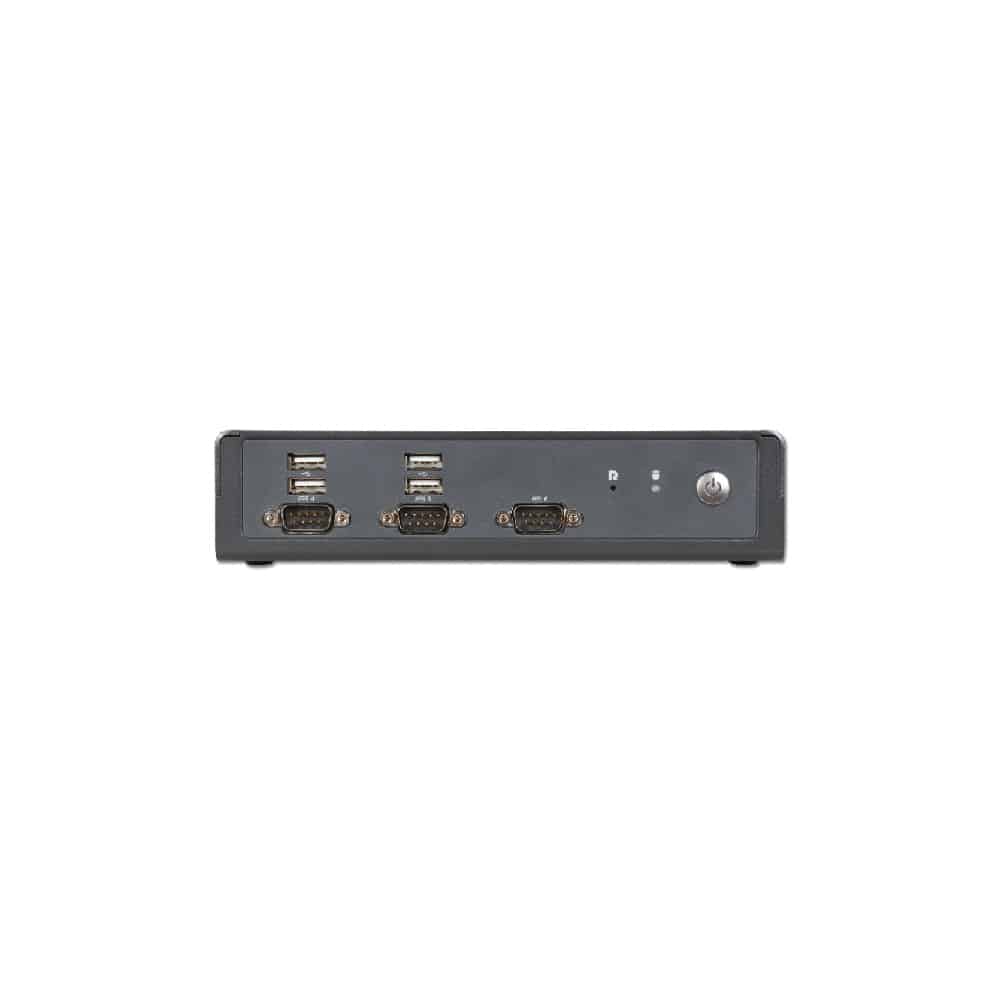

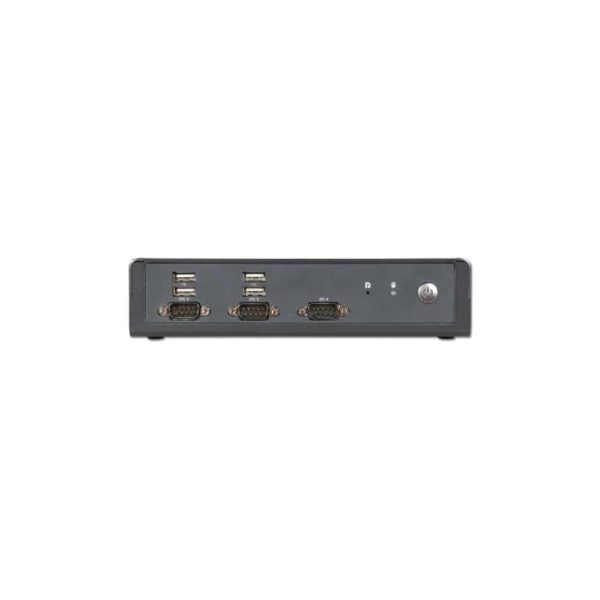

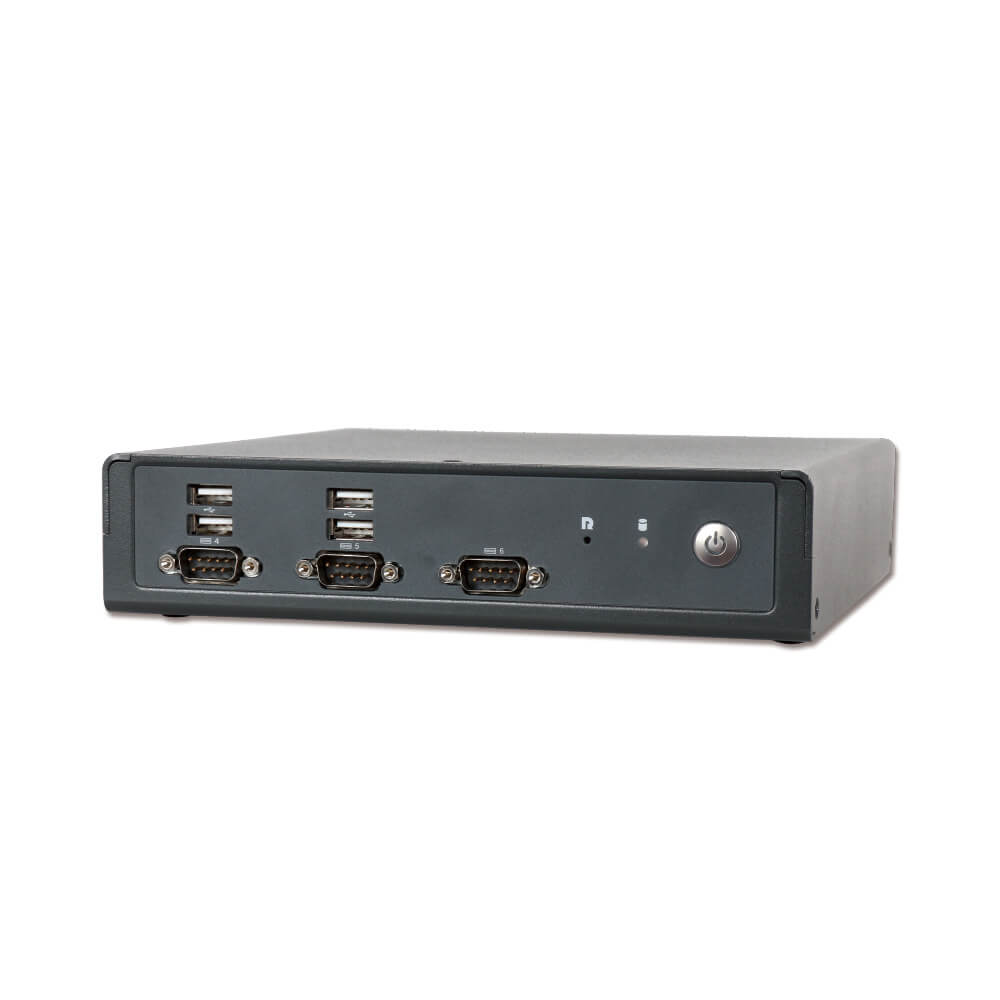

Embedded Rugged Fan-less System with Intel® Celeron® Processor based Mini-ITX Board

Features

  • Fan-less system
  • Intel® Celeron® Processor N3150 support
  • Dual channel SO-DIMM socket up to 8G DDR3L memory
  • 1x mSATA, 1x 2.5” SATA HDD/SSD (Option)
  • 3x RS-232/422/485, 3x RS-232, 4x USB3.0, 4x USB2.0
  • Dual Gigabit Ethernet Ports

Description

The RICH-33B0-8171 builds on Intel® Celeron® Processor N3150, that can support dual channel DDR3L memory, support dual Gigabit Ethernet ports, one mSATA socket and one Mini-PCIe socket. The RICH-33B0-8171 is idealplatform with rich I/O and high resolution for automation, POS, kiosk and digital signage applications.

Specification

Model RICH-33B0-8171
M/B WADE-8171
Form Factor Mini-ITX
System
CPU Intel® Celeron® N3000 Series Processor
Chipset Intel® SoC
BIOS AMI UEFI
Memory DDR3L/8GB
Graphic Controller Intel® HD Graphics Family
Audio Codec ALC887
Super I/O Nuvoton NCT6106D
Storage 1x 2.5” SATA HDD/SSD
1x mSATA
External I/O
Serial 3x RS-232
3x RS-232/422/485
USB 4x USB2.0
4x USB3.0
Display VGA, HDMI®
Ethernet Realtek RTL8111G x 2
PS/2 K/B x1, Mouse x1
Audio Line-out, Mic-in
D I/O N/A
Expansion 1x Full-size Mini-PCIe
PWR
System DC 12V ~ 24V
Environment
OP Temp. 0°C ~ 50°C
Storage Temp. -20°C ~ 80°C
Humidity 95%@40°C,
non-condensing
Vibratoin 5Grms/10-500Hz
Shock 50G, 11 msec
Mechanical
Dimension(WxDxH) 200 x 200 x 45 mm
Weight 2 Kg

Ordering Guide

AS5-3447 (R).RICH-33B0-8171 Full. w/COMx6/USBx8/Dual LAN/PS2/Audio
AS5-3452 (R).RICH-33B0-8171-TBC. w/Ex.PSW/COMx6/USBx8/Dual LAN/PS2/Audio

Support

(Documents & Downloads)

  Catalog   RICH-33B0-8171 | Catalog    March 30, 2021
1.17 MB 2124 Downloads
    No downloads found!
        Driver   Driver_WADE-8171_Realtek_Lan_Win7_64bit(v7086).zip | Driver 7086   January 3, 2019

      Ethernet Driver for Win7 64bit

      5.86 MB 977 Downloads
        Driver   Driver_RICH-33B0-8171_USB3.zip | Driver 4.0.0.18   June 17, 2016

      USB3.0 Driver for Win7 32/64bit

      5.20 MB 1351 Downloads
        Driver   Driver_RICH-33B0-8171_LAN.zip | Driver 7.099   June 15, 2016

      Ethernet Driver for Win7

      10.15 MB 1319 Downloads
        Driver   Driver_RICH-33B0-8171_ME.zip | Driver 2.0.0.1036   March 16, 2016

      ME Driver

      35.76 MB 1289 Downloads
        Driver   Driver_RICH-33B0-8171_Graphic.zip | Driver 15.38.64.4175   March 16, 2016

      Graphics Driver for Win7/Win8.1 64bit

      112.13 MB 1260 Downloads
        Driver   Driver_RICH-33B0-8171_Ethernet.zip | Driver 8.025.0108.2014   March 16, 2016

      Ethernet Driver for Win8 32/64bit

      15.76 MB 1304 Downloads
        Driver   Driver_RICH-33B0-8171_Chipset.zip | Driver 10.0.026   March 16, 2016

      Chipset Driver

      30.84 MB 1321 Downloads
        Driver   Driver_RICH-33B0-8171_Audio.zip | Driver    March 16, 2016

      Audio Driver

      108.80 MB 1213 Downloads
