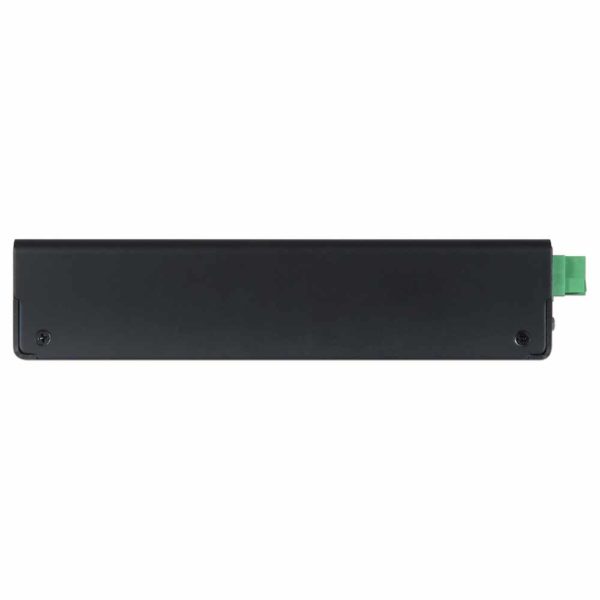

RICH-33I0

Embedded Rugged Fan-less System with Intel® Celeron® Processor J6412 based Mini-ITX Board

Features

  • Intel® Celeron® Processor J6412
  • Memory up to 32GB DDR4 3200 MHz SO-DIMM
  • Support one DP and one HDMI® display
  • Support one M.2 E Key socket,
    one M.2 M Key socket,
    one full/half size Mini PCIe socket
    and one full size SD card slot.
  • Support 6 x COM ports
  • one x Antenna hole

Description

The RICH-33I0 builds on Intel® Celeron® Processor J6412 technologies that can support dual DDR4 memory and 1x SATA Ports for storage. Support two Gigabit Ethernet ports , one M.2 E Key socket, one M.2 M Key socket, one full/half size Mini PCIe socket and one full size SD card slot.The RICH-33I0 is an ideal platform with rich I/O and high resolution for POS, kiosk, digital signage, and factory automation applications.

Specification

System
M/B WADE-8173-J6412
CPU Intel® Celeron® Processor J6412 In FCBGA1493 package, 2.0GHz(2.6 GHz turbo), 1.5 MB L2 Cache, 10W TDP
BIOS AMI uEFI BIOS
Memory Up to 32GB DDR4 3200 on two SO-DIMM sockets
Storage 1 x SATAIII ports
Watchdog Timer Programmable watchdog timer
H/W Status Monitor Temperature (CPU & System)
Expansion
  • 1x M.2 Key E 2230 with PCIe x 1 and USB 2.0 for wirelesss
  • 1x M.2 Key M 2242/2260/2280 with PCIe x 2 and SATA signal for SSD
  • 1x Full/Half size Mini PCIe socket with PCIe x1 ( With SIM holder)
  • 1x Full size SD card slot



External I/O
External I/O

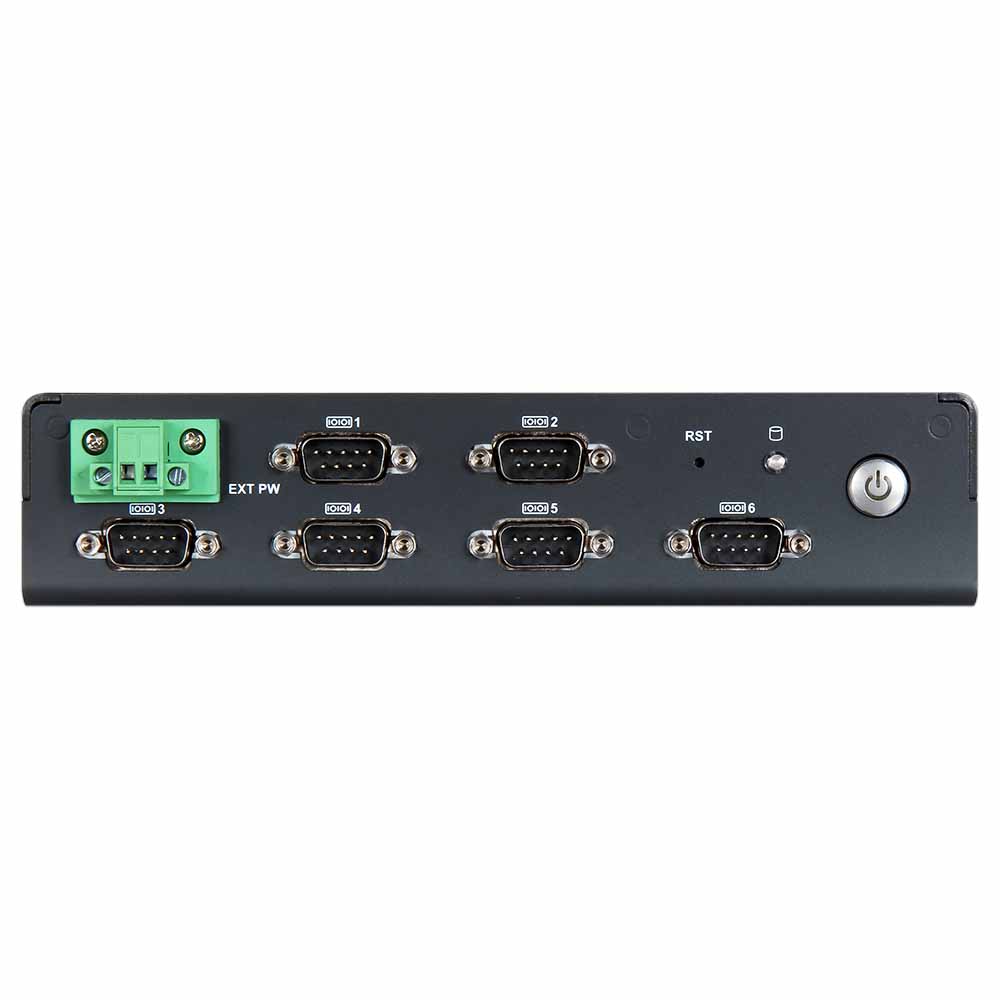

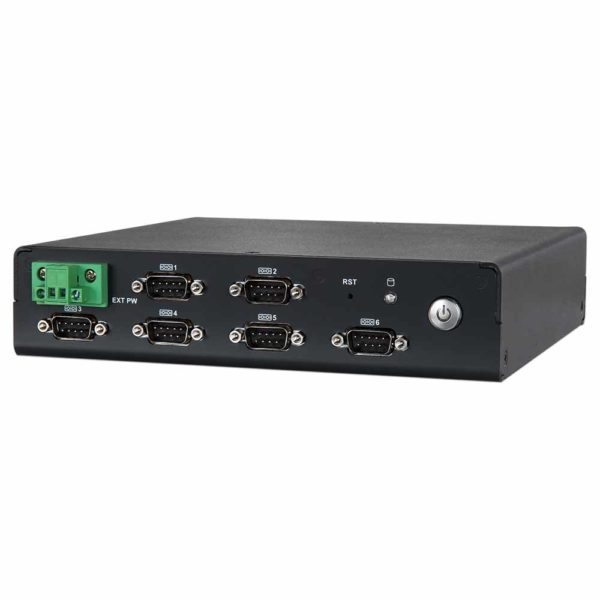

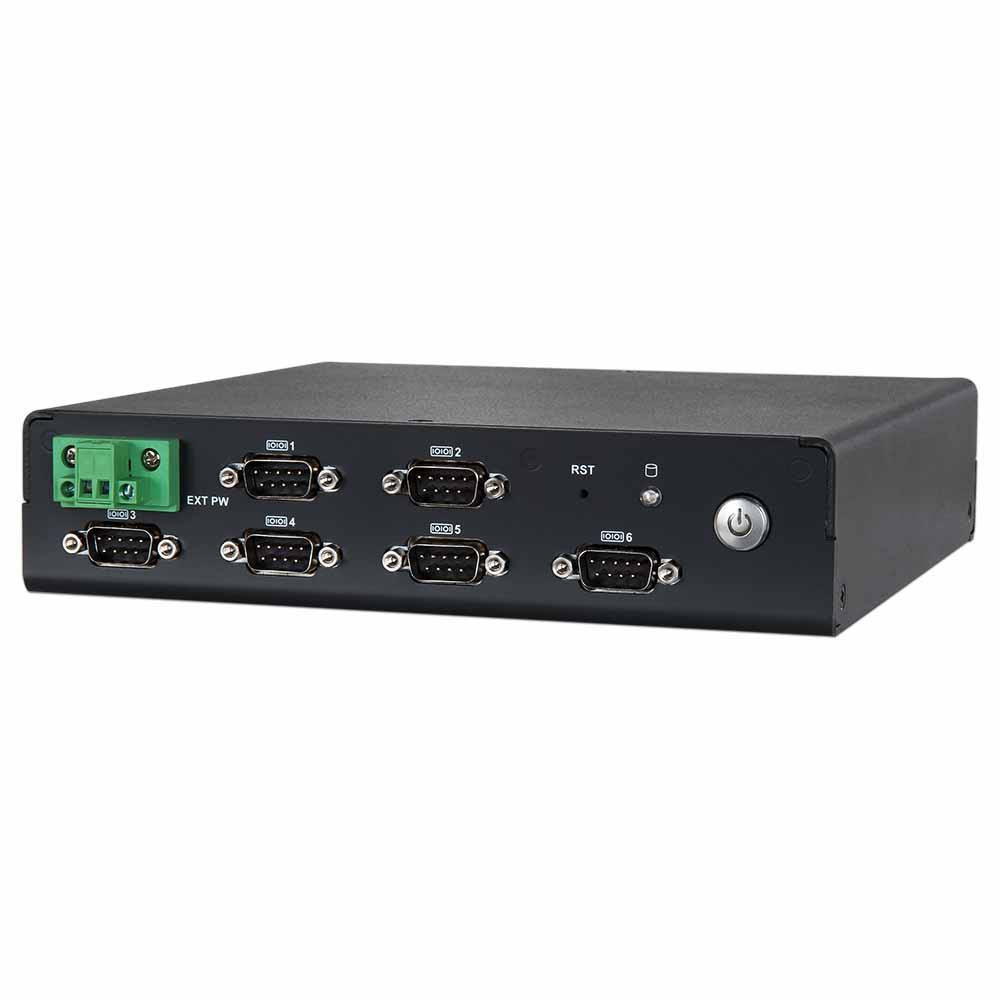

Serial Port 6 x COM ports (1x RS-232/422/485)

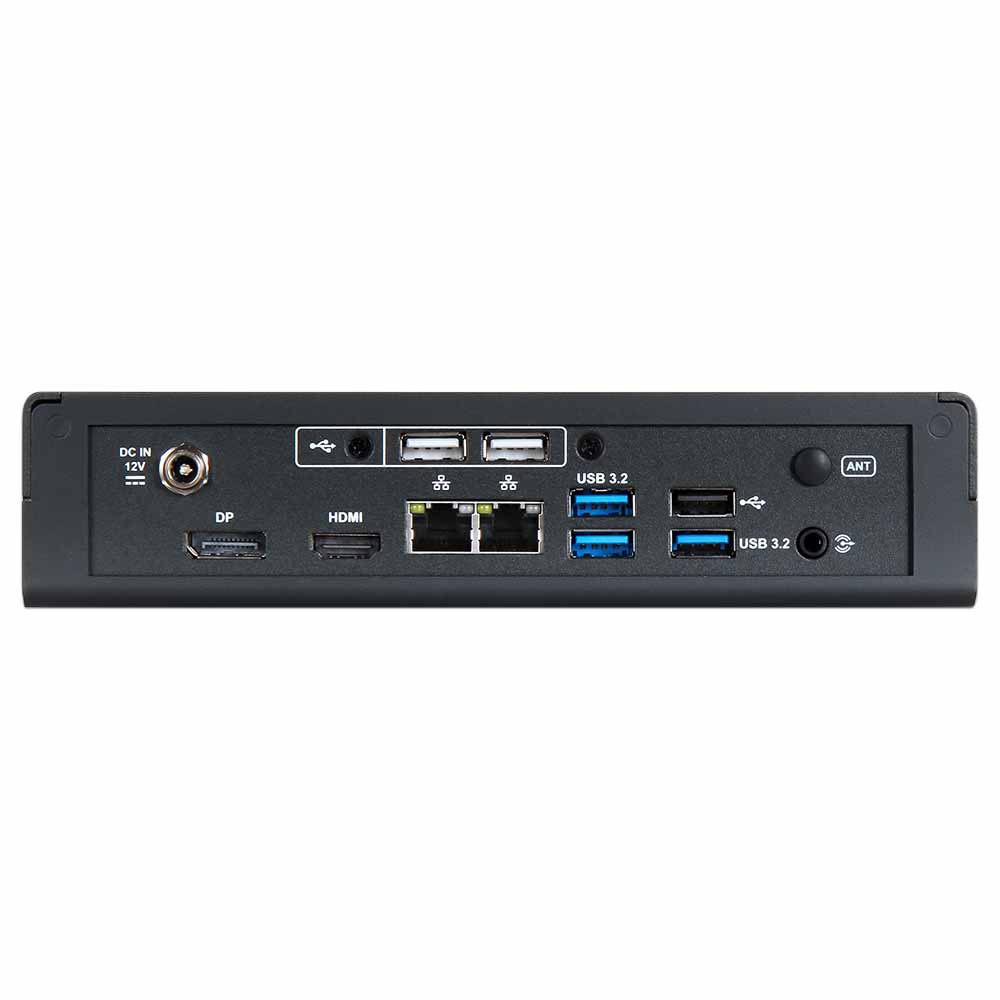

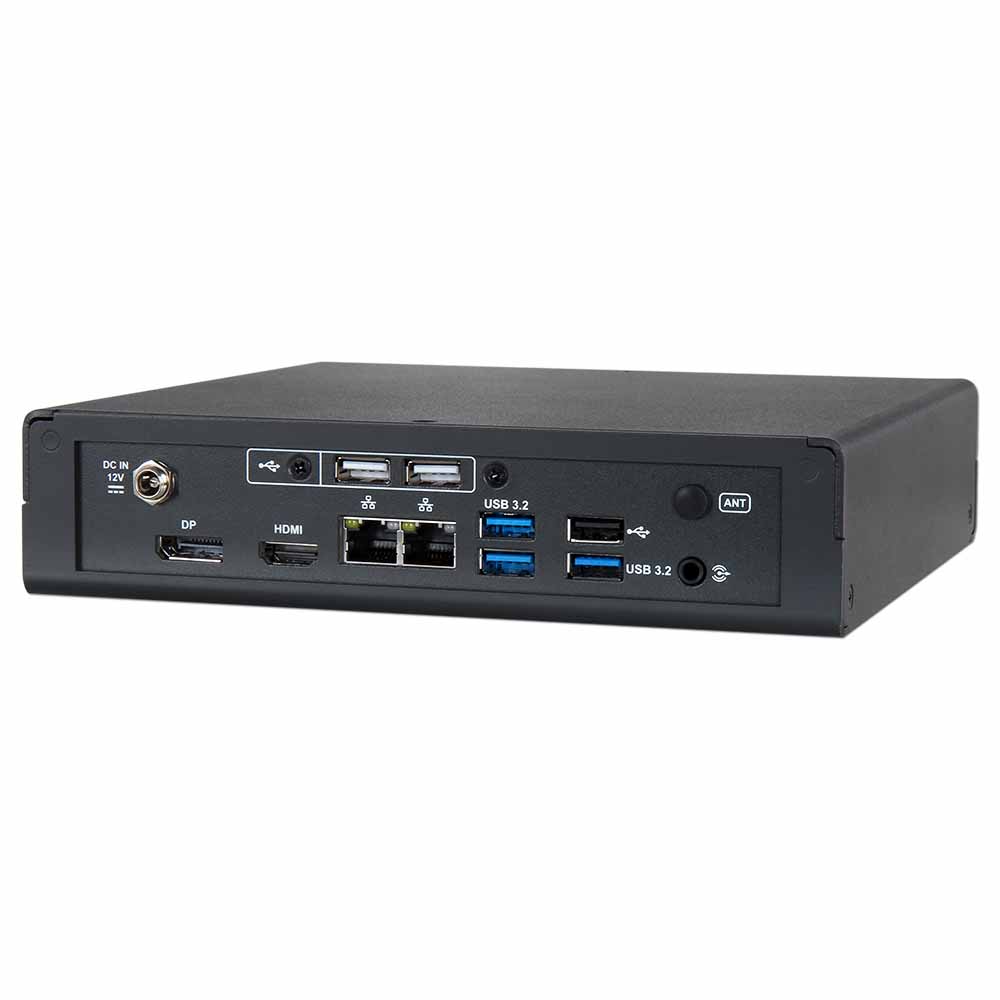

Display
  • 1x DP ( resolution up to 4096 x 2160)
  • 1x HDMI® (resolution up to 3840 x 2160)
USB
  • 3x USB 3.2 Gen 2
  • 3x USB 2.0
Audio Audio Jack with Line-out with Realtek ALC897 Audio controller
Ethernet 2x RJ45 connectors (Realtek® RTL8111H)
Other
  • 1x Antenna hole
  • 1x EXT Power Switch



Power Supply Unit
Power Supply Unit
Power Input DC 12V



Environment
Environment
Operation Temperature 0°C ~ 50°C
Storage Temperature -40°C ~ 80°C
Relative Humidity 40°C, 95%RH non-condensing
Operation Vibration 5Grms/10-500Hz, IEC 60068-2-6
Operation Shock 50G, 11 msec, IEC 60068-2-27



Mechanical
Mechanical
Dimension 200 (W) x 200(D) x 45 (H) mm
Weight 2 Kg
Mounting Wall mounting

Support

(Documents & Downloads)

  Catalog   Catalog_RICH-33I0.pdf | Catalog 20230629   June 29, 2023
309.69 KB 962 Downloads
      BIOS   BIOS_WADE-8173-J6412-WS_10501.zip | BIOS 1.05.01   June 30, 2023

    BIOS FW Updated
    RICH-33I0

    5.68 MB 114 Downloads
        User’s Manual   Manual_RICH-33I0_V1.0.pdf | Manual V1.0   August 8, 2023

      RICH-33I0 user manual

      1.80 MB 135 Downloads
