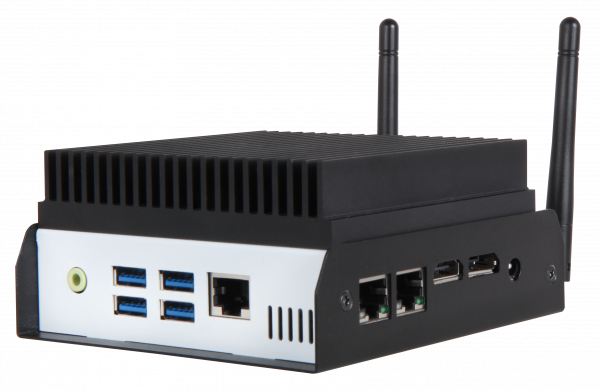

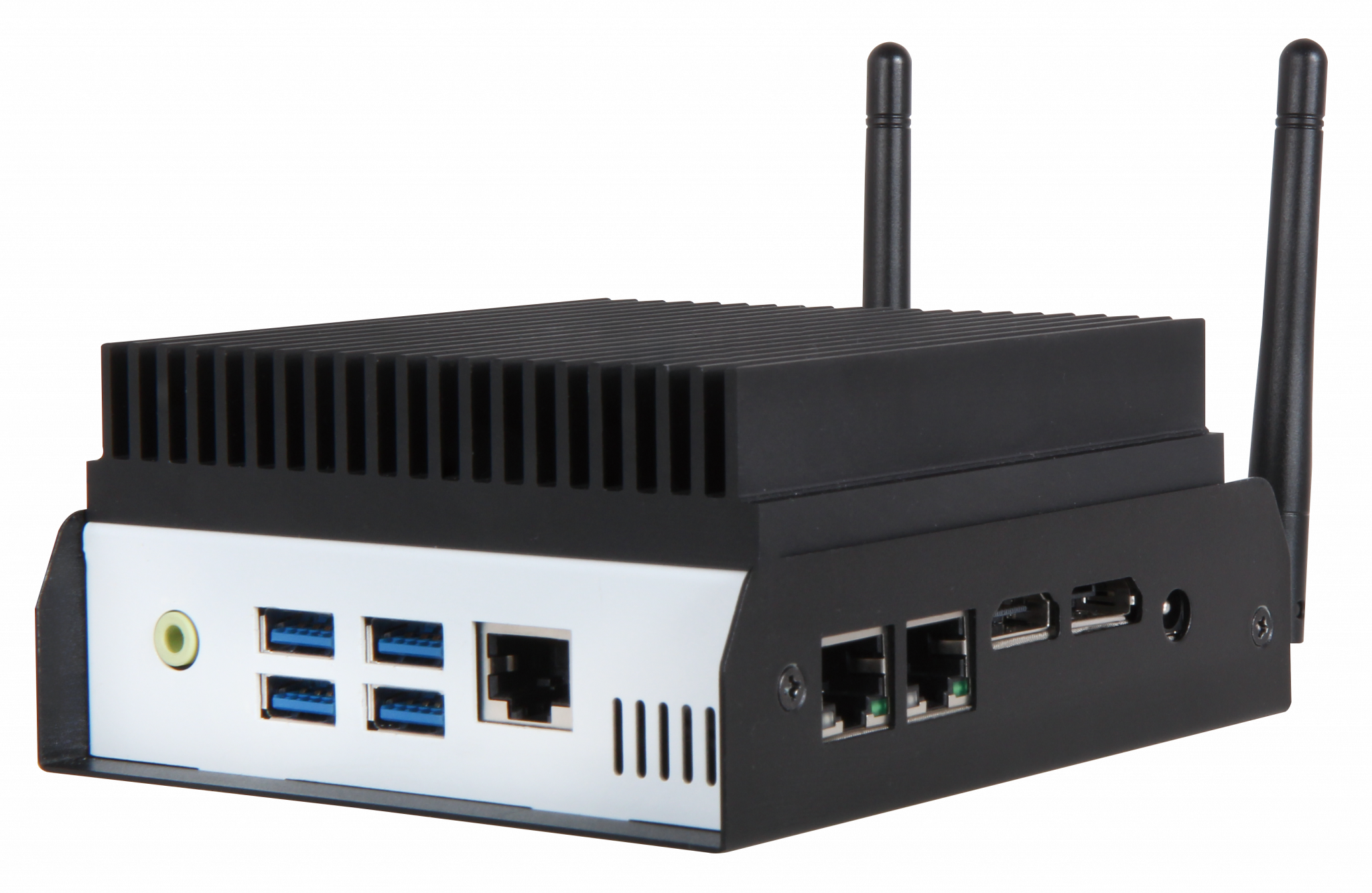

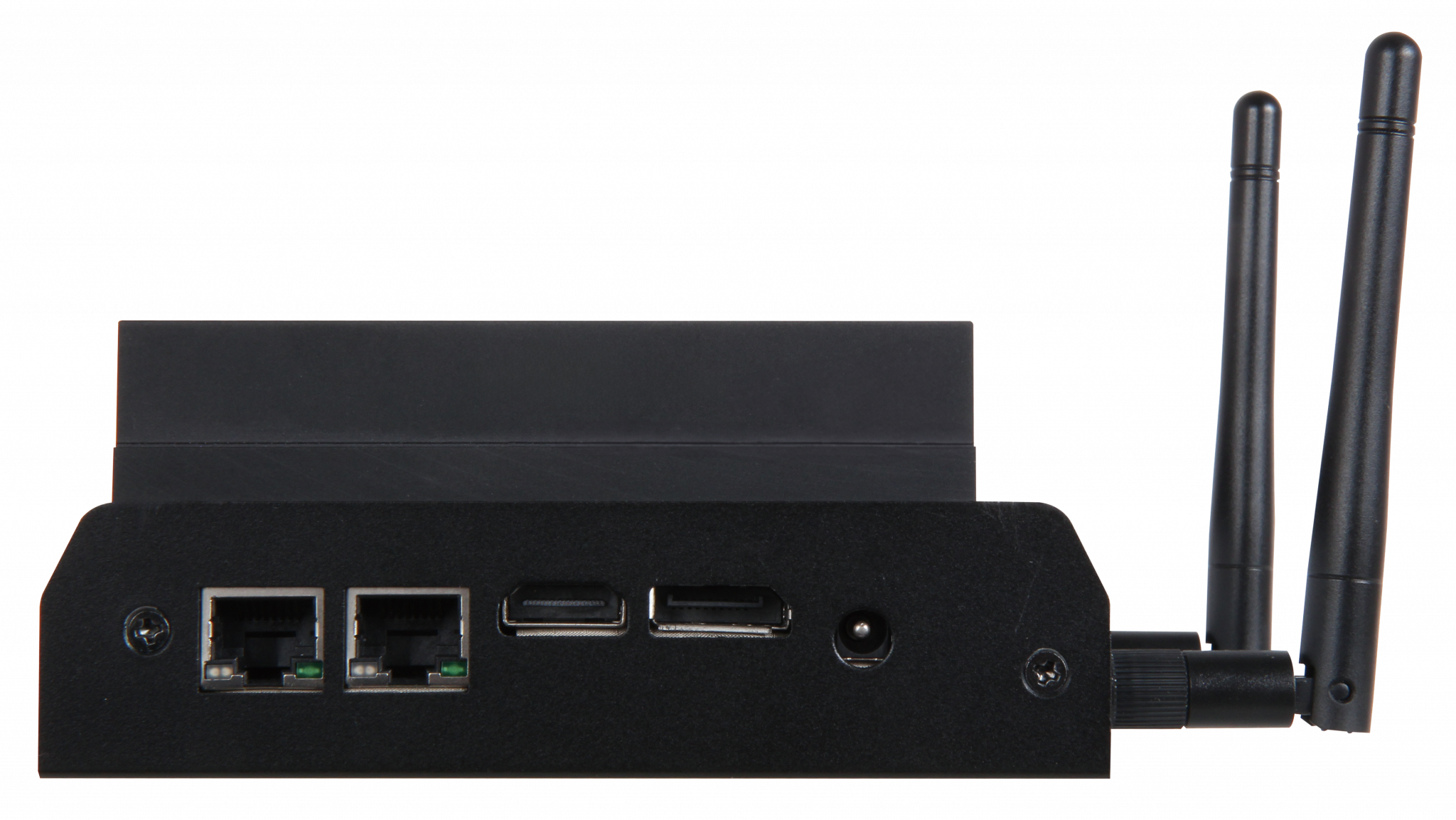

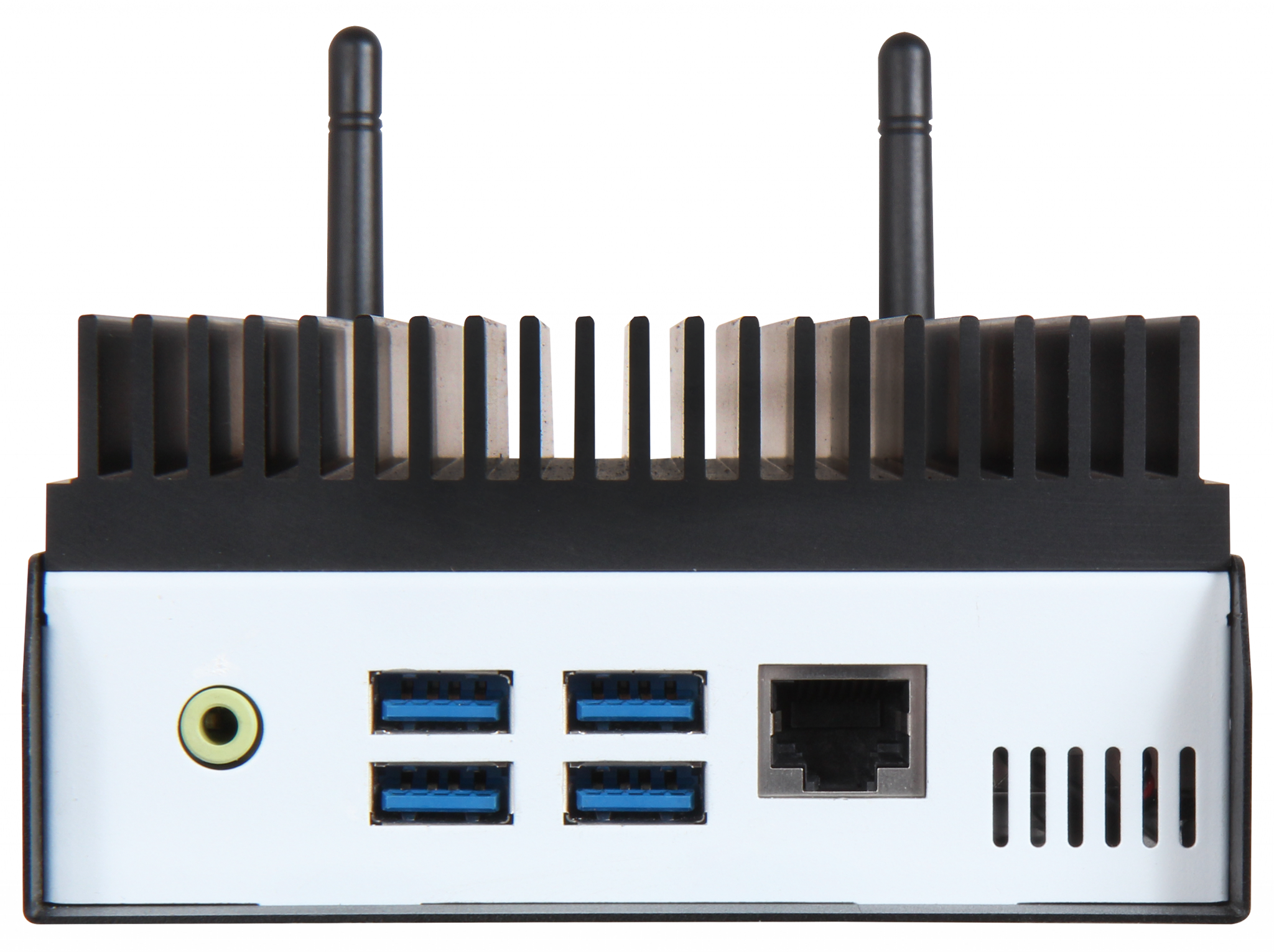

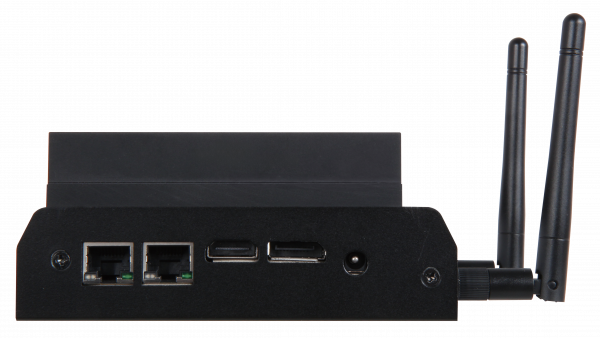

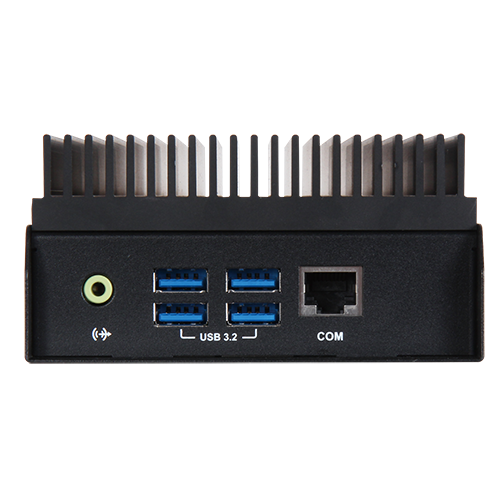

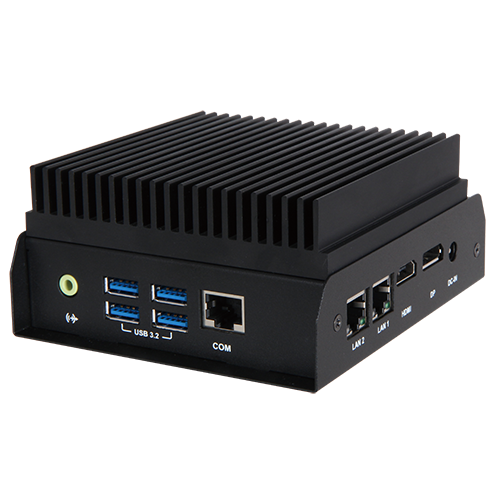

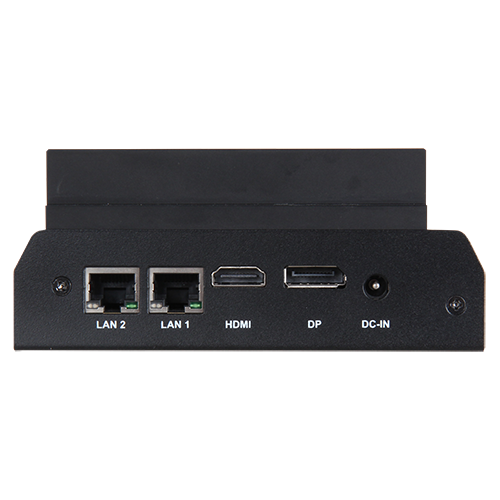

RICH-61F0

RICH-61F0 is a fanless industrial embedded system with Intel Atom® x7000RE CPUs. Supports DDR4 / dual LAN /dual M.2 / wide 12V–19V DC input. Ideal for versatile industrial use.

Features

  • Intel Atom®x7000RE series processors
  • Dual 2.5GbE LAN ports, dual displays by DP & HDMI®
  • DDR4 3200 SO-DIMM up to 32GB (Supports In- Band ECC)
  • One M.2 Key E, One M.2 Key M, and one RS-232/422/485 via RJ45
  • Wide DC-In 12V~19V

RICH-61F0 is designed with Intel Atom® x7000RE Series processors, featuring DDR4 memory up to 32GB, dual Gigabit Ethernet ports, dual M.2 expansion interfaces, and support for wide input voltage range from 12V to 19V.

Specifications

Model RICH-61F0
Sys Form Factor Proprietary
General
Processor Intel Atom® x7211RE, 2 cores, 6 W Intel Atom® x7433RE, 4 cores, 9 W Intel Atom® x7835RE, 8 cores, 12 W
BIOS AMI uEFI BIOS
Memory Support up to 32GB DDR4 3200 MT/s on 1 SODIMM
Storage 1 x M.2 Key-M NVMe PCIe x2 / SATA 2242
1 x eMMC 128G on board, support up to 256GB
Graphic Controller Intel®UHD Graphics
System I/O
Audio 1 x Audio Jack Line-out
Ethernet 2 x 2.5 GbE LAN w/ Intel®WGI226IT
Serial Port 1 x RJ45 Ports Support RS-232/422/485
USB 4 x USB 3.2 Gen2 x1 (10Gbps) Type A
Display 1 x HDMI® 2.0b
1 x DP 1.4
Antenna 2 x SMA Antenna holes for Wi-Fi
Expansion I/O
M.2 1 x M Key w/ 2242 PCIe x2 or SATA III for storage
1 x E Key w/ 2230 PCIe x1 and USB 2.0 for WiFi/BT module
Security TPM 2.0 (Default)
ME/Environment
Dimension (WxDxH) 130 x 112.5 x 55.8 mm (5.12″ x 4.43″ x 2.20″ )
Weight 1.5 kg
Power Supply DC Jack 12-19V
Mounting Wall Mount
Vibration 5G 10~500Hz with Wall mount (IEC/EN 60068-2-6)
Shock 50G 11m sec with Wall mount (IEC/EN 60068-2-27)
Operating Temperature -40 ~ 60 °C (-40.0 ~ 140.0 °F)
Storage Temperature -40 ~ 85 °C (-40.0 ~ 185.0 °F)
Cooling Fanless
Relative Humidity 5% to 95%, non-condensing
Certification CE/FCC/UKCA Class B, LVD (EN 62368-1)
Portwell Special Feature PET

Ordering Guide

Category Product P/N Status Description
System ATO. RICH-61F0 AS5-3669 Available ATO.RICH-61F0. NUC System. WUX. Amston Lake.
