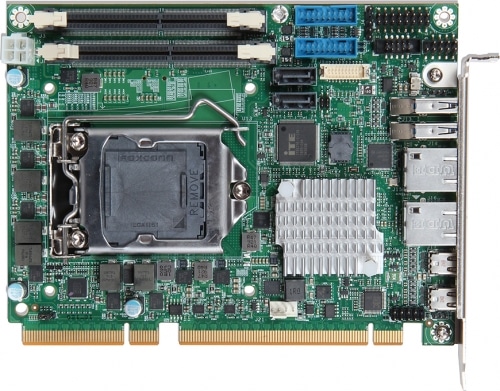

ROBO-6912VG2AR-Q370

Intel^® Core™ i3/i5/i7/Pentium^® Celeron^® processor based on PICMG 1.3 halfsize SHB with DDR4 SO-DIMM, mini DP, DVI-D,Dual Gigabit Ethernet, SATAIII, mSATA, Audio, USB

Features

Support Intel^® 8^th Gen Coffee Lake-S processor in LGA1151
Delivers up tp 32GB maximum DDR4 2400 MT/s non-ECC SO-DIMM on two sockets
High speed dual Gigabit Ethernet based on PCI express x 1, high bandwidth I/O interface
On-board two SATAIII ports, support RAID 0, 1

Download

Description

ROBO-6912VG2AR-Q370 is based on Intel ^® Q370 chipset to support Intel ^® Core™ i3/i5/i7 processors. Built with flexible PCI express expansions, ROBO-6912VG2AR-Q370 is suitable for Medical, Industrial automation, and Digital Signage application

Specification

MODEL	ROBO-6912VG2AR-Q370
Form Factor	PICMG1.3
CPU	Intel^® Core™ i3/i5/i7/i9/ Pentium^®/ Celeron^®
Chipset	Intel^® Q370
BIOS	AMI UEFI
Memory	2 x DDR4 non- ECC SO-DIMM up to 32GB
Expansion	1x PCIe x16 slot or 2x PCIe x8 slots or 1x PCIe x8 slot 2x PCIe x4 slots 1x PCIe x4 slot
Display	2x mini DP / DVI-D
Audio	Realtek ALC888S HDA codec
LAN	2x GbE
Serial Port	1x RS-232/422/485
USB	4x USB3.2 Gen1 2x USB3.2 Gen2
Storage Devices	2x SATA III 1x mSATA
GPIO	8 bit
Others	N/A
Dimension	167.64 x 126.39mm

Ordering Guide

AB1-3J42Z

(R).ROBO-6912VG2AR-Q370
PICMG 1.3(PCI-E+PCI).LGA1151. Q370 PCH. Intel Core i5/i7 processors.SHB. w/ DVI-D/miniDP*2/Dual GbE/Audio/USB 3.1/ COM

Packing List

Standard	B8981980 PICMG SBC Handling and Installation Notice
	B6902932 SATA III cable
	B8983650 Installation CD
Optional	B6902230 USB port cable with bracket
Optional	B6903090 USB 3.0 cable with bracket
