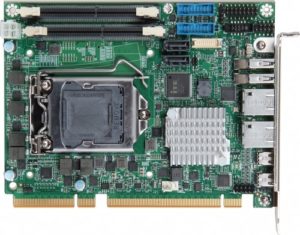

Intel® Core™ i3/i5/i7/Pentium® Celeron®/Xeon® E Family processor based on PICMG 1.3 half size SHB with DDR4 SO-DIMM, mini DP,DVI-D, Dual Gigabit Ethernet, SATAIII, mSATA, Audio, USB.


  • Support Intel® 8th Gen Coffee Lake-S processor in LGA1151
  • Delivers up tp 32GB maximum DDR4 2400 MT/s ECC SO-DIMM on two sockets
  • High speed dual Gigabit Ethernet based on PCI express x 1, high bandwidth I/O interface
  • On-board two SATAIII ports, support RAID 0, 1


ROBO-6912VG2AR is based on Intel® C246 chipset to support both Intel® Xeon® and Core™ i3/i5/i7 processors. Built with flexible PCI express expansions, ROBO-6912VG2AR is suitable for Medical, Industrial automation, and Digital Signage application.


Form Factor PICMG1.3
CPU Intel® Xeon® E3/ Core™ i3/i5/i7/ i9/Pentium®/Celeron®
Chipset Intel® C246
Memory 2 x DDR4 ECC SO-DIMM up to 32GB
Expansion 1x PCIe x16 slot or 2x PCIe x8 slots or 1x PCIe x8 slot
2x PCIe x4 slots
1x PCIe x4 slot
Display 2x mini DP / DVI-D
Audio Realtek ALC888S HDA codec
LAN 2x GbE
Serial Port 1x RS-232/422/485
USB 4x USB3.2 Gen1
2x USB3.2 Gen2
Storage Devices 2x SATA III
1x mSATA
GPIO 8 bit
Others N/A
Dimension 167.64 x 126.39mm

Ordering Guide

Ordering Guide
AB1-3J42Z (R).ROBO-6911VG2AR
PICMG 1.3(PCI-E+PCI).LGA1151. C246 PCH. IntelXeon/Core i3 processors.SHB.w/ DVI-D/miniDP*2/Dual GbE/Audio/USB 3.1/ COM

Packing List

Packing List
Standard B8983650 Installation CD
B8981980 PICMG SBC Handling and Installation Notice
B6902932 SATA III cable
Optional B6903090 USB 3.0 cable with bracket
B6902230 USB port cable with bracket


(Documents & Downloads)

  Catalog   ROBO-6912VG2AR | Catalog    March 30, 2021
1.66 MB 2566 Downloads
      BIOS   ROBO-6912VG2AR | BIOS Rev 0.1.6 0.1.6   May 10, 2024

    ROBO-6912VG2AR.PICMG 1.3(PCI-E+PCI) : Fix HD Audio voltage

    0.00 KB 7 Downloads
      BIOS | BIOS 0.1.4   December 15, 2023
    17.44 MB 10 Downloads
      BIOS | BIOS 010   March 24, 2020

    MP Bios

    8.93 MB 884 Downloads
        EC | EC 0.7   March 8, 2022

      ROBO-6912VG2AR EC 0.7

      100.88 KB 1995 Downloads
          Driver | Driver    January 17, 2024

        Audio, Chipset, Ethernet, Graphic

        1.72 GB 18 Downloads
            User’s Manual   Manual_ROBO-6912VG2AR_R1.0.pdf | Manual 1.0   May 4, 2020

          User’s manual

          1.12 MB 741 Downloads
