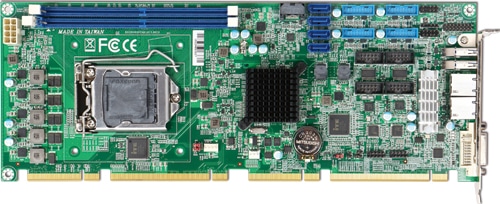

ROBO-8113VG2AR

Intel® Xeon® E3/ Core™ i3/i5/i7 Pentium®/ Celeron® processor based on PICMG 1.3 SHB with DDR4 SDRAM, HDMI®, DVI-I, Dual Gigabit Ethernet, Audio and USB

Features

  • Supports Intel® 7 th and 6®th Gen Skylake-S Kaby Lake-S Xeon® /Core™ i3/i5/i7/ Pentium®/Celeron® processors in LGA 1151 package
  • Delivers up to 32GB maximum DDR4 2133 ECC DIMM on two sockets
  • Supports mutiple display by DVI-I(DVI-D+VGA) and HDMI®
  • High speed dual Gigabit Ethernet based on PCI express x 1, high bandwidth I/O interface
  • Rich I/O connections such as four serials ports, USB 3.0/2.0, SATA III ports
  • Support on board TPM2.0
Download
Service Request

Description

ROBO-8113VG2AR is based on Intel® C236 chipset and workstation processors. Built with flexible PCI express expansions, ROBO-8113VG2AR is suitable for Medical, Industrial automation, and Digital Signage application.

Specification

MODEL ROBO-8113VG2AR
Form Factor PICMG1.3
CPU Intel® Xeon® E3/ Core™ i3/i5/i7/Pentium®/ Celeron®
Chipset Intel® C236
BIOS AMI UEFI
Memory 2 x DDR4 ECC DIMM up to 32GB
Expansion 4x PCI slots
1x PCIe x16 slot or
2x PCIe x8 slot or 1x PCIe x8 + 2x PCIe x4 slots
1x PCIe x4 slot
Display VGA / DVI-D / HDMI®
Audio Realtek ALC886 HDA codec
LAN 2x GbE
Serial Port 2x RS-232 2x RS-232/422/485
USB 10x USB 3.0 2x USB 2.0
Storage Devices 6x SATA III
GPIO 8 bit
Others PS/2 KB & MS
Dimension 338.5×126.39mm

Ordering Guide

Ordering Guide
AB1-3D41 (R).ROBO-8113VG2AR
PICMG 1.3(PCI-E+PCI).LGA1151. Intel® Xeon®/CoreTM i3 processors.SHB.w/VGA/Dual GbE/Audio/four COM ports
AB1-3G67 (R).ROBO-8113VG2AR-KBL
PICMG 1.3(PCI-E+PCI).LGA1151. Intel®Xeon®/CoreTM i3 processors.SHB.w/VGA/Dual GbE/Audio/four COM ports

Packing List

Packing List
Standard B6902932 SATA III cable
B8981980 PICMG SBC Handling and Installation Notice
B6903351 DVI-D + VGA cable
B6902352 dual head COM port cable with bracket
