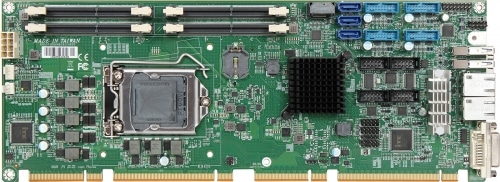

ROBO-8114VG2AR-Q370

Intel® Core™ i3/i5/i7 Pentium /Celeron® processor based on PICMG 1.3 SHB with DDR4 SDRAM, HDMI®, DVI-I, Dual Gigabit Ethernet,Audio and USB

Features

  • Supports Intel® Core™ i3/i5/i7/Pentium®/ Celeron® processors in LGA 1151 package
  • Delivers up to 128GB maximum DDR4 2133 Non-ECC SO-DIMM on four sockets
  • Supports mutiple display by DVI-I(DVI-D+VGA)and HDMI®
  • High speed dual Gigabit Ethernet based on PCI express x 1, high bandwidth I/O interface
  • Rich I/O connections such as four serials ports,USB 3.0/3.1, SATA III ports
  • Support on board TPM2.0

Description

ROBO-8114VG2AR-Q370 is based on Intel® Q370 chipset and desktop processors. Built with flexible PCI express expansions, ROBO- 8114VG2AR-Q370 is suitable for Medical, Industrial automation.

Specification

MODEL ROBO-8114VG2AR-Q370
Form Factor PICMG1.3
CPU Intel® Core™ i3/i5/i7/i9/ Pentium®/Celeron®
Chipset Intel® Q370
BIOS AMI UEFI
Memory 4 x DDR4 non- ECC SO-DIMM up to 128GB
Expansion 4x PCI slots
1x PCIe x16 slot or 2x PCIe x8 slots or 1x PCIe x8 slot
2x PCIe x4 slots
1x PCIe x4 slot
Display DVI-I / HDMI®
Audio Realtek ALC886 HDA codec
LAN 2x GbE
Serial Port 2x RS-232 ports
2x RS-232/422/485
USB 8x USB3.2 Gen1
2x USB3.2 Gen2
4x USB2.0
Storage Devices 5x SATA III
1x M.2 Type M 2280
GPIO 8 bit
Others PS2/KB & MS
Dimension 338.5 x 126.39mm

Ordering Guide

Ordering Guide
AB1-3J29 ROBO-8114VG2AR
PICMG 1.3(PCI-E+PCI).LGA1151. Q370 PCH. Intel Core i5/i7 processors.SHB.w/ VGA/Dual GbE/Audio/four COM ports

Packing List

Packing List
Standard TBD Installation CD
B6902352 dual head COM port cable with bracket
B6903351 DVI-D + VGA cable
B8981980 PICMG SBC Handling and Installation Notice
B6902932 SATA III cable
Optional B6903090 USB 3.0 cable with bracket
B6902980 PS/2 Keyboard / Mouse Cable with bracket
B6902230 USB port cable with bracket

Support

(Documents & Downloads)

  Catalog   ROBO-8114VG2AR-Q370 | Catalog    March 30, 2021

Update I225LM LAN chip information

1 MB 3102 Downloads
      BIOS   BIOS_ROBO-8114VG2AR_0_4_10.zip | BIOS 0.4.10   February 19, 2024

    fix PEG Port will hang on Issue

    8.97 MB 15 Downloads
      BIOS   BIOS_ROBO-8114VG2AR-Q370_0_4_10.zip | BIOS 0.4.10   February 5, 2024

    Increase PEG compatibility

    17.49 MB 20 Downloads
      BIOS   BIOS_ROBO-8114VG2AR-Q370_0_4_7.zip | BIOS 0.4.7   July 5, 2023
    17.25 MB 158 Downloads
      BIOS   BIOS_ROBO-8114VG2AR-Q370-PCIE1_0_4_7.zip | BIOS 0.4.7   July 5, 2023
    17.25 MB 139 Downloads
      BIOS   BIOS_ROBO-8114VG2AR_0_4_7.zip | BIOS 0.4.7   July 5, 2023
    17.25 MB 121 Downloads
      BIOS   BIOS_ROBO-8114VG2AR-PCIE1_0_4_7.zip | BIOS 0.4.7   July 5, 2023
    17.25 MB 101 Downloads
      BIOS   BIOS_ROBO-8114VG2AR-Q370-PCIE1_0_4_6.zip | BIOS 0.4.6   April 20, 2023

    ROBO-8114 VG2AR-Q370_PCIEx1 BIOS:0.4.6

    17.41 MB 170 Downloads
      BIOS   BIOS_ROBO-8114VG2AR-Q370_0_4_6_Update.zip | BIOS 0.4.6   October 7, 2022

    ROBO-8114 VG2AR-Q370_PCIEx4 BIOS:0.4.6

    17.41 MB 1188 Downloads
      BIOS   BIOS_ROBO-8114-Q370_0_4_5.zip_Updata | BIOS 0.4.5   March 23, 2022

    ROBO-8114-Q370 PCIEx1 BIOS:0.4.5

    17.43 MB 2053 Downloads
      BIOS   BIOS_ROBO-8114VG2R-Q370_0_4_5,U10 | BIOS 0.4.5   November 8, 2021

    BIOS Update

    8.94 MB 1541 Downloads
      EC   EC_ROBO-8114VG2AR_0_14_Update.zip | EC    October 4, 2022

    EC ROBO-8114VG2AR

    90.7 KB 1273 Downloads
        Driver   Driver_ROBO-8114VG2AR_I225_Driver.zip | Driver 0.0.6   March 23, 2023

      Intel I225 Driver

      302 KB 469 Downloads
