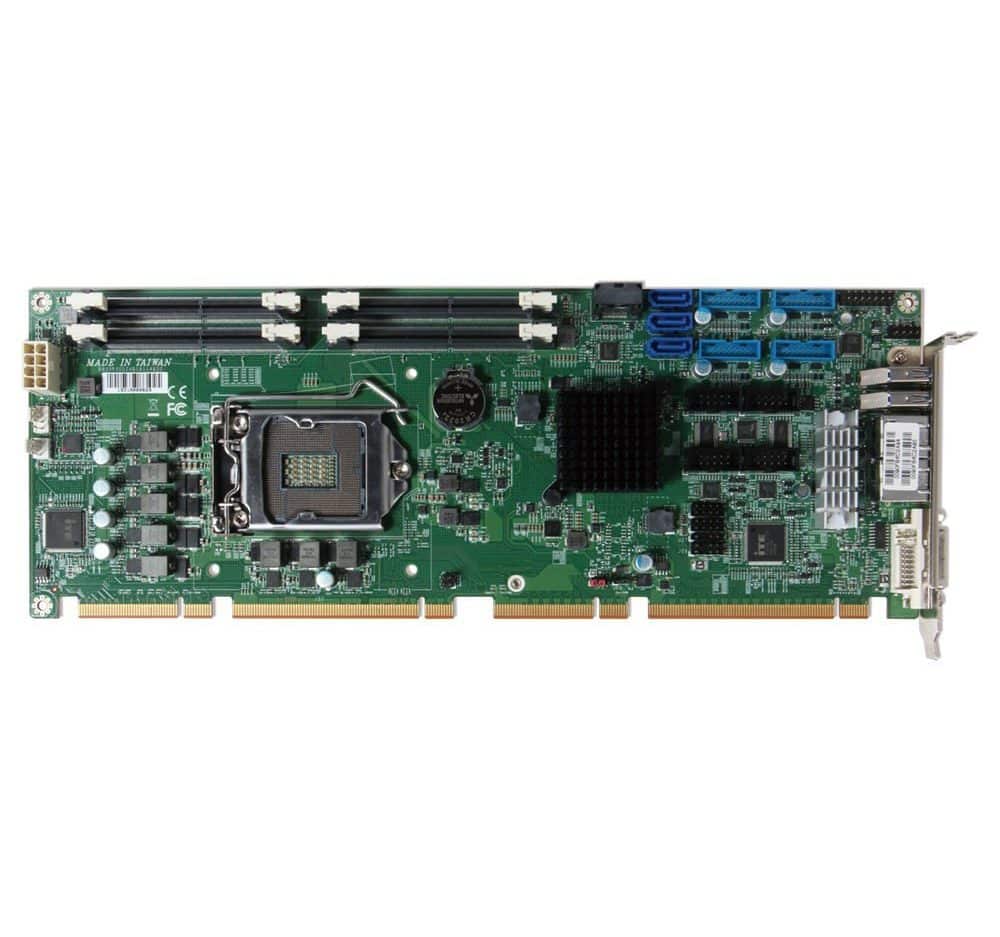

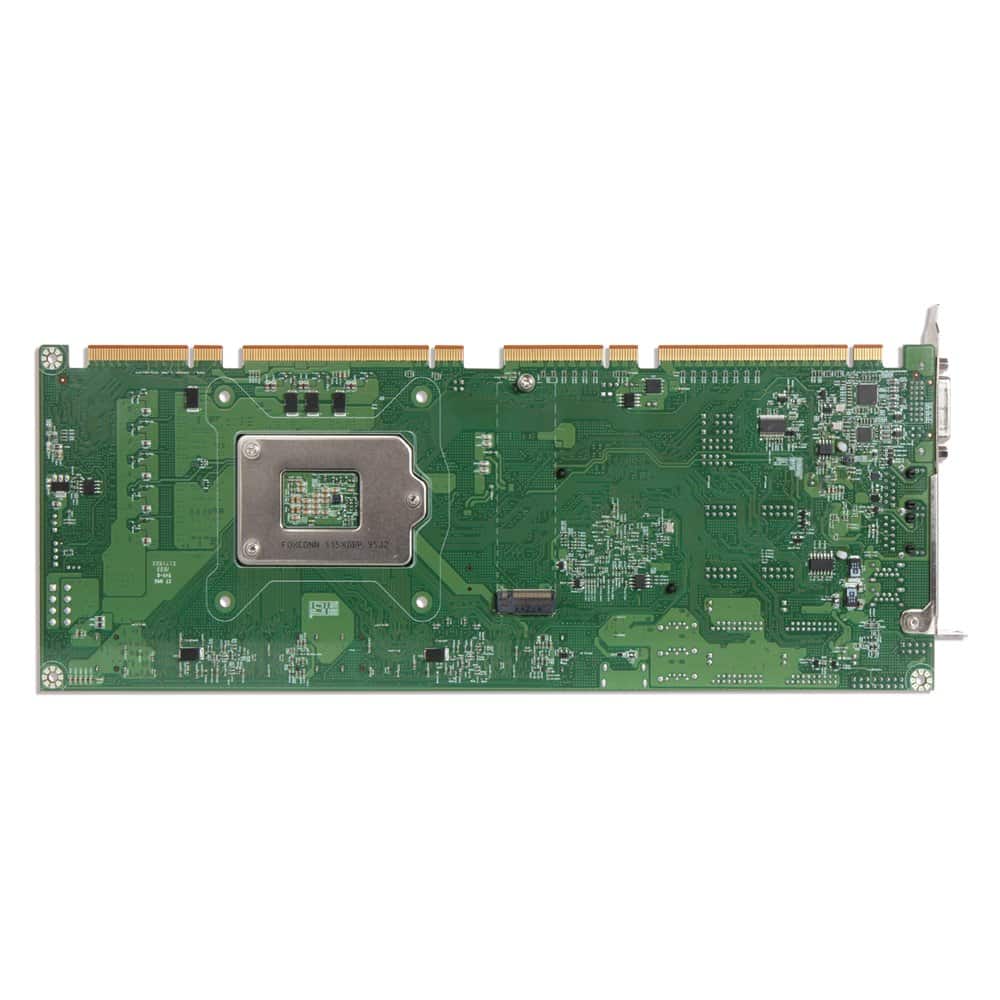

ROBO-8114VG2AR

Intel®Xeon® E/ Core™ i3/i5/i7 Pentium®/ Celeron® processor based on PICMG 1.3 SHB with DDR4 SDRAM, HDMI®, DVI-I, Dual Gigabit Ethernet, Audio and USB

Features

  • Supports Intel® Xeon®/Core™ i3/i5/i7/ Pentium®/ Celeron® processors in LGA 1151 package
  • Delivers up to 64GB maximum DDR4 2133 ECC SO-DIMM on four sockets

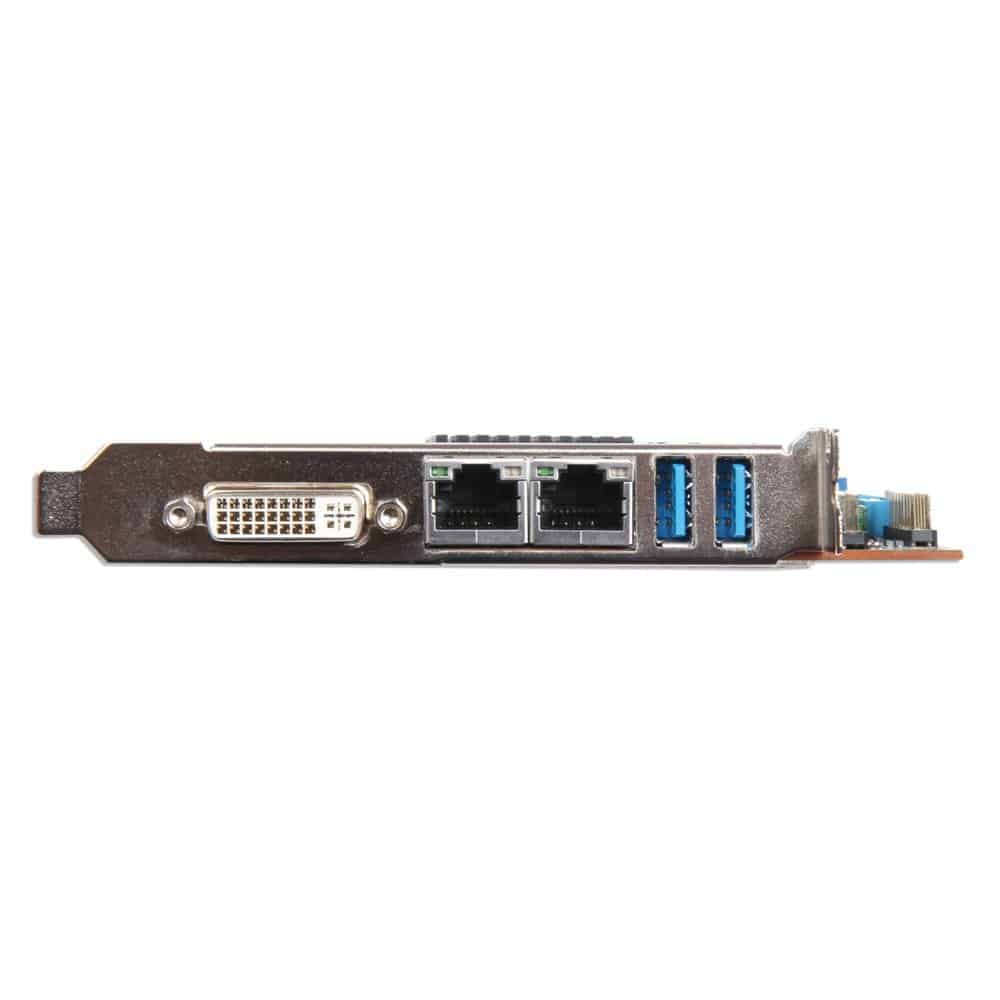

  • Supports mutiple display by DVI-I(DVI-D+VGA)and HDMI®
  • High speed dual Gigabit Ethernet based on PCIe x press x 1, high bandwidth I/O interface
  • Rich I/O connections such as four serials ports,USB 3.0/3.1, SATA III ports
  • Support on board TPM2.0

Description

ROBO-8114VG2AR is based on Intel® C246 chipsetand workstation processors. Built with flexible PCI express expansions, ROBO- 8114VG2AR is suitablefor Medical, Industrial Automation

Specification

MODEL ROBO-8114VG2AR
Form Factor PICMG1.3
CPU Intel® Xeon® E3/ Core™ i3/i5/i7/i9/ Pentium®/Celeron®
Chipset Intel® C246
BIOS AMI UEFI
Memory 4 x DDR4 ECC SO-DIMM up to 128GB
Expansion 4x PCI slots
1x PCIe x16 slot or 2x PCIe x8 slots or 1x PCIe x8 slot
2x PCIe x4 slots
1x PCIe x4 slot
Display DVI-I / HDMI®
Audio Realtek ALC886 HDA codec
LAN 2x GbE
Serial Port 2x RS-232 ports
2x RS-232/422/485
USB 8x USB3.2 Gen1
2x USB3.2 Gen2
4x USB2.0
Storage Devices 5x SATA III
1x M.2 Type M 2280
GPIO 8 bit
Others PS2/KB & MS
Dimension 338.5 x 126.39mm

Ordering Guide

Ordering Guide
AB1-3J28 ROBO-8114VG2AR.
PICMG 1.3(PCI-E+PCI).LGA1151. C246 PCH. Intel Xeon/Core i3 processors.SHB.w/VGA/Dual GbE/Audio/four COM ports

Packing List

Packing List
Standard TBD Installation CD
B6902352 dual head COM port cable with bracket
B6903351 DVI-D + VGA cable
B8981980 PICMG SBC Handling and Installation Notice
B6902932 SATA III cable
Optional B6903090 USB 3.0 cable with bracket
B6902980 PS/2 Keyboard / Mouse Cable with bracket
B6902230 USB port cable with bracket

Support

(Documents & Downloads)

  Catalog   ROBO-8114VG2AR | Catalog    March 30, 2021

Update I225LM LAN chip information

812.1 KB 2880 Downloads
      BIOS   BIOS_ROBO-8114VG2AR_0_4_10.zip | BIOS 0.4.10   February 19, 2024

    fix PEG Port will hang on Issue

    8.97 MB 15 Downloads
      BIOS   BIOS_ROBO-8114VG2AR-Q370_0_4_10.zip | BIOS 0.4.10   February 5, 2024

    Increase PEG compatibility

    17.49 MB 20 Downloads
      BIOS   BIOS_ROBO-8114VG2AR-Q370_0_4_7.zip | BIOS 0.4.7   July 5, 2023
    17.25 MB 158 Downloads
      BIOS   BIOS_ROBO-8114VG2AR-Q370-PCIE1_0_4_7.zip | BIOS 0.4.7   July 5, 2023
    17.25 MB 139 Downloads
      BIOS   BIOS_ROBO-8114VG2AR_0_4_7.zip | BIOS 0.4.7   July 5, 2023
    17.25 MB 121 Downloads
      BIOS   BIOS_ROBO-8114VG2AR-PCIE1_0_4_7.zip | BIOS 0.4.7   July 5, 2023
    17.25 MB 101 Downloads
      BIOS   BIOS_ROBO-8114VG2AR-Q370-PCIE1_0_4_6.zip | BIOS 0.4.6   April 20, 2023

    ROBO-8114 VG2AR-Q370_PCIEx1 BIOS:0.4.6

    17.41 MB 170 Downloads
      BIOS   BIOS_ROBO-8114VG2AR-PCIE1_0_4_6.zip | BIOS 0.4.6   April 20, 2023

    ROBO-8114 VG2AR-C246_PCIEx1 BIOS:0.4.6



    17.41 MB 141 Downloads
      BIOS   BIOS_ROBO-8114VG2AR-Q370_0_4_6_Update.zip | BIOS 0.4.6   October 7, 2022

    ROBO-8114 VG2AR-Q370_PCIEx4 BIOS:0.4.6

    17.41 MB 1188 Downloads
      BIOS   BIOS_ROBO-8114VG2AR_0_4_6_Update.zip | BIOS 0.4.6   October 7, 2022

    ROBO-8114VG2AR_PCIEx4 BIOS:0.4.6

    17.41 MB 1192 Downloads
      EC   EC_ROBO-8114VG2AR_0_14_Update.zip | EC    October 4, 2022

    EC ROBO-8114VG2AR

    90.7 KB 1273 Downloads
        Driver   Driver_ROBO-8114VG2AR_I225_Driver.zip | Driver 0.0.6   March 23, 2023

      Intel I225 Driver

      302 KB 469 Downloads
        Driver   Driver_ROBO-8114VG2AR-PCIE1_046_Update.zip | Driver 0.4.6   February 23, 2023

      BIOS_ROBO-8114VG2AR_PCIE x1

      17.41 MB 605 Downloads
        Driver   Driver_ROBO-8114VG2AR_ME_SW_1909.12.0.1236 | Driver 1909.12.0.1236   May 6, 2021

      For Win10 64bits ME driver

      83.00 MB 1360 Downloads
        Driver   Driver_ROBO-8114VG2AR_RST_16.8.3.1003 | Driver 16.8.3.1003   February 9, 2021

      For Win10 64bits RST Driver

      19.88 MB 850 Downloads
        Driver   Driver_ROBO-8114VG2AR_1909.12.0.1236 | Driver 1909.12.0.1236   February 9, 2021

      For Win10 64bits ME driver

      83.00 MB 836 Downloads
        Driver   Driver_ROBO-8114VG2AR_Win10 64bits_LAN | Driver 20191204   December 4, 2019

      For Win10 64bits LAN driver

      78.21 MB 800 Downloads
        Driver   Driver_ROBO-8114VG2AR_Win10 64bits_GFX | Driver 20191204   December 4, 2019

      For Win10 64bits graphic driver

      350.51 MB 768 Downloads
        Driver   Driver_ROBO-8114VG2AR_Win10 64bits_ALC888 | Driver 20191204   December 4, 2019

      For Win10 64bits Audio driver

      261.32 MB 783 Downloads
        Driver   Driver_ROBO-8114VG2AR_Win10 64bits_CHIPSET | Driver 20191204   December 4, 2019

      For Win10 64bits chipset driver

      3.19 MB 770 Downloads
          User’s Manual   ROBO-8114VG2AR | User Manual R1.5 R1.5   April 11, 2024

        Update priority of Memory slot information

        2.39MB 1 Downloads
