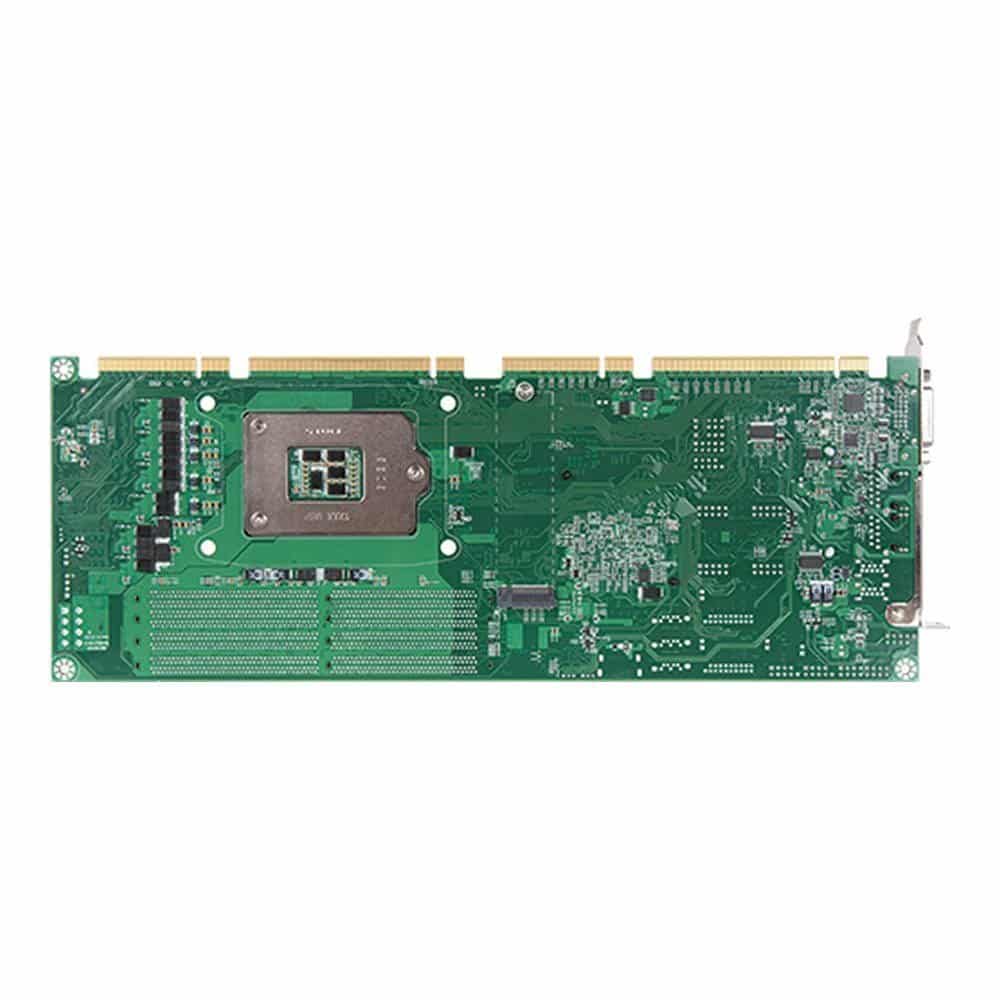

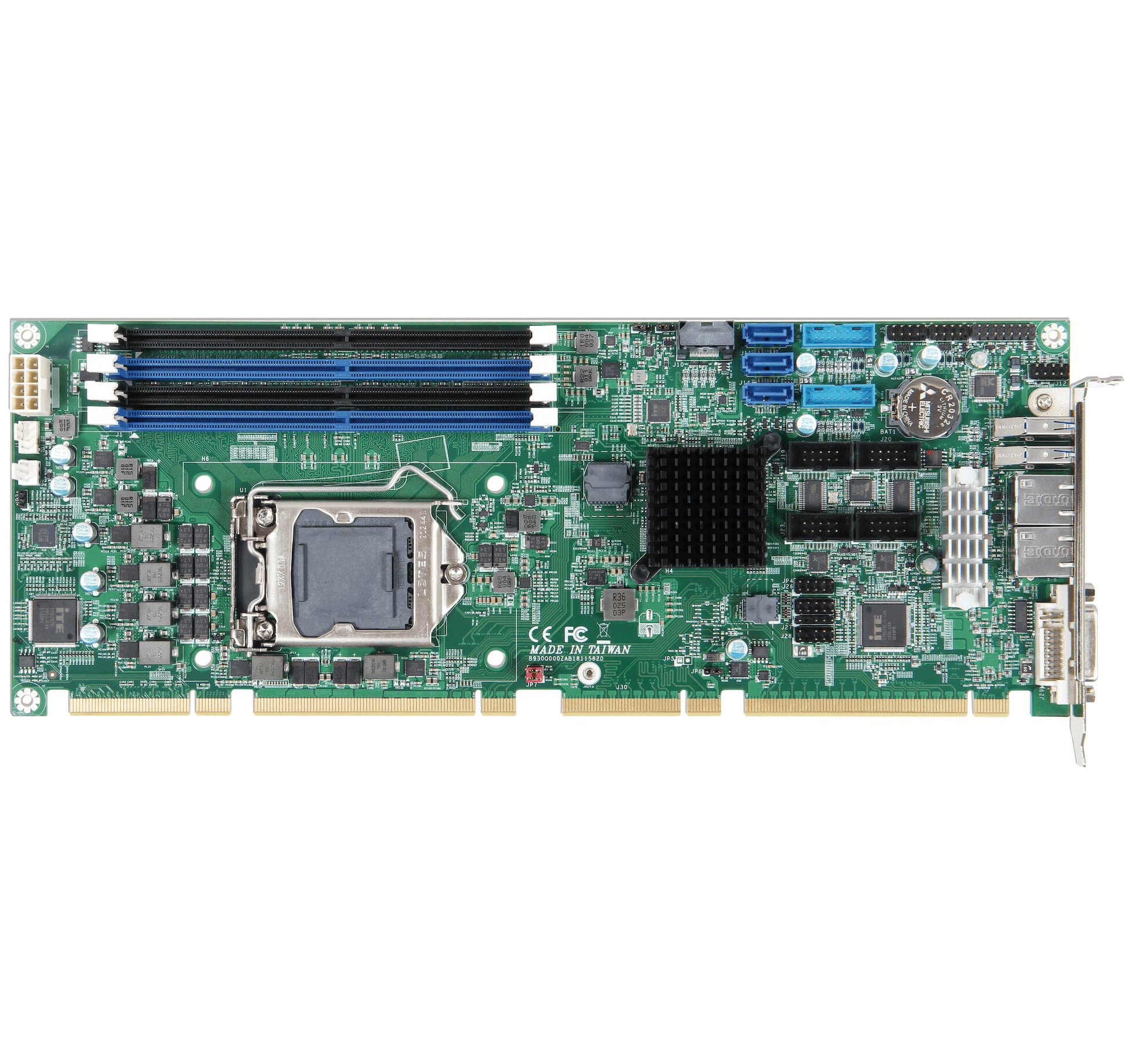

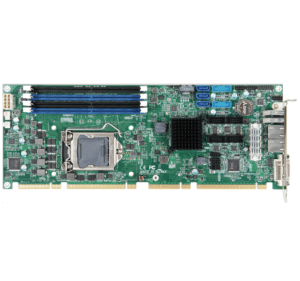

ROBO-8115VG2AR

Intel® Xeon® W/ CoreTM i3/i5/i7/i9 Pentium®/Celeron® processor based on PICMG 1.3 SHB with DDR4 SDRAM, HDMI®, DVI-I, Dual Gigabit Ethernet, Audio and USB

Features

  • Supports Intel®  Xeon® W/Core™ i3/i5/i7/ i9 /Pentium®/Celeron® processors in LGA 1200 package
  • Delivers up to 128GB maximum DDR4 2666 ECC Long-DIMM on four sockets

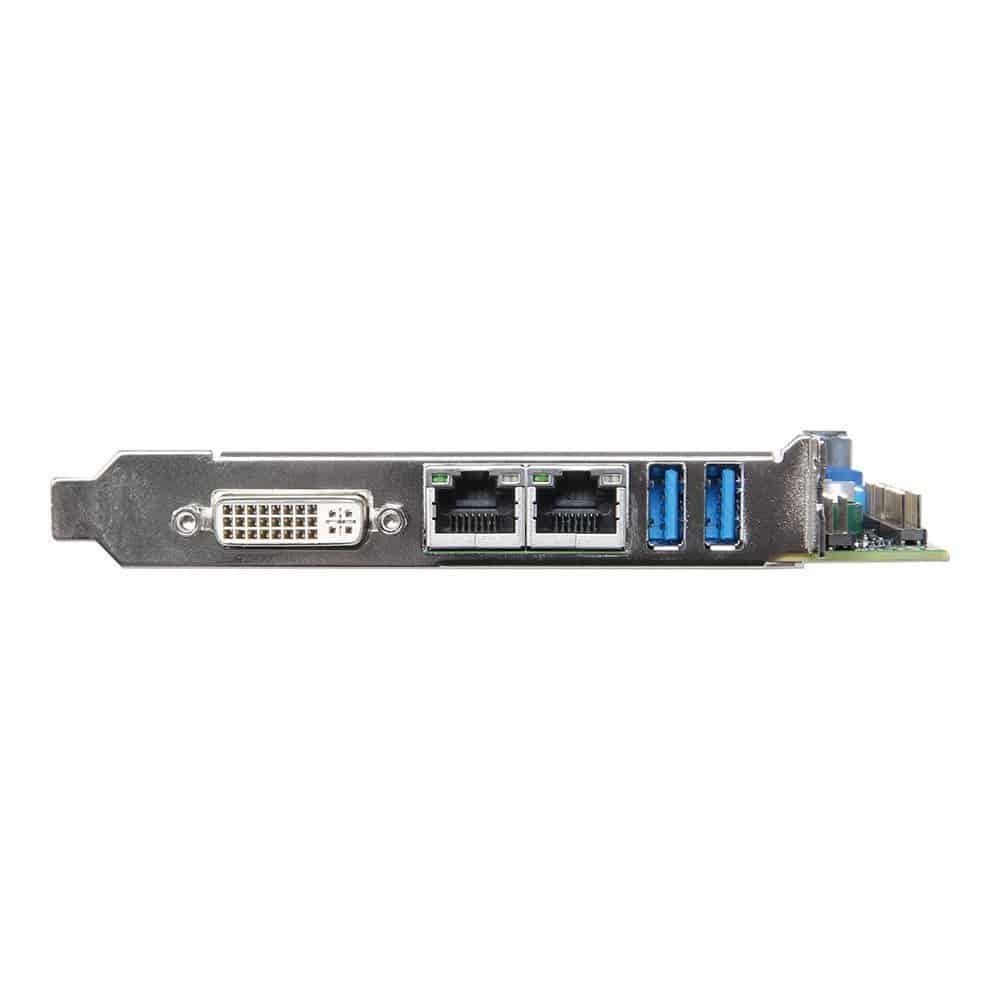

  • Supports mutiple display by DVI-I(DVI-D+VGA)and HDMI®
  • High speed dual Gigabit Ethernet based on PCI express x 1, high bandwidth I/O interface
  • Rich I/O connections such as four serials ports, USB3.2(Gen2), SATA III ports
  • Support on board TPM2.0

Video

Play Video

Description

ROBO-8115VG2AR is based on Intel® W480E chipset and workstation processors. Built with flexible PCI express expansions, ROBO-8115VG2AR is suitable for Medical, Industrial automation, and Digital Signage application.

Specification

MODEL ROBO-8115VG2AR
Form Factor PICMG1.3
CPU Intel® Xeon® W/ Core™ i3/i5/i7/i9/Pentium®/ Celeron®
Chipset Intel® W480E
BIOS AMI UEFI
Memory 4 x DDR4 ECC DIMM up to 128GB
Expansion 4x PCI slots 1x PCIe x16 slot or 2x PCIe x8 slots or 1x PCIe x8 slot 2x PCIe x4 slots 1x PCIe x4 slot
Display DVI-I / HDMI®
Audio Realtek ALC888S HDA codec
LAN 2x GbE
Serial Port 2x RS-232 ports 2x RS-232/422/485
USB 6x USB3.2 Gen2 8x USB2.0
Storage Devices 5x SATA III 1x M.2 Type M 2280
GPIO 8 bit
Others PS2/KB & MS
Dimension 338.5 x 126.39mm

Ordering Guide

AB1-3K28 (R).ROBO-8115VG2AR.
PICMG 1.3(PCI-E+PCI).LGA1200. W480E PCH. Intel Xeon/Core i3 processors.SHB.w/VGA/Dual GbE/Audio/four COM ports

Packing List

Packing List
Standard B6902932 SATA III cable
B8981980 PICMG SBC Handling and Installation Notice
B6903351 (GP).Cable.Video DVI-I to DVID+VGA Y cable L=150mm.0130-069-00-0263. E-CALL
B6902352 *(GP).Cable.DB9x2 to HSG(5×2)x2 L=300mm W/Bracket for Ruby-9717/Ruby-9718. CY-8A08006R.CHUAN YANG
TBD Installation CD
Optional B6903090 USB 3.0 cable with bracket
B6902980 PS/2 Keyboard / Mouse Cable with
bracket
B6902230 USB port cable with bracket

Support

(Documents & Downloads)

  Catalog   Catalog_Application Note ROBO-8115VG2AR | Catalog 20210802   August 2, 2021

ROBO-8115VG2AR Featuring 10th Generation Intel® Xeon® W and CoreTM/ Pentium®/Celeron® Processors, the Smarter Path to Industry 4.0

9.69 MB 3469 Downloads
  Catalog   ROBO-8115VG2AR | Catalog 20210928   March 30, 2021

Update I225LM LAN chip information

812.14 KB 3364 Downloads
      BIOS   BIOS_ROBO-8115VG2AR_0_0_16_BIN_And_Update | BIOS 0.0.16   February 19, 2024

    Optimize detection of non-compliant equipment

    18.45 MB 21 Downloads
      BIOS   BIOS_ROBO-8115VG2AR_0_0_14.zip | BIOS 0.0.14   January 11, 2024

    ROBO-8115VG2AR-PCIE1

    ROBO-8115VG2AR-Q470E-PCIE1

    18.09 MB 30 Downloads
      BIOS   BIOS_ROBO-8115VG2AR-PCIE1_0_0_13_Update | BIOS 0_0_13   June 9, 2023

    ROBO-8115VG2AR-PCIE1_0_0_13

    18.02 MB 163 Downloads
      BIOS   BIOS_Update_FPT_ROBO-8115VG2AR-PCIE4_0_0_13.zip | BIOS 0.0.13   June 2, 2023

    update I225 UEFI PXE ROM information

    9.22 MB 114 Downloads
      BIOS   BIOS_ROBO-8115VG2AR-PCIE4_0_0_13.zip | BIOS 0.0.13   June 2, 2023

    BIOS bin file

    8.8 MB 138 Downloads
      BIOS   ROBO-8115VG2AR-PCIE1_0_0_12.zip | BIOS 0_0_12   September 7, 2022

    ROBO-8115VG2AR-PCIE1
    BIOS update 0_0_12

    17.8 MB 1460 Downloads
      BIOS   BIOS_ROBO-8115VG2AR_0_0_12.zip | BIOS 0_0_12   September 7, 2022

    ROBO-8115VG2AR BIOS update 0_0_12

    17.83 MB 1446 Downloads
      BIOS   BIOS_ROBO-8115VG2AR_0.0.10.zip | BIOS 0.0.10   May 24, 2022

    ROBO-8115VG2AR 0.0.10

    17.81 MB 1976 Downloads
      BIOS   BIOS_ROBO-8115VG2AR_0.0.5.zip | BIOS 0.0.5   February 17, 2022

    PCIE1 0.0.5

    17.8 MB 1870 Downloads
      BIOS   BIOS_ROBO-8115VG2AR_0.0.5_Update | BIOS V0.0.5   June 16, 2021

    AB1-3K31 ROBO-8115VG2AR V0.0.5 BIOS

    9.13 MB 2275 Downloads
        Driver   Driver_ROBO-8115VG2AR_Intel_LAN_I225.zip | Driver    February 21, 2023

      LAN I225 Driver

      295 KB 734 Downloads
        Driver   Driver_ROBO-8115VG2AR_Intel_Chipset_10.1.18698.8258.zip | Driver R1.0   February 20, 2023

      Chipset Driver

      3.84 MB 662 Downloads
        Driver   Driver_ROBO-8115VG2AR_ME | Driver 20210819   August 19, 2021
      5.4 MB 3332 Downloads
        Driver   Driver_ROBO-8115VG2AR_Ethernet.zip | Driver 25.0   August 19, 2021

      Intel(R) Network Connections Software Version 25.0 Release Notes
      ================================================================
      January 2, 2020

      This release includes software and drivers for Intel(R) adapters and integrated
      network connections.

      222.27 MB 2920 Downloads
        Driver   Driver_ROBO-8115VG2AR_Chipset | Driver 20210819   August 19, 2021

      The Intel(R) Chipset Device Software includes WiX Toolset 3.10 software governed by and distributed in accordance with the terms of the Microsoft Reciprocal License (Ms-RL).

      3.8 MB 2509 Downloads
        Driver   Driver_ROBO-8115VG2AR_Audio | Driver    August 19, 2021

      Realtek_ALC888-HD-Audio_A01_R260958

      77.9 MB 2430 Downloads
        Driver   Driver_ROBO-8115VG2AR_Graphic.zip | Driver 27.20.100.8723   August 18, 2021

      Operating System(s):

      Microsoft Windows* 10-64 (20H1)

      Platforms:

      Rocket Lake – S
      Comet Lake

      332.07 MB 2203 Downloads
          User’s Manual   Manual_ROBO-8115_R1.6.pdf | Manual R1.6   November 9, 2023

        ROBO-8115 manual R1.1
        Update priority of Memory slot information

        1.54 MB 105 Downloads
          User’s Manual   Manual_ROBO-8115_R1.5.pdf | Manual R1.5   April 13, 2023

        ROBO-8115_user manual R1.5
        Update CPU Configuration(P.53) & SATA Configuration(P.69,70,72) information

        1.52 MB 254 Downloads
          User’s Manual   Manual_ROBO-8115_R1.4.pdf | Manual R1.4   March 7, 2023

        Update I225LM LAN chip information P.17 & P.67

        1.58 MB 257 Downloads
          User’s Manual   Manual_ROBO-8115_R1.3.pdf | Manual R1.3   December 7, 2022

        Update I225LM LAN chip information

        3.4 MB 1159 Downloads
          User’s Manual   Manual_ROBO-8115_R1.2.pdf | Manual R1.2   September 6, 2022

        ROBO-8115 manual update
        Update HDMI® frame rate information (P.11)

        3.4 MB 1013 Downloads
          User’s Manual   Manual_ROBO-8115_R1.1.pdf | Manual R1.1   December 14, 2021

        Update BP & USB information

        1.2 MB 1268 Downloads
          User’s Manual   Manual_ROBO-8115VG2AR | User’s Manual R1.0   August 18, 2021

        PICMG 1.3 Single Host Board

        2.52 MB 1705 Downloads
            Software   Portwell Engineering Toolkit [PET] 4.7.12 | Software 4.7.12   March 26, 2024

          A Universal API for Hardware Access in Both Linux and Windows

          • PET-supported OS: Windows 7, Windows 10, Ubuntu 18.04, and later, and CentOS 7 and later.
          • PET API sample code test application path:
            • Windows PET_API sample code: PET_API, Windows, sample, TESTAP.cpp
            • Linux PET_Utility: PET_API, Linux, x64, release, TESTAP.c

          Supported products list:

          Series Models
          AMDY AMDY-7002
          ANSB ANSB-7A44E
          CEKL CEKL-XXXX
          FUDA3 FUDA3-S1012, FUDA3-S1022, FUDA3-S1212, FUDA3-S1222, FUDA3-S1512, FUDA3-S1522
          KBB KBB-212E
          KUBE KUBE-2110
          Kuber Kuber-2000, Kuber-212
          MEDB MEDB-1002, MEDB-1004, MEDB-51A0, MEDB-5180, MEDB-6060, MEDB-6070
          MEDM MEDM-6180, MEDM-B641
          NANO NANO-5050, NANO-6040, NANO-6050, NANO-6051, NANO-6060, NANO-6062, NANO-6063, NANO-6064, NANO-8044
          PAB PAB-1001
          PCOM PCOM-B217, PCOM-B217J, PCOM-B218VGT, PCOM-B219VG, PCOM-B21A, PCOM-B630VG, PCOM-B632VG, PCOM-B633, PCOM-B634VG, PCOM-B635VG, PCOM-B636VG, PCOM-B637VG, PCOM-B638VG, PCOM-B639VG, PCOM-B641VG, PCOM-B645VGL, PCOM-B651VGL, PCOM-B652, PCOM-B653VGL, PCOM-B654GL, PCOM-B655VGL, PCOM-B656VGL, PCOM-B657VGL, PCOM-B658VGL, PCOM-B659, PCOM-B700G, PCOM-B700G-NS, PCOM-B701GT, PCOM-B702G, PCOM-B702GT, PCOM-B705GT, PCOM-B706, PCOM-B706GT, PCOM-B800-GT, PCOM-B8800, PCOM-B880VG2, PCOM-BA00, PCOM-BA01, PCOM-BA02GL
          PEB PEB-2131, PEB-2131C, PEB-2133, PEB-2737, PEB-2738I, PEB-2739I, PEB-2771, PEB-2772, PEB-2773, PEB-2773VGATM, PEB-2781, PEB-5731, PEB-9782, PEB-99A3, PEB-99A5, PEB-99A7, PEB-99A8
          PF PF-8021
          PGB PGB-5120S
          PICO PICO-6260
          PNS PNS-9730
          PQ7 PQ7-M104, PQ7-M105, PQ7-M106IL, PQ7-M107, PQ7-M108
          PSMC PSMC-C921, PSMC-M1011
          PT PT-D711
          PX1 PX1-C415, PX1-C441
          ROBO ROBO-6911VG2AR, ROBO-6911VG2AR-Q170, ROBO-8110, ROBO-8111VG2AR-Q77, ROBO-8112, ROBO-8113VG2AR, ROBO-8113VG2AR-Q170, ROBO-8114VG2AR, ROBO-8114VG2AR-PCIE1, ROBO-8114VG2AR-Q370, ROBO-8115VG2AR, ROBO-8115VG2AR-Q470E, ROBO-8116G2AR, ROBO-8116G2AR-Q670E, ROBO-8116G2AR-Q670E-R, ROBO-8116G2AR-R, ROBO-8210, ROBO-8779, ROBO-8780, ROBO-9910
          RUBY RUBY-D712, RUBY-D714VG2AR, RUBY-D716, RUBY-D718VG2AR, RUBY-D720, RUBY-D812-Q470E, RUBY-D813-H610E, RUBY-PB6511, RUBY-SQ1703
          SBC SBC-C430
          Software
          WADE WADE-7220-R2314, WADE-8011, WADE-8012, WADE-8013, WADE-8015, WADE-8016, WADE-8017, WADE-8020, WADE-8022, WADE-8046, WADE-8066, WADE-8067, WADE-8068, WADE-8070, WADE-8071, WADE-8072, WADE-8075, WADE-8077, WADE-8078, WADE-8079, WADE-8132, WADE-8170, WADE-8173, WADE-8173-J6412, WADE-8211-Q370, WADE-8212-Q470E, WADE-8213-Q670E, WADE-8321, WADE-PQ7712, WADE-SQ1705
          WEBS WEBS-2190, WEBS-45H1, WEBS-45H3, WEBS-5481, WEBS-5481-S, WEBS-85H1, WEBS-85H2, WEBS-85HX, WEBS-89I0
          11.96 MB 13 Downloads
