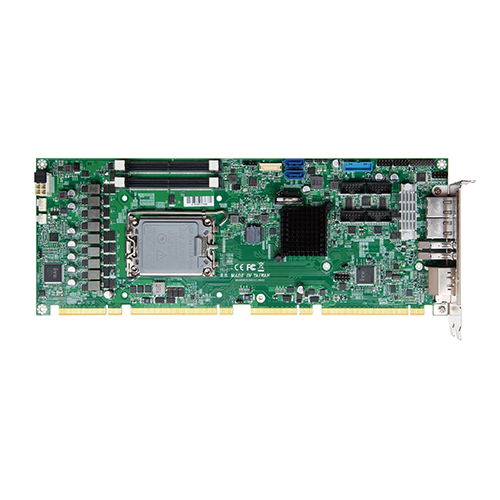

ROBO-8116VG2AR

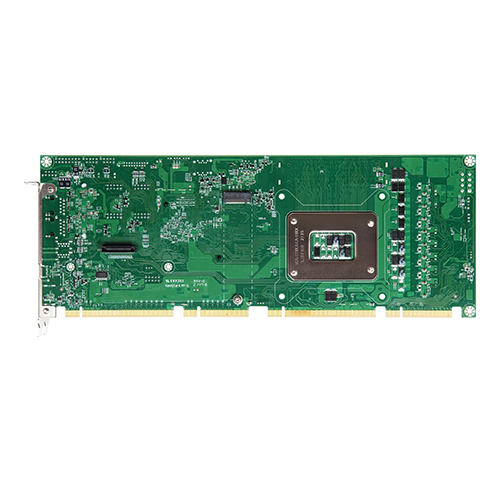

ROBO-8116VG2AR_Back

ROBO-8116G2AR-Q670E

Intel® 12th/13thGeneration chipset 600 series with processor based on PICMG 1.3 SHB with DDR5 SDRAM, HDMI®, DVID, DP, Dual Gigabit Ethernet, Audio and USB

Features

  • Supports Intel® 12th/ 13th Generation Core
  • processors Family in LGA 1700 package Delivers up to 64GB maximum DDR5 4800 non-ECC SO-DIMM on two sockets
  • Supports mutiple display by DVI-D ,DP and HDMI®
  • High speed dual 2.5Gigabit Ethernet based on PCI express x 1, high bandwidth I/O interface
  • Support two USB 3.2 Gen2 and USB 3.2 Gen2x2 on REAR I/O
  • Support on board TPM2.0
Download
Sales Request

Description

ROBO-8116G2AR-Q670E is based on Intel® 600 series chipset and workstation processors. Built with flexible PCI express expansions, ROBO-8116G2AR-Q670E is suitable for Medical, Industrial automation, and Digital Signage application.

Specification

Specifications
MODEL ROBO-8116G2AR-Q670E
Form Factor PICMG1.3
CPU Intel® 12th/13th Generation Core processors family in LGA1700
package
Chipset Intel® Q670E
BIOS AMI UEFI
Memory 2 x DDR5 Non-ECC DIMM up to 64GB
Expansion
  • From CPU: 1x PCIe x16(Gen5) or 2x PCIe x8(Gen5) and 1x PCe x4(Gen4)
  • From PCH: 1x PCIe x4 or 4x PCIe x1 by different bios support
Display DVI-D / HDMI® / DP
Audio Realtek ALC888S HDA codec
LAN 2x GbE(2.5G)
Serial Port 2x RS-232 ports 2x RS-232/422/485
USB
  • 4x USB 2.0 ports (through backplane)
  • 2x USB 3.2(Gen1) ports on board
  • 2x USB 3.2(Gen2) ports on bracket
  • 1x USB 3.2(Gen2 x2) type-C port on bracket
Storage Devices 4x SATA III(Dual ports via Backplane) ,1x M.2 Type M 2280
GPIO 8 bit
Others /
Dimension 338.5 x 126.39mm

Ordering Guide

Ordering Guide
AB1-3K68 (R).ROBO-8116G2AR-Q670E
PICMG 1.3(PCI-E+PCI).LGA1700. Q670E PCH. Intel 12th/13th gen processors.SHB.
w/HDMI®/Dual GbE/Audio/four COM ports

Accessory

Packing List
Standard B6902932 SATA III cable
B8981980 PICMG SBC Handling and Installa
B6902352 *(GP).Cable.DB9x2 to HSG(5×2)x2 L=300mm W/Bracket for Ruby-9717/Ruby-9718. CY-8A08006R.CHUAN YANG
Optional B6903090 USB 3.0 cable with bracket
B6902230 USB port cable with bracket



Sales Request
