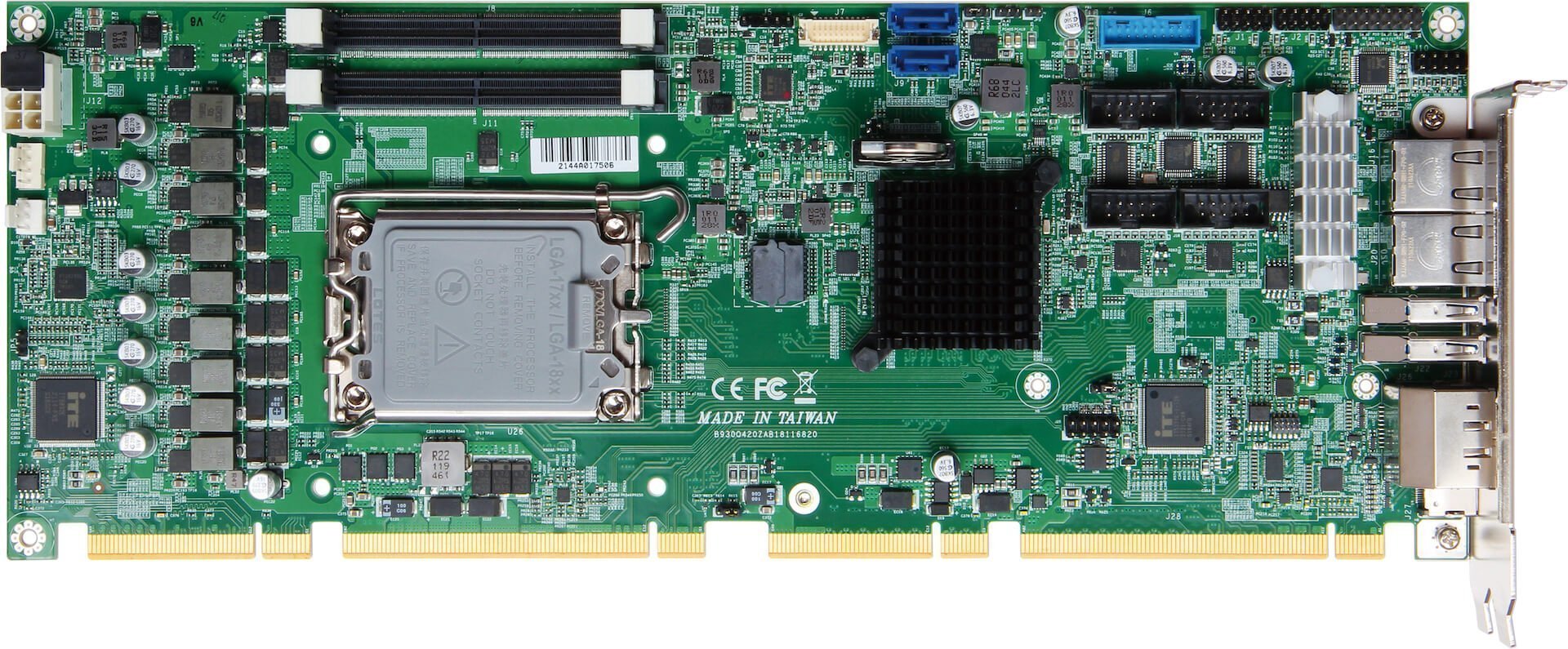

ROBO-8116VG2AR

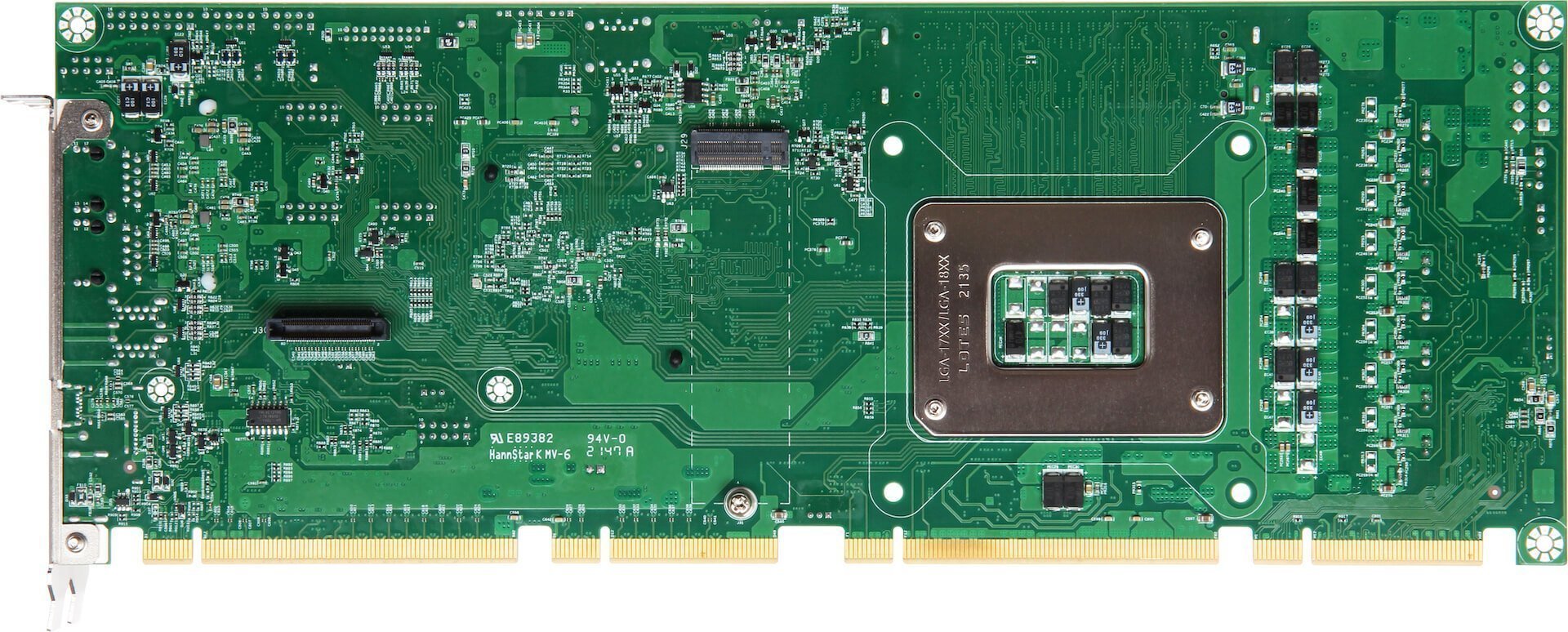

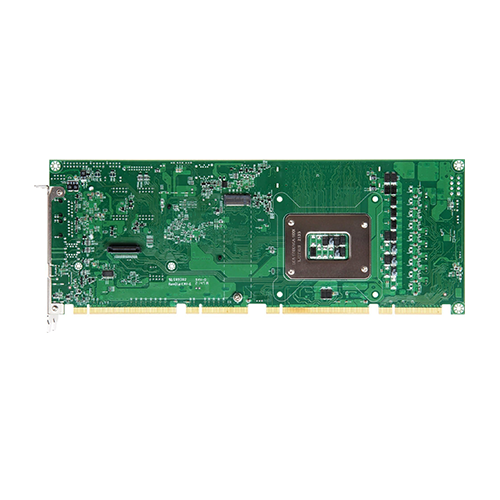

ROBO-8116VG2AR_Back

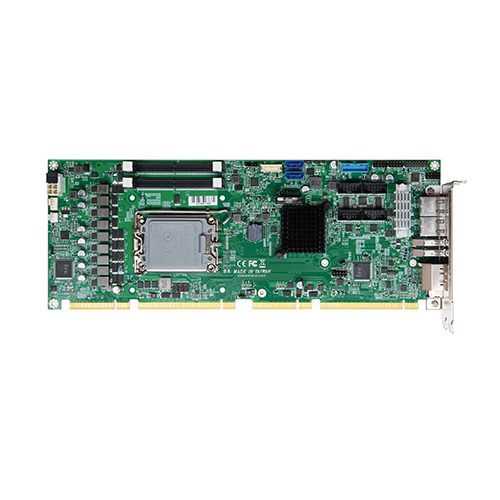

ROBO-8116G2AR

Intel® 12th/13th Generation Core™ processor based on PICMG 1.3 SHB with DDR5 SDRAM,HDMI®, DVI-D, DP, Dual Gigabit Ethernet, Audio and USB

Features

  • Supports Intel® 12th/13th Generation Core processors Family in LGA 1700 package
  • Delivers up to 64GB maximum DDR5 4800 ECC/Non-ECC SODIMM on two sockets
  • Supports multiple display by DVI-D,DP and HDMI®
  • High speed dual 2.5Gigabit Ethernet based on PCI express x 1, high bandwidth I/O interface
  • Support two USB 3.2(Gen2) & one USB 3.2(Gen2 x2) type-C port on bracket
  • Support on board TPM2.0 and M.2 Type M 2280
Download
Sales Request
Application Note
Video

Video

Play Video

Description

ROBO-8116G2AR is based on Intel® 600 series chipset and workstation processors. Built with flexible PCI express expansions, ROBO-8116G2AR is suitable for Medical, Industrial automation, and Digital Signage application.

Specification

MODEL ROBO-8116G2AR
Form Factor PICMG1.3
CPU Intel® 12th/13th Generation Core processors family in LGA1700 package
Chipset Intel® R680E
BIOS AMI UEFI
Memory 2 x DDR5 ECC/Non-ECC DIMM up to 64GB
Expansion From CPU: 1x PCIe x16(Gen5) or 2x PCIe x8(Gen5) and 1x PCe x4(Gen4)
From PCH: 1x PCIe x4 or 4x PCIe x1 by different bios support
Display DVI-D / HDMI® / DP
Audio Realtek ALC888S HDA codec
LAN 2x GbE(2.5G)
Serial Port 2x RS-232 ports 2x RS-232/422/485
USB 4x USB 2.0 ports (through backplane)
2x USB 3.2(Gen1) ports on board
2x USB 3.2(Gen2) ports on bracket
1x USB 3.2(Gen2 x2) type-C port on bracket
Storage Devices 4x SATA III(Dual ports via Backplane) ,1x M.2 Type M 2280
GPIO 8 bit
Others /
Dimension 338.5 x 126.39mm

Ordering Guide

Ordering Guide
AB1-3K67 (R).ROBO-8116G2AR
PICMG 1.3(PCI-E+PCI).LGA1700. R680E PCH. Intel 12th/13th gen processors. SHB. w/HDMI®/Dual GbE/Audio/four COM ports

Packing List

Packing List
Standard B6902932 SATA III cable
B8981980 PICMG SBC Handling and Installa
B6902352 *(GP).Cable.DB9x2 to HSG(5×2)x2 L=300mm W/Bracket for Ruby-9717/Ruby-9718. CY-8A08006R.CHUAN YANG
Optional B6903090 USB 3.0 cable with bracket
B6902230 USB port cable with bracket
