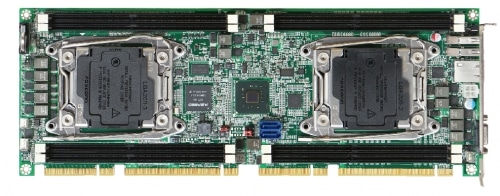

ROBO-8122VG2R

Intel®Xeon® E5-2600Lv4 series processor based on PICMG 1.3 SHB with DDR4 REG SDRAM, VGA, Dual Gigabit Ethernet, and SATA/USB

ROBO-8122VG2R

Features

  • Support Intel®8C ~ 14C Xeon® processors with LGA 2011 package
  • Delivers up to 256GB DDR4 Registered memory assured the computer reliability and benefited the data swapping process
  • Adopt ASPEDD AST1400 graphic engine offers solid 2D performance by VGA port
  • High speed Gigabit Ethernet based on PCI express x 1 interface
  • Flexible PCI Express configuration on backplane up to total 36 lanes

ROBO-8122VG2R is based on Intel®C612 chipset and dual Xeon® processors. It’s a server grade SHB. Build with high conputing power and PCI express expension support, it’s suitable for Military, industrial automation, networking, Medical and Digital Signage applications.

Specifications

MODEL ROBO-8122VG2R
Form Factor Non-Standard PICMG 1.3
CPU Dual Intel®E5-2600Lv3series (under 75W per CPU)
Chipset Intel®C612
BIOS AMI UEFI
Memory 8 x DDR4 REG DIMM up to 256GB
Expansion Per CPU 1 x PCIe x16 slot or 2x PCIe x8 slot or 4x PCIe x4 slot PCH: 1x PCIe x4 slot or 4x PCIe x1
Display VGA
Audio –
LAN 2x GbE (one on board, the other on BP)
Serial Port 2x GbE (one on board, the other on BP)
USB 2x USB 3.0 4x USB 2.0
Storage Devices 4x SATA III
GPIO –
Others –
Dimension 338.5 x 126.39mm

Ordering Guide

Ordering Guide
AB1-3D44 (R).ROBO-8122VG2R
PICMG 1.3(PCI-E).LGA2011. Dual Intel®Haswell-EP processor with eight DDR4 REG DIMM sockets.SHB.w/VGA/GbE/SATA III/USB 3.0 ports
Packing List
Standard B6902932 SATA III cable
B8981980 PICMG SBC Handling and Installation Notice
B8983670 Installation CD
Optional B9971490 CPU cooler for single processor(for 4U system)
B9971510 CPU cooler for single processor(for 2U system)
