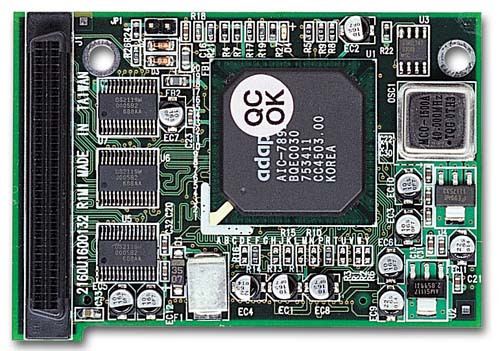

ROBO-U160

SCSI extension module with Portwell OmniPCI™ connection interface

Features

  • Adaptec AIC7892 SCSI Ultra 160/m controller
  • Compact sized
  • Proprietary PCI connector for piggy back (board to board) connection
  • Fully PCI Bus spec. V2.1 compliant
  • 68-pin SCSI connector located at PCBA component side
  • Support SCSI Ultra 160/m
  • Single channel
  • With 68-pin LVDS SCSI cable
  • Dimension: 77(L) x 54(W) mm

Ordering Guide

Ordering Guide
Standar ROBO-U160
SCSI extension module with Portwell OmniPCI™ connection interface
