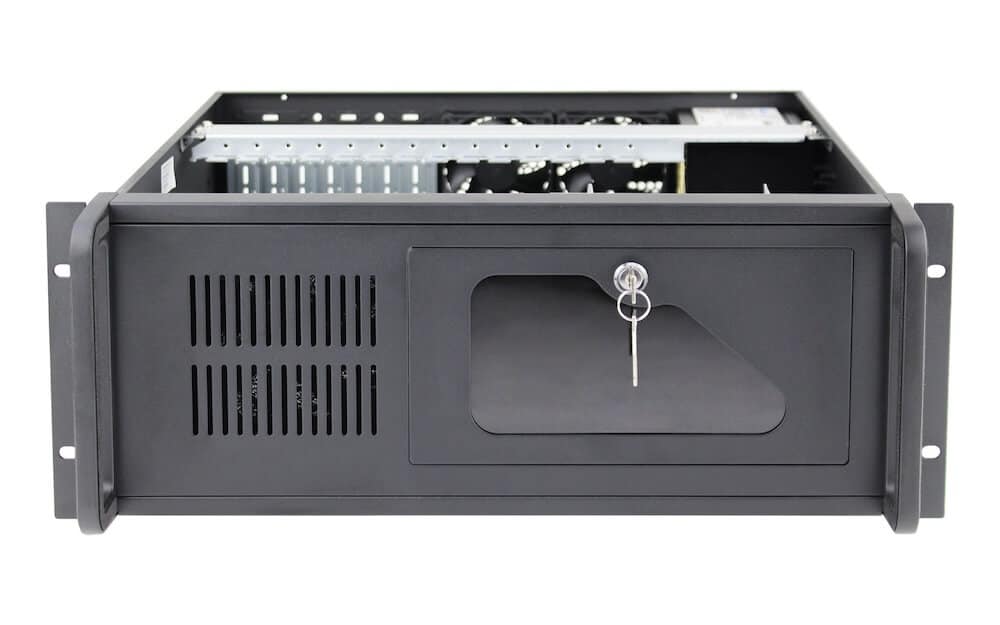

RPC-508-MX

19” 4U industrial rack-mount chassis

Features

  • 8x 3.5” HDD( or 2x 2.5” HDD/SSD), 2x 5.25” Bays & 1x 3.5”FDD Bays(or 3.5” HDD)
  • One 12cm ball-bearing cooling fans (Front) & Two 8cm ball-bearing cooling fans (Real)
  • Two USB2 ports on the front panel

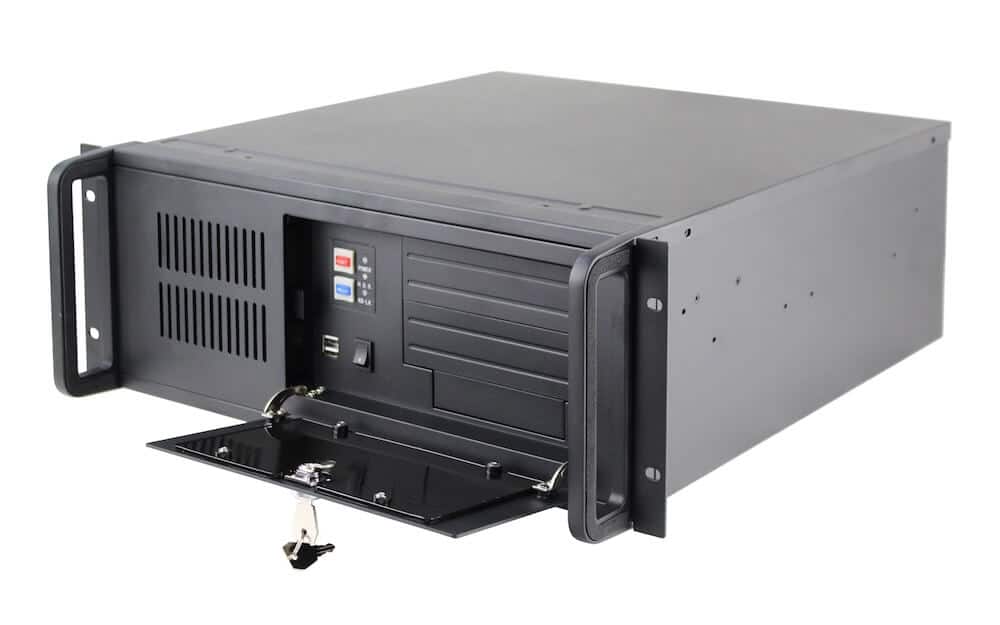

  • All I/O ports, Buttons, LEDs, Drive bays, AC inlet located on the front side

Description

The RPC-508-MX uses a 4U rack-mount form factor and is designed for ATX/MicroATX/Mini-ITX Motherboard.

Also, build two USB interfaces on the front panel. RPC-508-MX can equip high-wattage PS/2 form factor PSU. RPC-508-MX is suitable for Factory and Server applications.

Specification

Specifications
General
Construction Heavy-duty steel with aluminum front panel
Drive Bay 8x 3.5″ HDD( or 2x 2.5″ HDD/SSD), 2x 5.25″ Bays & 1x 3.5″FDD Bays(or 3.5″ HDD)
Cooling Fan One 12cm ball-bearing cooling fan(Front) & Two 8cm ball-bearing cooling fans (Real)
Indicator 1x Power On/Off LED, 1x HDD LED
Switch 1x Power On/Off, 1x System reset
Connector 2x USB ports on the front panel

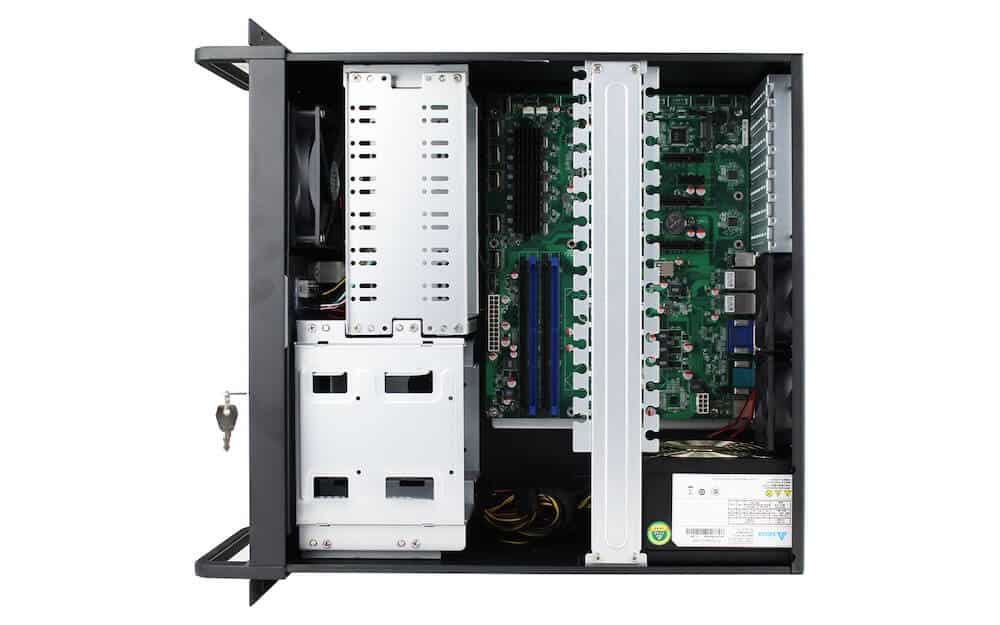

Expansion slots 7x Full-size PCI/PCIe expansion slots, vertical insert
Standard Color Black
Dimension 450 x 430 x 177 mm
Weight 11.4 Kg



POWER SUPPLY
POWER SUPPLY
Input Voltage 90V ~ 264V AC, full range
Input Frequency 50 ~ 60Hz
Input Current 10A@110V, 5A@240V
Efficiency > 80%
MTBF 100,000 hrs
EMI & Safety Approval CE, FCC



ENVIRONMENT
ENVIRONMENT
Operating Temperature 0°C ~ 50°C
Storage Temperature 0°C ~ 70°C
Relative Humidity 5% ~ 95°%, non-condensing
Vibration
  • 5~7 Hz: 0.5” double amplitude displacement
  • 7~2000 Hz: 1.5g acceleration

Ordering Guide

Ordering Guide
AREMO-1192-MX
19” 4U rack-mount chassis for M/B
