RPC-530

19” 4U industrial rack-mount chassis

Features

  • One slim CD-ROM and two 2.5” HDD/ SDD Drive bays

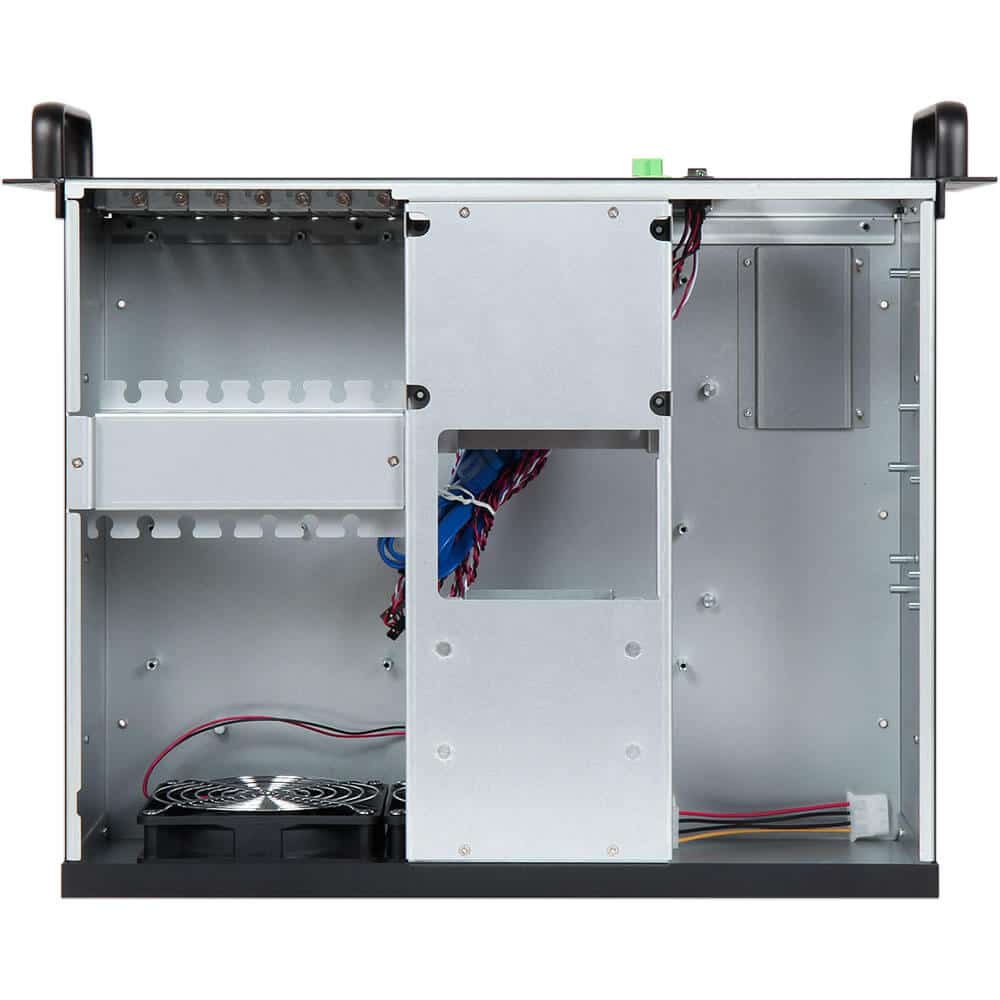

  • Two 12 cm ball-bearing cooling fans for better ventilation
  • Two USB 3 ports on the front panel

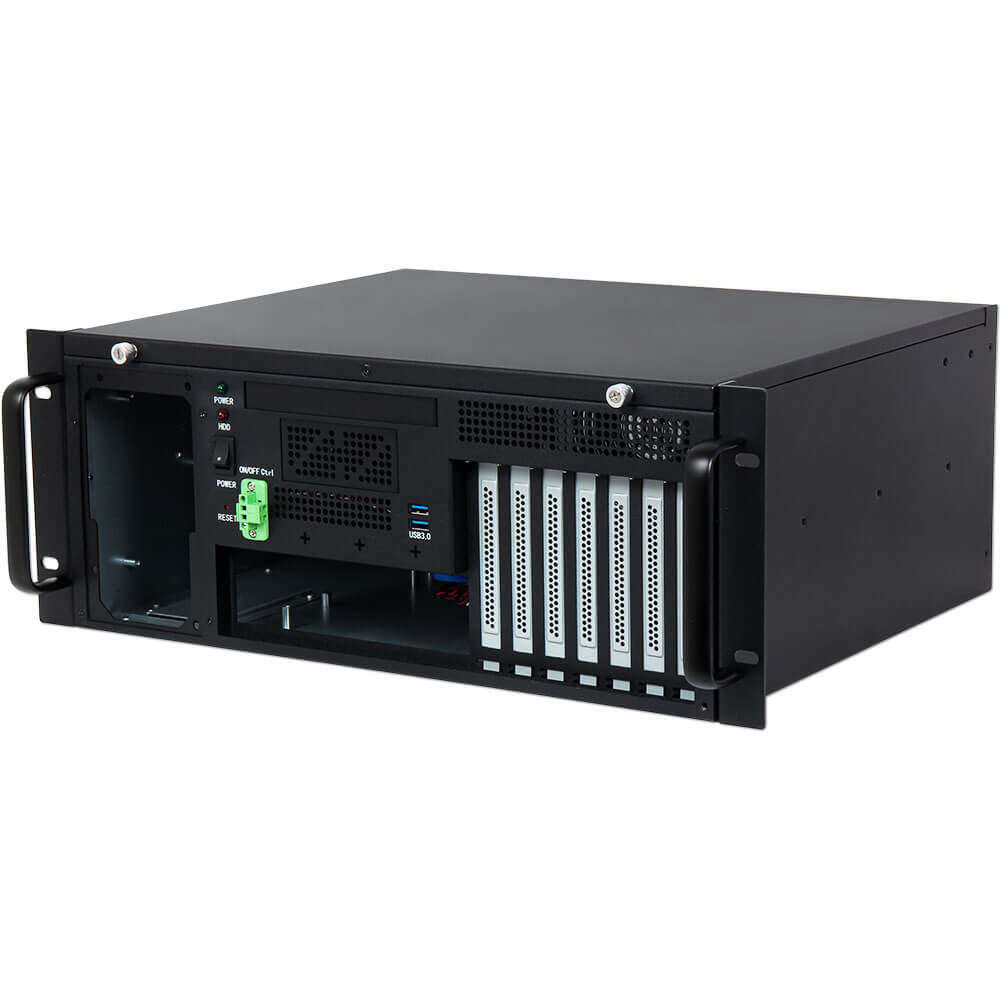

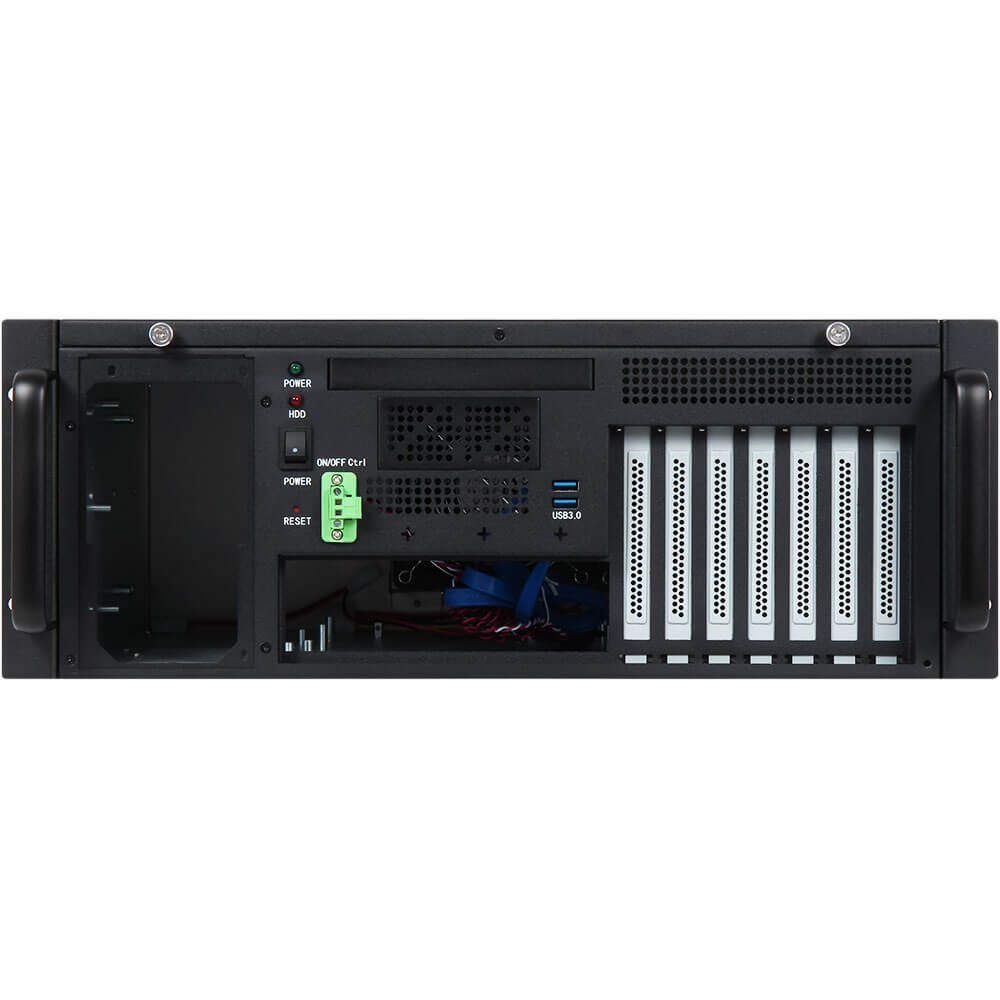

  • All I/O ports, Buttons, LEDs, Drive bays, AC inlet located on the front side

Description

RPC-530 is 19” 4U Front I/O Short Depth Rackmount Chassis for ATX/MicroATX Motherboard, it can support up to 7 add-on cards that also build one Slim ODD driver bays and two USB 3 interface on front panel. RPC530 can equip high wattage PS/2 form factor PSU. RPC-530 is suitable for Factory and Server applications.

Specification

Specifications
Construction Heavy-duty steel with aluminum front panel
Drive Bay 1x Slim ODD, 1x 3.5” HDD, 1x 2x 2.5” HDD/SSD
Cooling Fan Two 12cm ball-bearing cooling fans
Indicator 1x Power On/Off LED, 1x HDD LED
Switch 1x Power On/Off, 1x System reset
Connector 2x USB ports on the front panel
Standard Color Black
Dimension 482 x 175 x 350 mm
Weight 8.5Kg

Ordering Guide

Ordering Guide
RPC-530
19” 4U rack-mount all front chassis for ATX M/B

Support

(Documents & Downloads)

  Catalog   Catalog_RPC-530.pdf | Catalog 20230107   January 7, 2023
501.6 KB 1251 Downloads
