Portwell Global

RUBY-D814-Q870

Support Desktop Intel®Core™ Ultra Processors (Series 2),ATX with DDR5 Long-DIMM up to 192GB, VGA, DP, HDMI,Triple GbE LAN, Six Com Ports

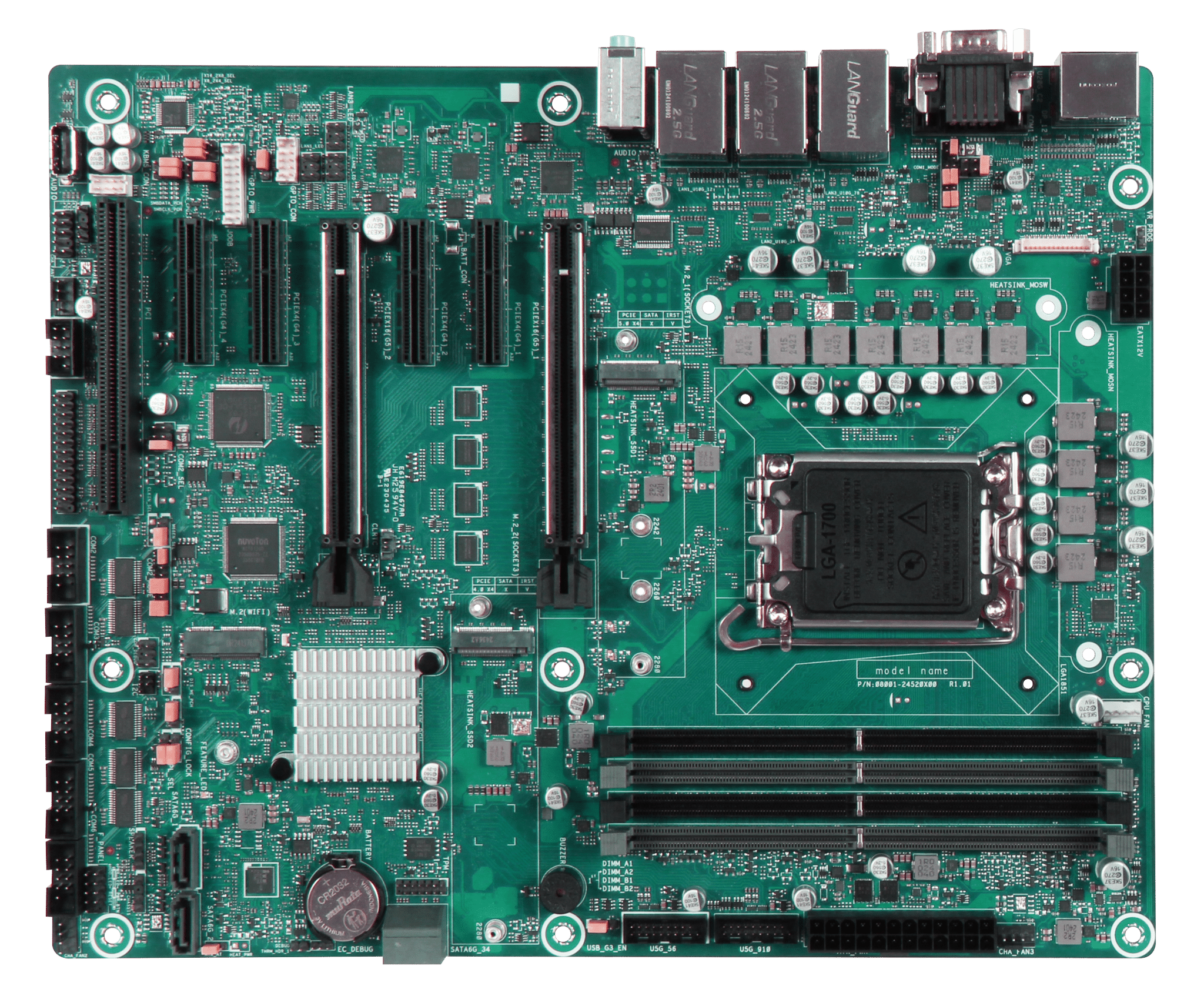

RUBY-D814_01_front

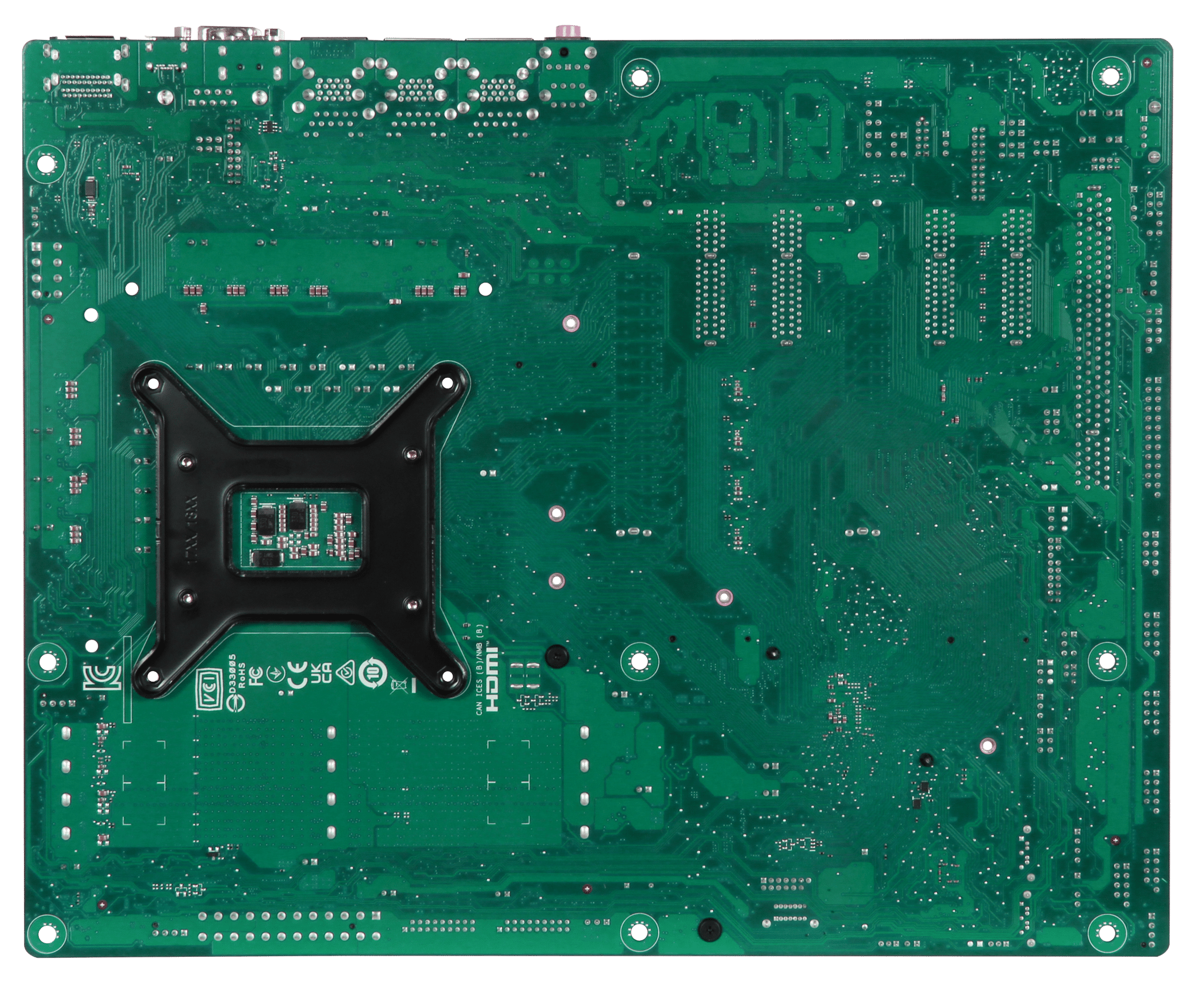

RUBY-D814-Q870 - Image 2

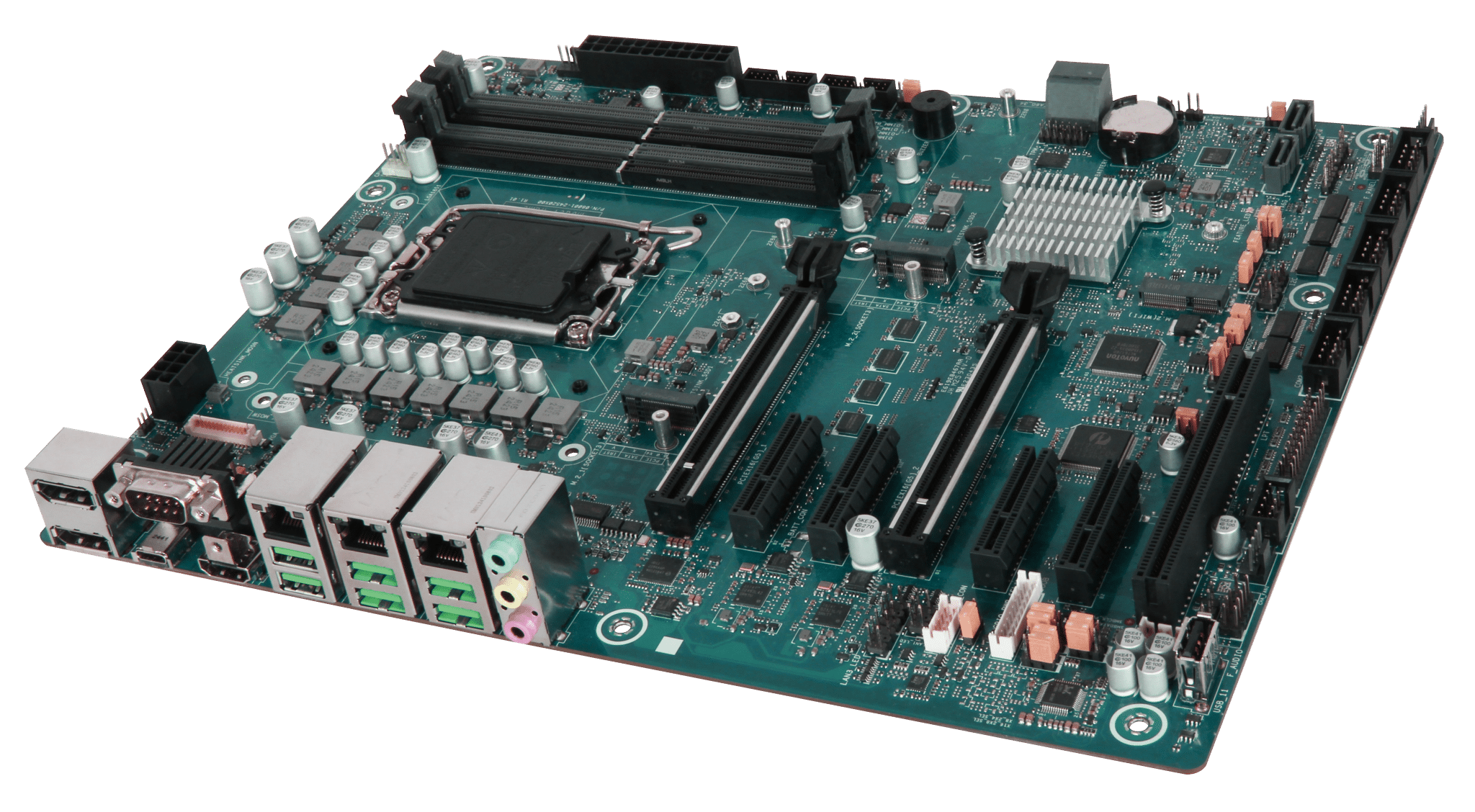

RUBY-D814-Q870 - Image 3

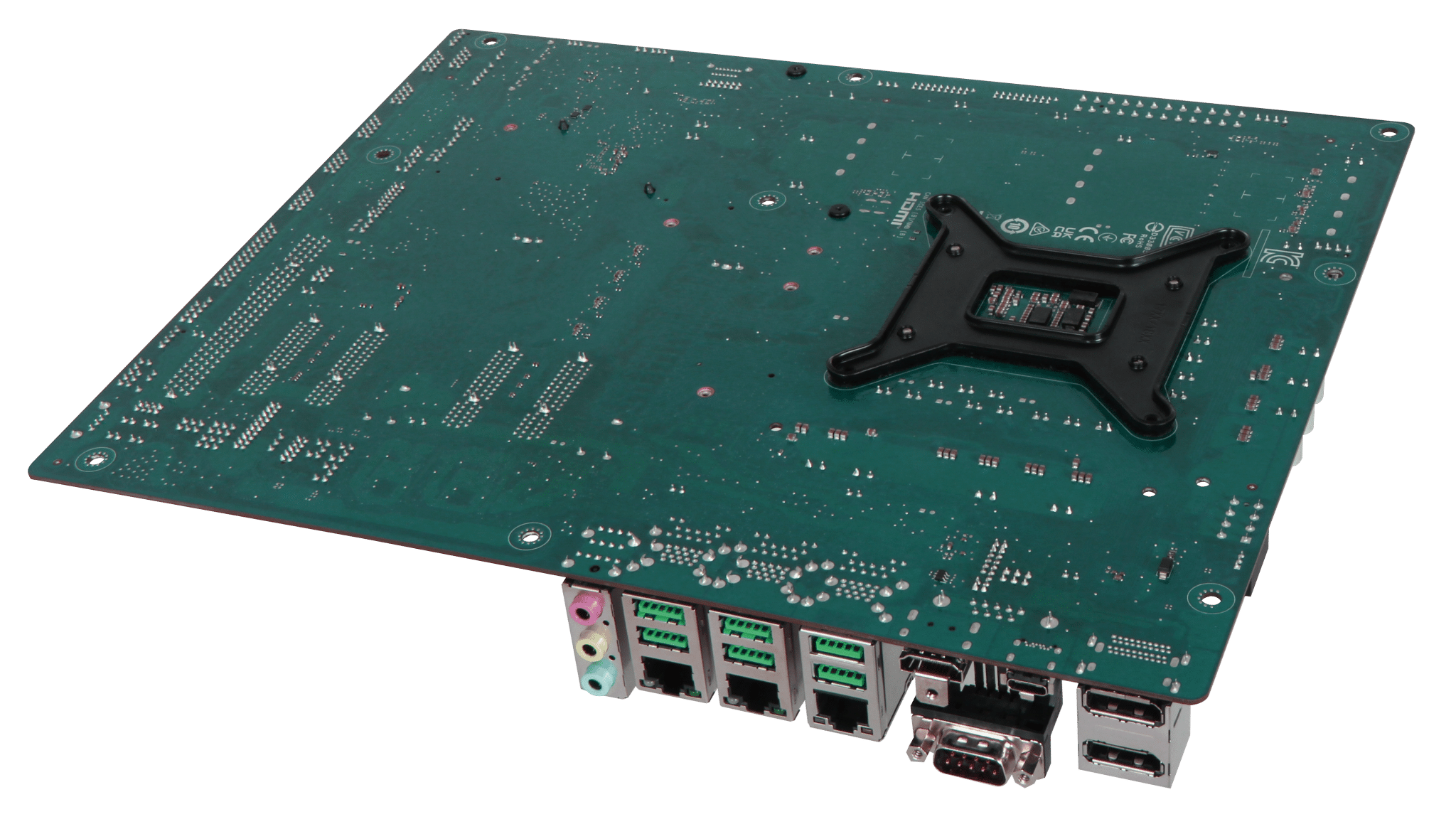

RUBY-D814-Q870 - Image 4
RUBY-D814-Q870 - Image 5

Features

  • Intel®Core Ultra™ Series 2 Processors
  • Four Long-DIMM support DDR5 Non-ECC DRAM up to 192GB
  • Support triple Ethernet, 6x COM Ports, 11x USB 3.2 Ports, 4x SATA III Ports and Audio
  • Two PCIe x16 (1 x16 signal / 2 x8 signal), four PCIe x4
    (2x PCIe x4 signal, 2x PCIe x2 signal), one PCI slot,
    two M.2 (Type M), 1x type 2242/2260/2280, and 1x type 2280
    and one M.2 (Type E) type 2230
Datasheet
Documents & Downloads

RUBY-D814 is based on Intel®Q870 chipset and Desktop processors including Intel®Core™ Ultra (Series 2) i5/i7/i9 Sku. This board supports DDR5, PCIe, and SATAIII. Those features help you to build high performance and stable system.

Specifications

General
Processor Intel®Core™ Ultra Processors (Series 2) in LGA1851 package
Chipset Intel®Q870
BIOS AMI uEFI BIOS
Memory Supports up to 192GB DDR5 up to 5600MHz Non-ECC on four Long-DIMM sockets
Storage Devices 4x SATAIII ports, supports RAID 0, 1, 5, 10
Watchdog Timer Programmable watchdog timer, time out period from 1 sec to 255 secs
Hardware Monitoring System monitor (Voltage/Fan Speed and Temperature)
Expansion Interface 2x PCIe5.0 x16 slot (x16 signal / x8 signal)
2x PCIe4.0 x4 slot (x4 signal, open end slot)
2x PCIe1.0 x4 slot (x2 signal, open end slot)
1x PCI slot
1x M.2 (Type M), type 2242/2280/22110 (PCIe5.0 x4), supports NVMe
1x M.2 (Type M), type 2280 (PCIe4.0 x4), supports NVMe
1x M.2 (Type E), type 2230, with support for Intel®CNVi™

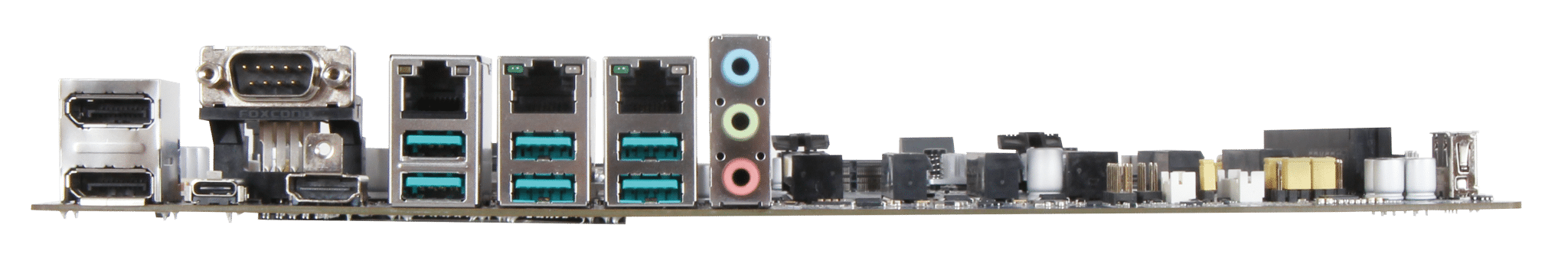

Rear I/O
Audio Realtek ALC887 audio controller
Audio Jack on rear I/O with Line-In / Line-Out / Mic-In
Ethernet Intel®I210IT, I226V, I226LM (I226LM support Intel®vPro®) Ethernet controller
3x RJ45 connectors on rear I/O
Serial Port 1x RS-485 connectors on rear I/O
1x RS232/422/485, 4x RS232 on pin header
USB 6x USB3.2 (Gen2) (Type A) on rear I/O
1x USB3.2 (Gen2x2) (Type-C) on rear I/O (co-lay with DP1.4)
GPIO 8-bit configurable controlled by embedded controller
Display
Graphic Controller Intel®Xe LPG Graphic
Display Interface DP: Two DP 1.4 ports on rear I/O, resolution up to 3840×2160 at 60Hz
One DP 1.4 on rear I/O, co-lay with USB3.2 Gen2x2 Type-C
HDMI®: One HDMI® 2.1 connector on rear I/O, resolution up to 4096×2160 at 60Hz
VGA: One VGA port on rear I/O, resolution up to 1920×1200 (addition cable required)
Mechanical/Environment
Dimension 304.8mm(L) x 243.8mm(W) x 1.6mm(H)
Power Supply ATX power input
Environment Operation Temperature: 0°C to 60°C
Storage Temperature: -40°C to 85°C
Relative Humidity: 10% to 95%, non-condensing
MTBF Over 100,000 hours at 40°C

Ordering Guide

Ordering Guide
AB1-3U19 (R), RUBY-D814-Q870, ATX, IMB, LGA1851, CPU Q870,
w/ DDR5/DP/HDMI®/Triple GbE/COM/Audio/USB
Packing List
One RUBY-D814-Q870 main board
One I/O shield
One SATA cable
